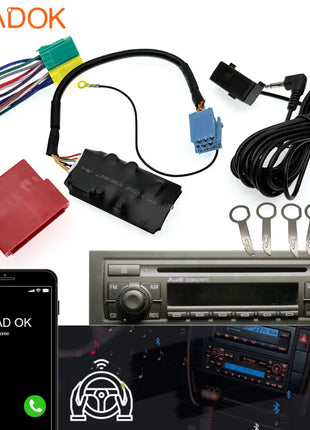

1. Plug and play: Use the original car audio host's disc box interface to install in place, simple and fast, and integrate perfectly with the original car.
2. Support HFP Bluetooth hands-free calling: You can control the operation of answering / hanging up the phone through the original car audio host and the steering wheel buttons.
3. Support A2DP Bluetooth music player: Bluetooth device audio can be easily played through the original car audio

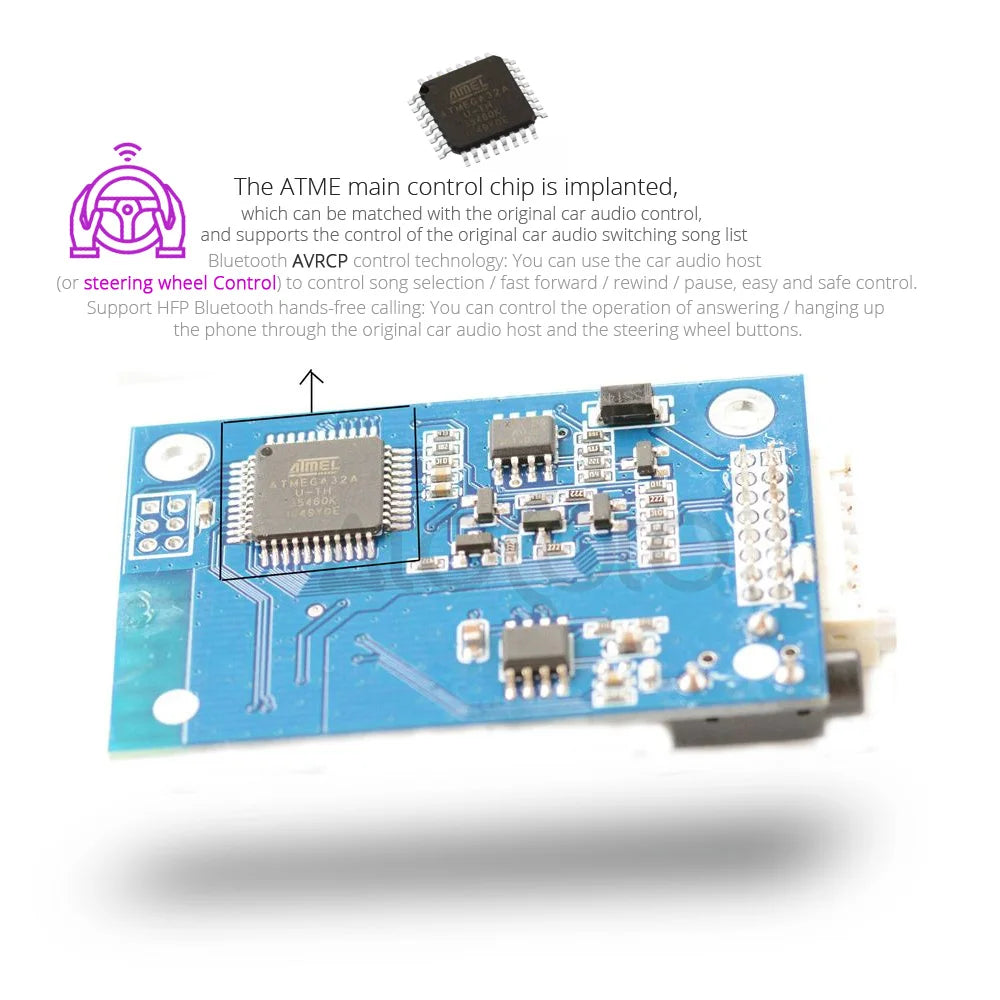

4. Bluetooth AVRCP control technology: You can use the car audio host (or steering wheel) to control song selection / fast forward / rewind / pause, easy and safe control.
5. High-fidelity sound quality: The Bluetooth host is output to the car audio through a wired connection, eliminating any interference and sound quality loss, and the sound quality is comparable to CD.
Product Description:
- Input voltage: 12V DC
- supports HiFi, A2DP, AVRCP and HFP
- Frequency response: 20Hz to 20kHz, ± 2dB
- Frequency Range: 2.402~2.480GHz
- Power: 5W
- Distortion: 0.01%
- SN Ratio: 95dB
- Working temperature: -35C-85C

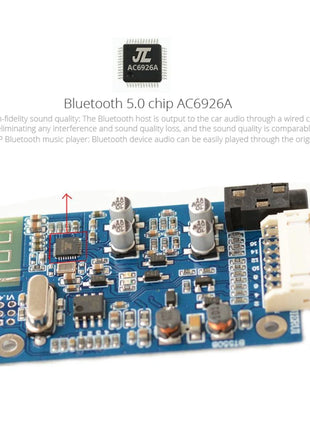

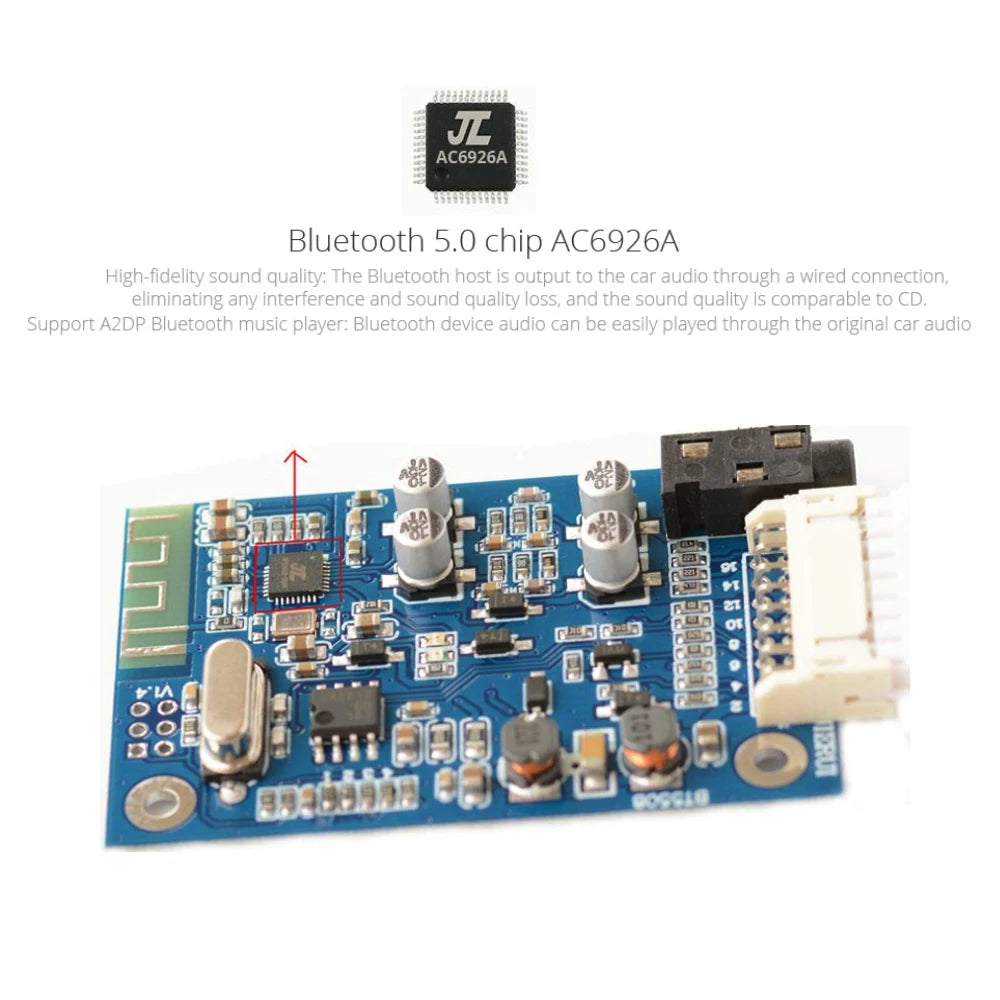

- AC6926A stereo bluetooth chip.
- Integreated intelligent voice noise reduction tenology to reduce for echo and noise
- Support Button control on radio/steering wheel
Compatible for:
For Audi
1999-2005 A2,
2001-2006 A3,
1998-2006 A4/S4,
2001-2004 A6/S6,
1999-2003 A8/S8,
2000-2005 AllRoad,
1999-2003 TT
For Volkswagen VW
Bettle 1998-2008
Cabrio 1998-2002
Eurovan 1999-2003
Golf 1998-2002
GTI 1999-2002
Jetta 1998-2001
Passat 1998-2000 ISO-Mini
T5 1999-2002
Sharan 1998-2001
Fort Skoda
Fabia 2003-2008
Octavia 2003-2007
Superb 2003-2008
For Seat
Ahambra 1996-2004
Arosa 1997-2004
Cordoba 2003-2006
Ibiza 1999-2007
Leon 2000-2005
Toledo 1999-2005
Vario 1999-2005
Please note:
1. This adapter not compatible with Navi and DVD radios.
2. This adapter is not fit for Renault or other models that are not in the car model list.

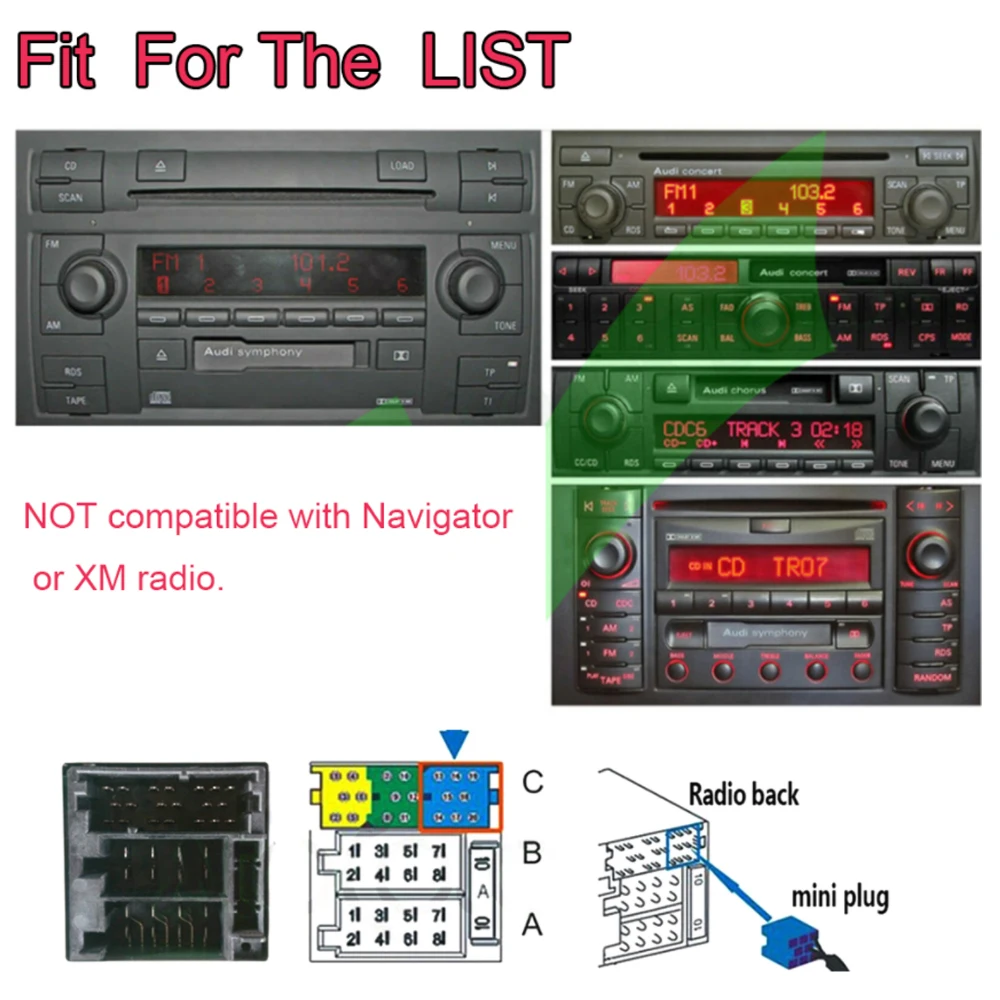

3. NOT compatible with Navigator or XM radio.
4. NOT compatible Audi Navigation Plus 1 (must not MMI), Navigation Plus 2 (must not MMI)
5.

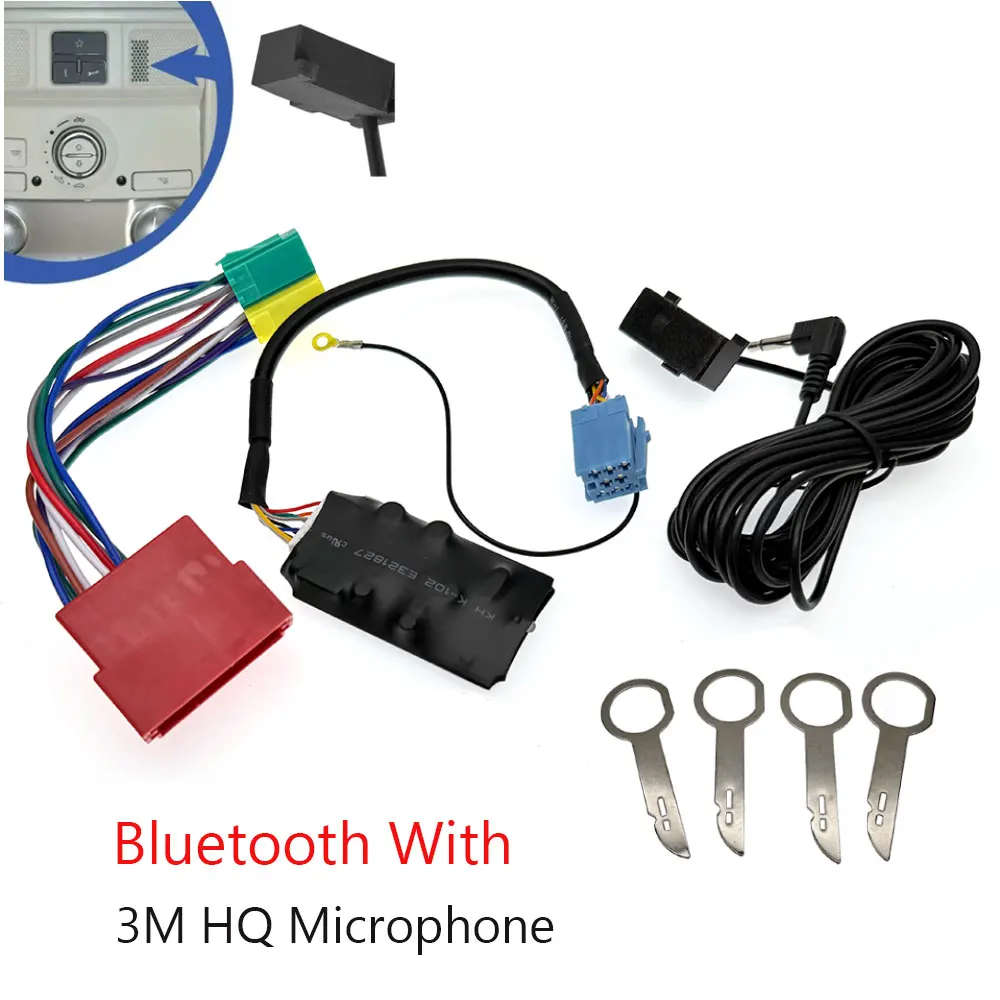

The 1.5M mic is a complimentary microphone and does not guarantee call quality. If you want to make a call in the car, please buy the HD MIC version, thank you

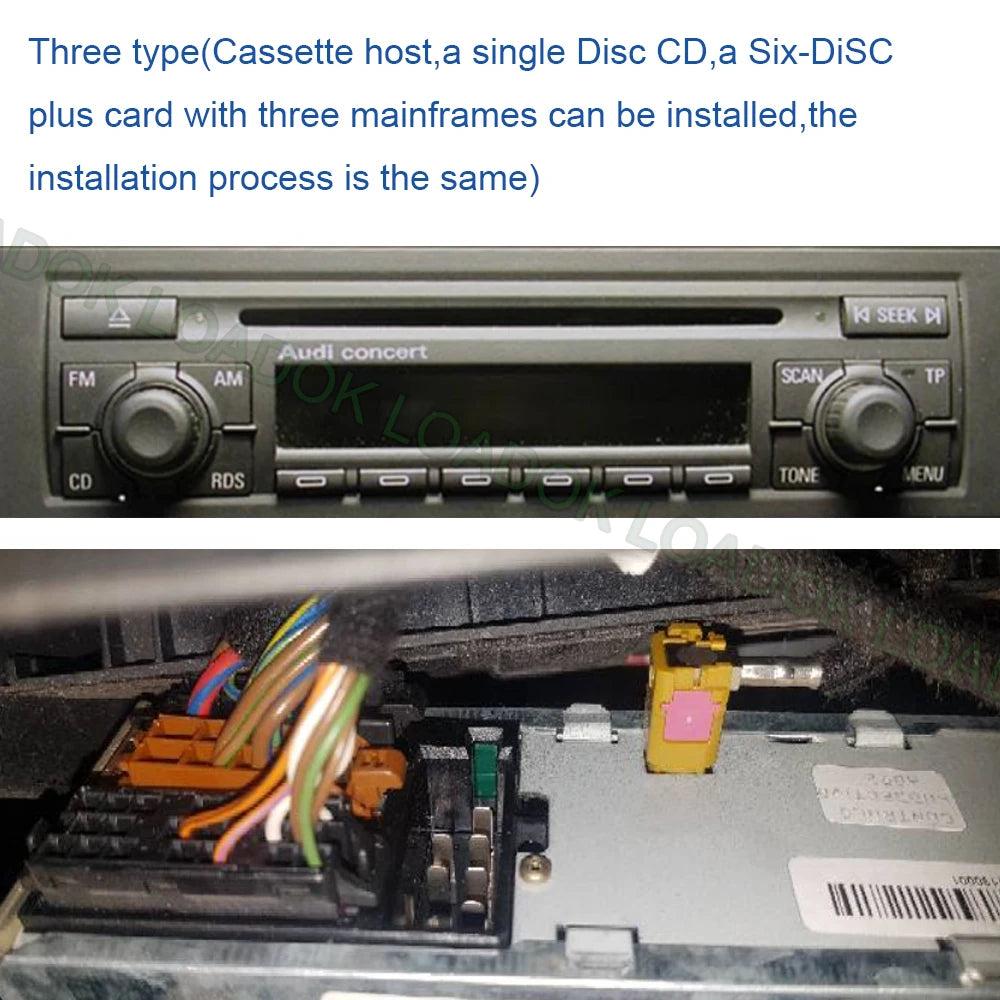

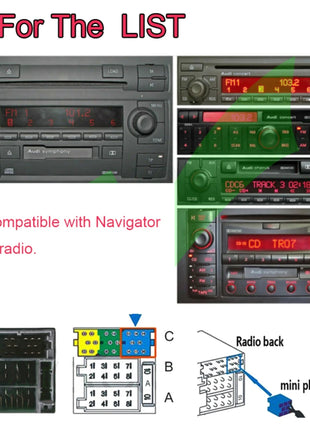

Compatible with these Head Units:
For Audi 8pin:
Chorus 1, Chorus 2, Concert 1, Concert 2, Symphony 1, Symphony 2, Navigation Plus 1 (non MMI), Navigation Plus 2 (non MMI),Delta(excluding Delta CC), etc

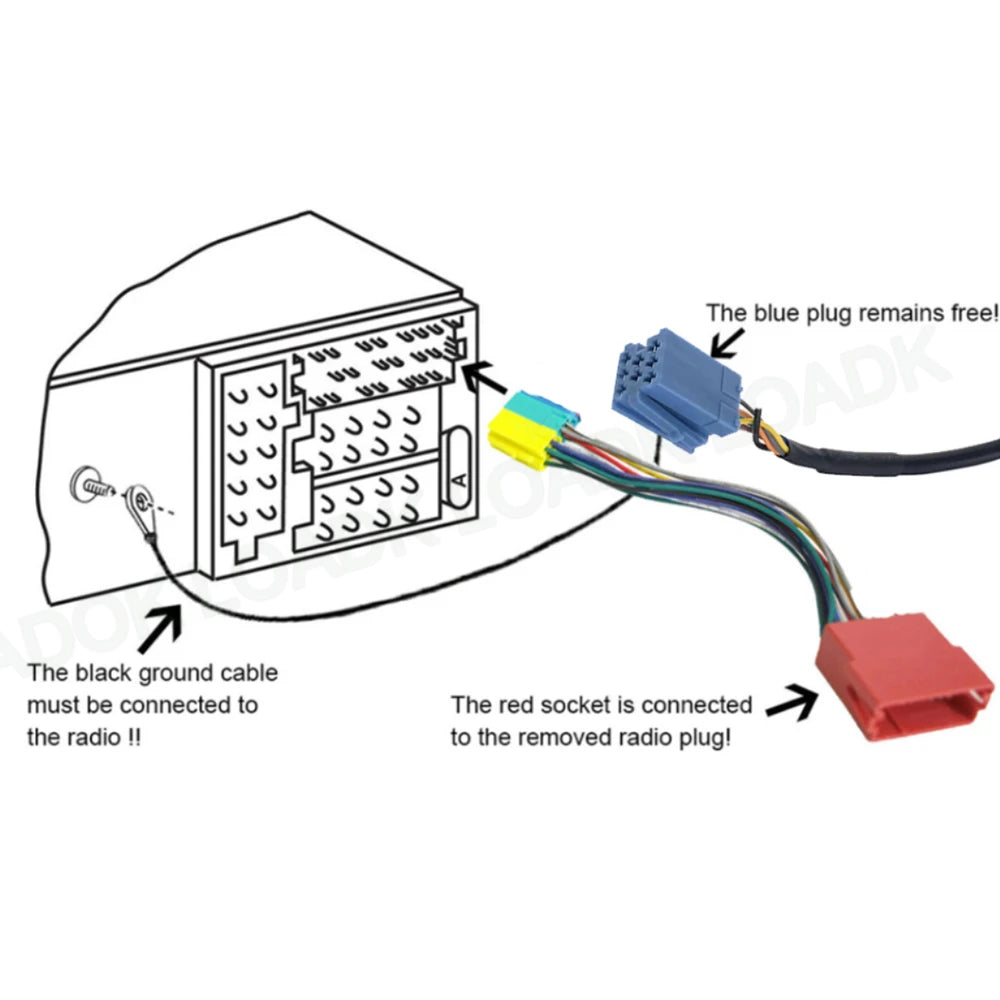

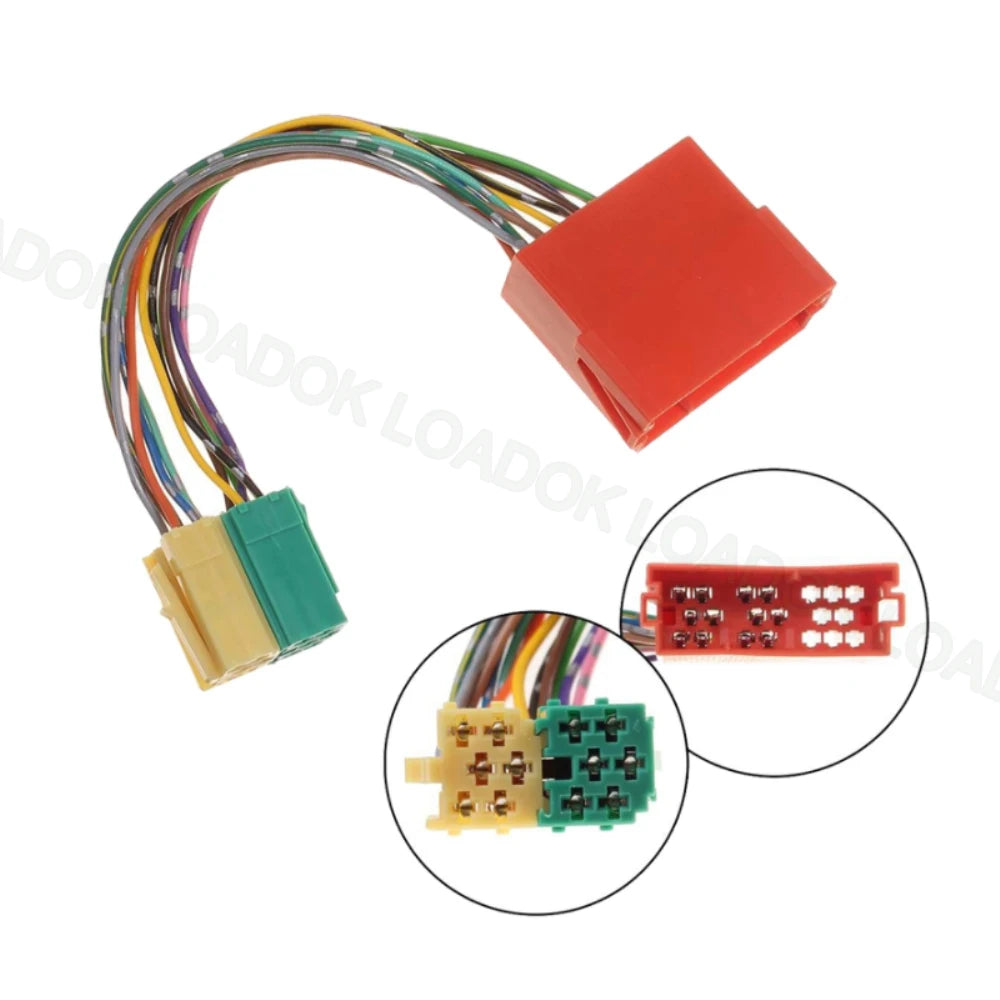

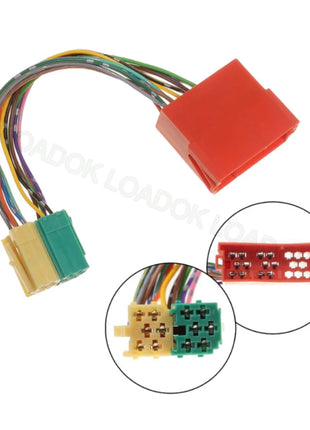

(The facotry connector must be removed to gain access to the CD changer port. The Audi 20-pin Adapter Cable should be used to accept the factory connector and plug into the radio. )
For Skoda 8pin:
Gamma; MS 303, MS 402, MS 501, MS 502, Symphony CD & Kassette, Melody, Rhapsody, SatCompass;
For VW 8pin:
Alpha5, Beta 5,Gamma 5,New Beetle Alpha 5, Gamma, New Beetle Gamma CD,
Monsoon, Phaeton Rhapsody, Premium 4 Clarion, Premium 5 Delco,
RNS-MCD,Z6Z9(Phaeton), Z9Z7(New Beetle), MFD Navi
For Seat 8pin:
Alana, Aura, Aura CD,Beta,Elba,Lena, Liceo, Scala, MFD, Highline, Odeon

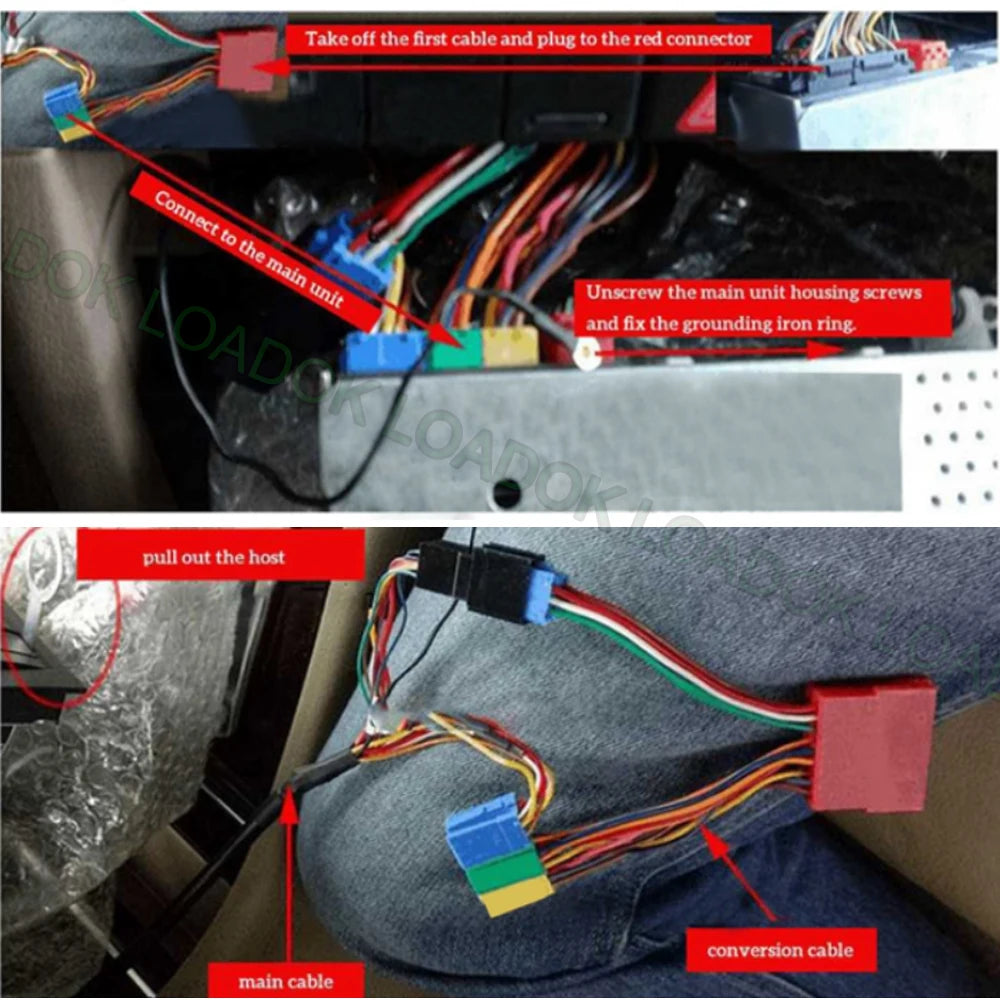

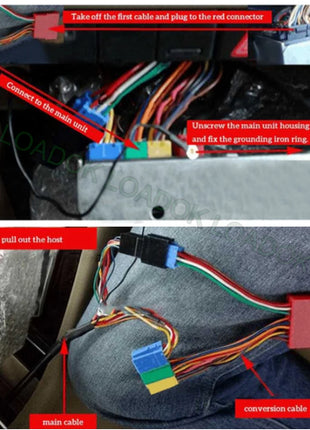

Installation Guide

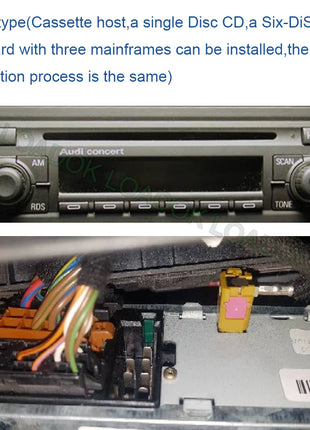

1. Power off the car, remove the radio

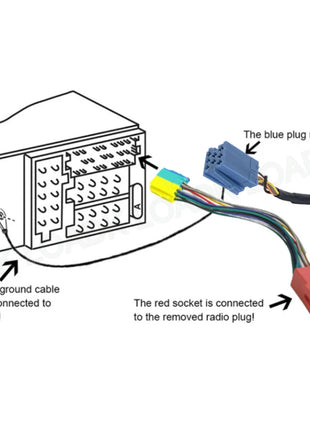

2. plug the device into the CDC port ( at the back of radio )
3. Connect your Ipod or Iphone by include ipod cable.
4. For Bluetooth, plug the included MIC phone into the device and fix the microphone on a good position. then open the BT in your mobile,
5. After connecting, turn on your radio and press CD/AUX to switch to the ipod aux adapter, Then you could listen the music from the ipod, Control the music from the audio button by pressing DISC +/-, TRACK +/-
6. For BT, when the call is coming the device will switch form IPOD mode to BT mode, Press TRACK +/- to answer or end call, when you hang up the call, it will continue to play the ipod music automatically.

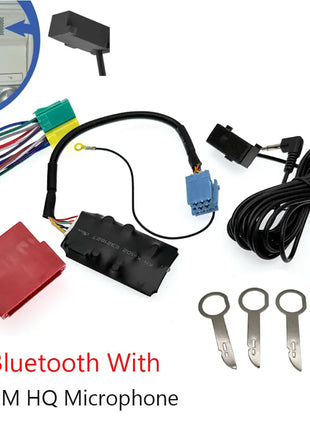

Package List:

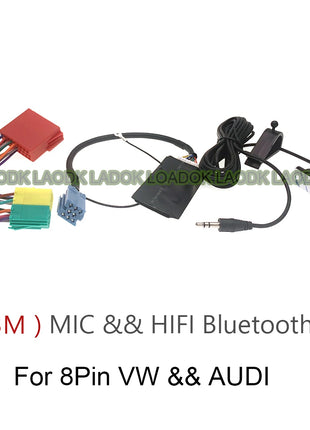

1 x bluetooth module
1 x bluetooth microphone
1 x User Manual
