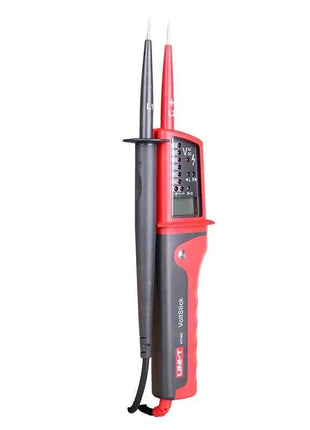

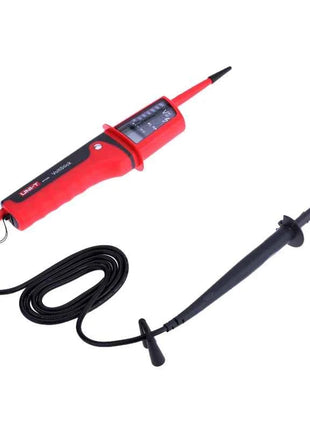

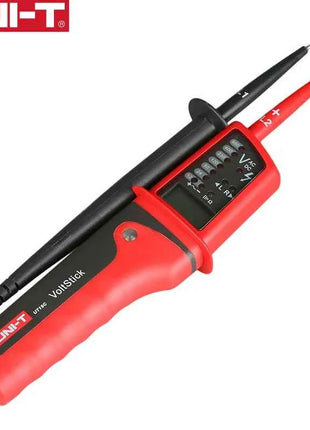

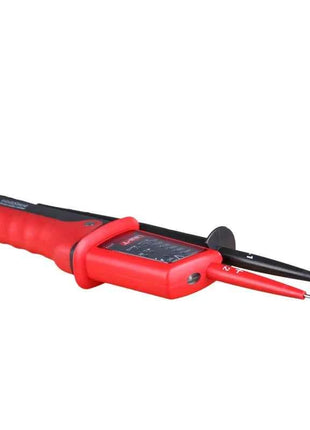

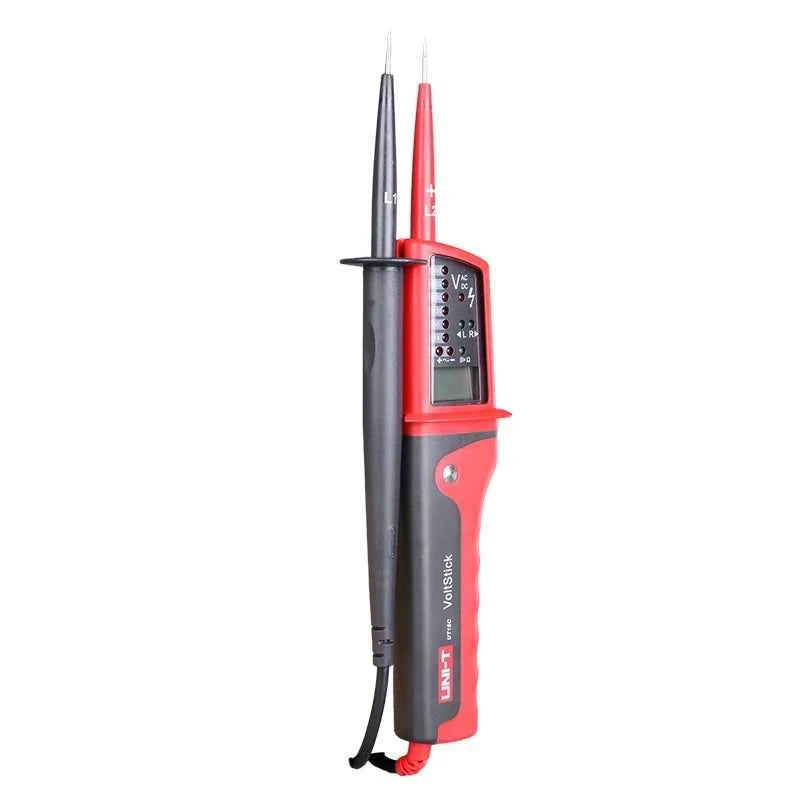

UNI-T UT15C Waterproof Digital Voltage Meter 24V~690V AC/DC Voltage Testers LCD Display Auto Range Phase Rotation voltage tester

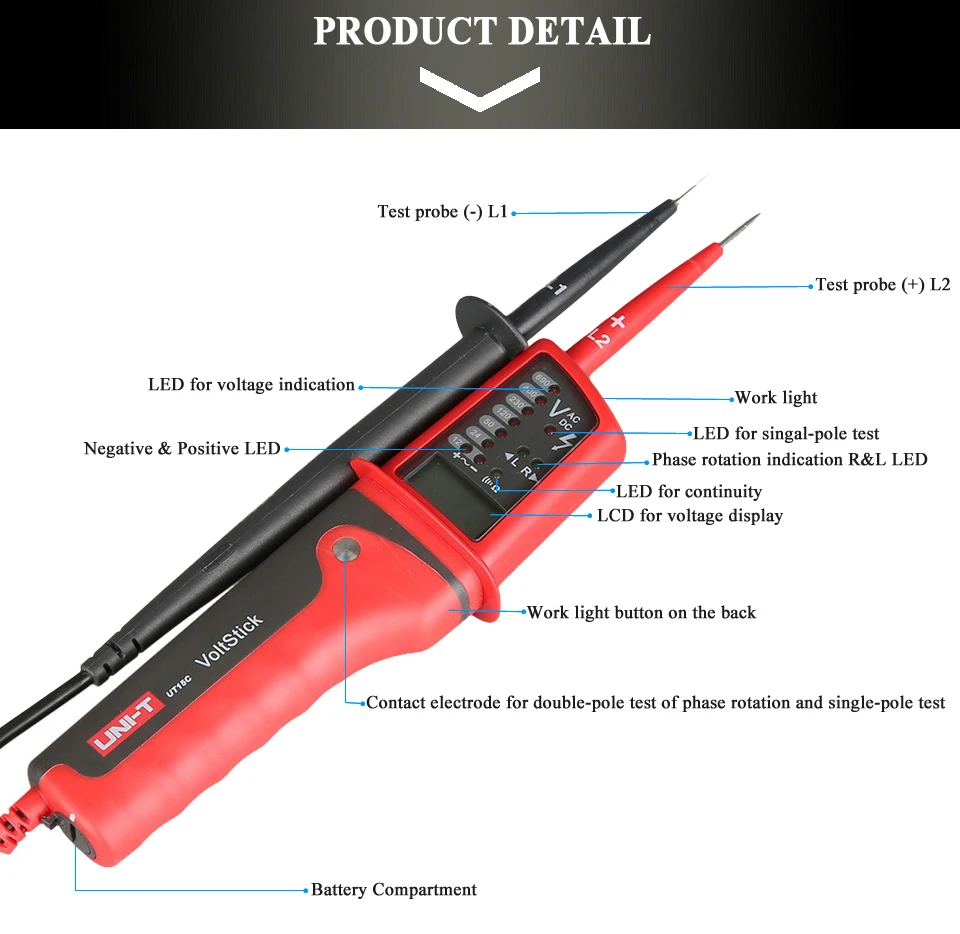

The UT15 series is certified to CAT IV 600V to avoid sudden transient overvoltage damage to the user. IP65 waterproof level, built-in lighting, RCD test, phase position rotation test, etc., to meet the troubleshooting requirements in various harsh environments
Features:
LED promopt
IP65 waterproof
Auto power on, the conductor to be measured greaterthan 12V
Phase rotation test
Continunity test with buzzer and LED indication
Built-in flashlight, meet working requirement in dark or evening enviroment
Single probe measurement, you can judge the zero-fire line
Automatic range, self-test function
Polarity prompt, showing the positive and negative voltages of the tested conductor
Bullet point
UT15C test pen with the measurement of AC and DC voltage (contains three-phase alternating current (AC) measurements, three-phase AC phase indicator, on-off test, single pen measurement can determine the zero line and Firewire) function.

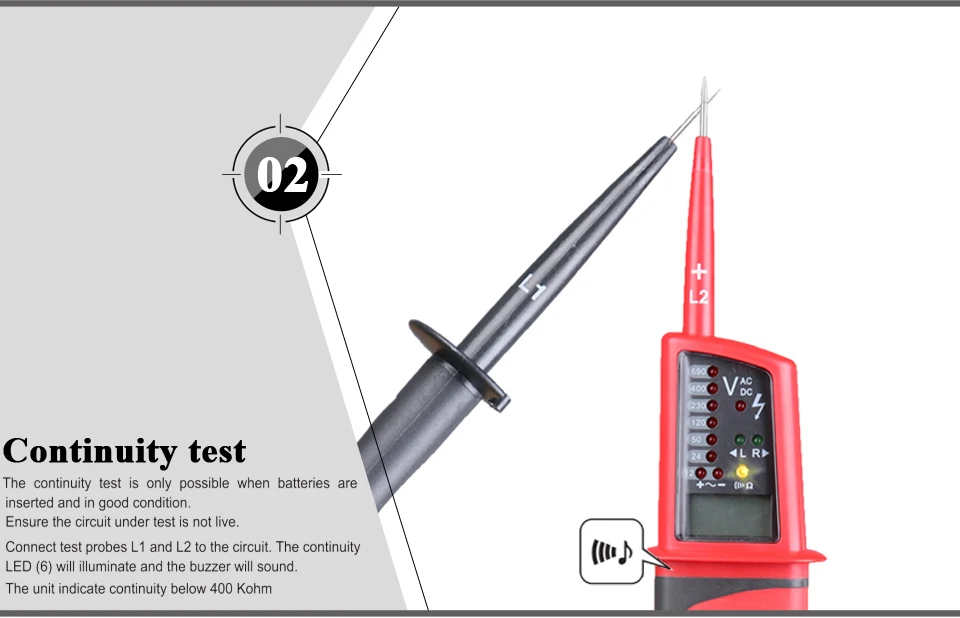

Continuity test: Range 0 to 100 kOhm. The continuity LED will illuminate and buzzer will sound.
LCD Voltage Display.
Phase Rotation Test: 50Hz to 60Hz.
Can be applied to: smelting, electronics, manufacturing, petroleum, national defense, power, chemical and other industries. Also used to solve complex problems in electronic, factory automation, power distribution and mechanical and electrical equipment.
Specifications
Specifications |
Range |
Best Accuracy |
Model |
|
UT15C |
LED AC/DC Voltage Indication (V) |
12V |
0-10V |
24V |
17V±2V |
50V |
35V±5V |
120V |
80V±15V |
230V |
165V±20V |
400V |
300V±30V |
690V |
510V±40V |
Phase Rotation Test |
Operating Voltage: 0V~690V |
√ |
Frequency:50Hz~ 60Hz |

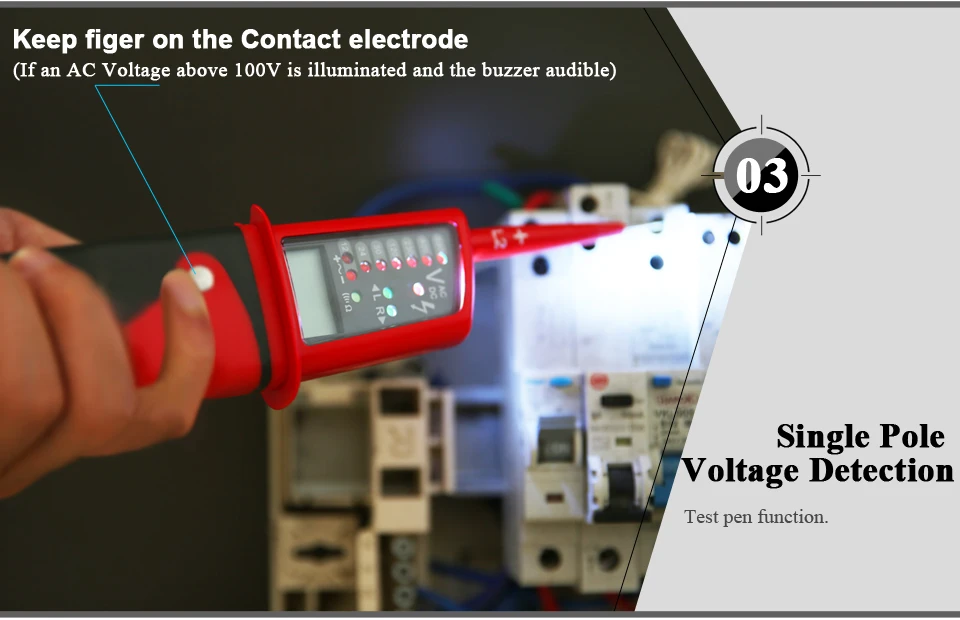

Single Lead(L2)Voltage Detection |
Operating Voltage:100V~690V |
√ |
Frequency: 50Hz~ 400Hz |
Continuity Test |
Resistance: 0~400KΩ |
√ |
Beeper and LED light Indicator |
Polarity Detection |
Positive & Negative |
√ |
Features |
Water-Proof(IP65) |
|
√ |
Auto Range |
|
√ |
Work Light |
|
√ |
Low Battery Indication |
Short circuit two leads,LED and beeper off when the bettery is low |
√ |
LCD AC/DC Voltage Display |
24V~ 690V |
±(3%+8) |
General Characteristic |
Power |
1.5V Batteries(R03)X 2 (not included , because airline not allow to carry battery) |
LCD Size |
23 X 12mm |
Product Color |
Red and Grey |
Product Net Weight |
210g |
Product Size |
275mm X 51mm X 30 mm |
Standard Accessories |
Batteries are not included |

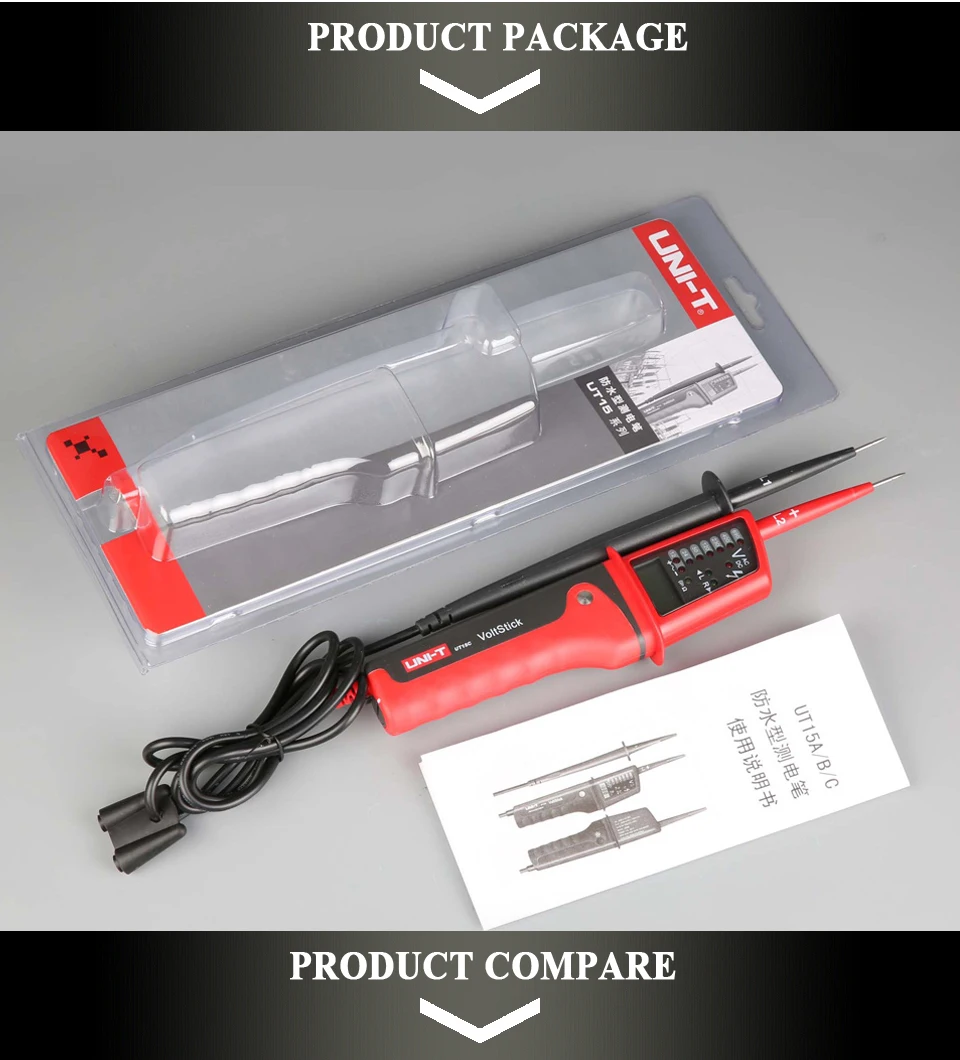

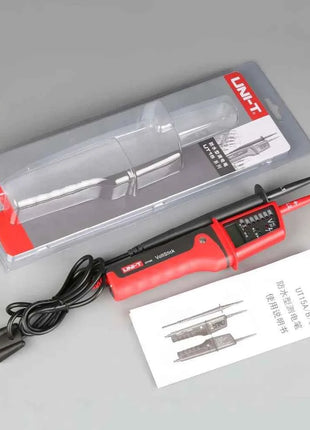

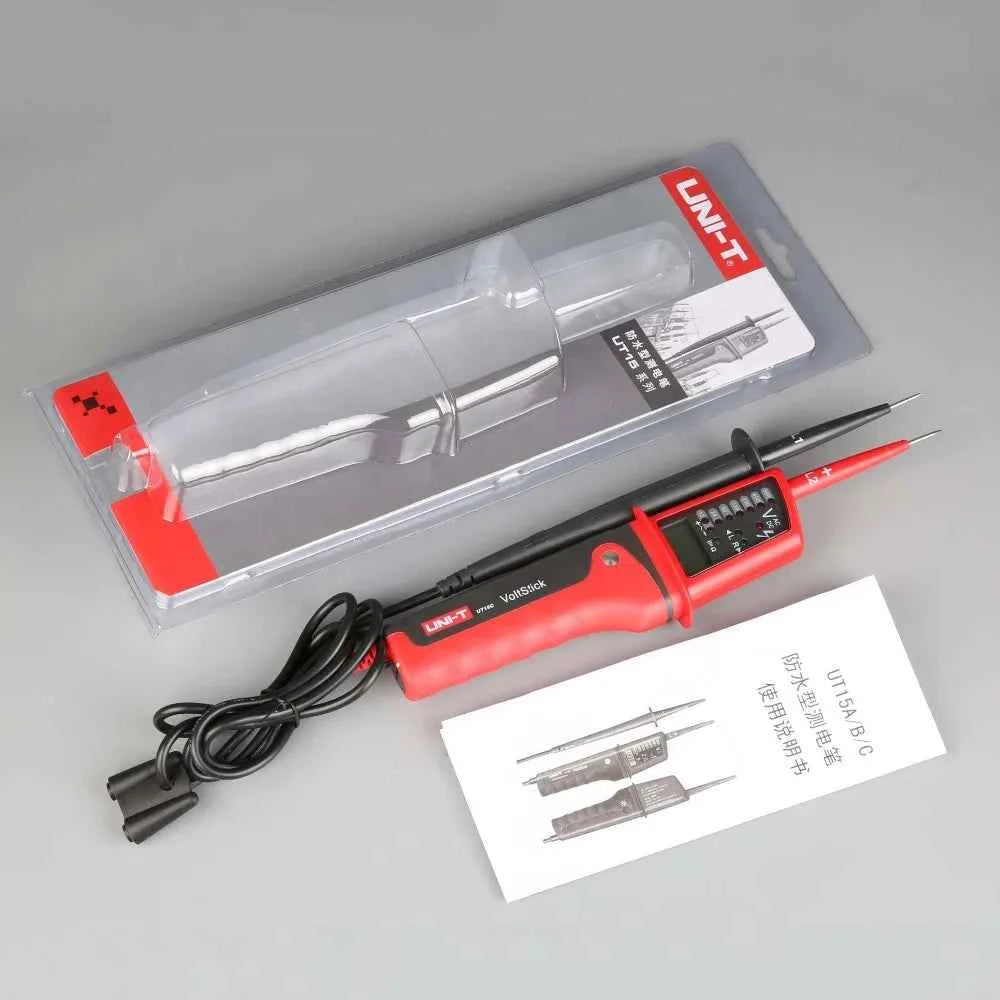

Standard Individual Packing |
Blister, English Manual |
Notic please: battery no include!
