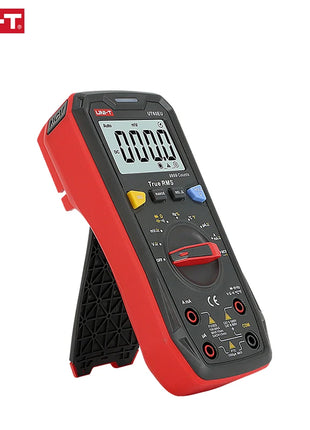

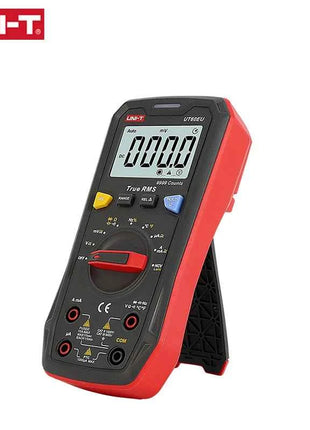

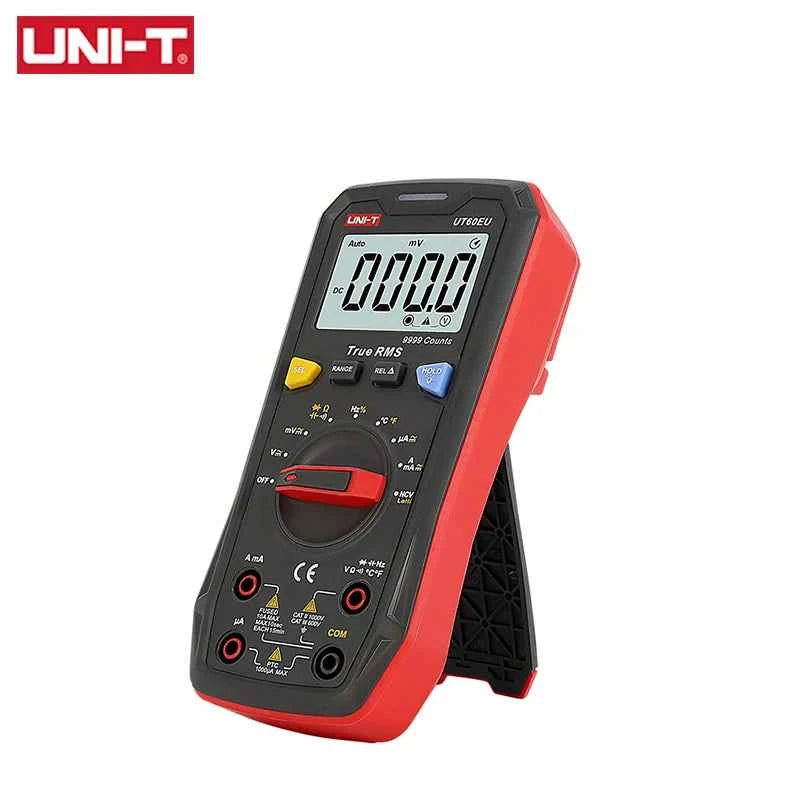

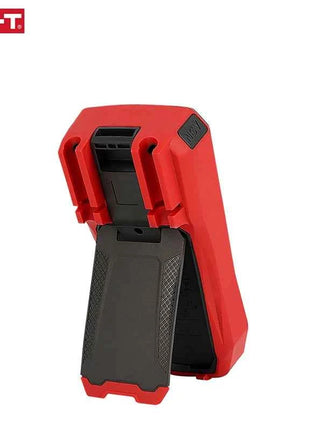

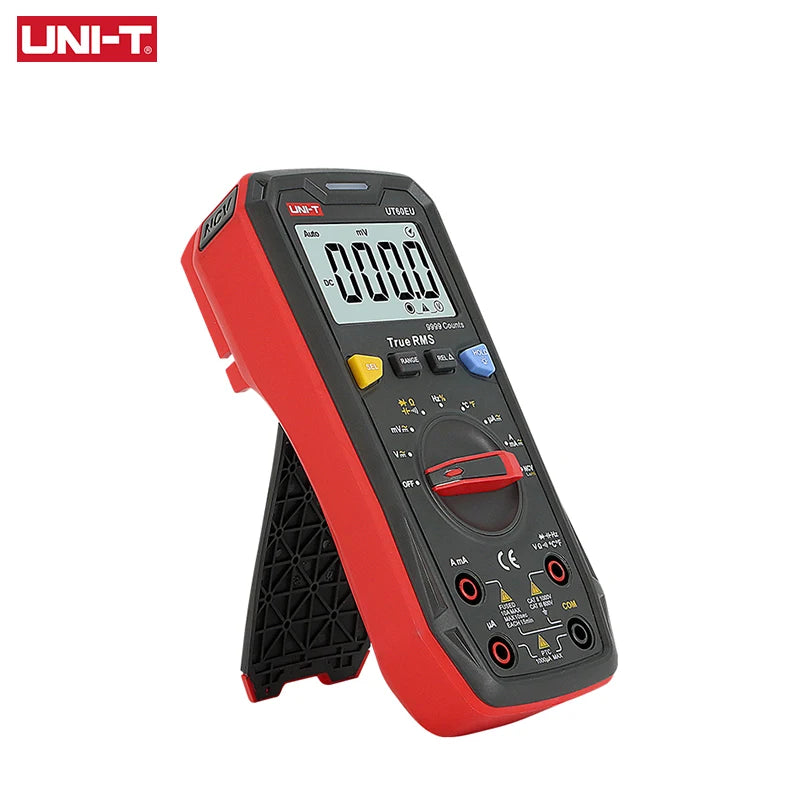

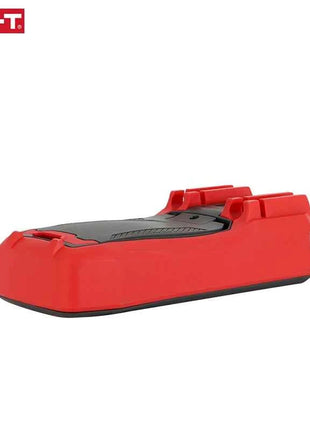

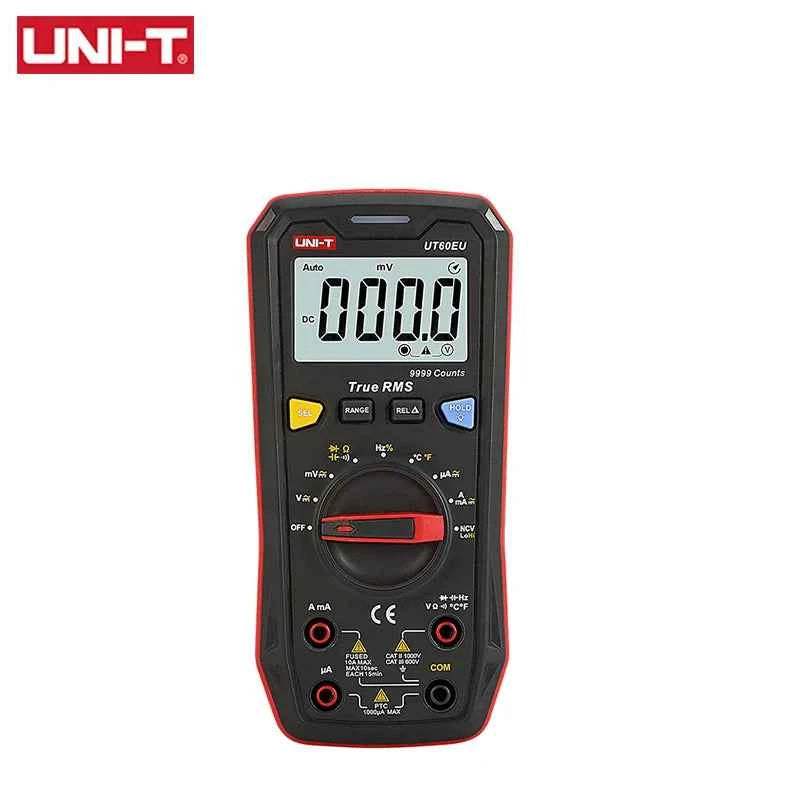

UNI-T Mini Digital Multimeter UT60EU 1000V AC DC Voltage Current Meter Automotive Tester Capacitor Temperature Test 9999 Counts

Condividi
- WhatsApp
- Facebook
- X
- Pinterest
- Messenger
- Email

Forma del prodotto

SPECIFICATIONSAC Current: 10AAC Voltage: 999.9VAuto Range: YesBattery Included: NoBrand Name: UNI-TCertification: CEContinuity Test: YesDC Current: 10ADC Voltage: 999.9VDIY Supplies: ElectricalDimensions:... Per saperne di più

Ships From

Russian Federation
CHINA

SKU: 1005003534841630-CHINA

9 in stock Delivery within 48 hours, pay afterwards

€182,40 incl. I.V.A.

15% off 15 - Buy 14 more to qualify

Do you need a large stock? Contact us.

20% off 20 - Buy 19 more to qualify

Do you need a large stock? Contact us.

Sustainable and eco-friendly

Available in large numbers

tutti i prodotti di riparo82 vengono spediti 2 o 6 giorni lavorati

Email us: Info@riparo82.com

Available on working days between 9:00 am to 6:00 pm

Guaranteed secure & safe checkout.

Descrizione

SPECIFICATIONS

AC Current: 10A

AC Voltage: 999.9V

Auto Range: Yes

Battery Included: No

Brand Name: UNI-T

Certification: CE

Continuity Test: Yes

DC Current: 10A

DC Voltage: 999.9V

DIY Supplies: Electrical

Dimensions: 169mm x 81mm x 46mm

Display Count: 9999

Display Type: Digital Display

Duty Cycle: 0.1-99.9%

Frequency: 99.99Hz-9.999MHz

Hign-concerned Chemical: None

Measuring Resistance Range: 999.9Ω/9.999kΩ/99.99kΩ/999.9kΩ/9.999MΩ/99.99MΩ

Model Number: UT60EU

Operating Mode: Auto range

Operating Temperature: 0 - 40 ℃

Origin: Mainland China

Temperatue: -40-1000 ℃,-40-1832 ℉

UNI-T Model: UT60EU

Voltimetro: Tester multimeter

UT60-EU True RMS Digital Multimeter

UT60 series digital multimeters provide True-RMS measurement, 9999-count resolution, non-contact voltage detection and many convenient features for users’ testing needs. These auto-ranged meters can measure up to 1000V AC/DC voltage, 10A AC/DC current and 100MΩ resistance. The easy-to-use interface with backlight enables you to detect equipment quickly even in dark places.

Features

1. 9999 counts
2. True RMS
3. Bluetooth
4. Duty cycle
5. Diode/Continuity test
6. Temperature
7. Non-contact voltage
8. Analog bar/Data hold
9. Backlight/Relative mode
10. Auto/Manual range
11. Low battery indication
12. Three-color LED light indicator

Parameter

Specifications	Range	UT60EU
DC Voltage	9.999mV/99.99mV/999.9mV/9.999V/99.99V/999.9V	±(0.5%+3)
AC Voltage	9.999mV/99.99mV/999.9mV/9.999V/99.99V/999.9V	±(0.8%+3)
DC Current	999.9uA/999.9mA/9.999A/10A	±(0.8%+3)
AC Current	999.9uA/999.9mA/9.999A/10A	±(1.0%+3)
Resistance	999.9Ω/9.999kΩ/99.99kΩ/999.9kΩ/9.999MΩ/99.99MΩ	±(0.8%+2)
Capacitor	9.999nF/99.99nF/999.9nF/9.999μF/99.99μF/999.9μF/9.999mF	±(4.0%+5)
Frequency	99.99Hz～9.999MHz	±(0.1%+5)
Duty Cycle	0.1～99.9%	±(3%+5)
Temperatue	–40℃～1000℃/–40°F～1832°F	±4℃/±5℉
Features
Display Count		9999
Auto Range		√
REL		√
NCV		√
Diode		√
Continuity Test		√
Acousto-optic Indication (NCV/continuity/battery power)		√
Low Battery Indication	≤3.6V	√
Data Hold		√
Auto Power Off	15Min	√
Operation Temperature	0℃～40℃
Safety	CATII 1000V/CATⅢ 600V
General Characteristics
Battery	1.5V AAA x 3(No include)
Product Color	Red and Gray
Product Net Weight	290g
Product Size	169mm x 81mm x 46mm

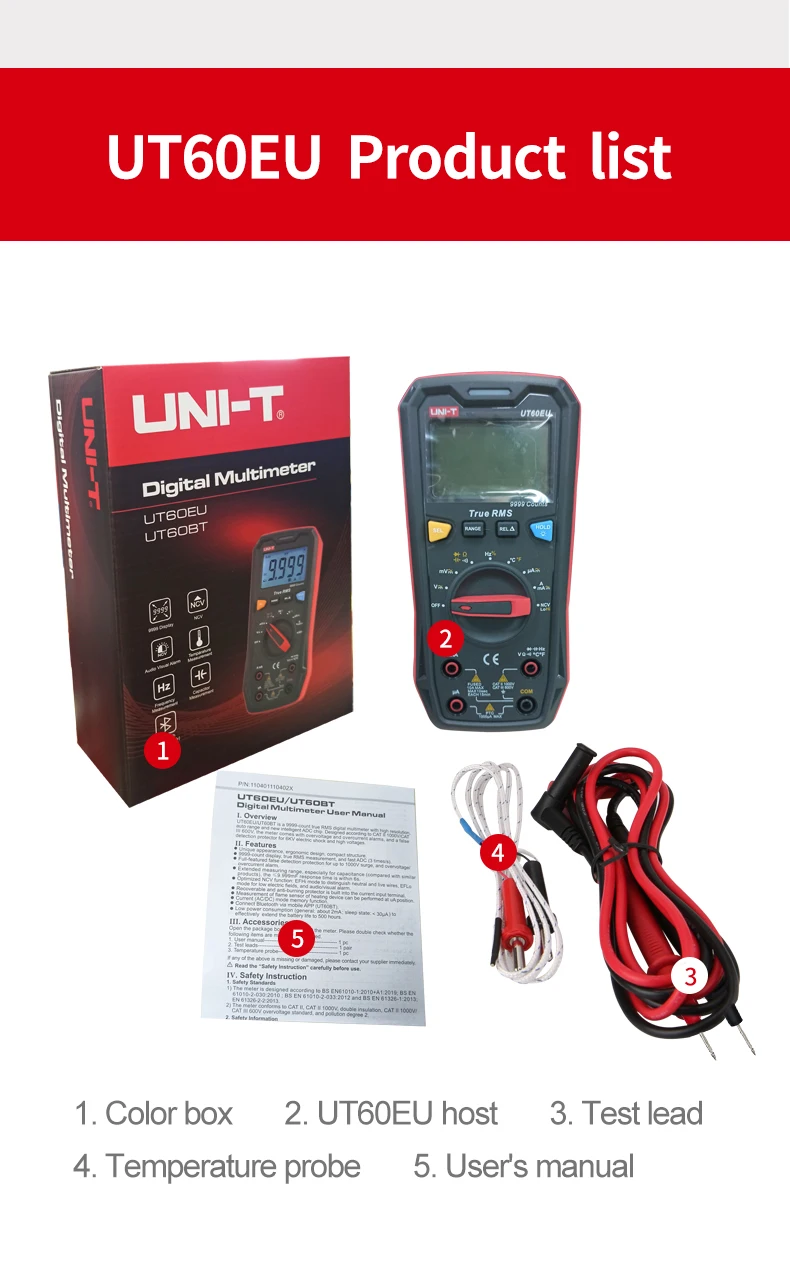

Standard Individual Packing	Gift Box, Manual, Thermocouple
