VJ33 WL84 WL85 Turbo charger for MAZDA Bravo for FORD Courier Ranger WLT 2.5L 047663

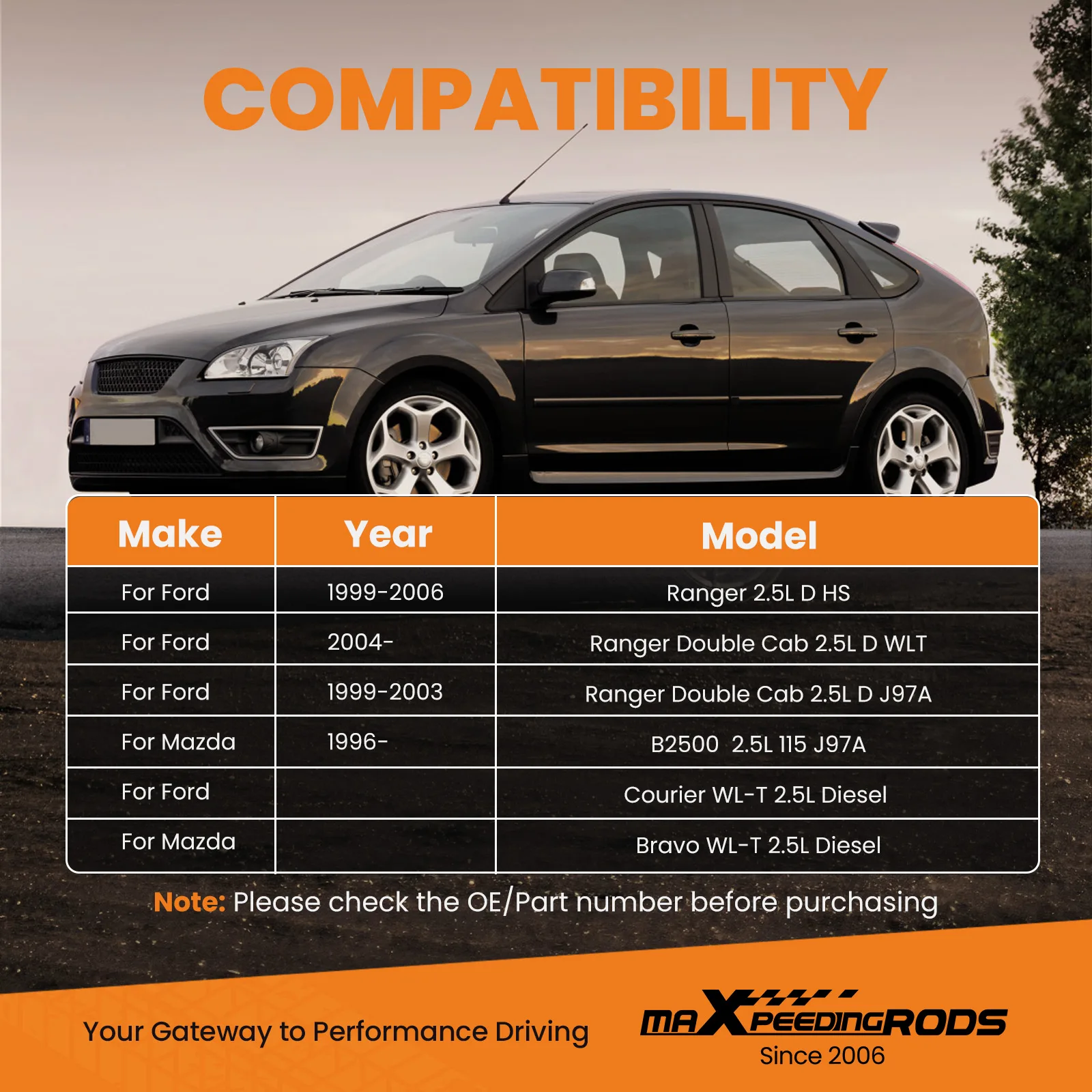

Applications
for Ford Ranger 2.5L D HS 1999-2006
for Ford Ranger Double Cab 2.5L D WLT 2004-
for Ford Ranger Double Cab 2.5L D J97A 1999-2003
for Mazda B2500 2.5L 115 J97A 1996-
for Ford Courier WL-T 2.5L Diesel
for Mazda Bravo WL-T 2.5L Diesel

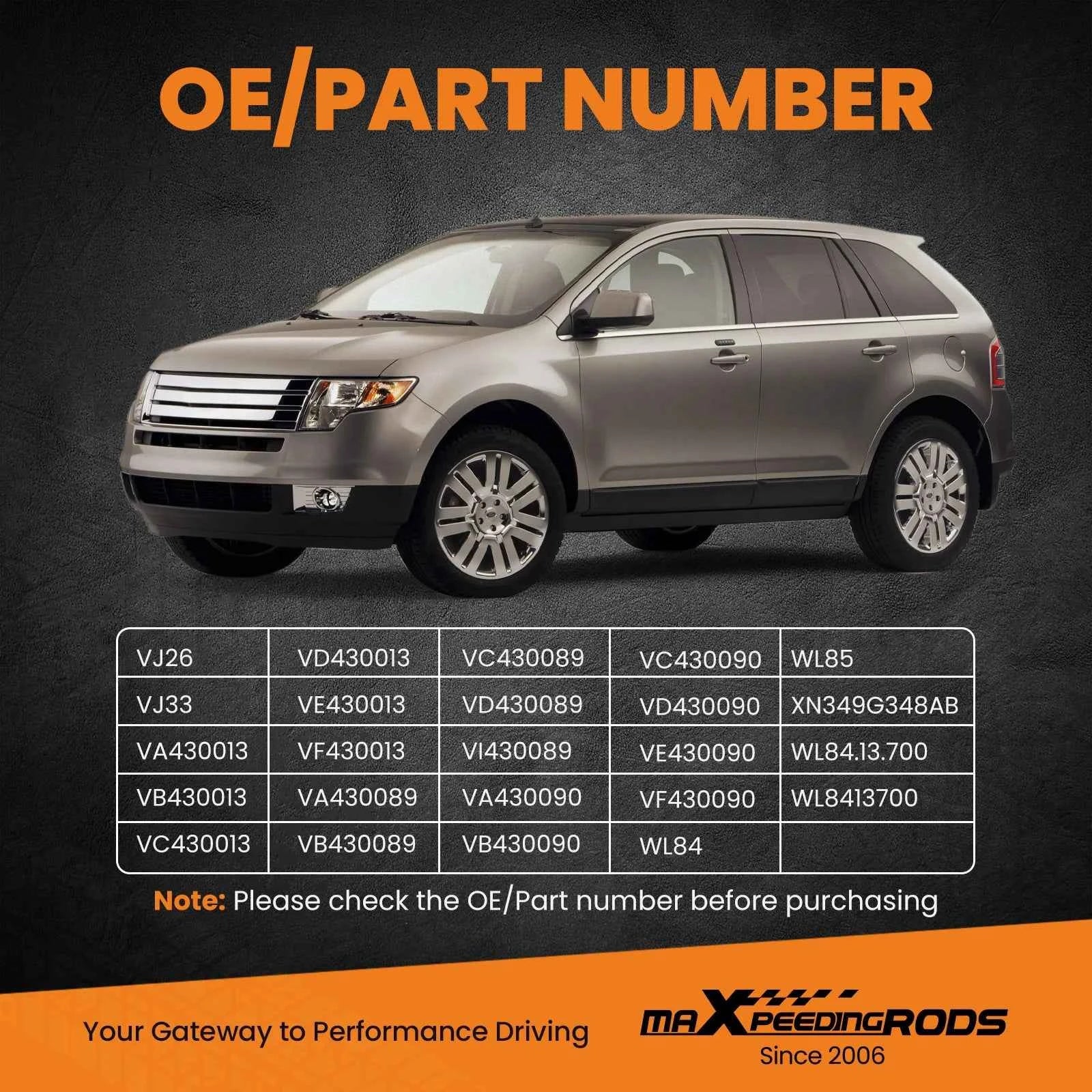

OEM:
WL84,WL85,XN349G348AB,WL84.13.700,WL8413700
Part Number:
VJ26,VJ33,
VA430013,VB430013,VC430013,VD430013,VE430013,VF430013,
VA430089, VB430089, VC430089, VD430089,VI430089,
VA430090, VB430090, VC430090, VD430090, VE430090, VF430090,
Turbo Model: RHF5
Advantages:
Product Material：

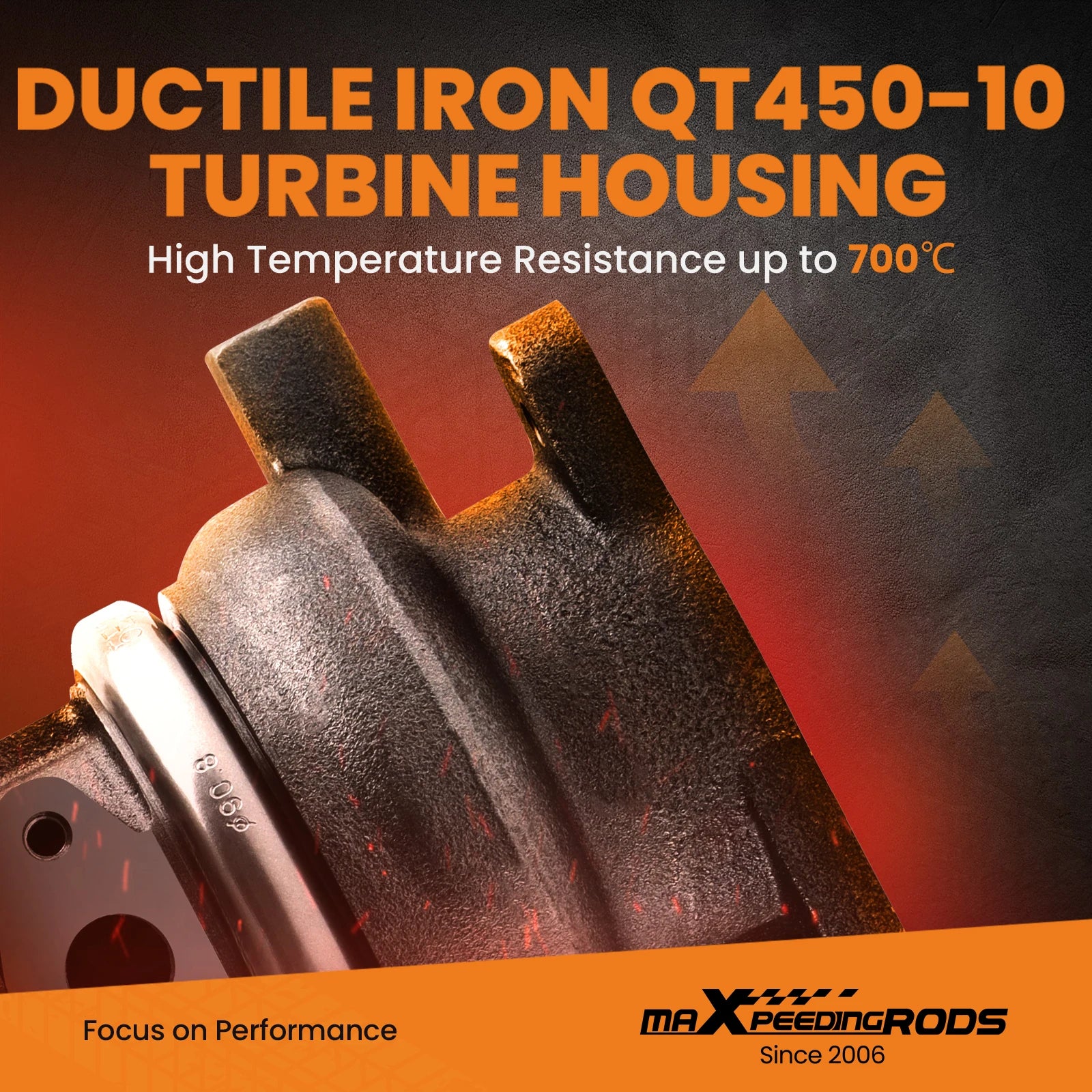

1. Turbine housing ：Ductile iron QT450-10 shell with high-temperature resistance up to 700 degrees Celsius

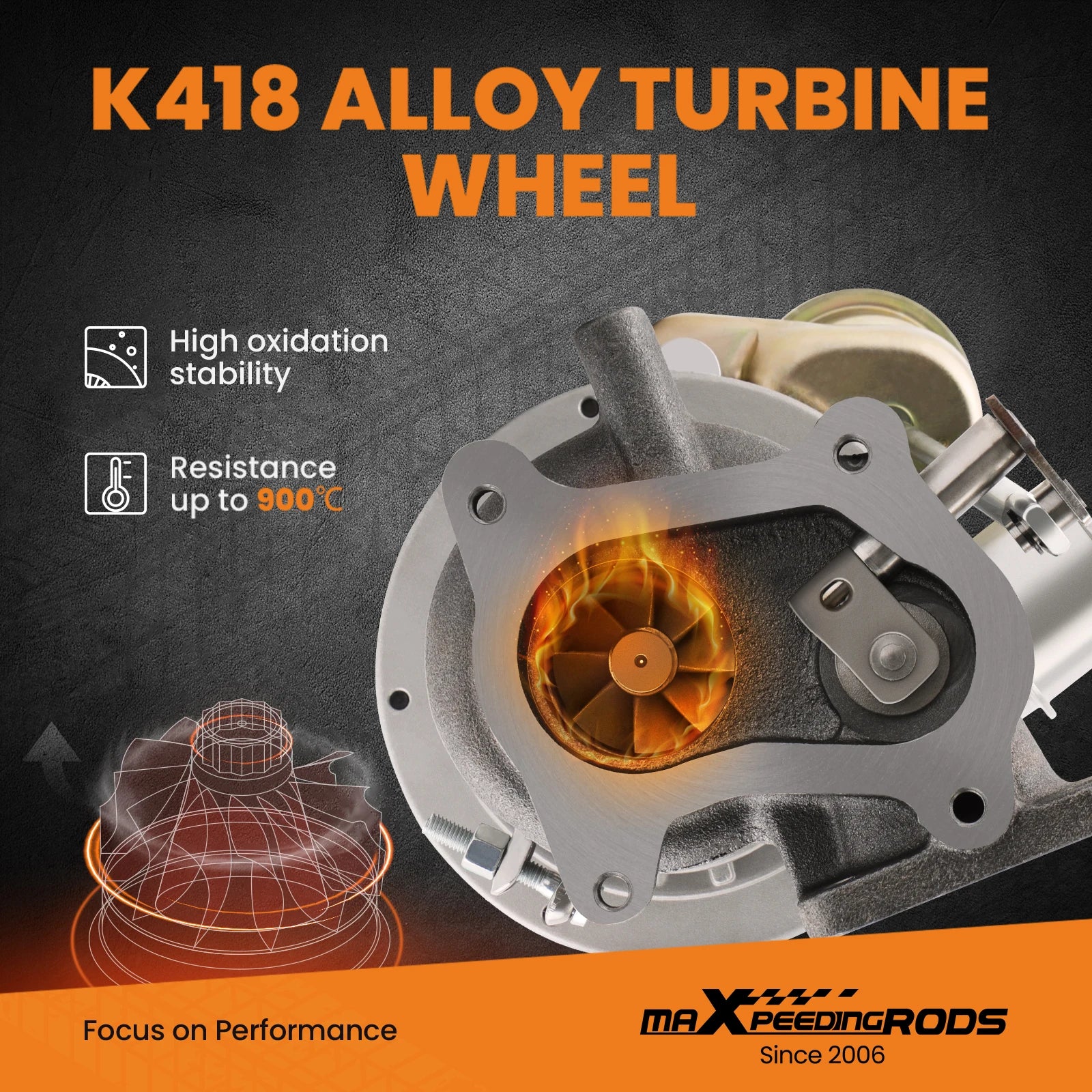

2. Steel Turbine Wheel：Made from the special K418 alloy to achieve high oxidation resistance and stability under high temperatures up to 900 degrees Celsius

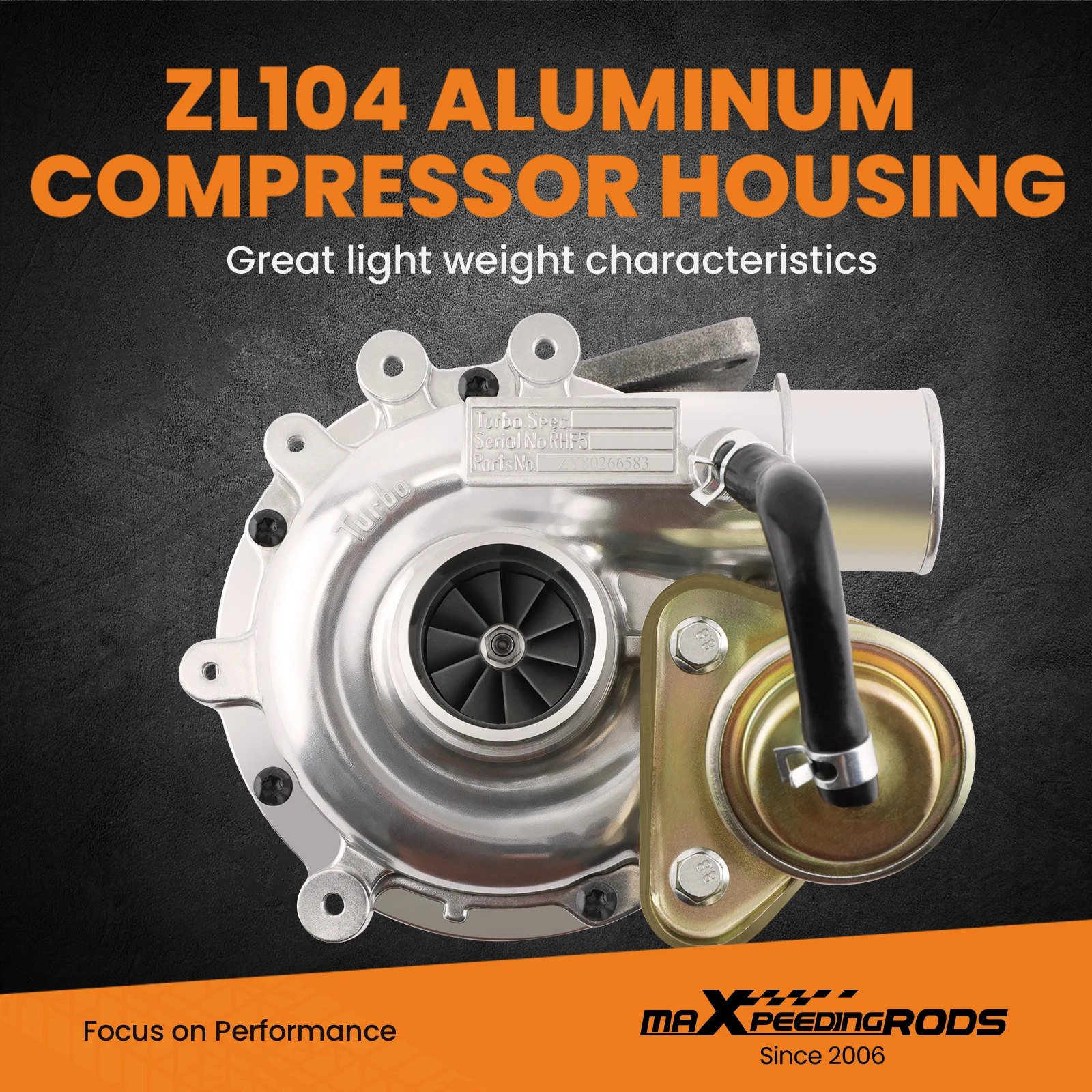

3. Compressor housing：ZL104 aluminum with lightweight

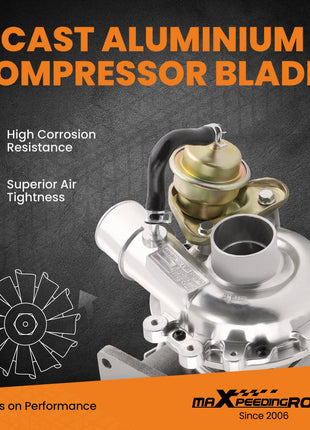

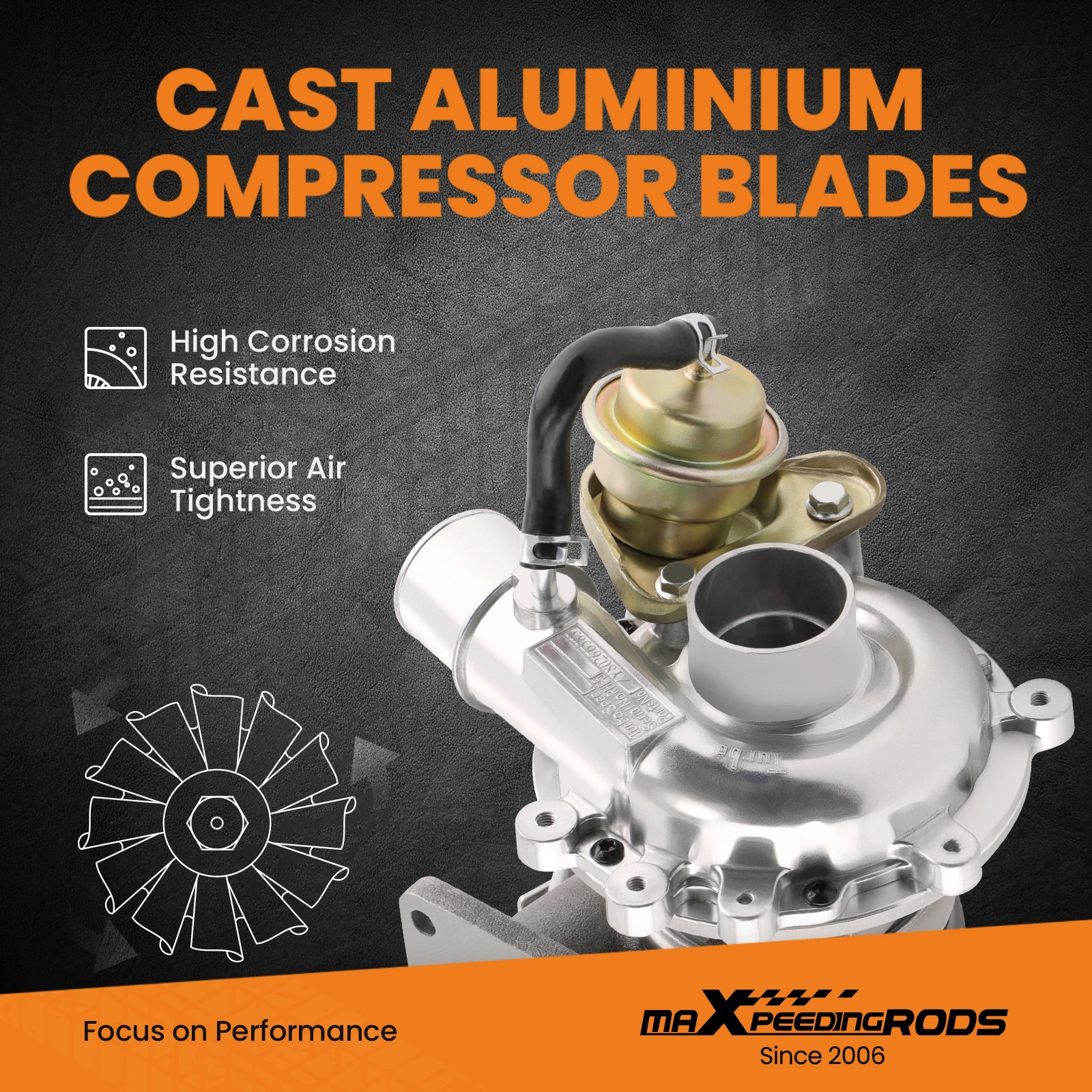

4. compressor wheel/blades：Cast aluminium with good gas tightness and corrosion
resistance
Product Performance：

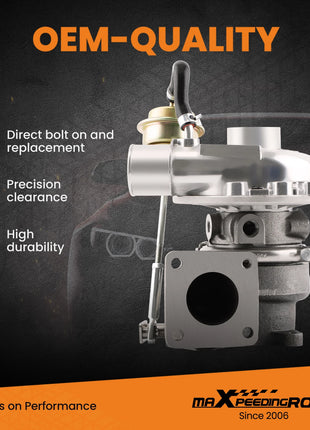

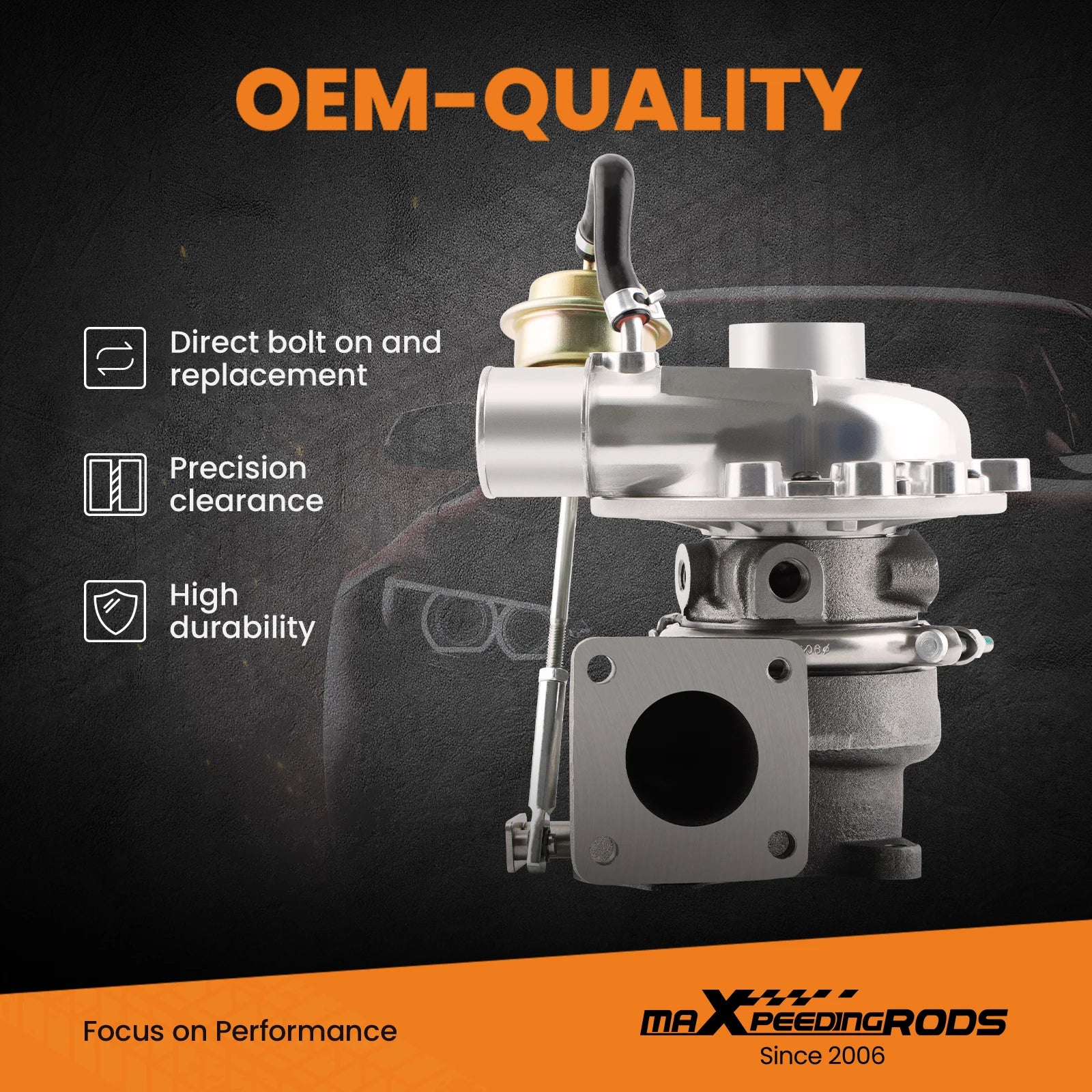

1. OEM-quality and size with little modification

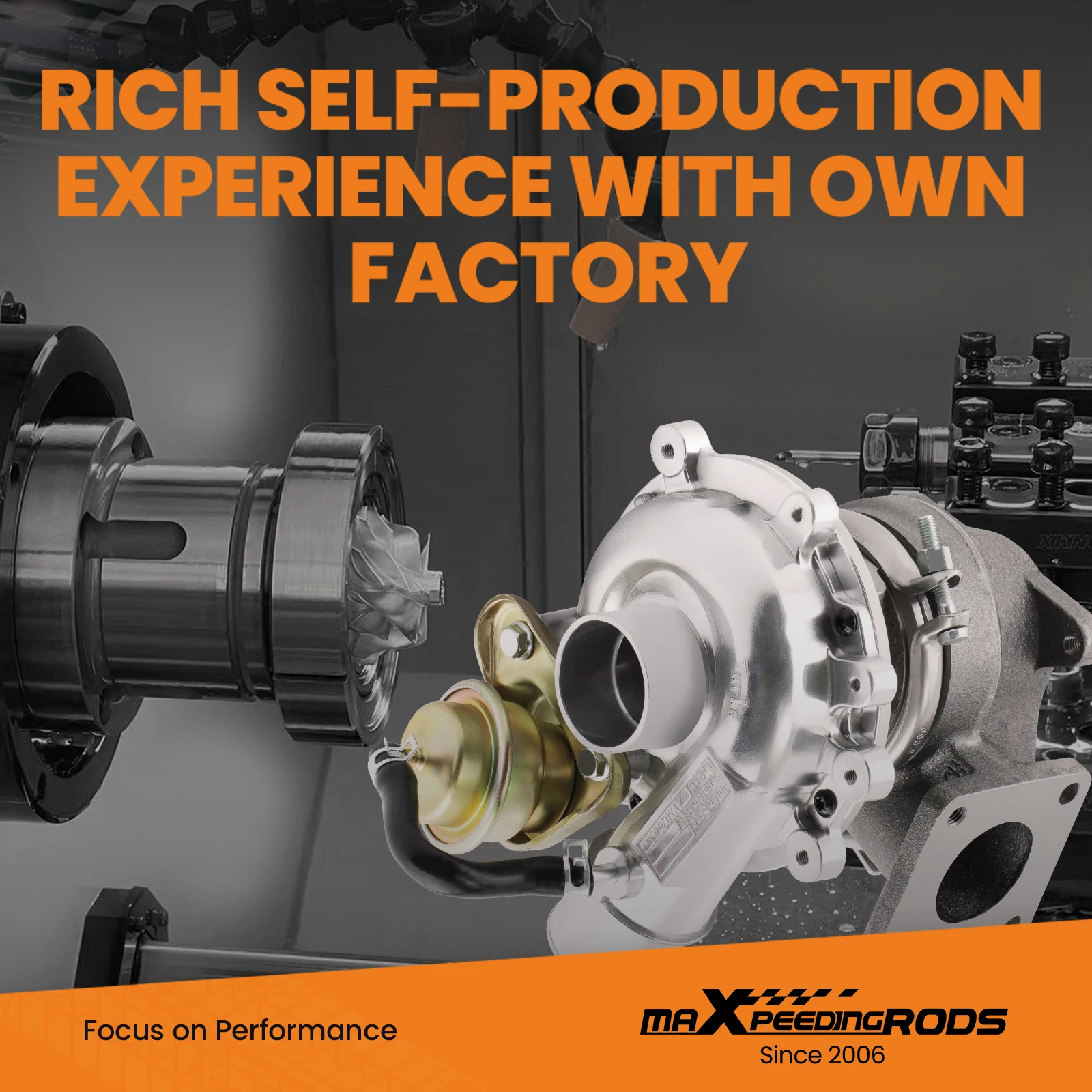

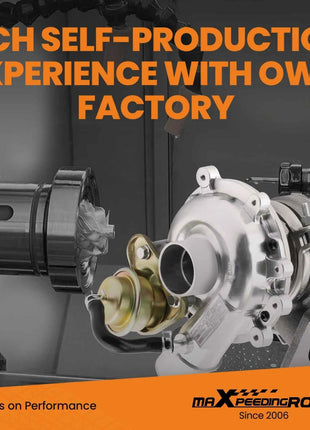

2. Rich Experience In Turbo Production And Own Factory
3. Quality Assurance
4. High Performance Rotor
5. High-Speed Oil Seal Ring
6. Strict Quality Inspection
7. Precision Clearance
8. High-speed Accessories

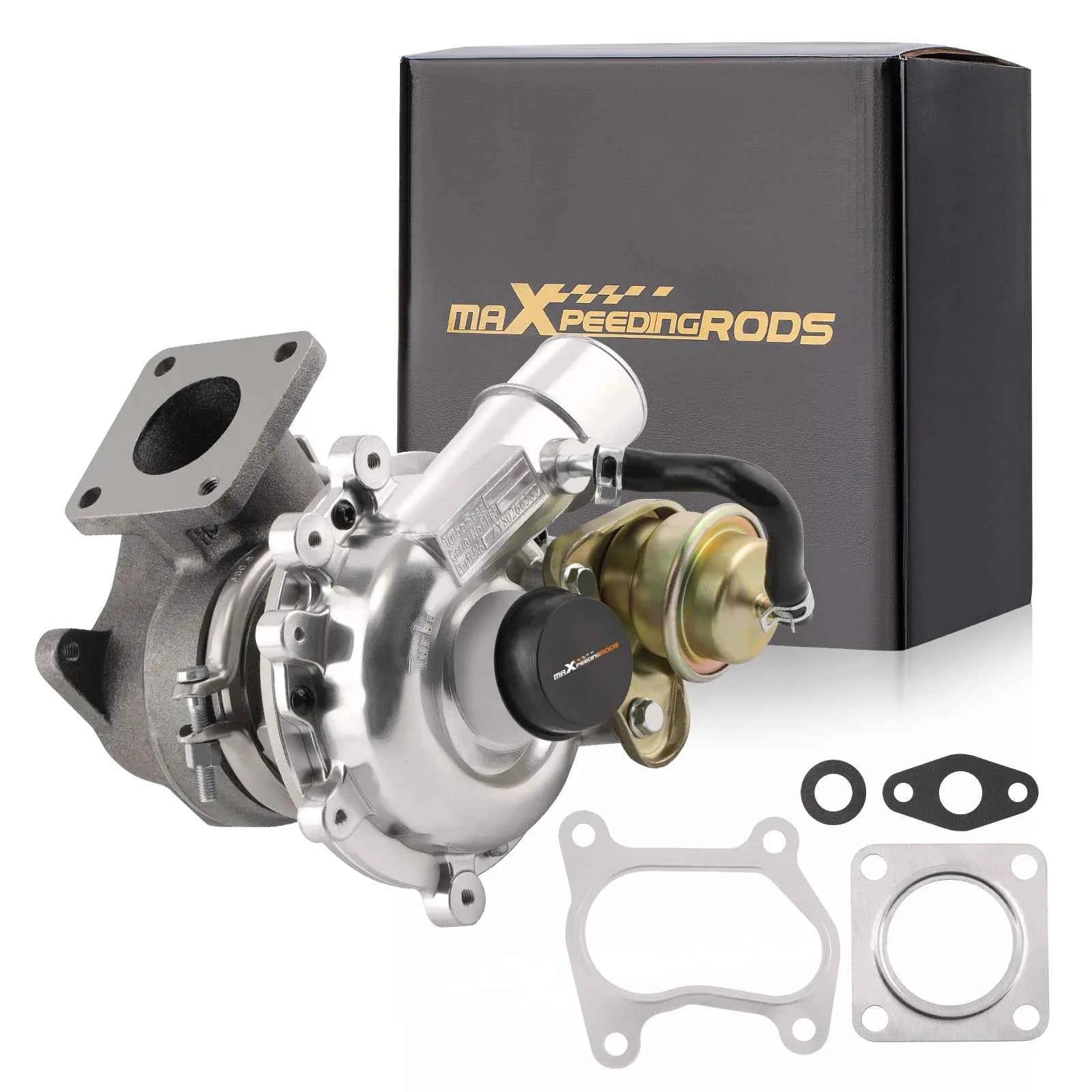

All necessary gaskets included for ease of installation
Features:

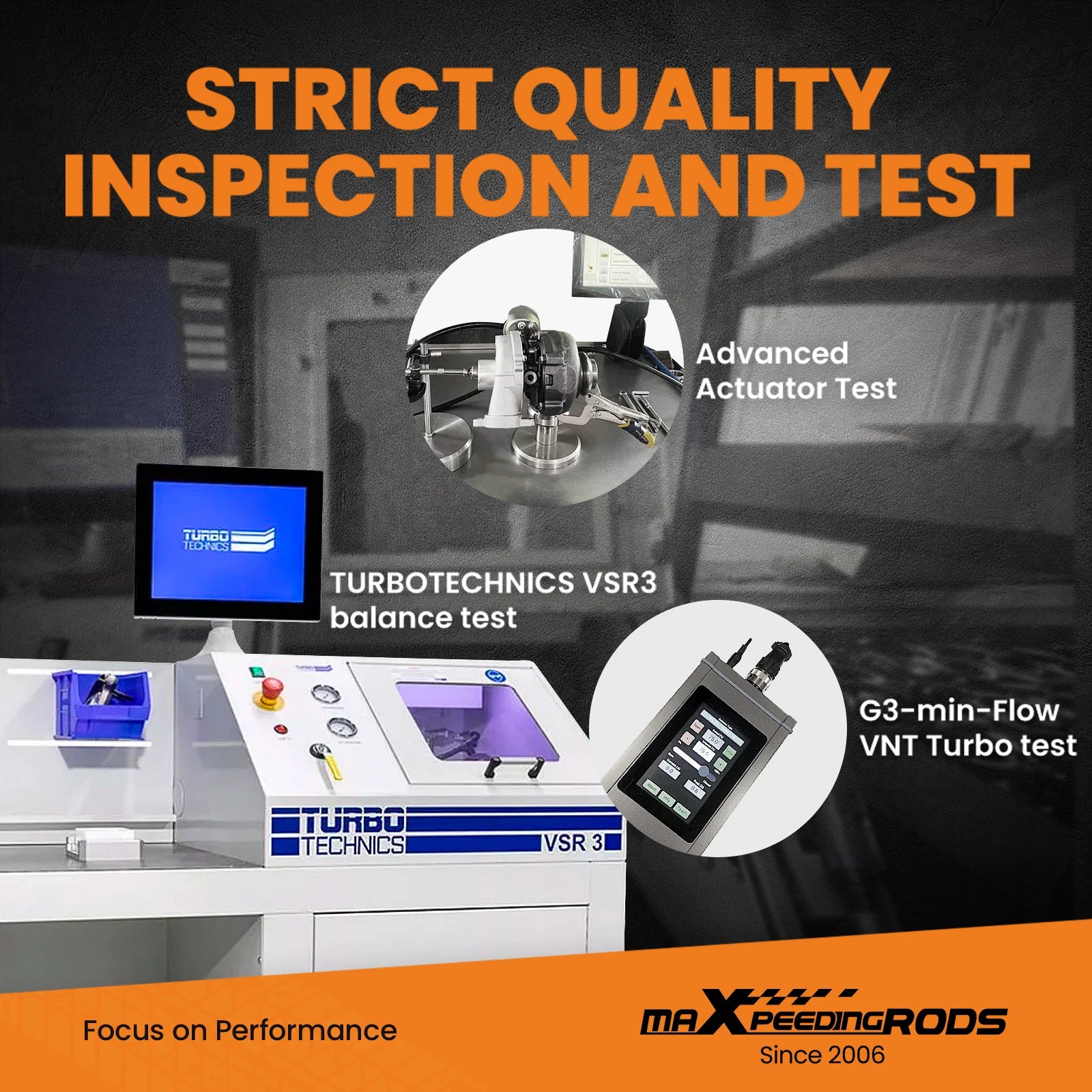

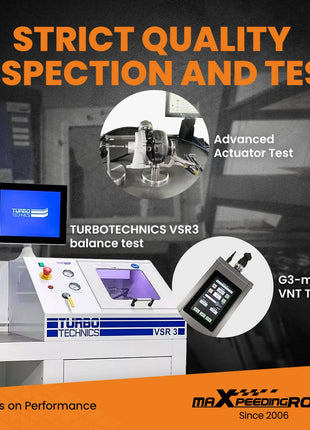

1. 100% balancing Test by TURBOTECHNICS VSR3
This Turbocharger you will receive has been balanced using the VSR machine technology. Through the comprehensive and high-precision static and dynamic balance detection technology, and reliability.
2. G3-min-Flow VNT Turbo testing
3. Advanced Actuator Tester/Programmer：
electronic actuator diagnostic with G3-rea-master can rewrite memory in electronic actuators and also allows to modify operation range of the actuator arm, that includes changing open and close positions of the working angle.

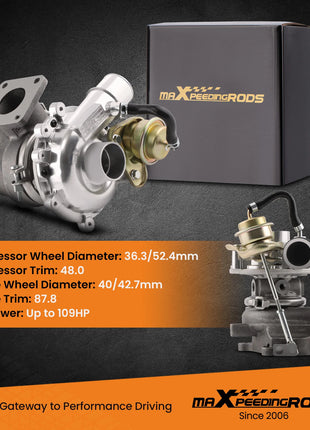

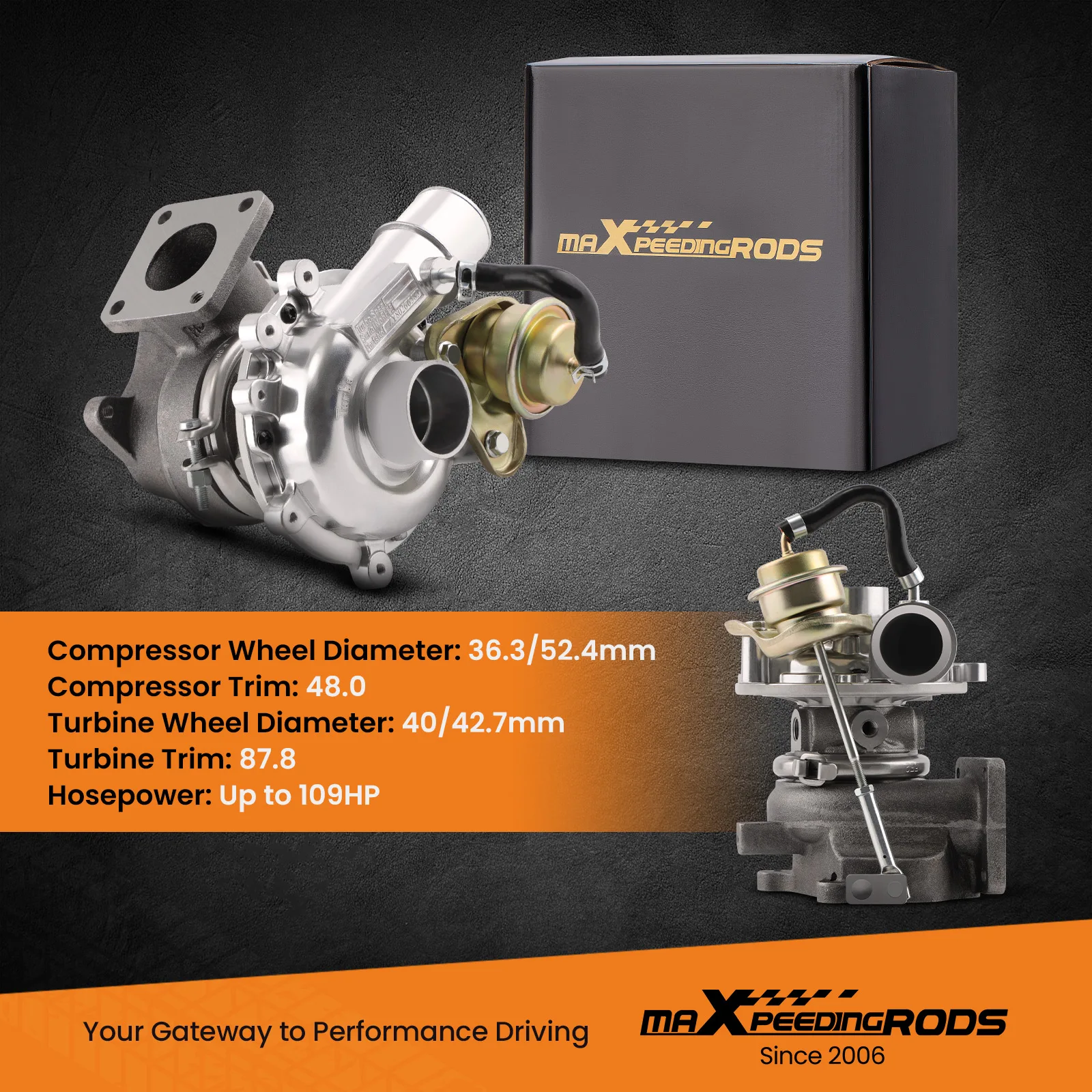

Specifications:
Compressor Wheel Diameter: 36.3/52.4mm
Compressor Trim：48.0
Turbine Wheel Diameter: 40/42.7mm
Turbine Trim：87.8
Cooling Type: Water and Oil Cold
Condition: 100% Brand New & Factory Balanced
Bearing Type: Journal Bearing
Hosepower: Up to 109HP
Warranty: 1 year warranty for any manufacturing defect

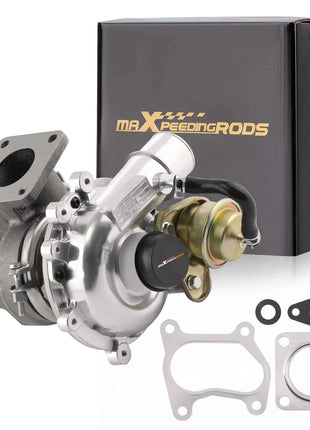

Accessories: You will get exactly as shown in the picture above
Note:
* Please confirm your original turbo OEM/PART NUMBER before Purchasing
* Professional installation is highly recommended
* For any needs please contact us.
*Before installing the new turbocharger, the cause that led to the failure of the turbo must be analyzed and eliminated (e.g. insufficient oil supply, foreign bodies in the intake area, crankcase ventilation without function, etc.)!
