Descrizione

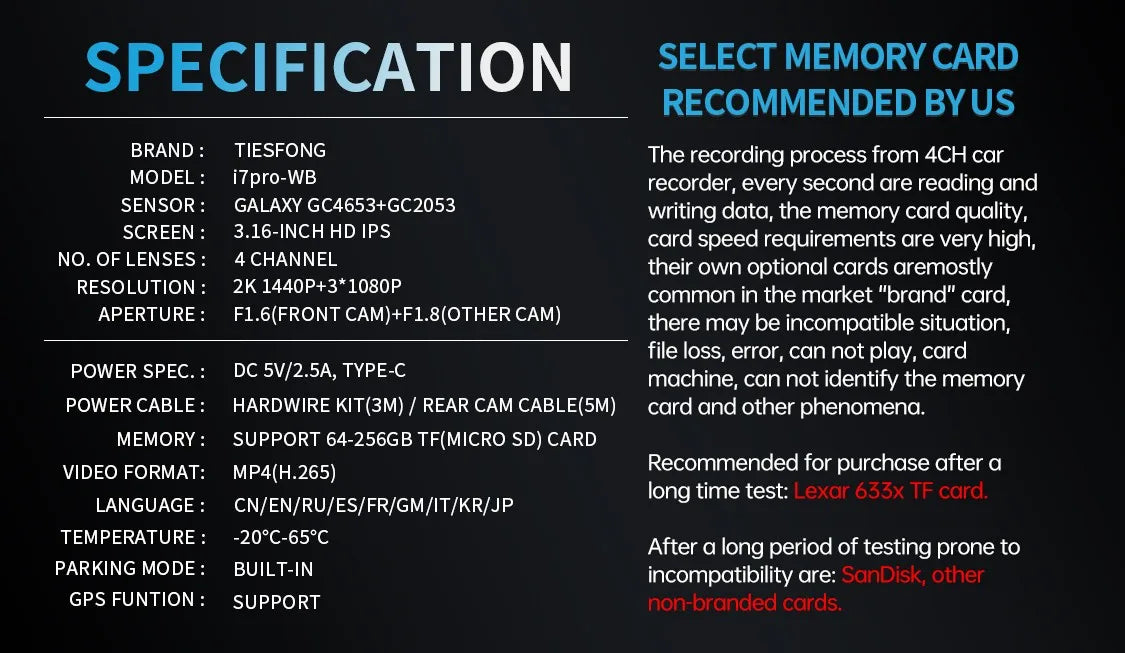

SPECIFICATIONS
APP Compatibility: YES(Viidure)
Aperture: F1.6+F1.8
Assembly Mode: Portable Recorder
Audio Recorded: Yes
Battery: None
Battery Capacity(mAh): 1 mAh
Battery Life: 0
Battery Type: button cell
Brand Name: TiESFONG
Built-in Screen: Yes
Cable Length: 3M
Camera Resolution: 2560x1440
Can the recorder monitor parking?: Yes, 24H Radar Parking Monitoring
Certification: CE,FCC,RoHS
Channel: 3CH all in one Dash Cam+Rear Cam
Chipset Manufacturer: MSTAR
Dash Cam Model: TiESFONG i7pro-WB
Data Storage Capacity: Memory Card
Display: IPS
Display Size: 3.16inch
Does the button cell support charging?: Button cell does not support charging
Feature: GPS/24H Parking Monitor/Loop Recording/G-sensors/Built-in WIFI and so on
Frames Per Second: 25
GPS logger: External
Hign-concerned Chemical: None
How much running memory does this car dvr have?: 2GB
How to wire in parking monitoring?: Hardwire kit requires power from the fuse box
Image Sensor: GC4653+GC2053
Imaging Sensor: GC4653
Input: 5V 2.5A
Input/Output: TYPE-C
Interface: Bluetooth,Wi-Fi,Micro SD/TF
Is Batteries Included: Yes
Is the Rear Cam waterproof?: No, it is the no-waterproof rear cam.
Item Type: Car DVR
Loop-Cycle Recording Feature: Yes
Max External Memory: 256G
Maximum Video Frame Rate: 25
Memory Card Required Reding Speed: Class 10
NightShot Function: Yes
Number Of Lenses: 4
OSD Language: Chinese (Simplified),Chinese (Traditional),English,French,German,Italian,Japanese,Korean,RUSSIA,Russian,Spanish
Origin: Mainland China
Original Package: Yes
Pixels: 1200Mega
Power Source: Corded Electric
Rear Camera: Yes
Screen Ratio: 16:9
Special Features: G-Sensor,motion detection,Radar Detector,Real Time Surveillance,Automatic White Balance,Wide Dynamic Range,wifi function,Bluetooth,Parking Monitor,Speed and Coordinates Recording,3D DNR,External GPS
The current and voltage supported by the cam: Cars that support 12V-24V
Touch Screen: No
Video Code: H.265
Video Format: TS,MP4
View angle: 4*150°
Weight: 183.4g
What are the requirements of the car camera for the memory card?: Camera need Class 10 or above Micro SD card for storage video
Working Temperature: -20℃~65℃

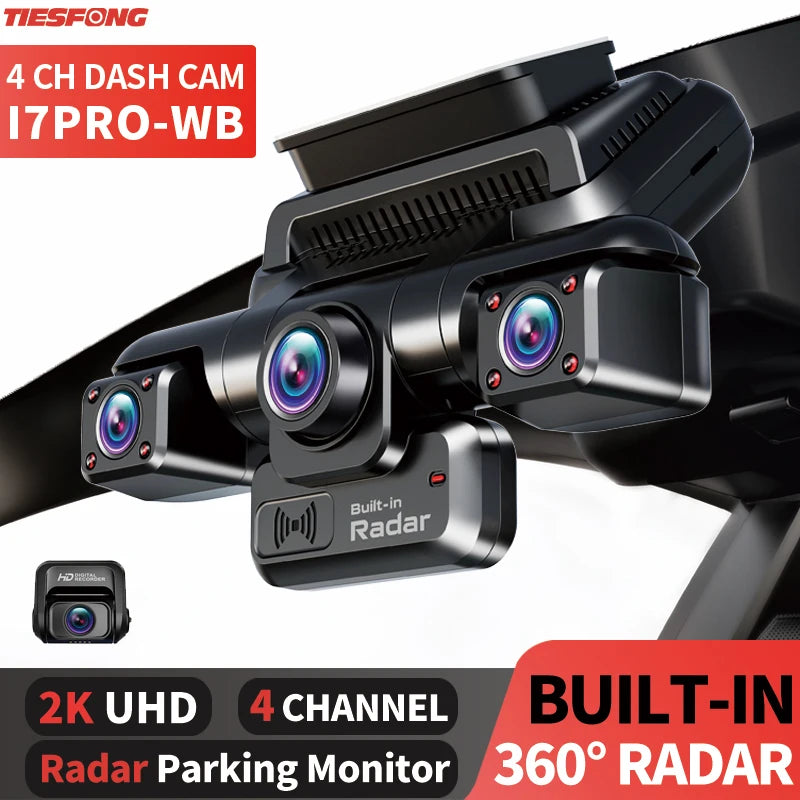

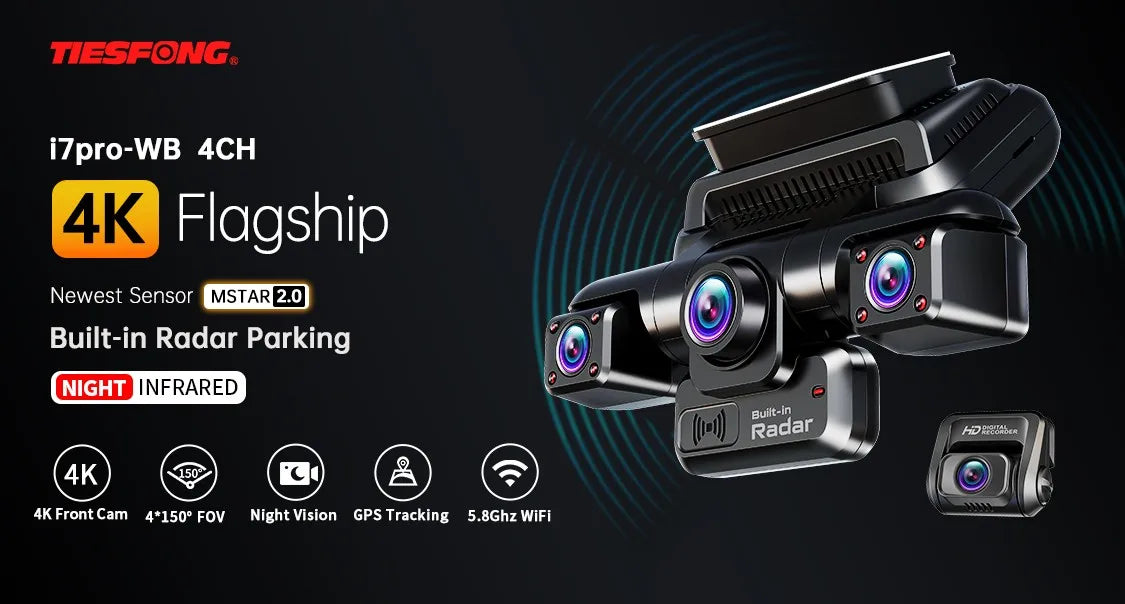

—— TiESFONG Newest Update 2K i7pro-WB 4-CH Dash Cam——
All safety conditions inside and outside the car are guaranteed with 4 Channel record.
Built-in 24H Radar Parking Monitoring / Built-in WIFI / GPS / G-Sensor / Super IR Night Vision / WDR Function / Loop Recording
Stable Performance / Clear Recording / Diversified Functions
TiESFONG 4CH GPS Dash Cam i7pro Front 4K/2K+3*1080P for Car 360 DVR Camera 24H Parking Mode WiFi Video Recorder IR Night Vision 256Gmax
🏆 TIESFONG ENTERPRISE HONOR
🏆 Global Compliance | ✅ Patented Design | 📜 ISO Certified | 🌍 Multi-Region Recognition | 🔒 Security Guaranteed
As of November 2022, we've earned multiple global certifications, including CE, RoHS, and FCC approvals, alongside Design Patents and technical qualifications (Partial certificates shown).
Full achievements reflect our dedication to driving automotive safety innovation.
TIESFONG’s prestigious certifications validate its global standards:
· CE, RohS, FCC (EU/US market compliance)
· Patent Design Certification (innovative exterior design)
· ISO 9001 Quality Management (bottom-left certificate)

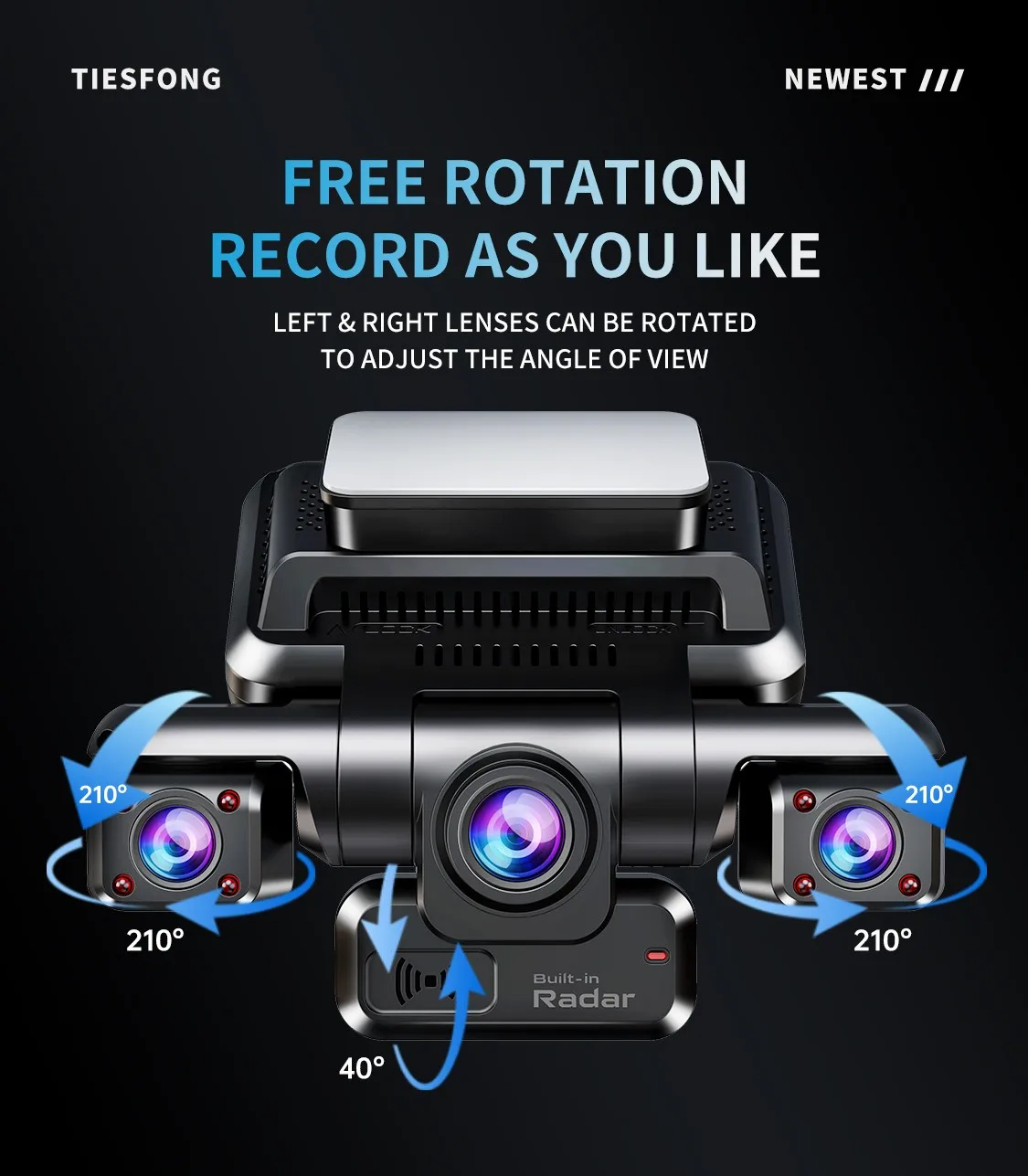

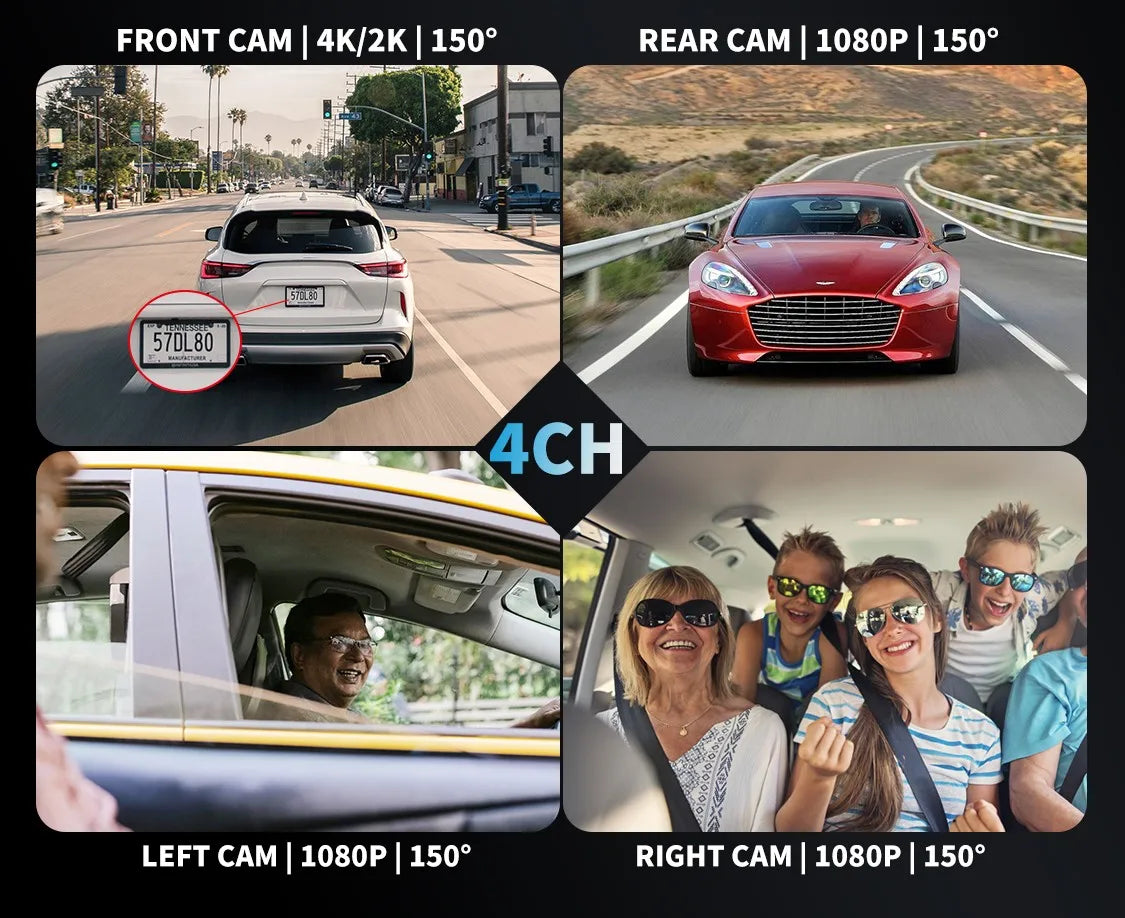

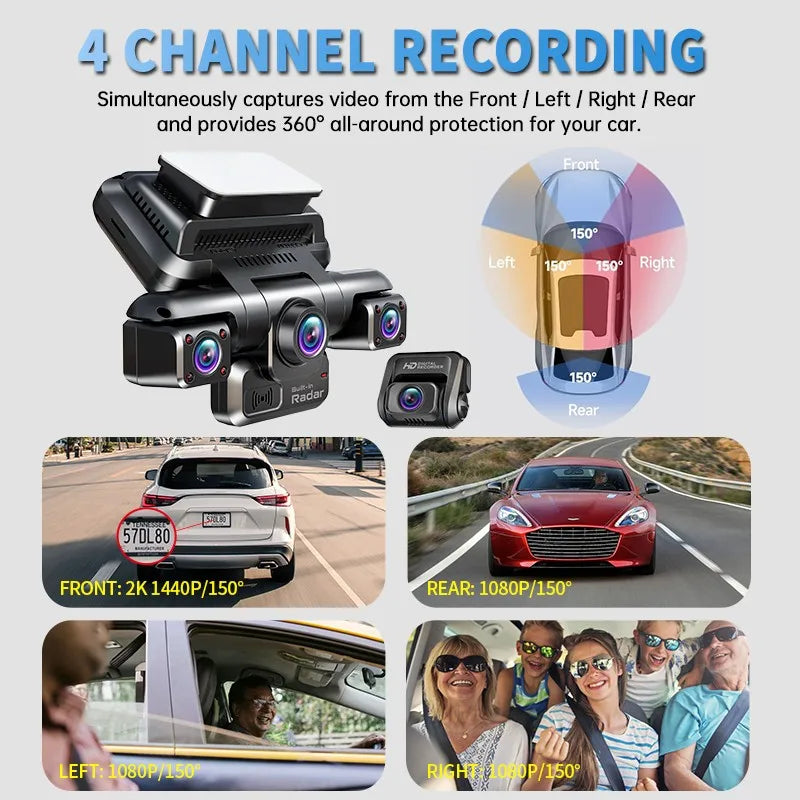

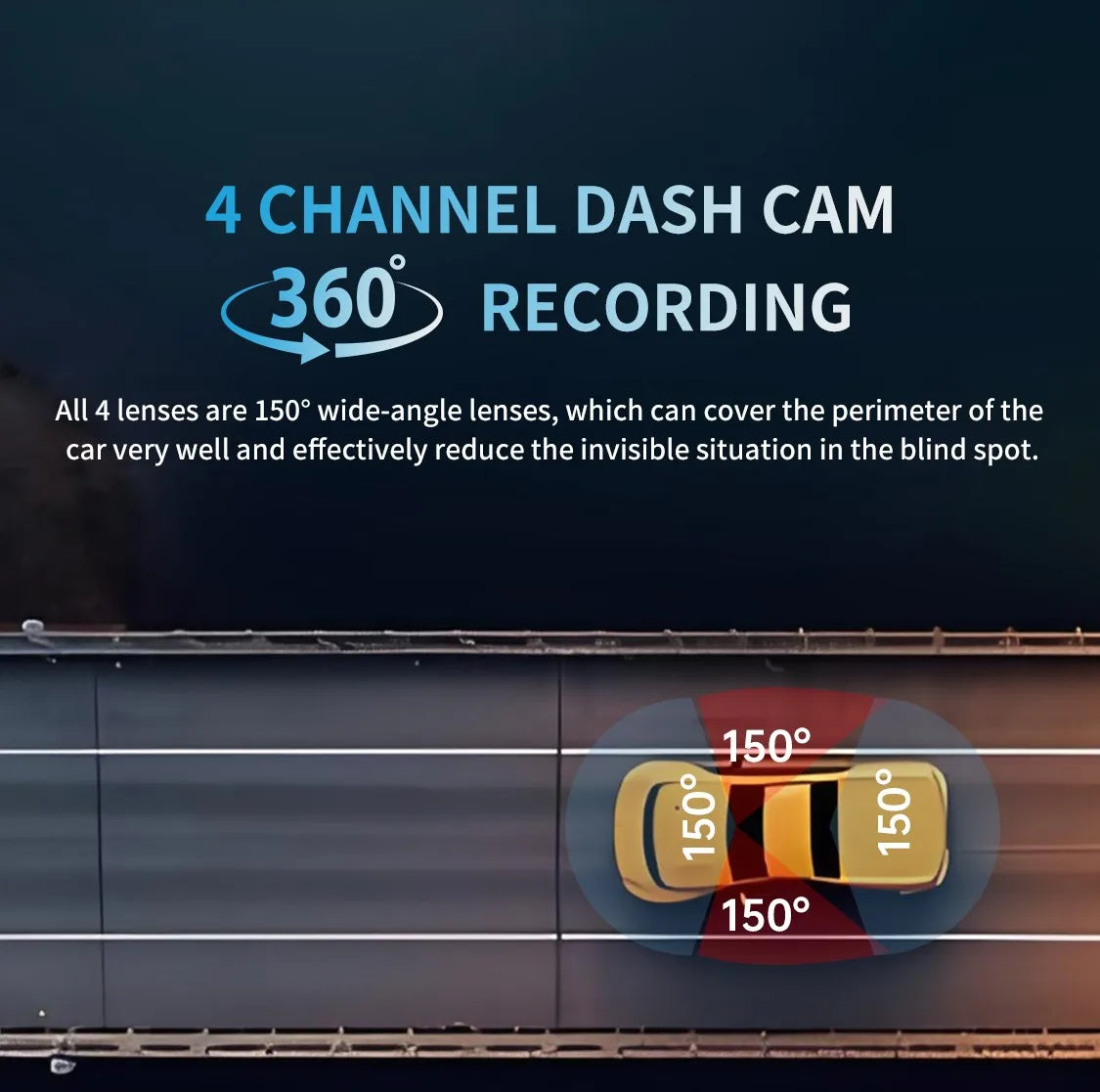

🚗 4K Ultra HD Front Camera + 360° Multi-Camera Coverage
📸 4K Front Clarity | 💾 Multi-Channel Recording | 🎯 150° Wide Coverage | 🛡️ 360° Multi-Angle
TIESFONG’s newest 4K Ultra HD dashcam delivers crystal-clear footage with 150° wide-angle coverage for front, rear, left, and right cameras. Perfect for capturing road details, parking incidents, and scenic drives.
Key specs:
Front Camera: 4K/2K resolution (2160P/1440P)
Rear/Left/Right Cameras: 1080P resolution (1920x1080)
All cameras: 150° viewing angle for panoramic visibility
The sleek design integrates a general recorder and supports single-channel recording(Front Cam 4K) and dual-channel recording (Front 4K+Rear 1080P).

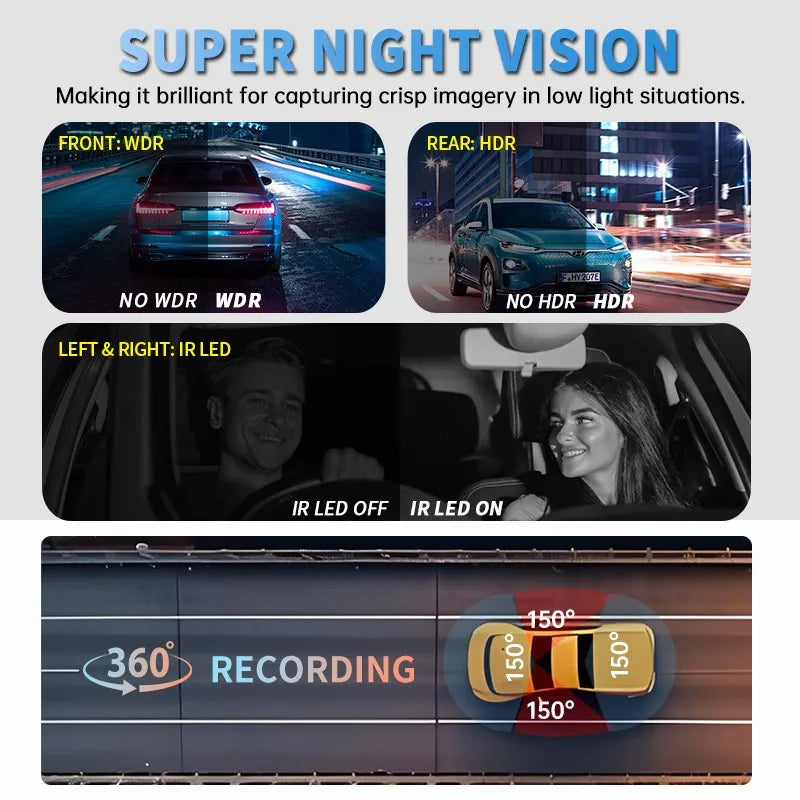

🔥 Cutting-Edge Night Vision with WDR/HDR/Infrared Tech
🌑 Auto Light Adjustment | 🌃 4 IR LED Illumination | 🔍 Crystal-Dark Clarity
The superior night vision with dual-mode processing combines WDR, HDR and advanced infrared technology to automatically compensate for light/dark spots and balance exposure to capture crisp license plates, pedestrians, and environmental details—day or night.
· The front cam's WDR (Wide Dynamic Range) and rear cam's HDR technology
eliminate glare from headlights while enhancing shadows, ensuring balanced exposure in darkness or harsh backlighting.
· Built-in high-sensitivity IR sensors and 4 IR LED Lights on both left/right cameras
ensure vivid recording of details even in pitch-black environments.

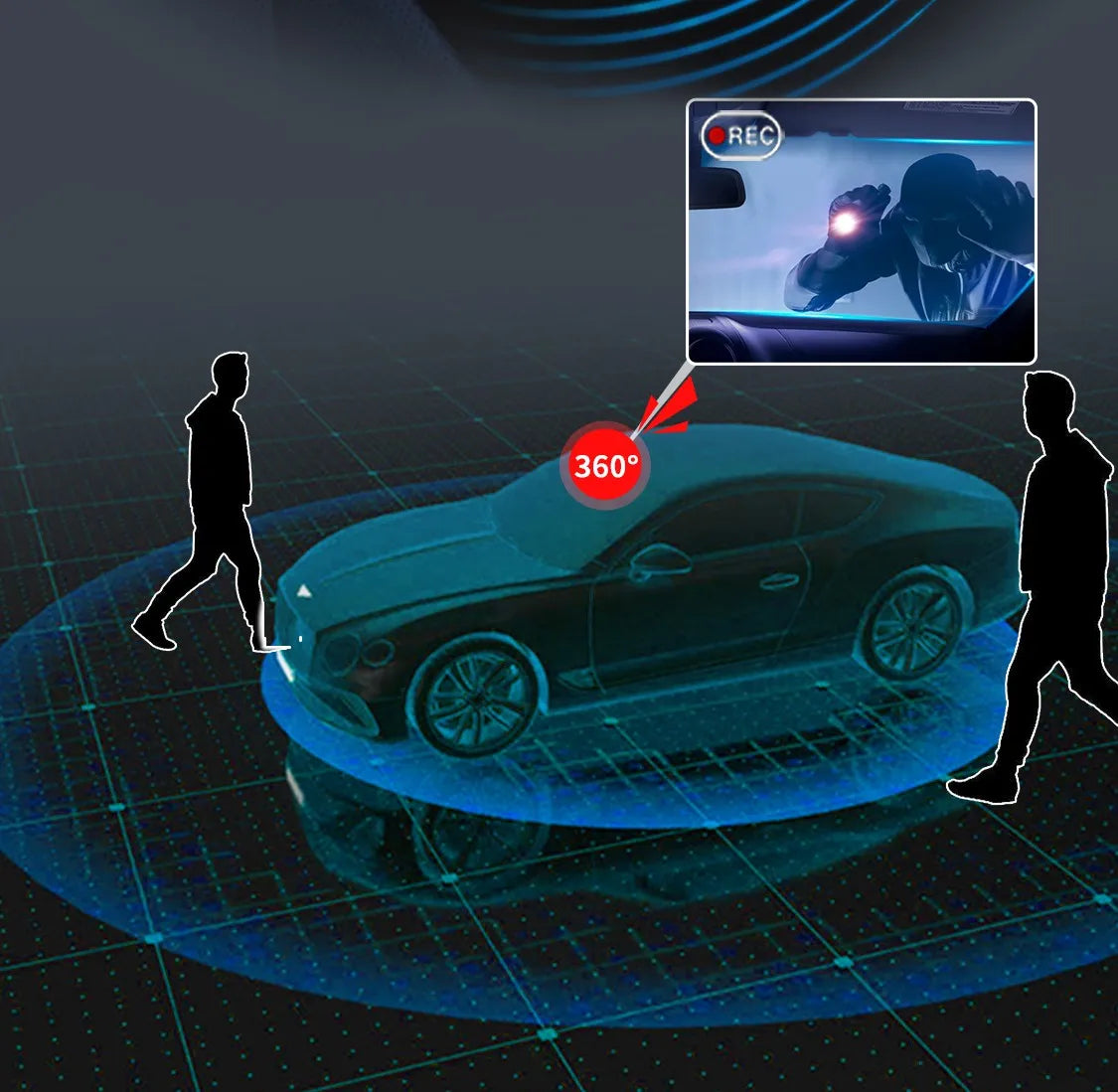

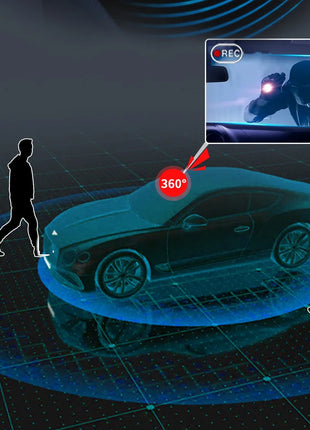

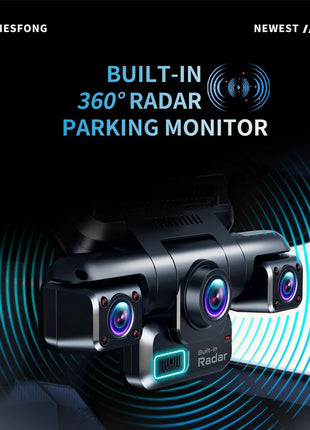

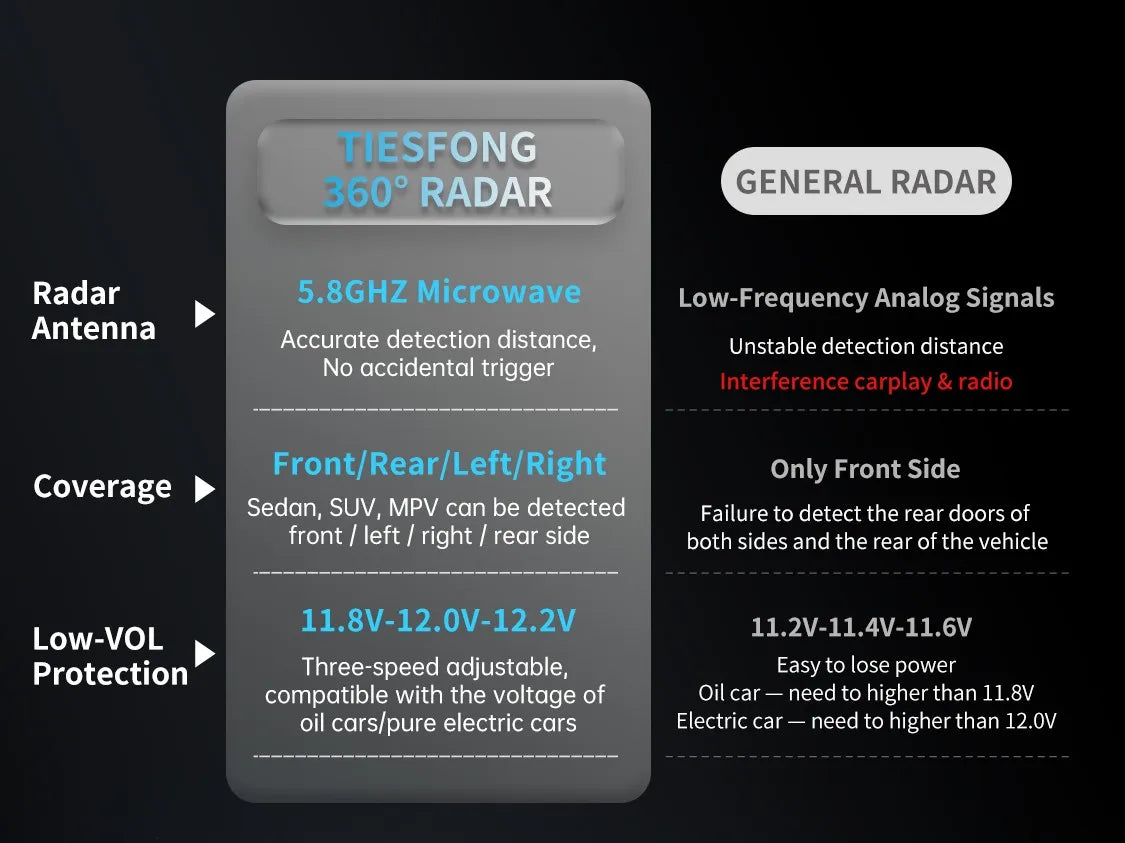

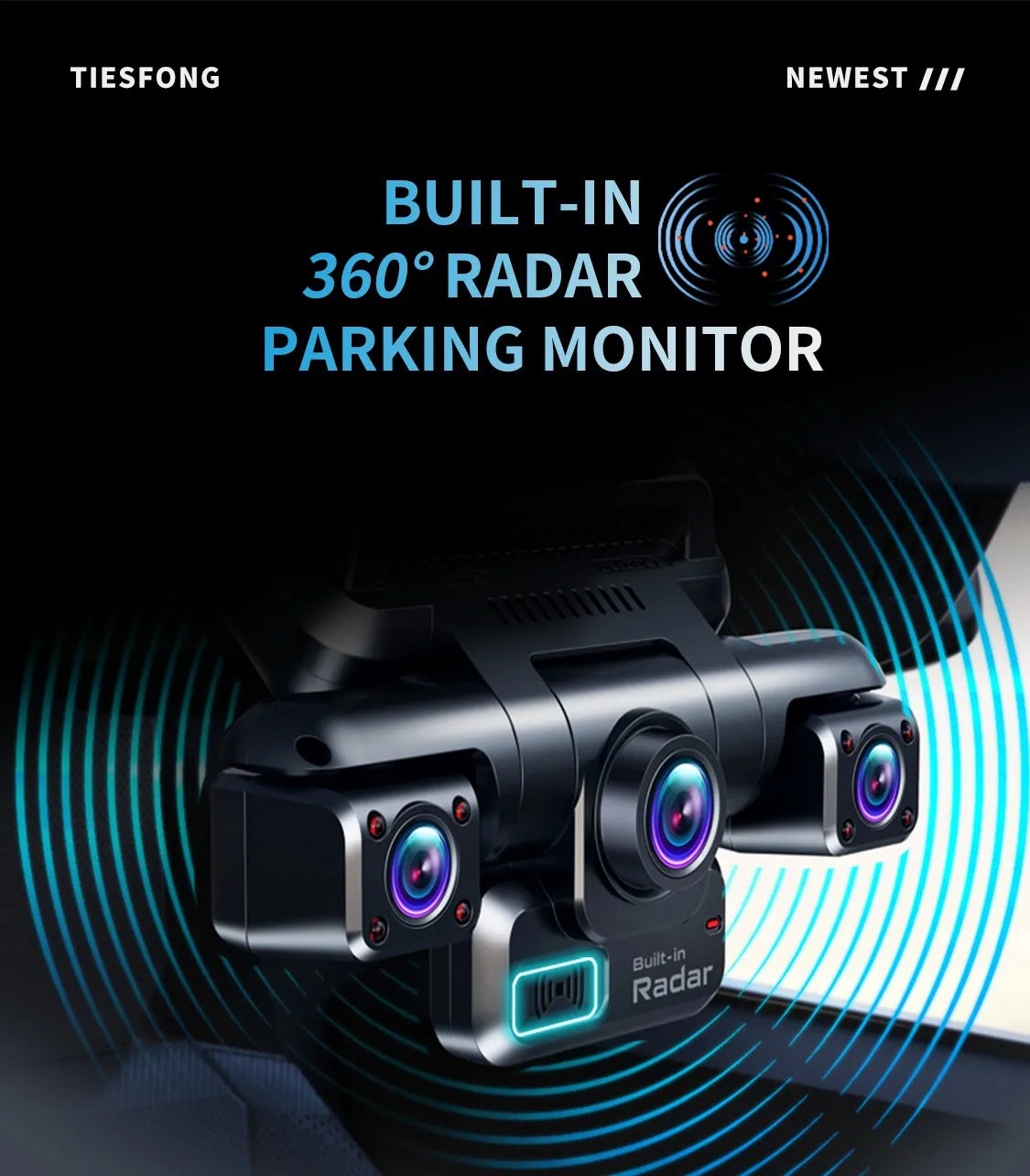

⚖️ 360° Surround-View Radar Parking Monitoring
🔍 Precision & Safety | 🛡️ Full 360° Coverage | ⚡ Voltage Flexibility | 🚫 No Interference | 📸 Multi-Angle Monitoring
TIESFONG's Sentry Radar with 5.8GHz microwave technology for precise detection (no accidental triggers) and 360° full-coverage (front/rear/left/right) across sedan, SUV, and MPV models.
Radar Triggered Recording – When parked, the 360° radar detects moving objects within 0-1.5m (front) / 0-1m (sides/rear) and instantly activates the dash cam, capturing threats without 24/7 idling.
Auto-activation, intelligent alerts, and seamless integration with parking sensors safeguard your vehicle. Effortless setup and reliable performance make it a must-have for parking safety.

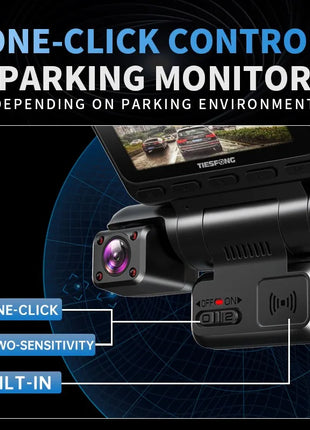

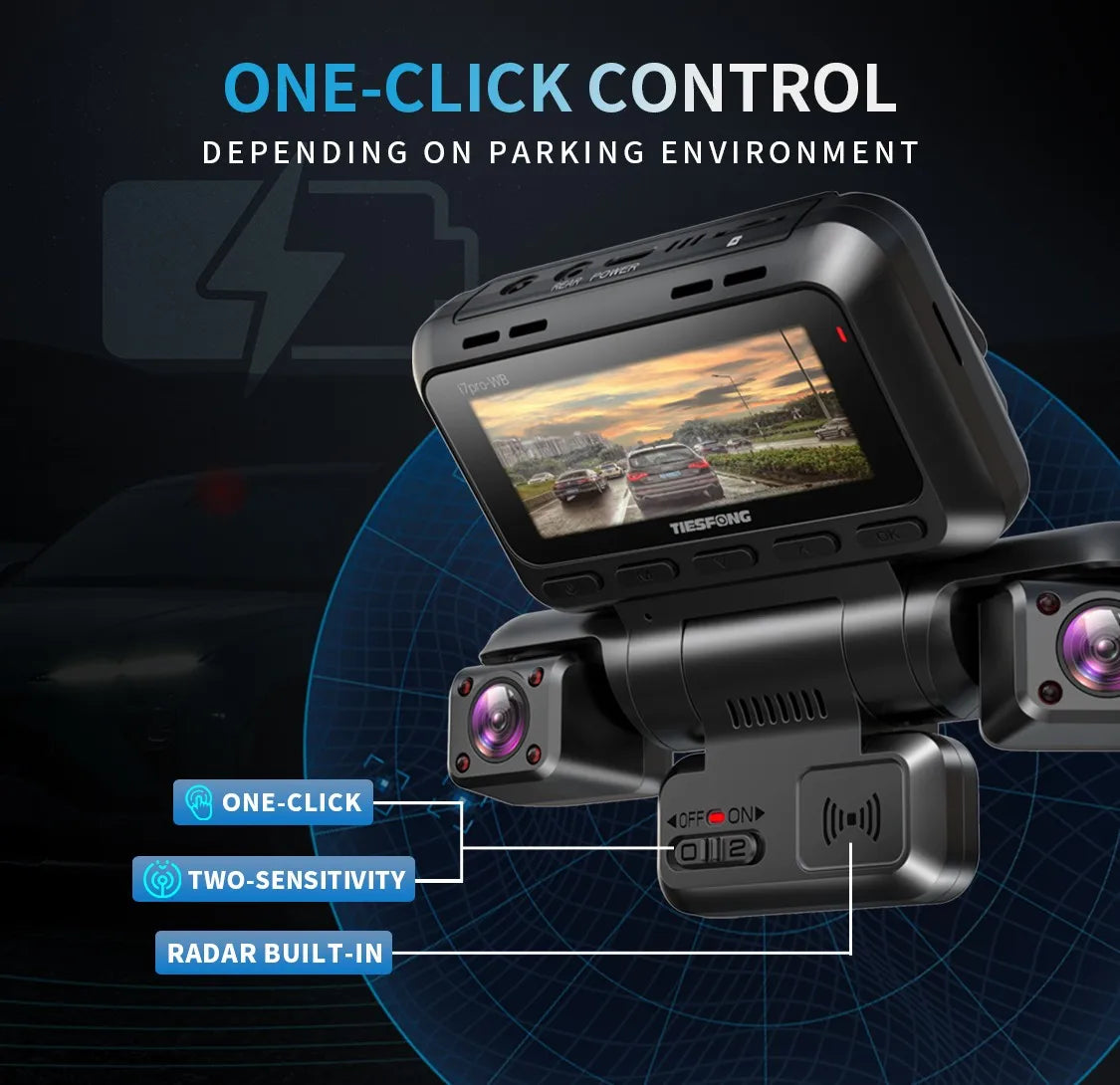

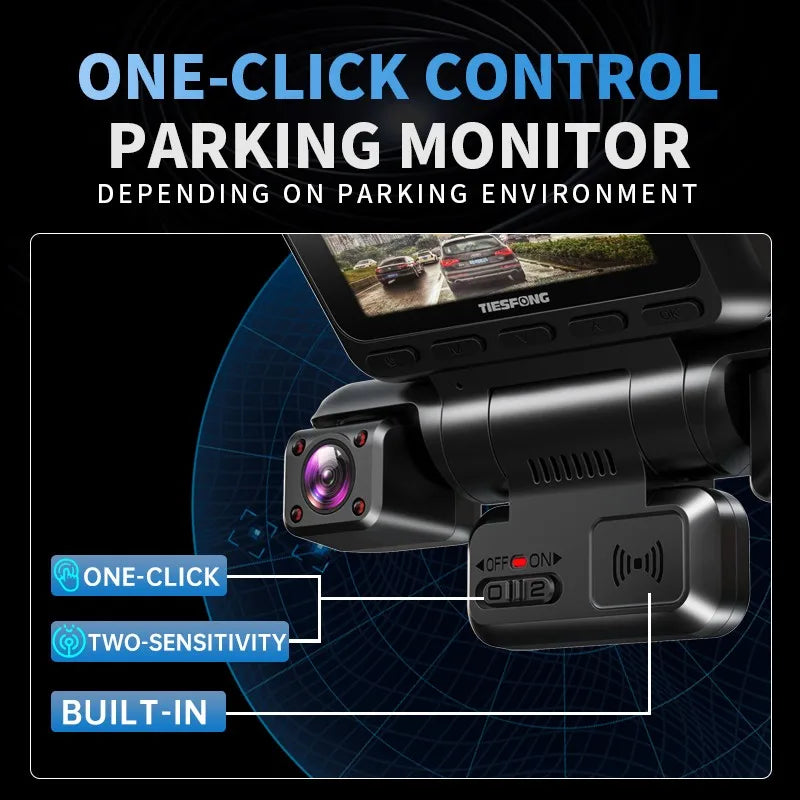

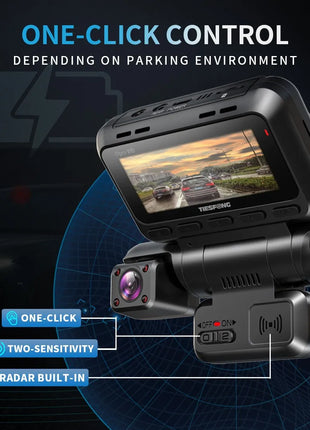

🟢 One-Click Radar Control & Two-Level Sensitivity Adjustment
🔘 One-Click ON/OFF | ⚖️Two Sensitivity Modes | 🔋 Battery Saver Mode | 🛡️ Smart Radar Tech
Effortlessly manage parking monitoring with one-touch activation to toggle the built-in radar ON/OFF.
Customize detection precision with two sensitivity levels (1/2), adapting to tight spaces or busy parking lots.

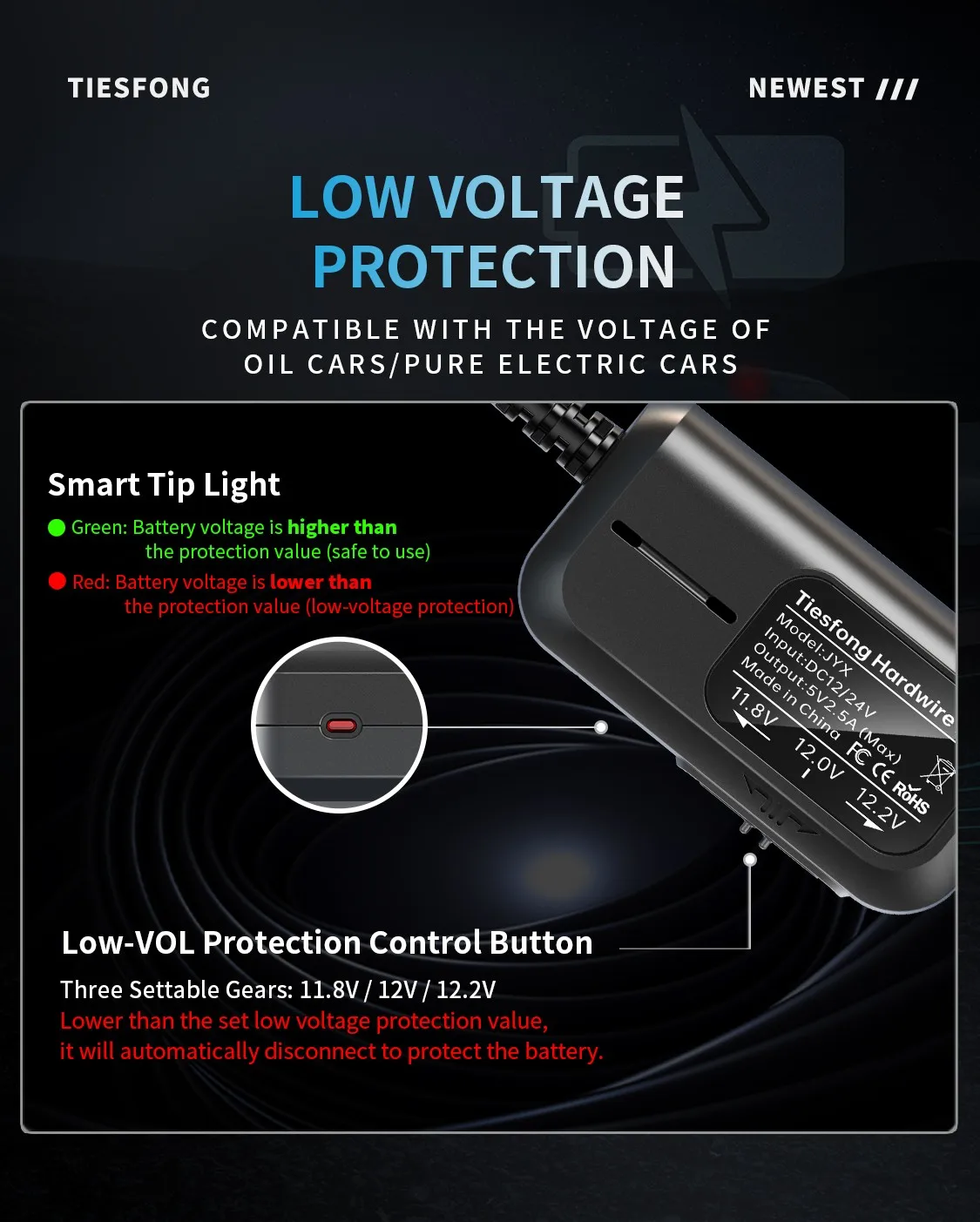

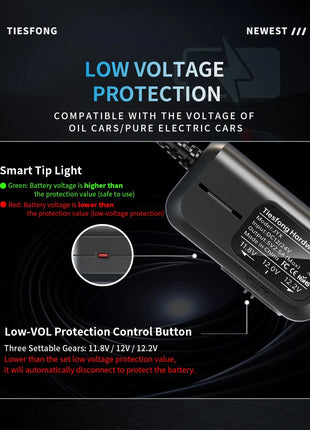

· Low-Voltage Protection – Customizable voltage cutoffs (11.8V/12.0V/12.2V) protect car batteries;
· One click to choose "Off" or "On" when the parking environment is safe or no.

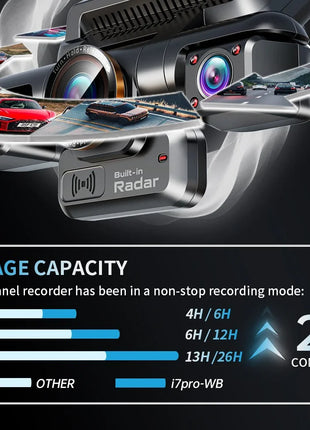

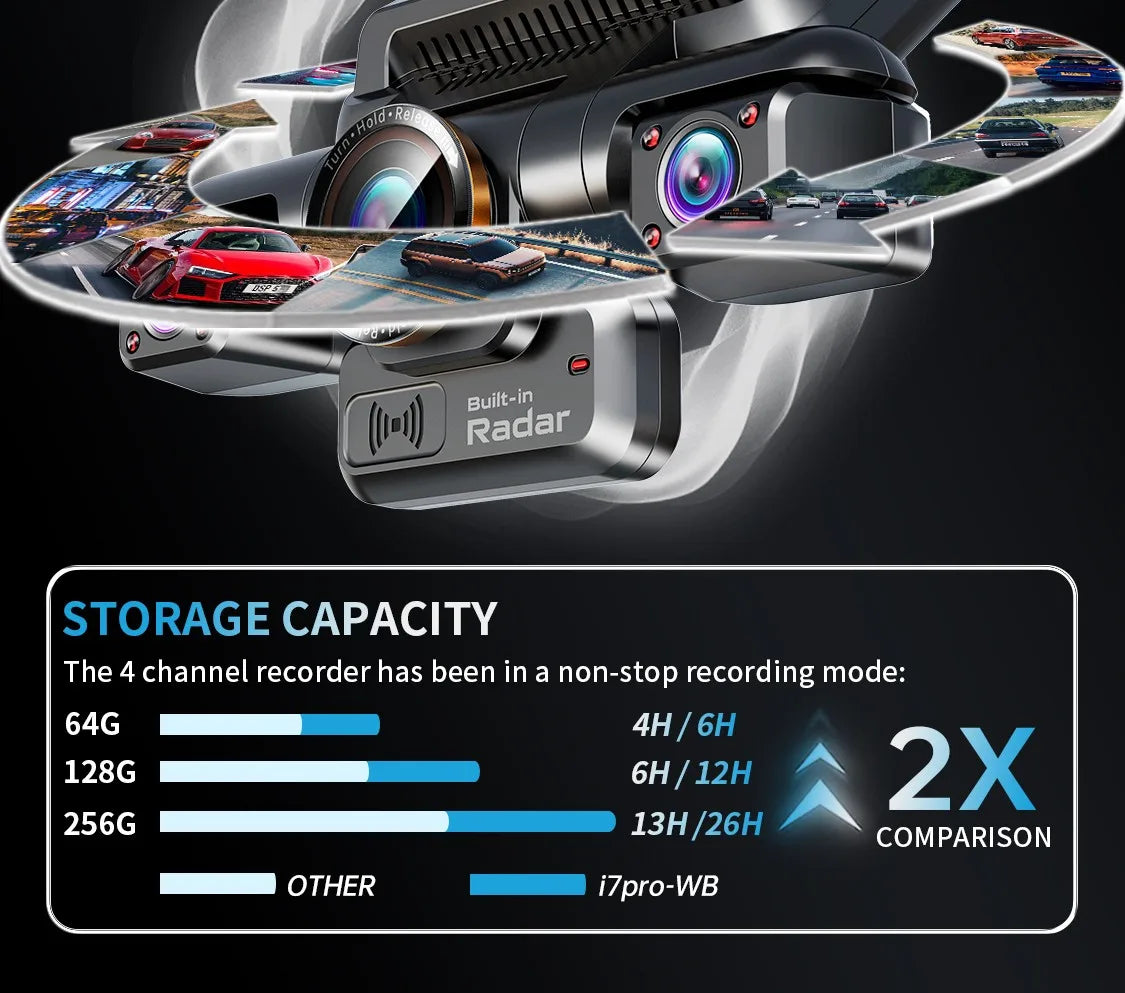

🔄 Loop Recording
📂 Smart Folder Separation | 🔄 2X Storage Upgrade
TIESFONG’s 4-channel recorder doubles loop recording efficiency with 2X storage capacity upgrades (64GB/128GB/256GB), extending recording time up to 26 hours on 256GB mode.
Unlike generic recorders, TIESFONG's i7pro-WB splits video files into timestamped fragments for seamless overwriting—starting from the oldest files first.
Footage is categorized into dedicated folders:
Video folder: Records driving footage
Parking folder: Dedicated to parking monitoring
This ensures targeted overwriting based on recording modes, preserving critical events longer.
🔒 G-SENSOR Auto-Lock + Manual Video Protection
🚗 Collision Auto-Lock | 📸 Video Evidence Guard | ⚖️ Insurance-Ready Proof | 💾 Dual-Lock Security
TIESFONG’s advanced G-SENSOR automatically locks video files upon collision detection to prevent overwriting, ensuring critical evidence for insurance claims or traffic disputes.
The dual-lock system includes:
Auto-Lock: Triggered by sudden impact
Manual Lock: Instantly secure footage via on-screen button

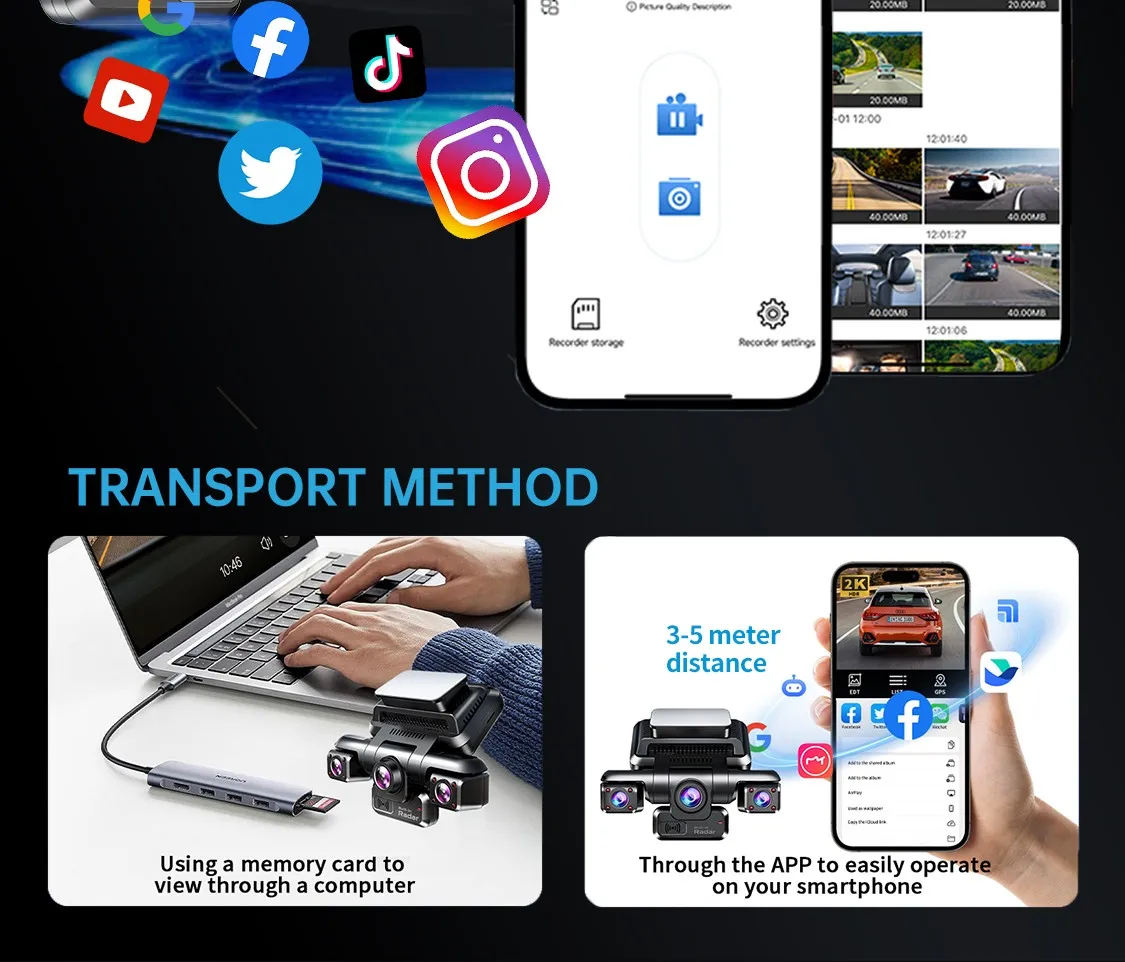

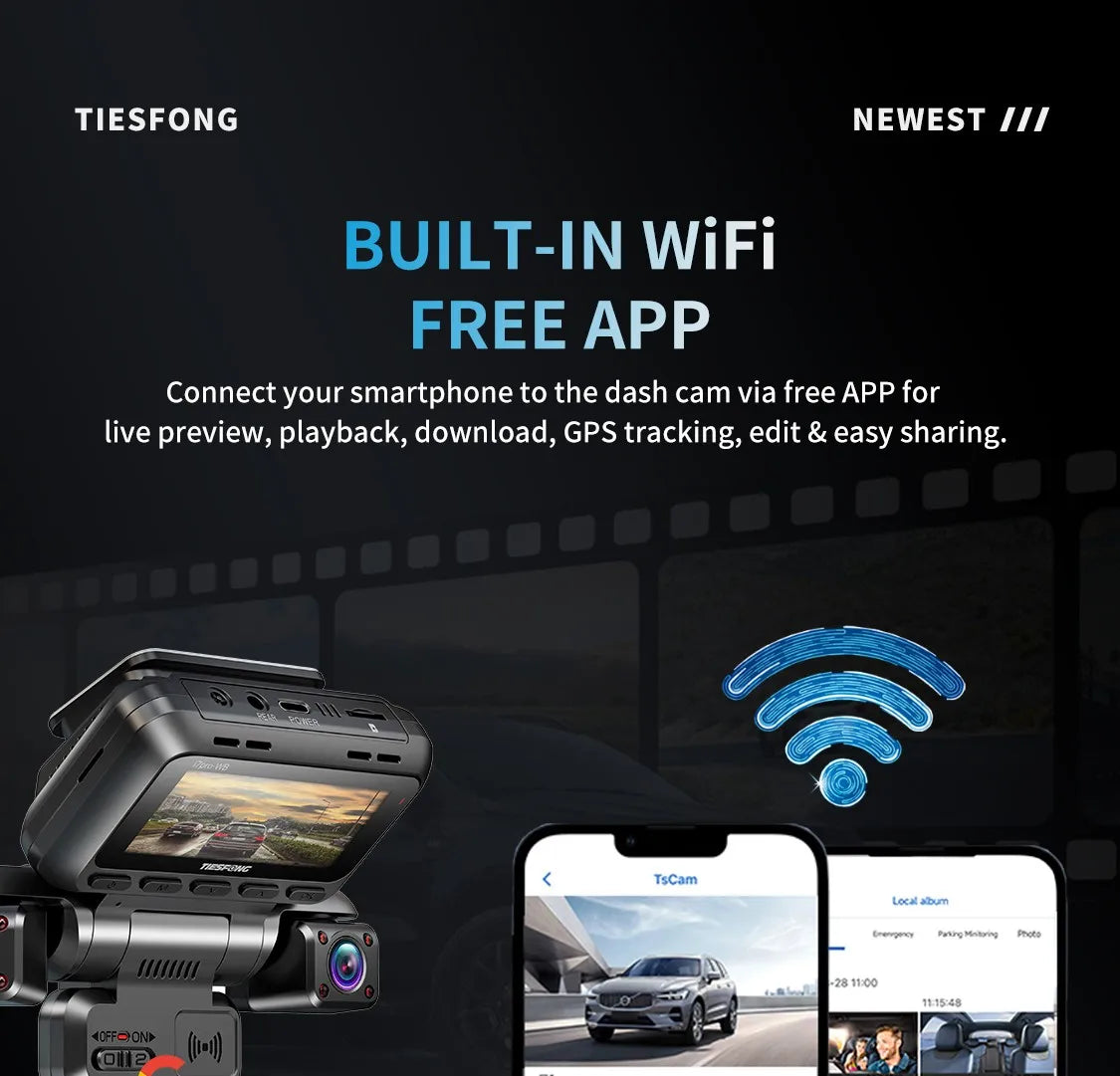

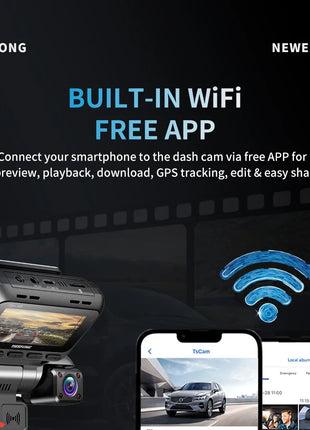

📶 Built-In WiFi: Smartphone Control Within 3-Meter Range
📱 App Connectivity |⚡ Fast File Transfer | 🔒 3-Meter Range | 🔄 Seamless Smartphone Sync
Streamline your workflow with TIESFONG’s built-in WiFi hotspot, designed for quick, short-range (up to 3 meters) connection to your smartphone via the Viidure Free APP.
Use it for:
· Live preview of on-road footage
· Instant playback & video downloads
· GPS tracking & event editing
· Social sharing in seconds
Please note:
WiFi acts like a localized Bluetooth—no remote internet access or long-range connectivity.
📍 GPS Tracking: Precise Location & Speed Recording
📍 Location Data Capture | 📱 App Playback | ⏱️ Speed & Time Logging
TIESFONG’s GPS tracking system captures real-time location data (latitude, longitude), speed, and timestamp during playback via the Viidure App or computer, designed for post-drive analysis, it provides accurate trip logs.
The video files displays detailed coordinates (e.g., N:48.01103 E:37.80361) and recording data like speed (60km/h) and time (15:12:05) .
Please note:
GPS Tracking—no remote real-time monitoring.
❄️🔥 Extreme Temp Resistance: -20°C to 65°C with Button Cell
❄️ -20°C Freezing Survival | 🔥 65°C Heatproof Tech | 🌍 Global Climate Adaptation
TIESFONG’s temperature-resistant design thrives in harsh climates, ensuring consistent work and durability across 50+ countries' climate zones (Equipped with a long-life button cell battery) :
· -20°C Cold Resistance: Reliable operation in freezing environments (e.g., icy roads)
· 65°C Hot Resistance: Stable performance in scorching deserts (e.g., Middle Eastern summers)
Please note:
Button cell is a non-rechargeable battery and is not supported to power the recorder.

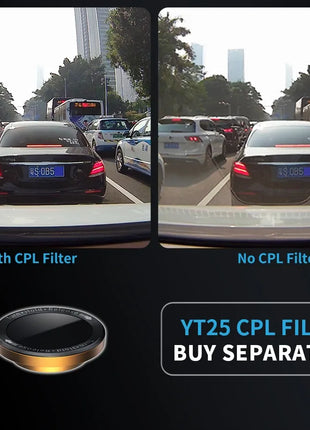

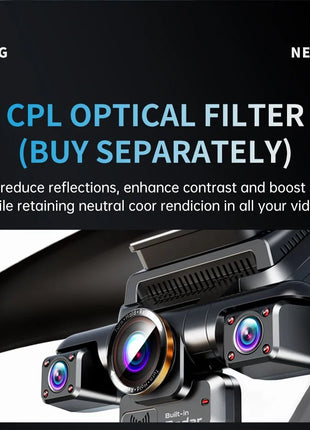

🌟 TIESFONG YT25 CPL Filter: Enhanced Clarity & Neutral Tone
🚗 Vehicle-Optimized Clarity | 🎨 Enhanced Saturation | 📸 Neutral Tone Preservation
TIESFONG’s YT25 CPL Optical Filter minimizes glare and boosts color saturation for professional-grade video.
Designed for vehicles, it:
· Reduces reflections from road surfaces and glass
· Enhances contrast for sharper details (e.g., license plates, landscapes)
· Retains neutral tones for authentic color reproduction
The black-gold design matches dash cam's aesthetics, while the compact filter screws seamlessly onto front cameras.
Please note:
Sold separately for customized upgrades.

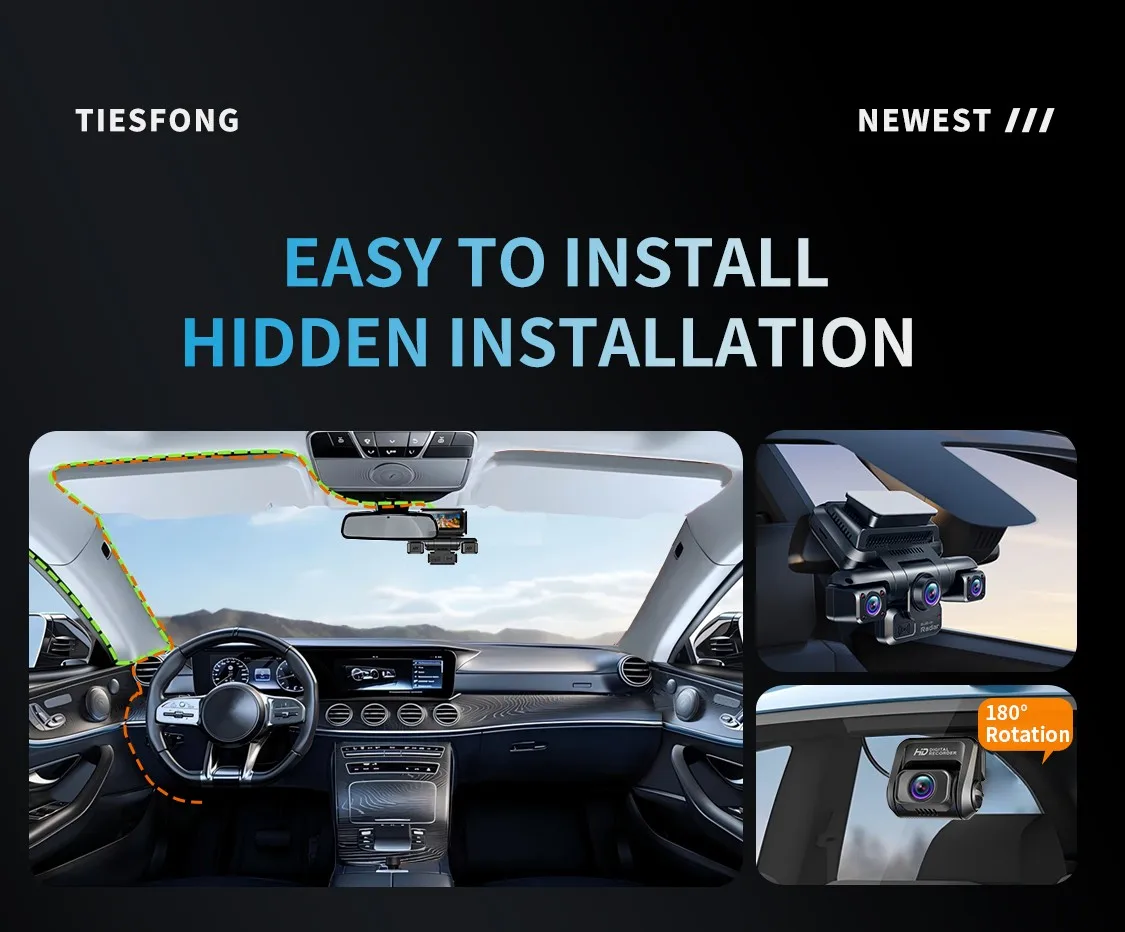

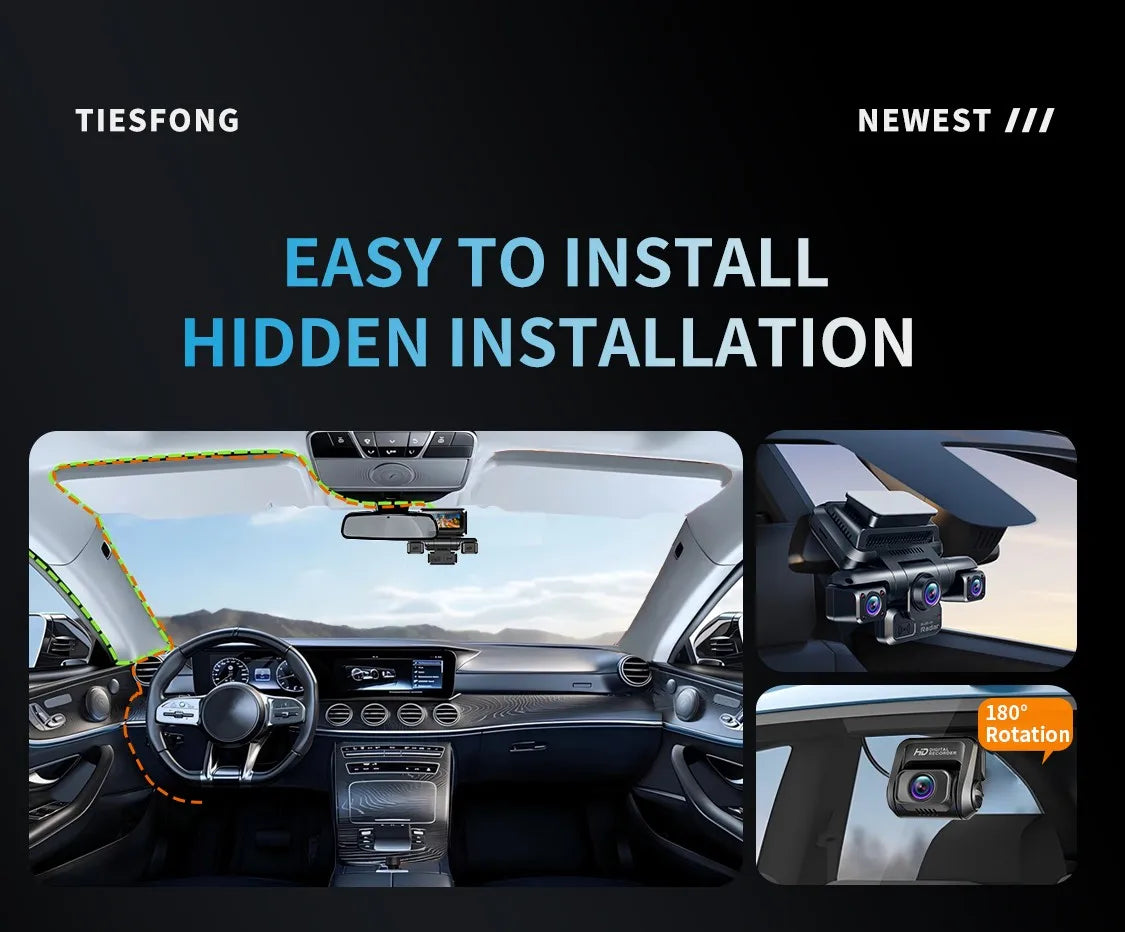

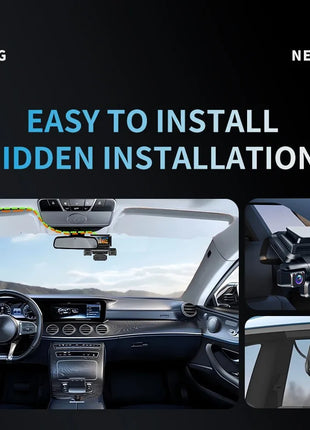

🚗 Hidden Installation
🔧 2-Cable Setup | 🕶️ Hidden Design | 🖤 Ultra-Sleek Style
TIESFONG’s NEWEST hidden dashcam simplifies installation with just two power cables: main power cable (connected to the car fuse box) and rear camera cable, no complex wiring or visible mounts required—ideal for all vehicle models.
Excess cables can be neatly tucked into car gaps for a clean, clutter-free interior and the sleek deep-tone product design blends seamlessly with modern car interiors.
Why choose us?
1. TiESFONG Brand has its own factories in China and a number of camera patents. It is very competitive in the market.
2. We have a mature after-sales service team and a perfect after-sales service system.
Once you encounter any use problems, we will reply and solve them within 24 hours, please don't worry.
3. Our products are very popular in China, and the sales volume is the best in the industry. We often update various types of new dash cam, just to bring the best experience to buyers.
Warm Tips
About US
TiESFONG Official Store is the only official store authorized directly from TiESFONG without any transfer link. It is committed to sell 100% original authentic products.
About Memory Card
1. The dash cam supports standard Micro SD cards.
2. Please use memory cards with the 64G(MINIMUM)-256G(MAXIMUM) of Class 10, U3(UHS-1) Speed or above.
We recommend using Class 10, U3 of LEXAR High Endurance Micro SD cards. When you insert a new card into the machine, please format the card on the Dash Cam before you use it.
3. You can find the Format option on the menu of Dash Cam.
4. The memory card may become damaged or deteriorated after repeated cycles of overwriting, and this may affect its ability to save video and image files.
5. If this occurs, immediately replace it with a new memory card.
