Descrizione
SPECIFICATIONS
Battery Capacity(mAh): Others
Battery Voltage: 48V,48V60V/72V
Brake System: Front drum+Rear drum
Brand Name: NoEnName_Null
Certification: ce
Charge Time(h): 7-9h
Curb Weight: 400-500kg
Driving Mileage: ≥90km,90-120km
Fuel Type: Electric
Grade Ability: 10-15°
Hign-concerned Chemical: None
Hub size: 14INCH
Max Speed: 40 - 50 KM/H
Maximum Speed: 30-50Km/h
Minimum Grand Clearance: 150-200mm
Origin: Mainland China
Seats: 5 - 6
Standing Postion of Tail Caddie: Equipped
Tire Size: 10 inch

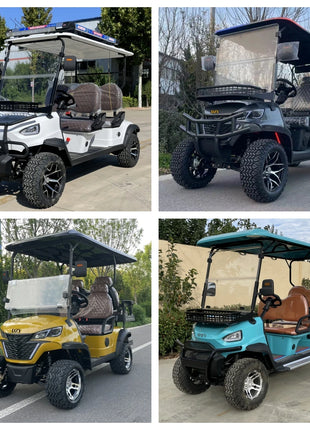

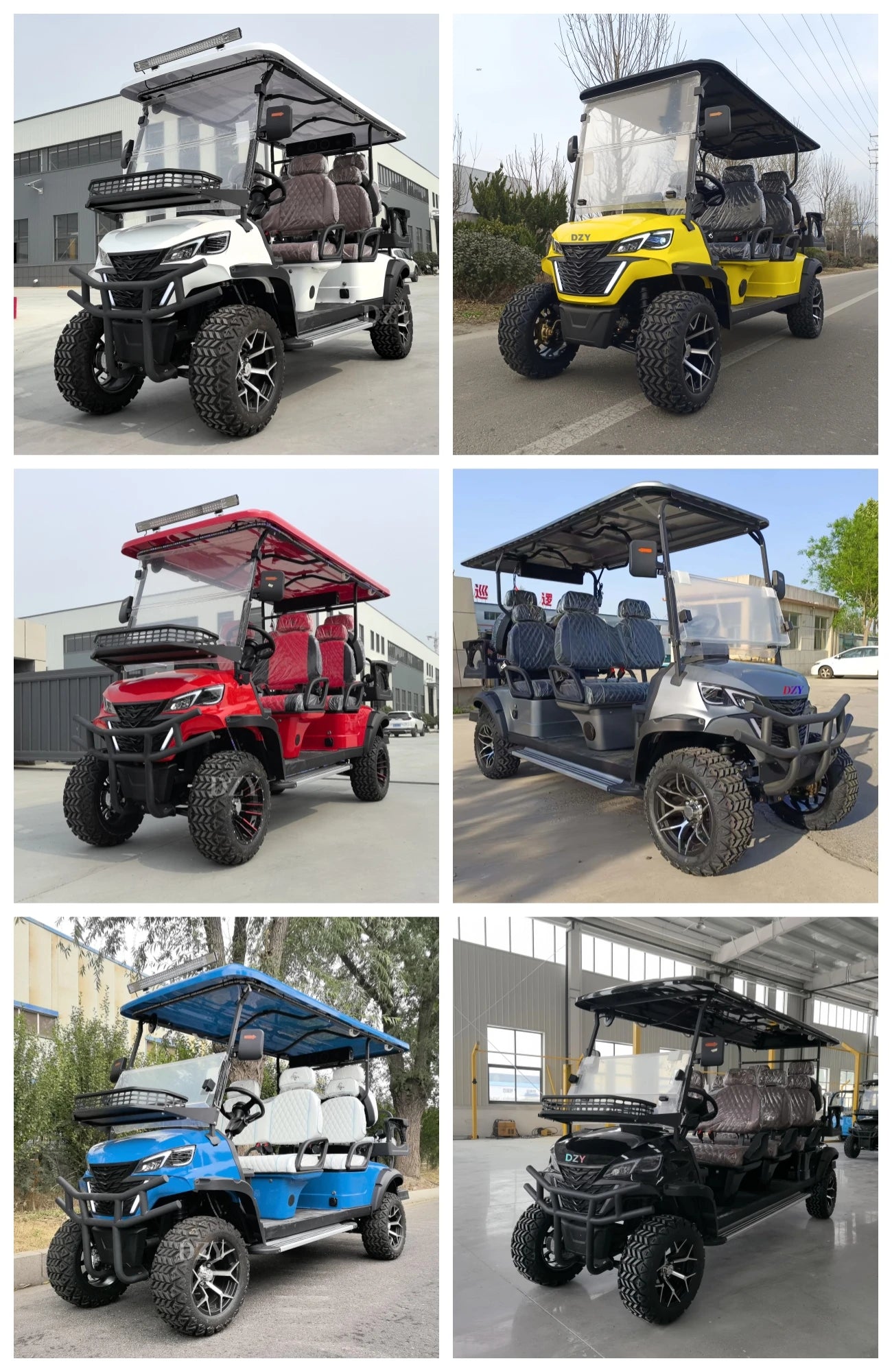

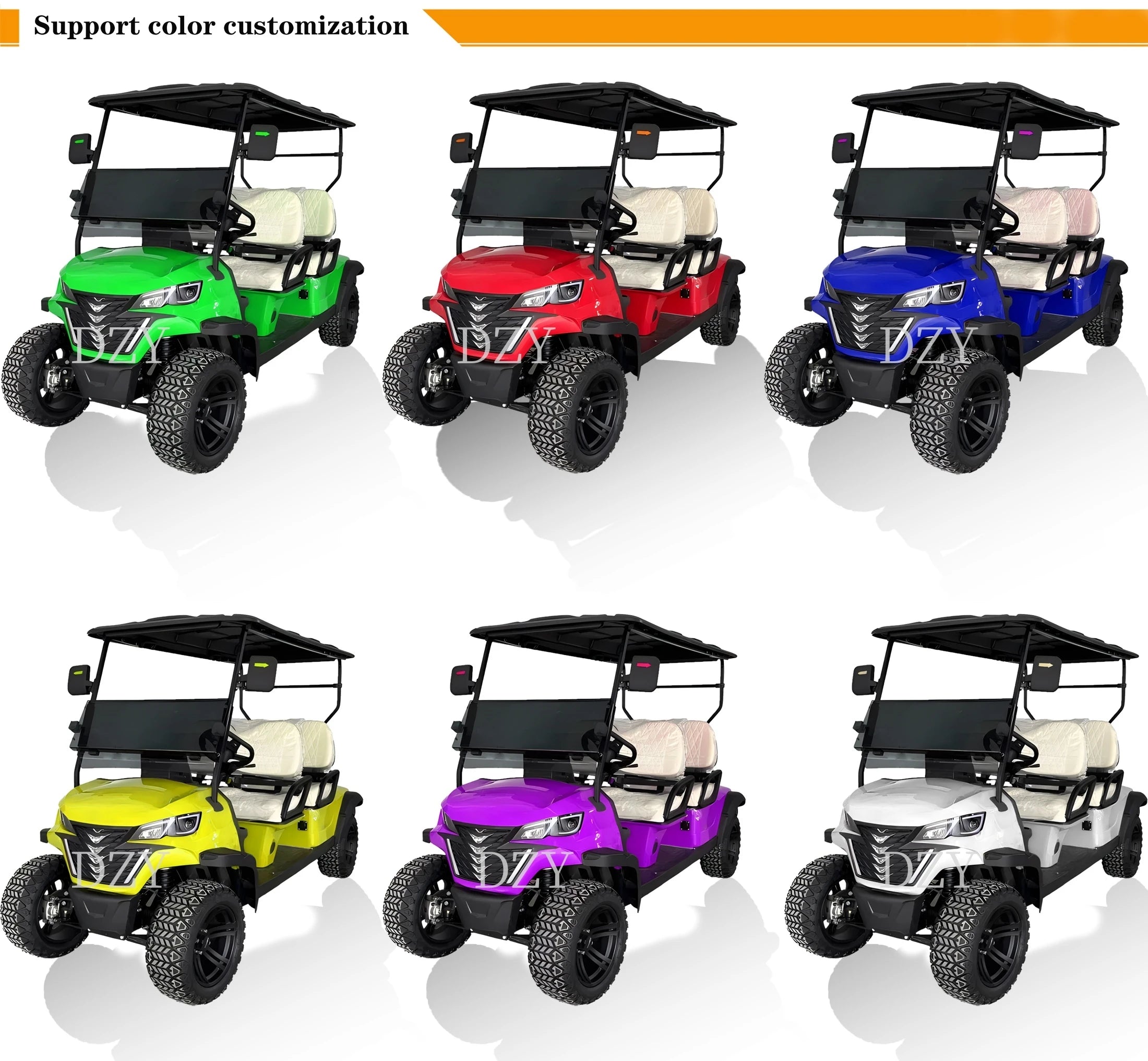

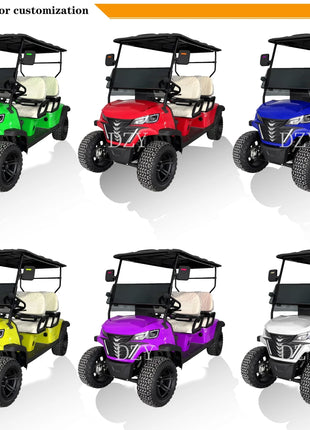

color: Customized according to customer requirements
refit: according to customer requirements
seats: Bus cold foam sponge + high rebound PU leather fabric

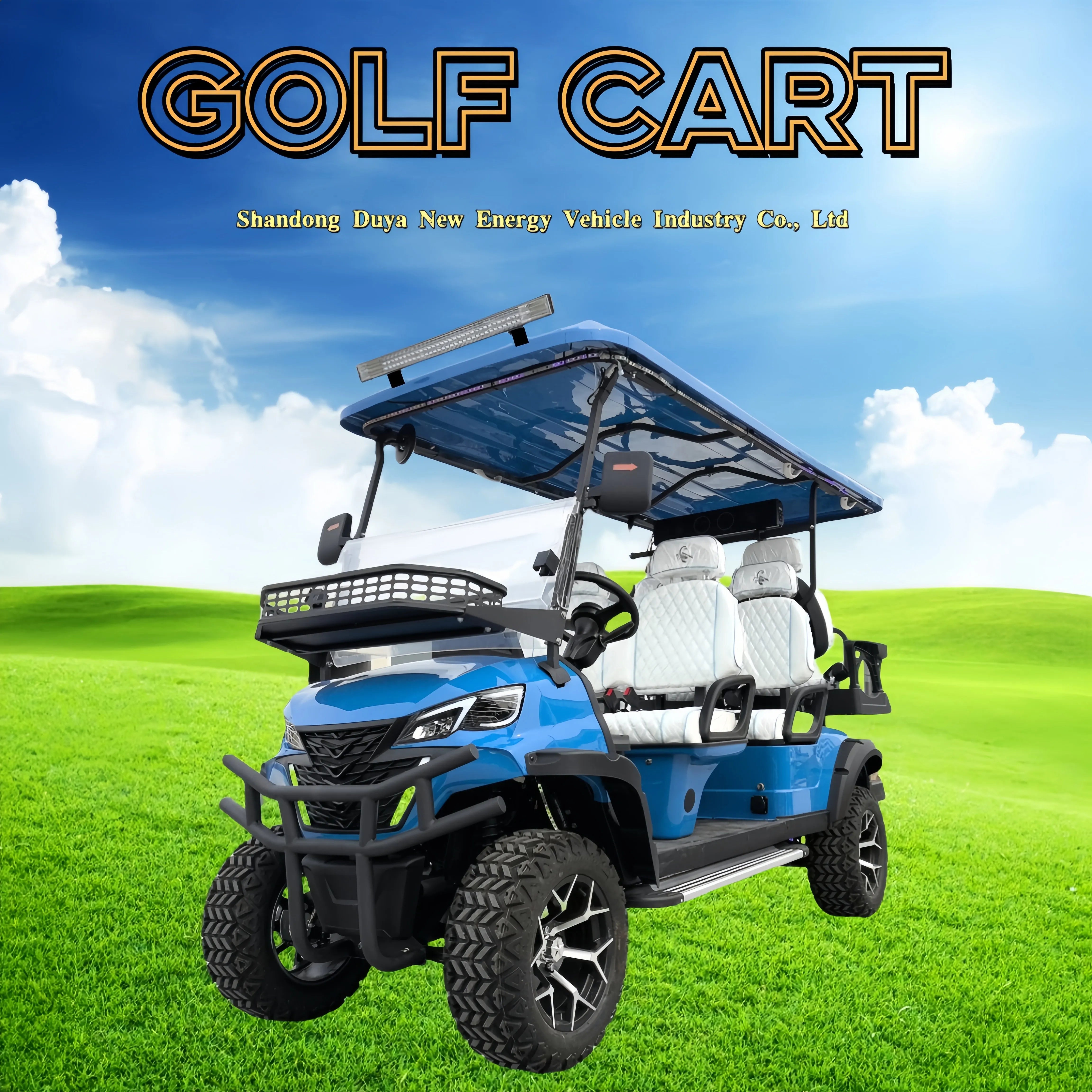

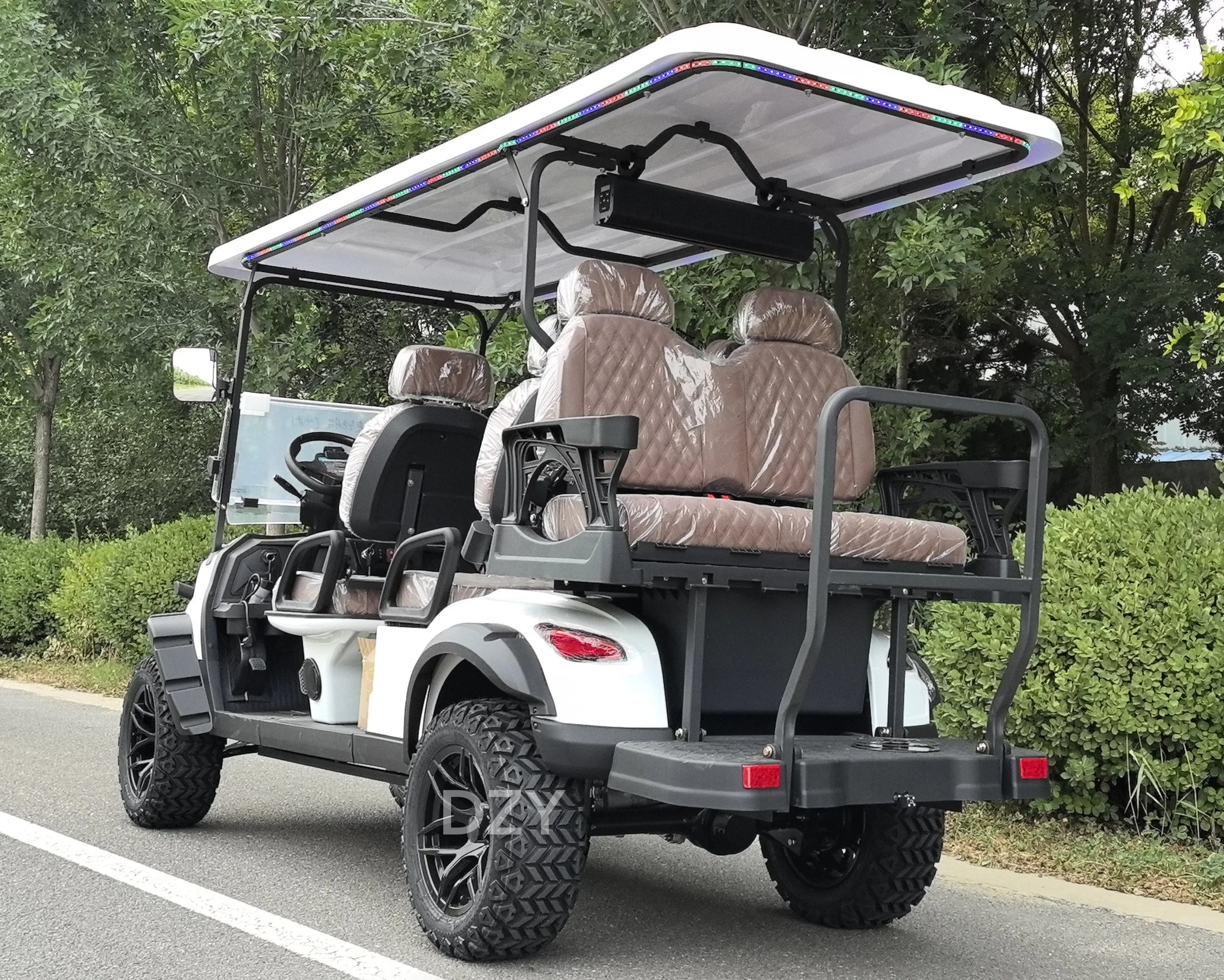

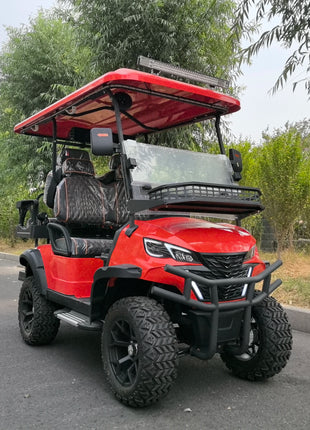

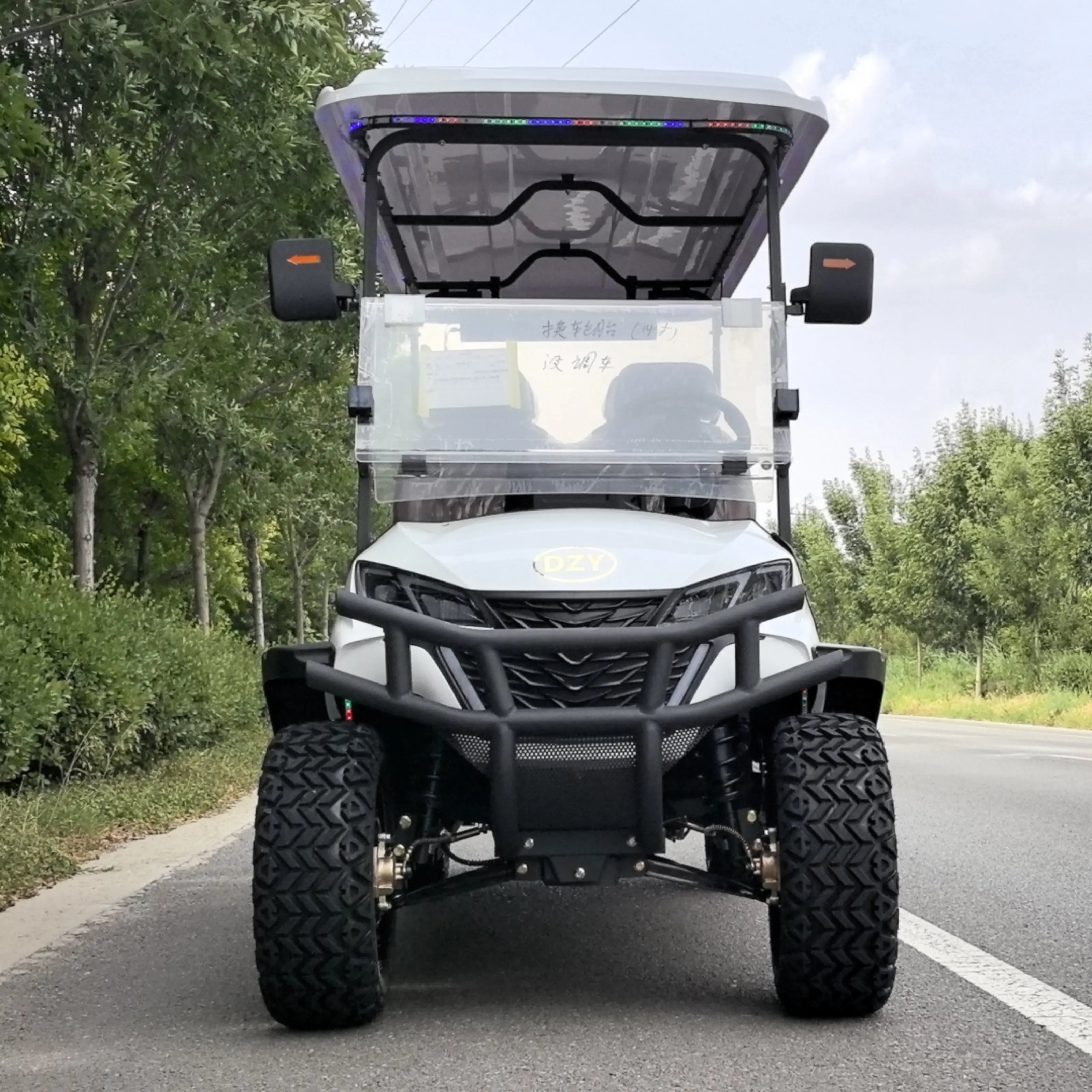

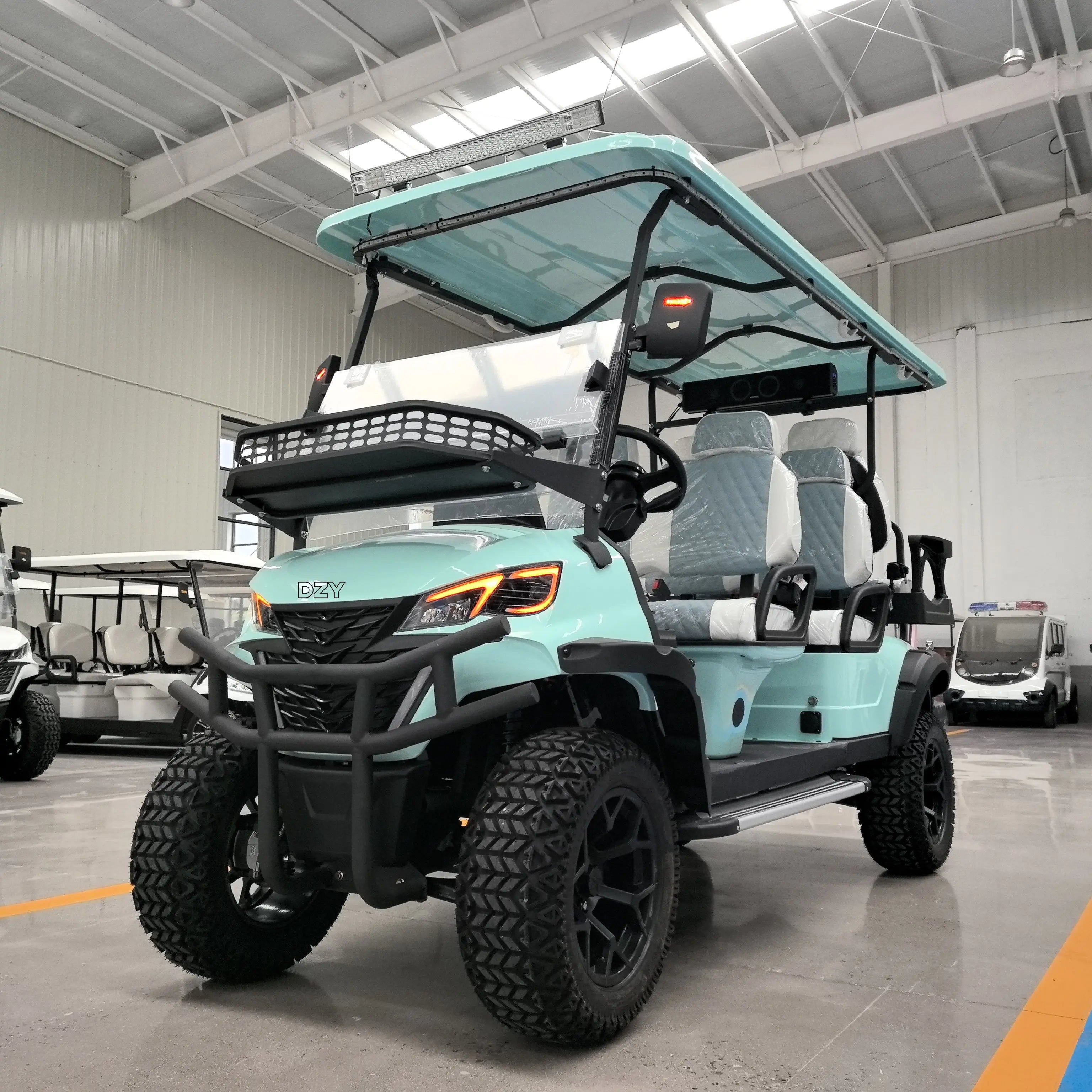

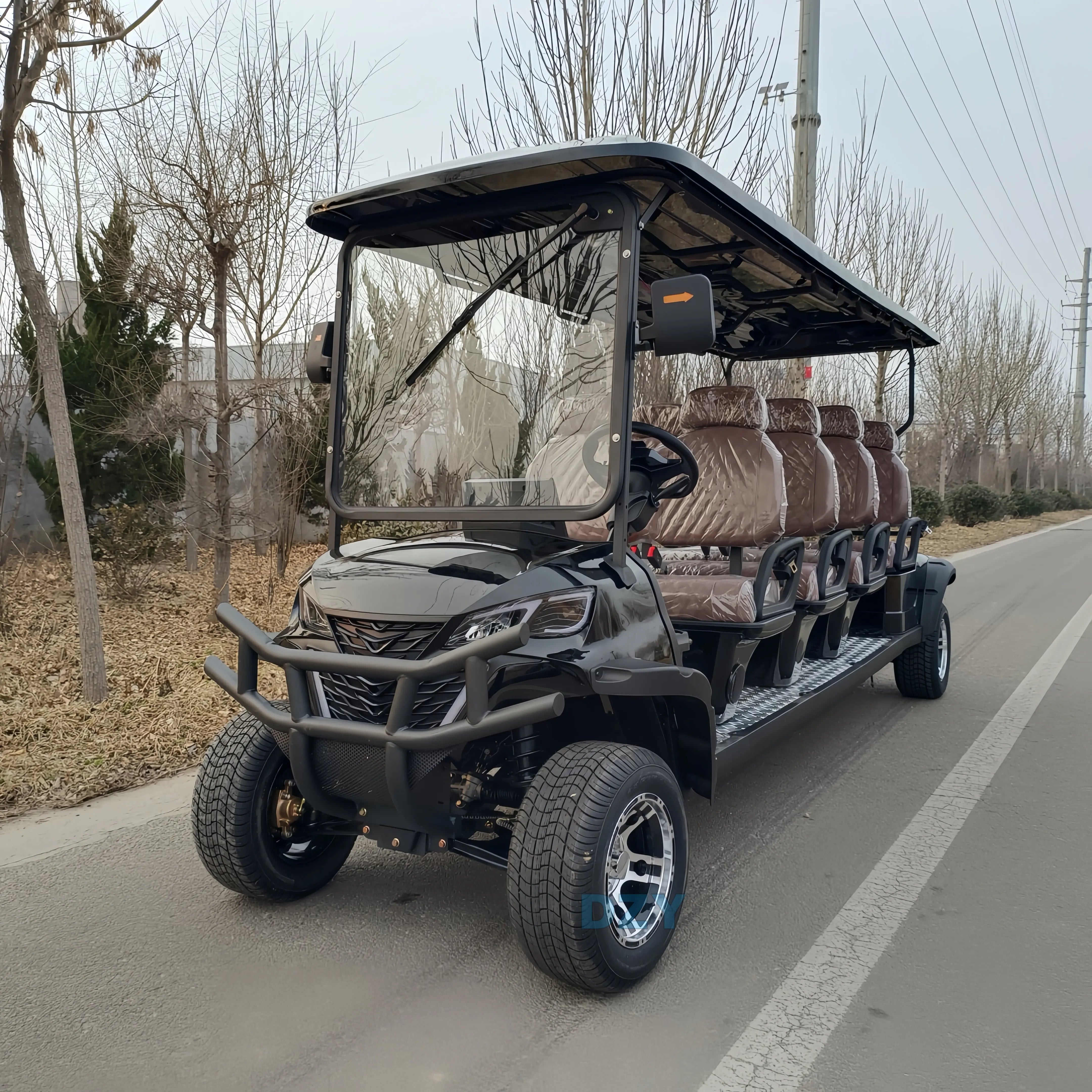

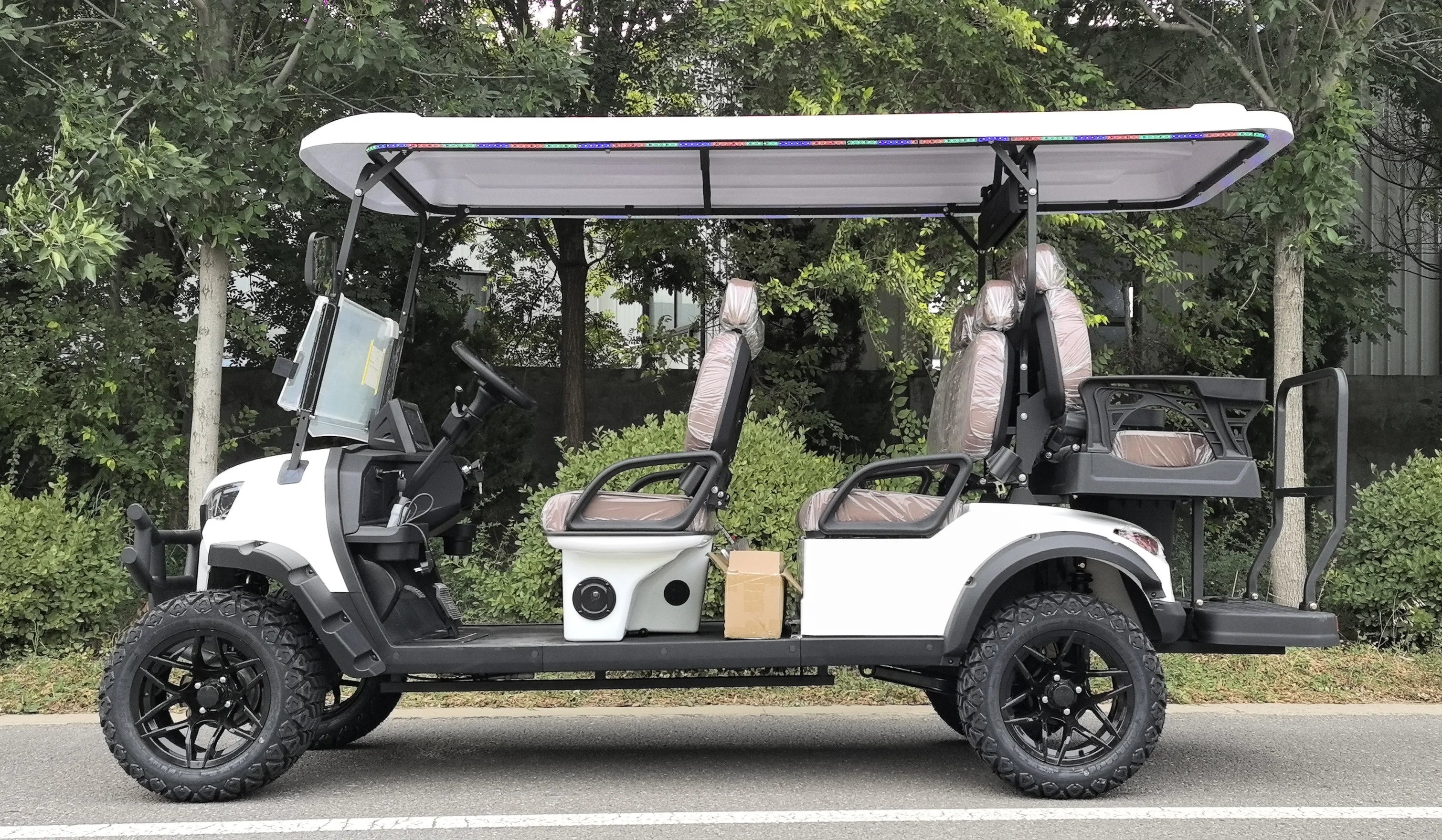

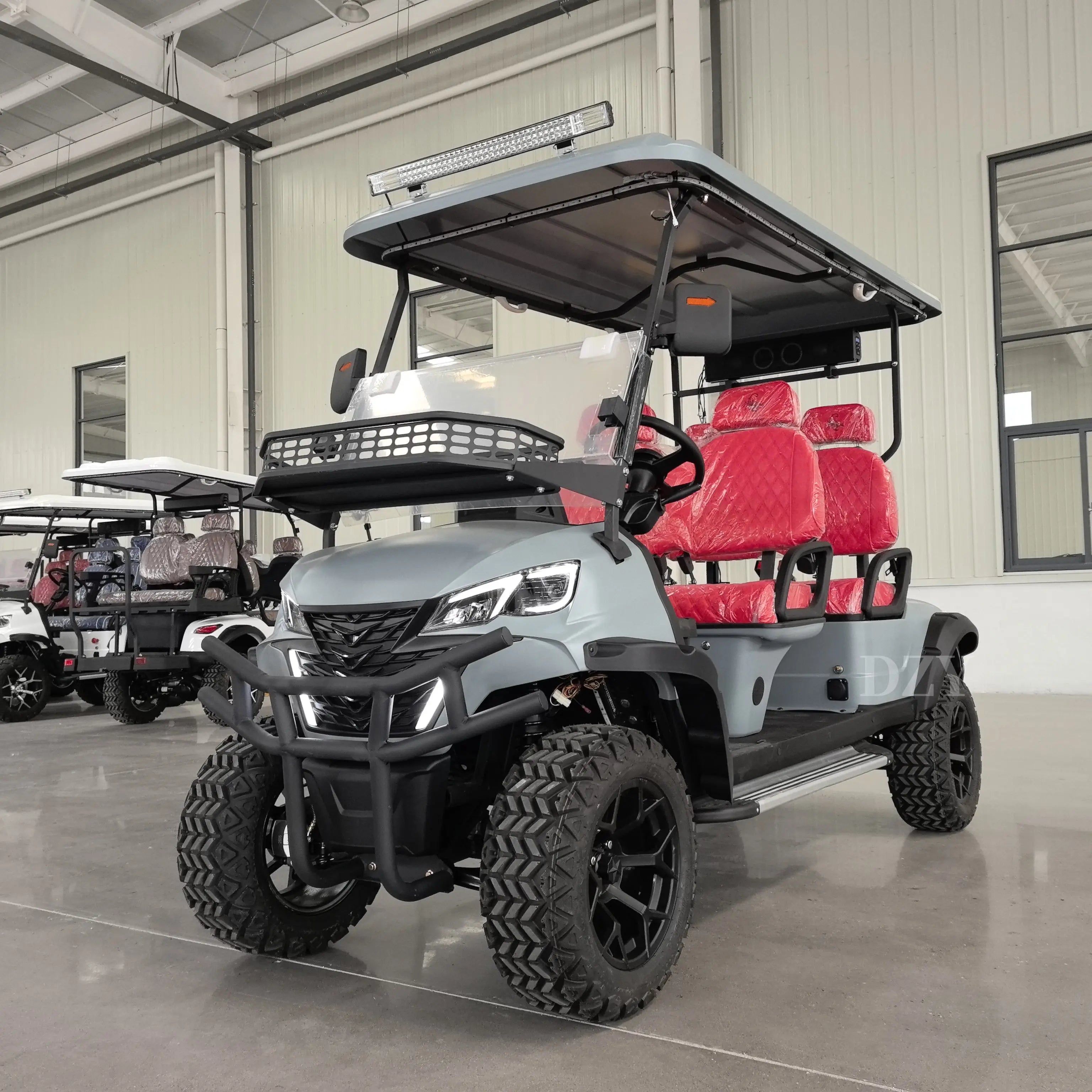

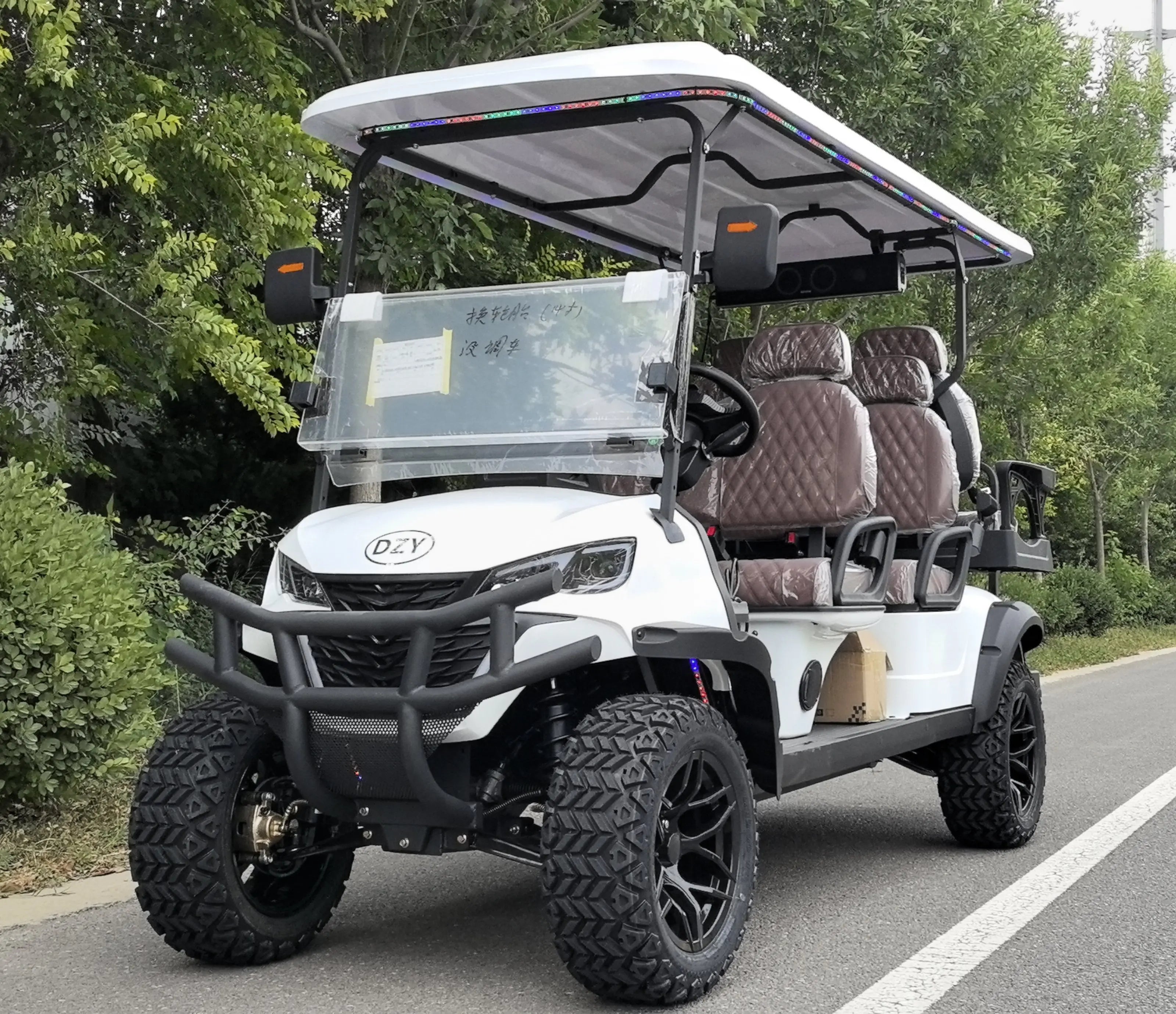

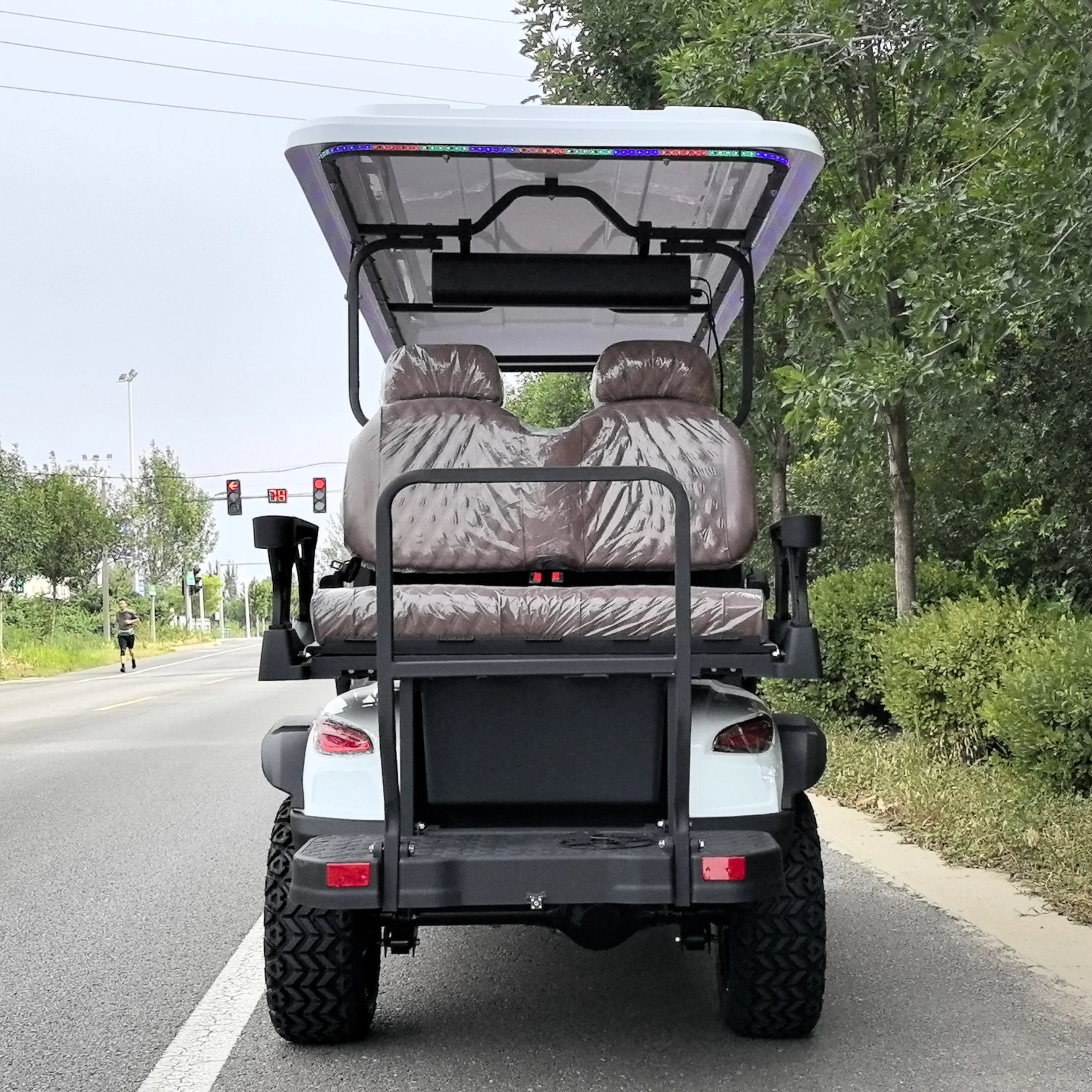

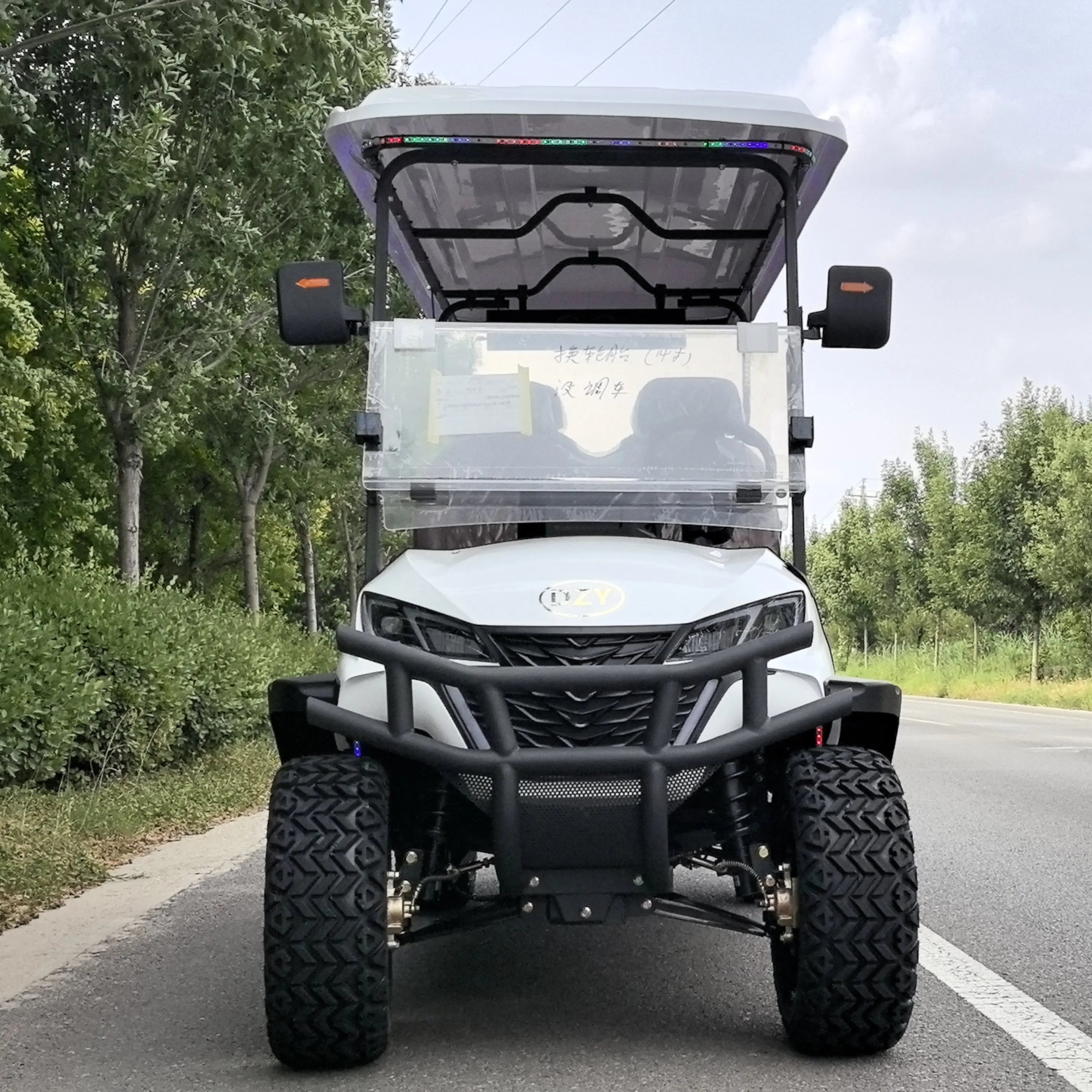

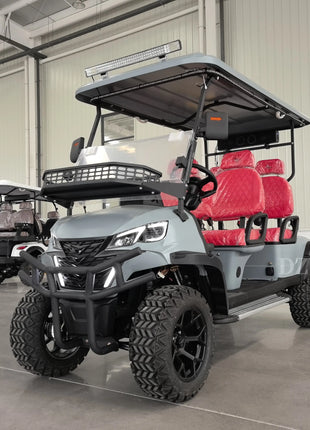

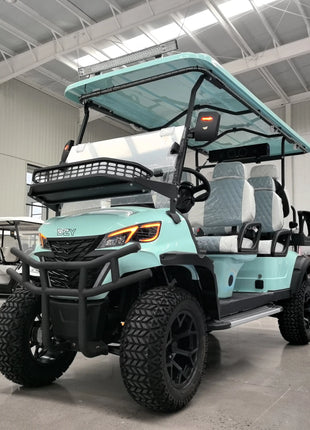

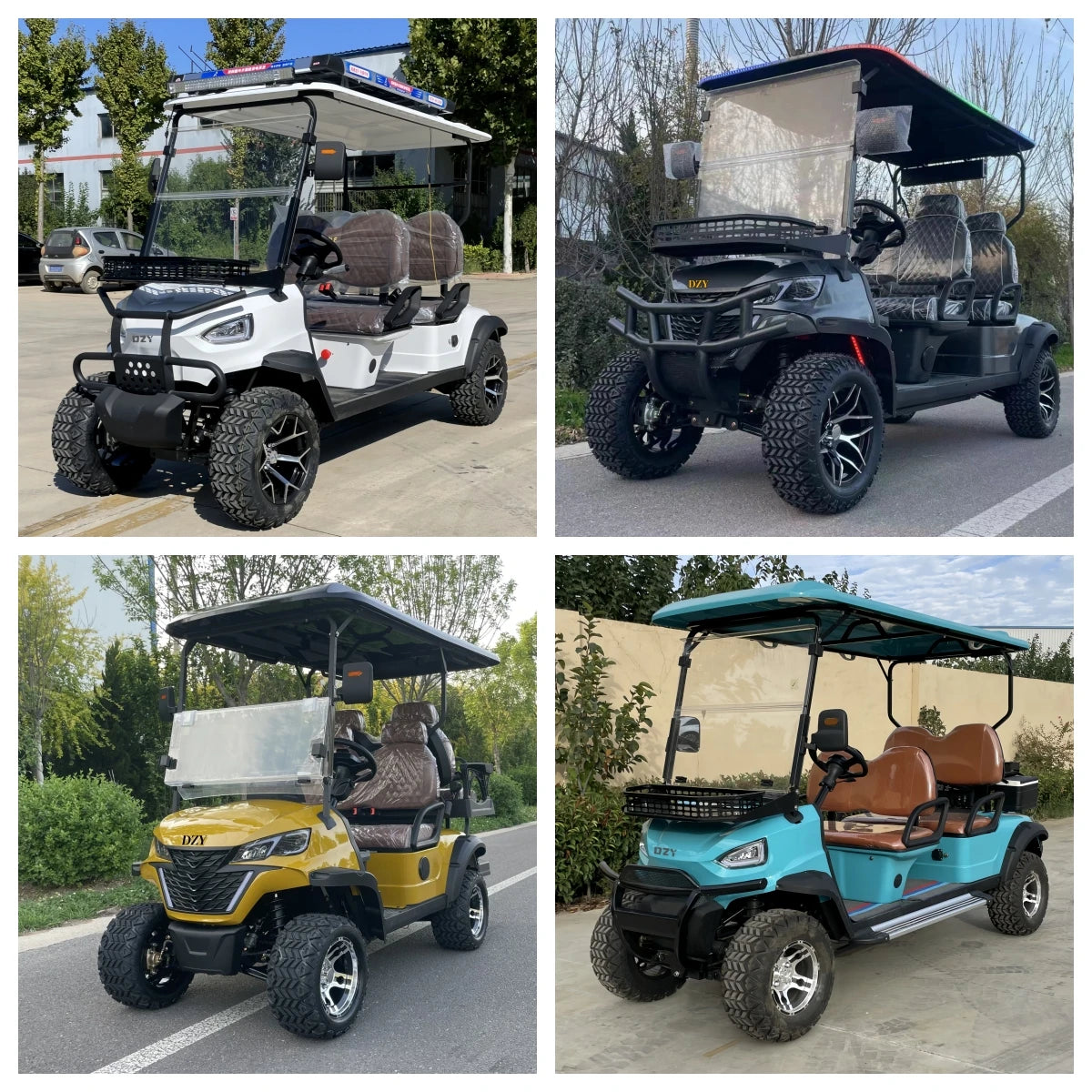

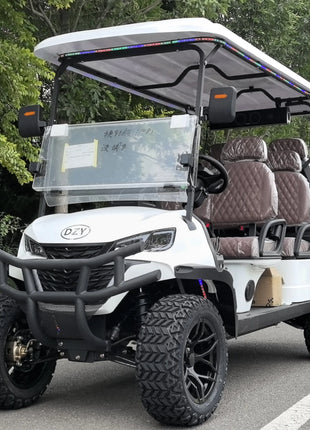

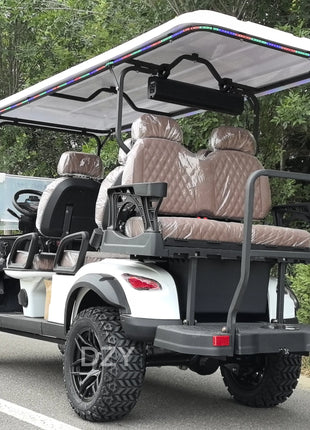

Street Legal 4 6 Seat Electric Golf Cart for Golfing Club Pick-up Car Hunting Buggy
Hello, welcome! We are a Chinese manufacturer that offers customization and OEM processing.
Firstly, due to incomplete platform shipping template settings, we can ship to all countries. Please add us for detailed communication. Thank you
Secondly, the prices and shipping fees on the page you see are not entirely accurate. Due to the large items being transported by sea, transportation costs fluctuate greatly and require real-time inspection. Please contact us in advance to confirm the final price. We believe we will provide you with satisfactory prices and welcome you to discuss cooperation.
This is our business card. Please contact us. Thank you
Seats |
2 seats |
4 seats |
6 seats |

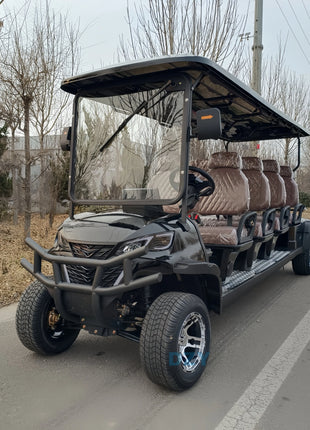

8 seats |
Size |
2350*1250*1900mm |
2980*1250*1900mm |
3680*1250*1900mm |
4250*1250*1900mm |
Weight |
450KG |
510KG |
590KG |
670KG |
2 seater multi-purpose electric golf cart parameters |

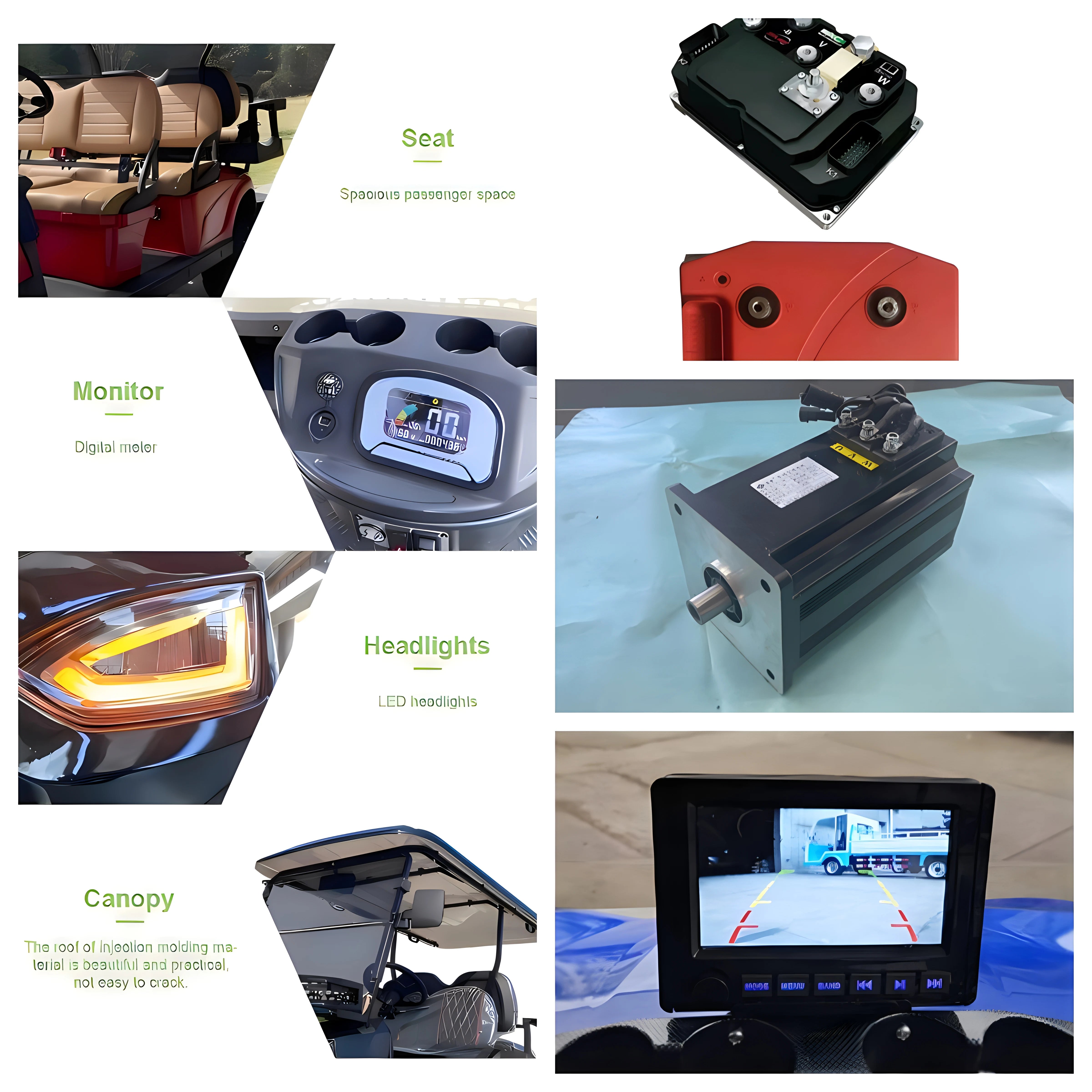

Key Components
|
Controller |
Inbor, SME or China Local Brand |
Motor |
4KW/5KW/ AC motor |
Battery |
48V/60V/72V120AH Battery |
Performance
and
Dimensions
|
Passenger Capacity |
1-2 |
Range (Loaded) * |
90-100kms |
Max.speed |
36-45km/h |
Min. Turning Radius |
3.7m |
Max. Gradeability |
20%-30% |
Max. Loading Weight |
280kgs |
Net Weight |
450kgs |
Overall Dimensions |
2980*1250*1900mm |

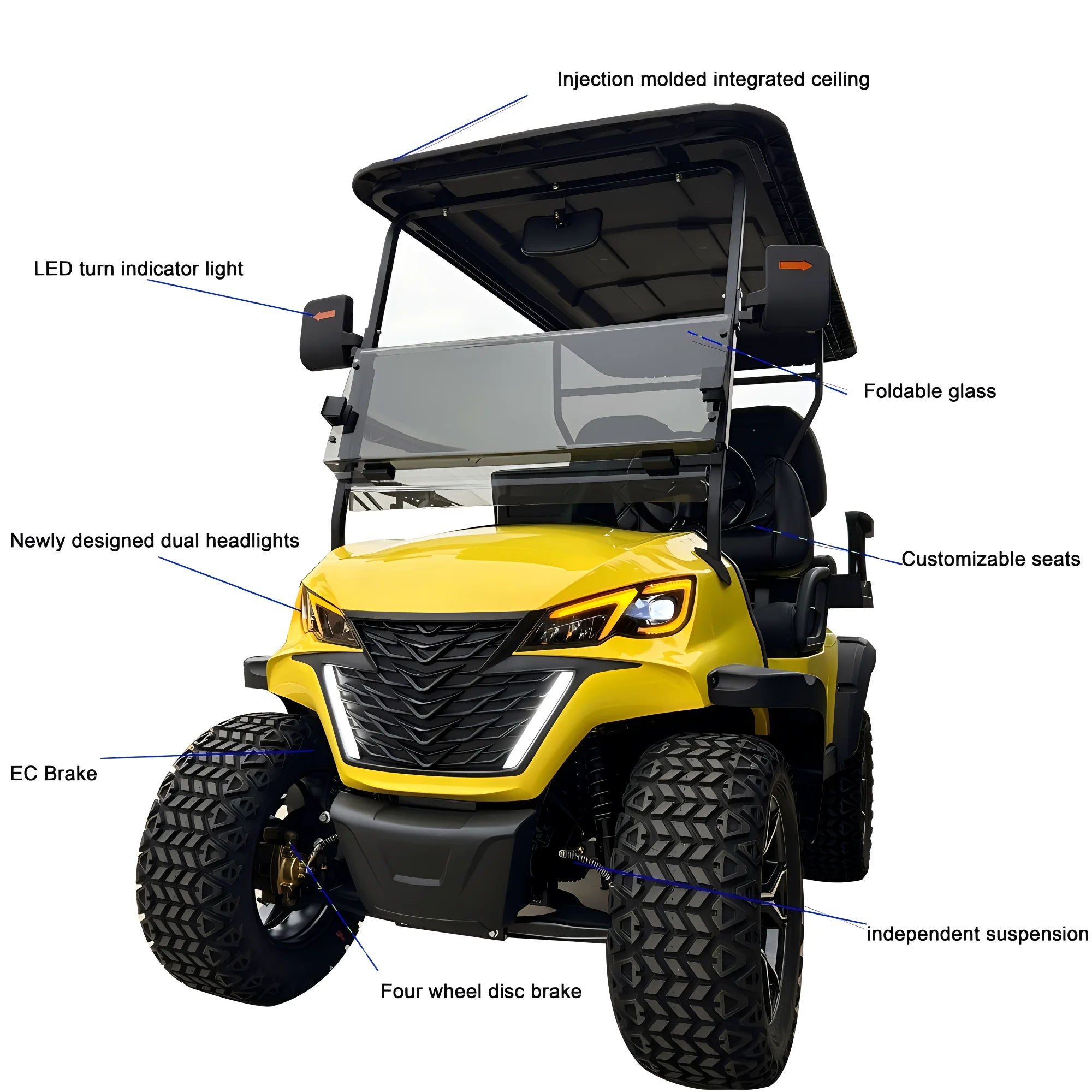

Body and Frame |
Frame (Chassis) |
Welded steel framework, with anti-rust treatment of acid washing, phosphating and electro-coating |
Body and Roof |
PP plastic front body and rear body; PP vacuum form roof |
Windshield |
Organic plastic windshield, splited tinted |
Roof supports |
Carbon Steel, powder coated |
Backrest and Seat |
Reborn Sponge, artificial leather + plastic armrest |
Floor |
Galvanized Steel plate and anti-slip rubber floor mat |
Dashboard |
Plastic in black, with 4 cup holders, 2 glove storage box, forward/reverse switch, battery capacity indicator, ignition key |
Side trim |
Plastic |
Sider mirror |
2pcs, foldable |
Electric System |
Lighting system and horn |

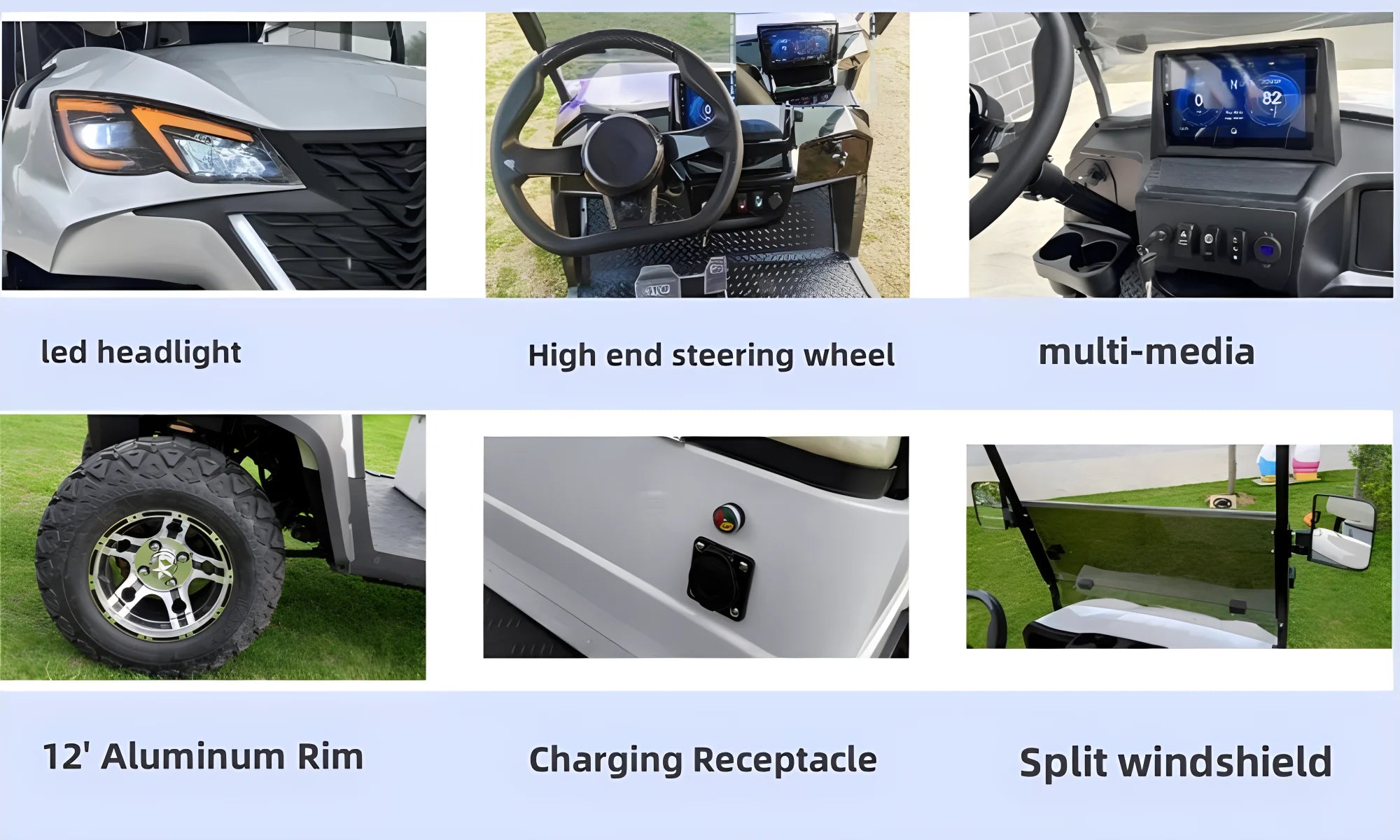

All LED lights, 2 headlights, 2 front turn signals, 2 taillights, electric horn. |
Backup Buzzer |
12V |
Digital Meter |
LCD screen, with speedometer, odometer, battery power meter and various indicators |
Charger |
Smart charger |
Steering, Brake, Transmission and Suspension |
Steering system |
Single-stage rack and pinion steering system, automatic rocker compensating function |
Brake system |
Four-wheel hydraulic brake + pedal parking brake |
Accelerator |
Stepless speed change |
Suspension system |
Cylinder hydraulic shock absorption+integral rear axle+leaf spring |
Driving mode |
Rear axle secondary reduction, AC motor |
Rear axle |
Integrated, variable speed gear |
Wheel & Tyre |
205-50-12, Aluminium wheel hub, vacuum tire |
detailsoduct details
Q1. What is your terms of packing?

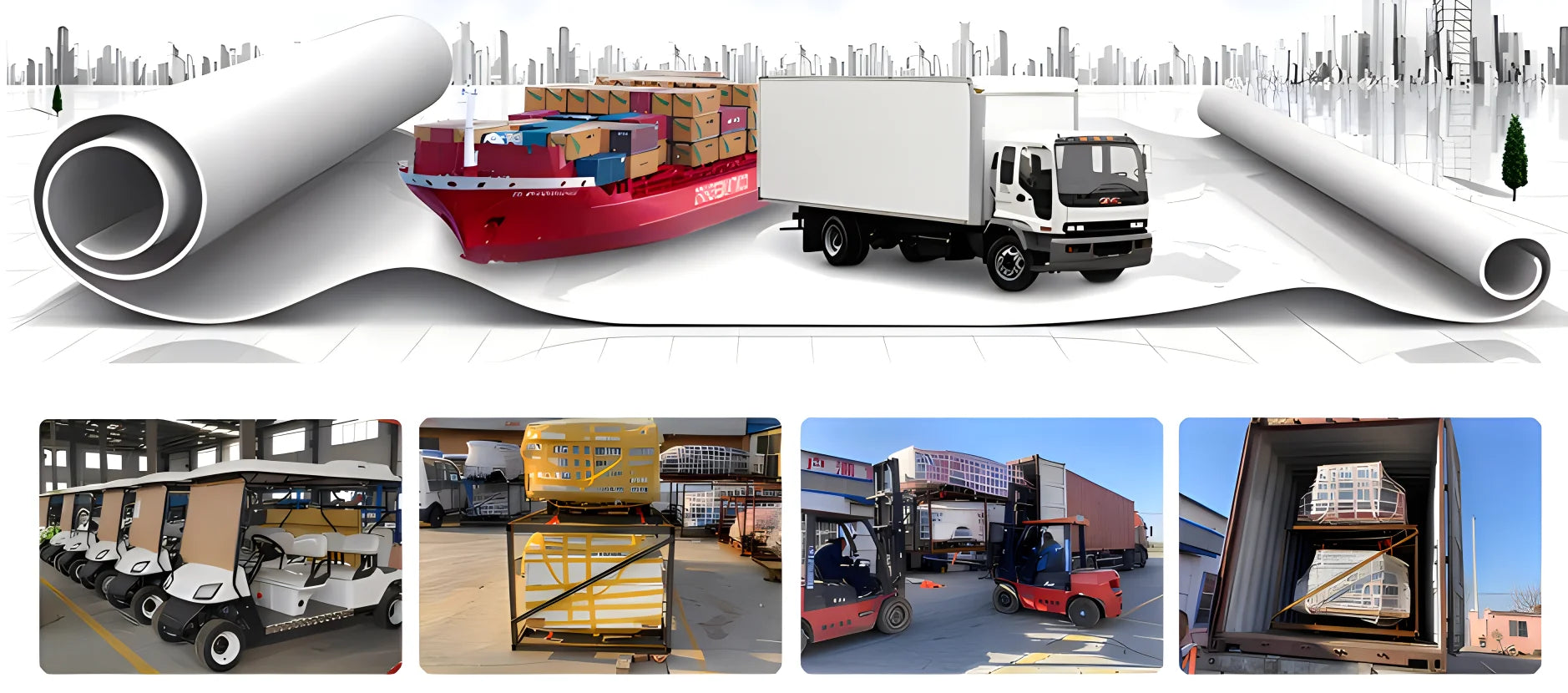

A: Generally, we pack out goods in containers by iron frame. If you have special requirement we can follow.
Q2. What is your terms of payment?
A: T/T 50% as deposit, and 50% before delivery. We'll show you the photos of the products and packages,before you pay the balance.
Q3. How about your delivery time?
A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q4. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q5. What is your sample policy?
A: Since this product is high-value product, we can accept sample by discount. Should the production be large in quantity, we may even consider re-funding for the sample.
Q6. Do you test all your goods before delivery? A: Yes, we have 100% test before delivery
Q7: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
3. OEM Manufacturing welcome: Product, Package...
4. Sample order
5. We will reply you for your inquiry in 24 hours.
6. After sending, we will track the products for you once every two days, until you get the products. When you got the goods, test them, and give me a feedback. If you have any questions about the problem, contact with us, we will offer the solve way for you.
