Application:
for Audi A4 A6 Quattro VW PASSAT 1.8T AEB/ANB/APU/AWT Upgrade
for Audi A4 1.8T AEB/ANB/APU/AWT20v/AVJ 1995 - 1999
for Audi A4 Quattro 1.8T AEB/ANB/APU/AWT/AVJ/BEX 1999 -
for Audi A4 Upgrade 1.8T 1995 -
for Audi A6 1.8T AEB/ANB/APU/AWT 1997 - 1999
for Audi A6 Quattro 1.8T AEB/ANB/APU/AWT 1999 -
for VW Passat 1.8T AEB/ANB/APU/AWT 1999 -
for VW Passat 1.8T upgrade 1999 -
Interchange Part Number:
53039880005, 53039700005,
53039880013, 53039700013,
53039880029, 53039700029,
53039880025, 53039700025,
53039880073, 53039700073,
53049880015, 5304-988-0015, 5304 988 0015,
53049700015, 5304-970-0015,5304 970 0015,
058145703L, 058145703LX, 058145703LV,
058145703J, 058145703JX, 058145703JV,
058145703K, 058145703KX, 058145703KV
058145703N,058145703NX , 058145703NV,
058145703Q，058145703QX,058145703QV
058145703B, 058145703C, 058145703D
058145703E, 058145703H,
Specification:
Compressor :
Wheel Diameter: 50/37.5 mm
Trim: 56
Compressor Inlet: 44.5 mm
Compressor Outlet: 50 mm
Blades: 4 x 4 blades type
Turbine :
Wheel Diameter: 46/42 mm
Trim: 83.7
Blades: 12 blades

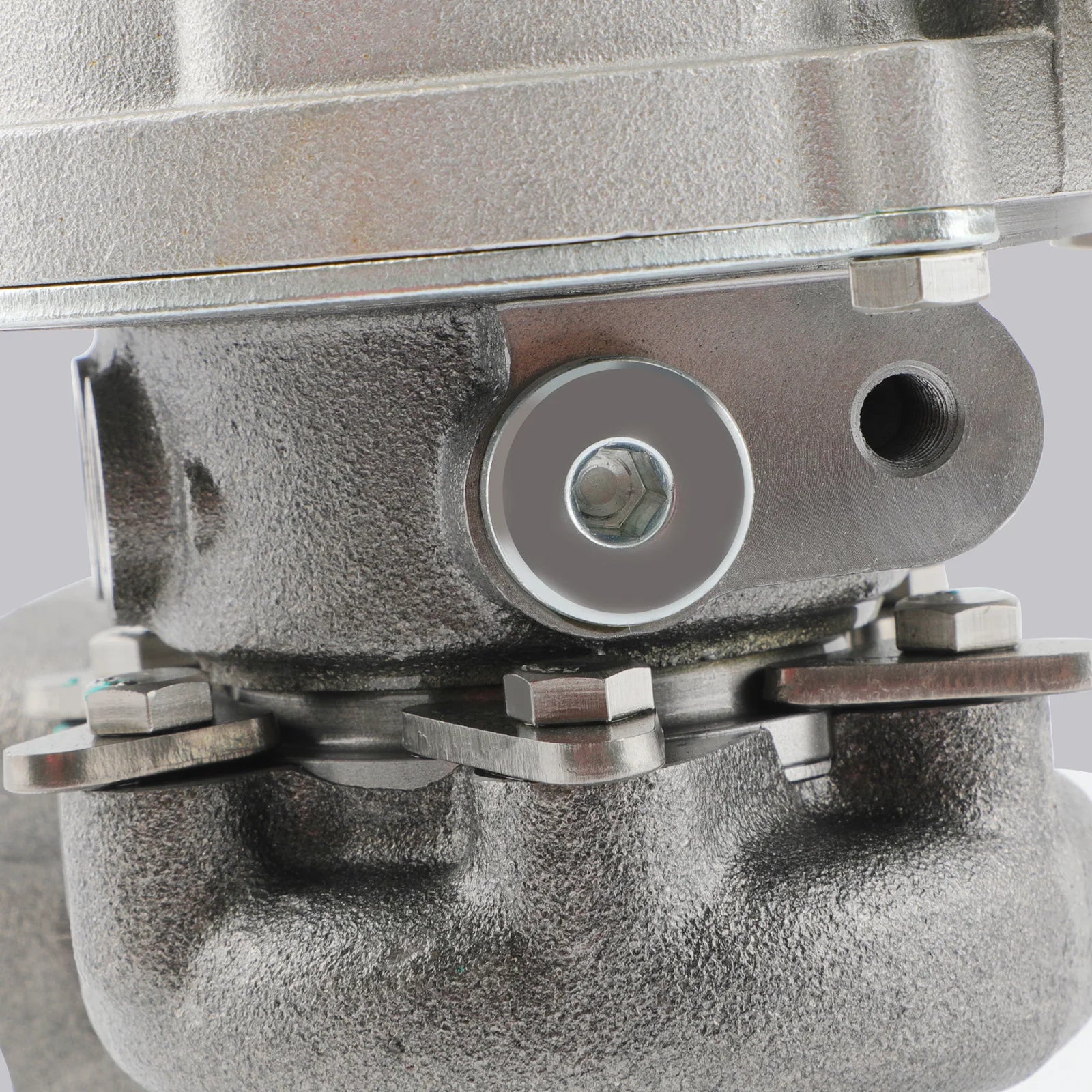

Inlet Flange: 3 Bolt Flange
Outlet Flange: 3 Bolt Flange
Turbo Model: K03 upgraded, K04
Engine: AEB/ANB/APU/AWT/AVJ/BEX
Fuel: Gasoline
Cooling Type: Water & Oil Cooling
Horsepower Rating: up to 220 HP
Bearing Type: Floating Bearing
Thrust bearings: 270 Degrees
Turbo Type: Individual
Universal Fitment: No
Finish: Polished
Condition: Brand New

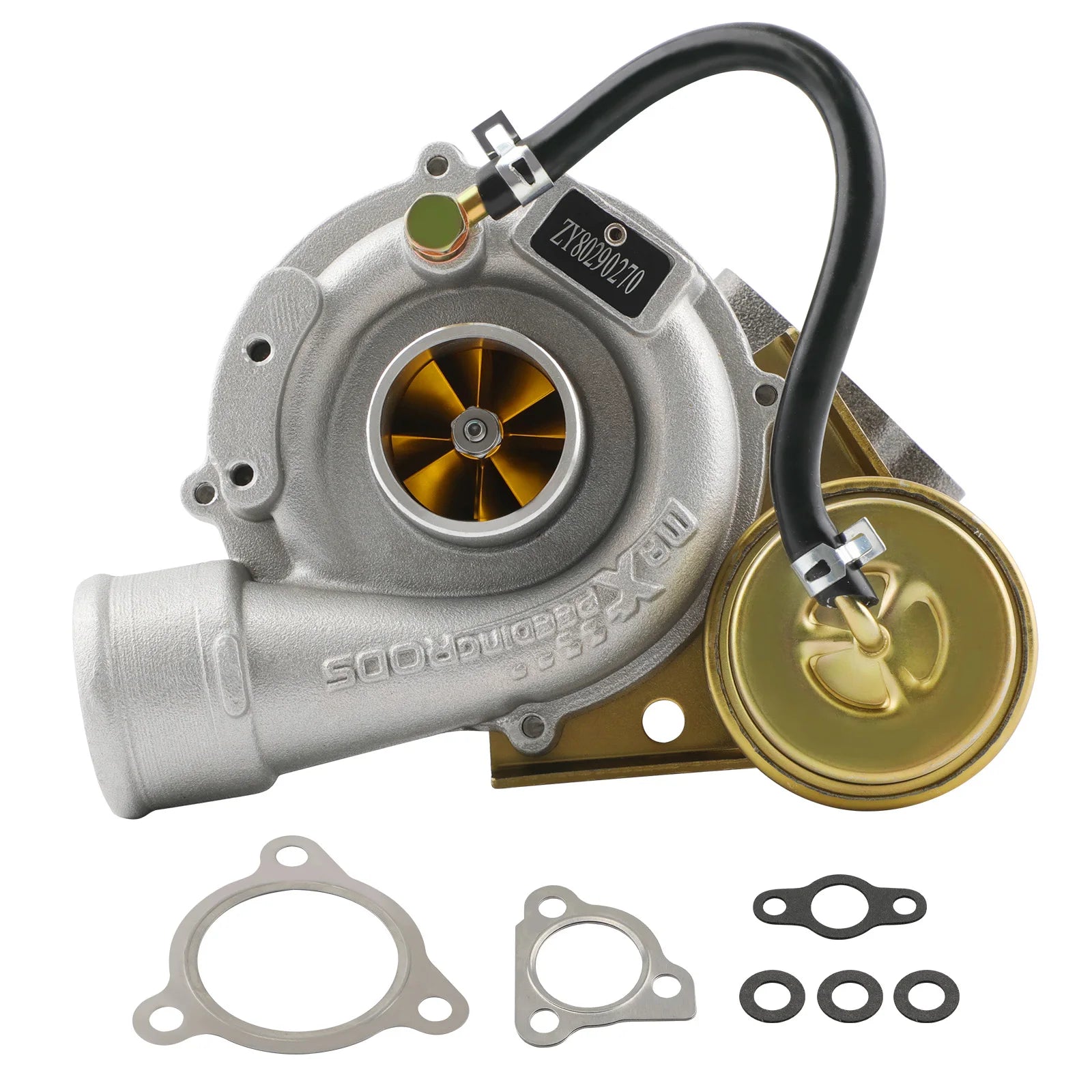

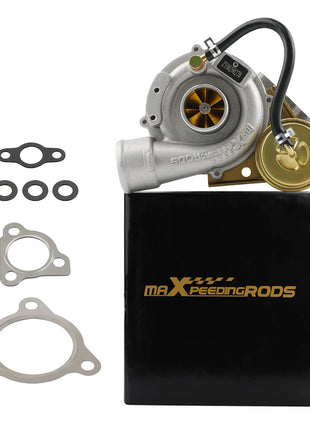

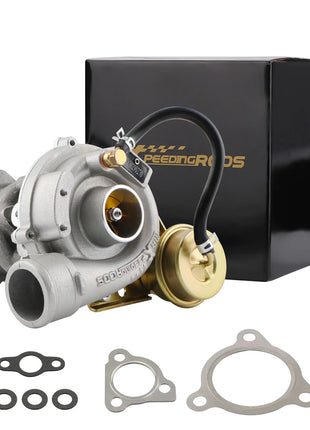

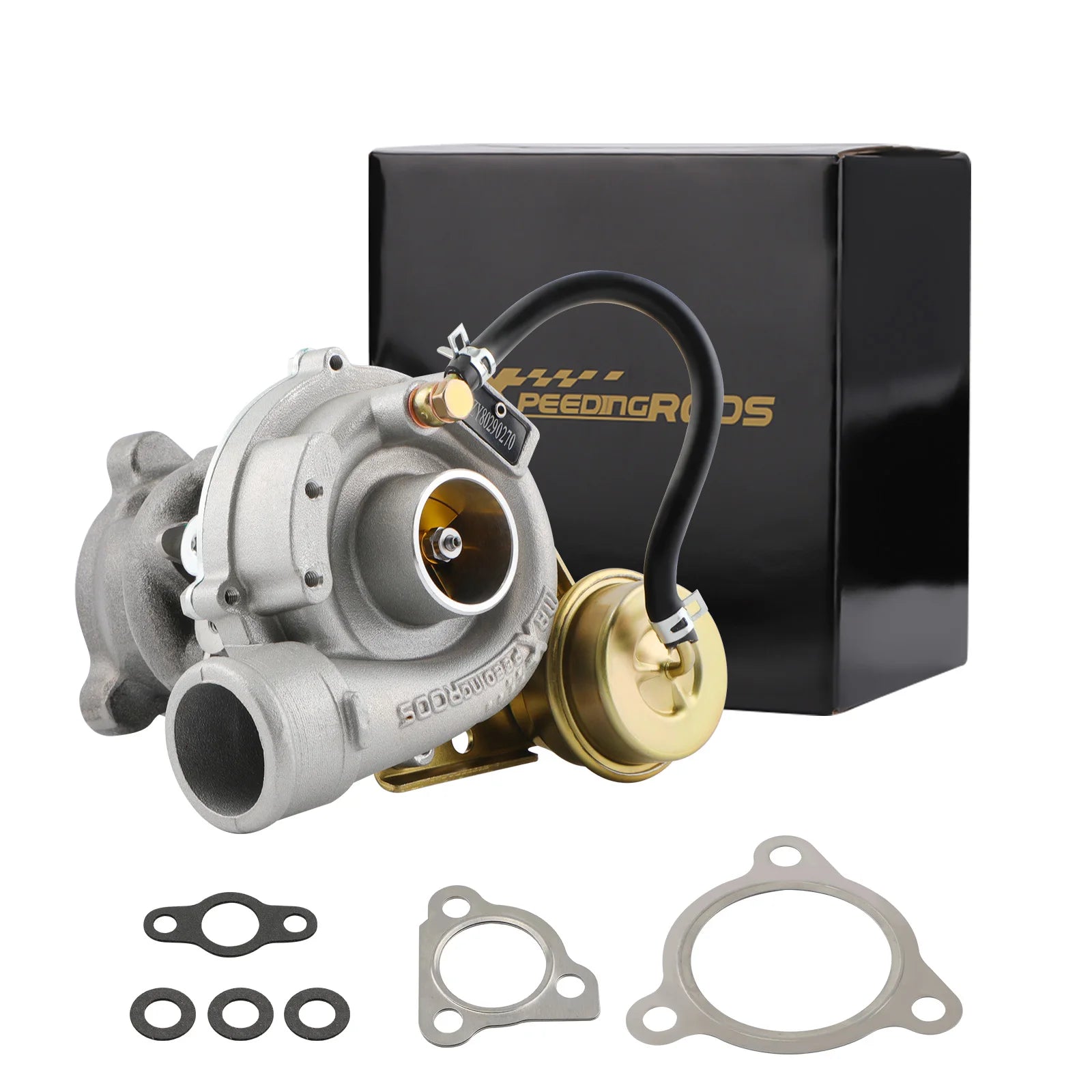

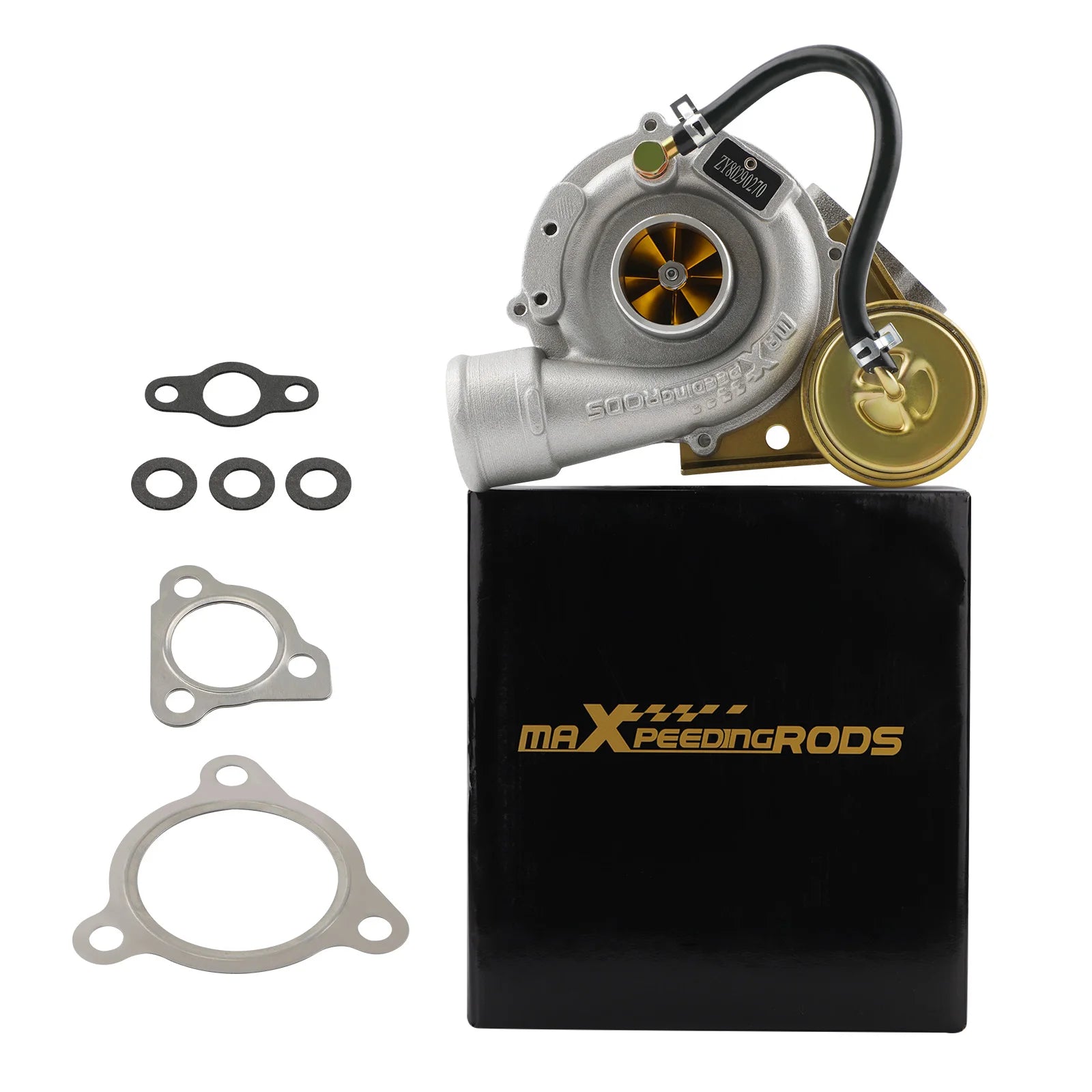

Accessories: You will get exactly as shown in the picture above
Package Weight: 5300g
Package Size:31*28*24cm
Feature

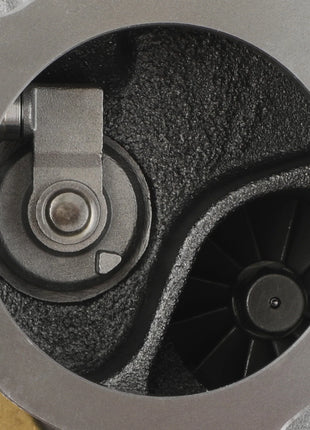

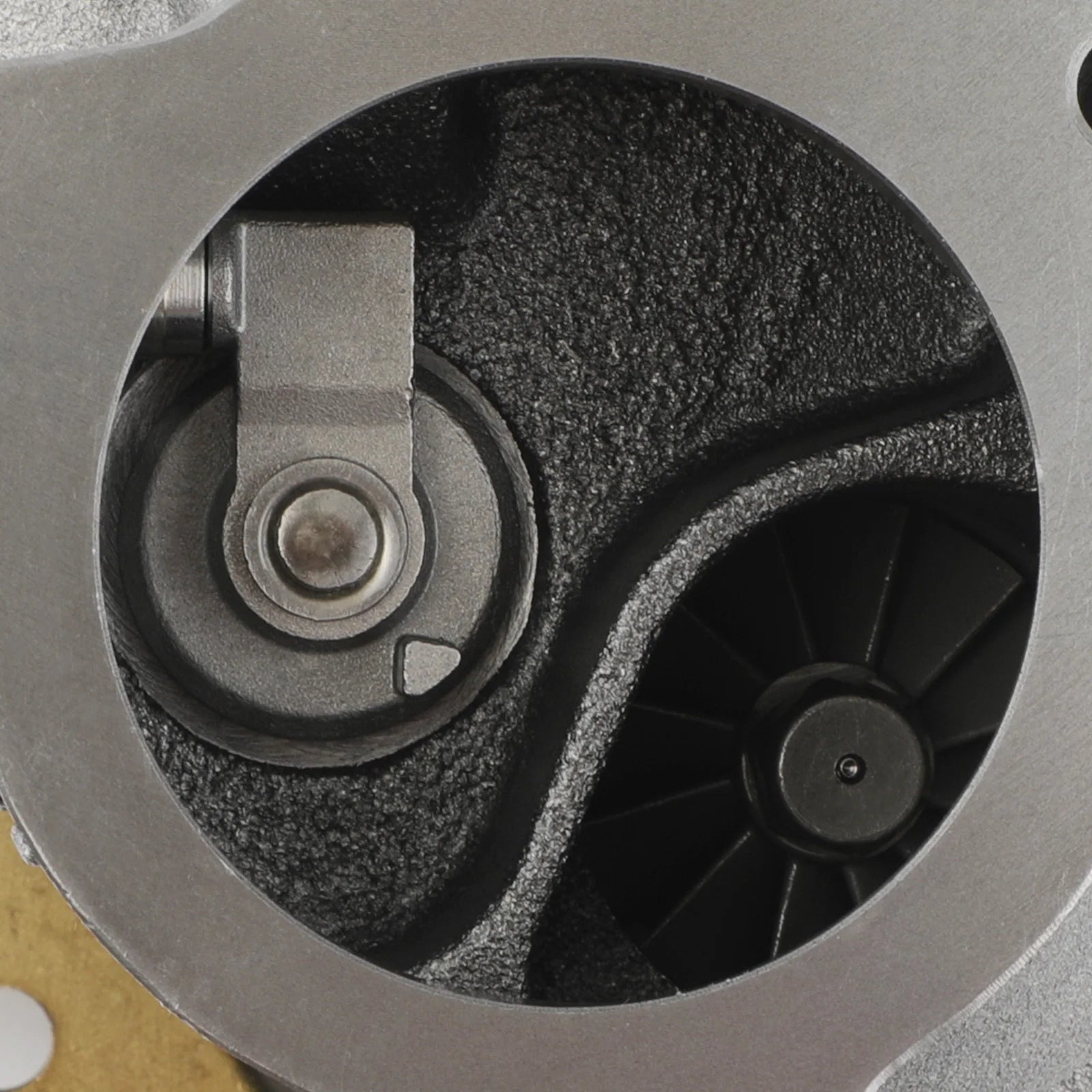

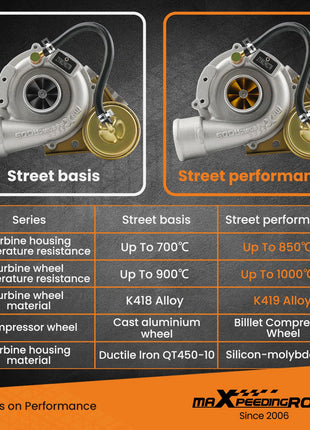

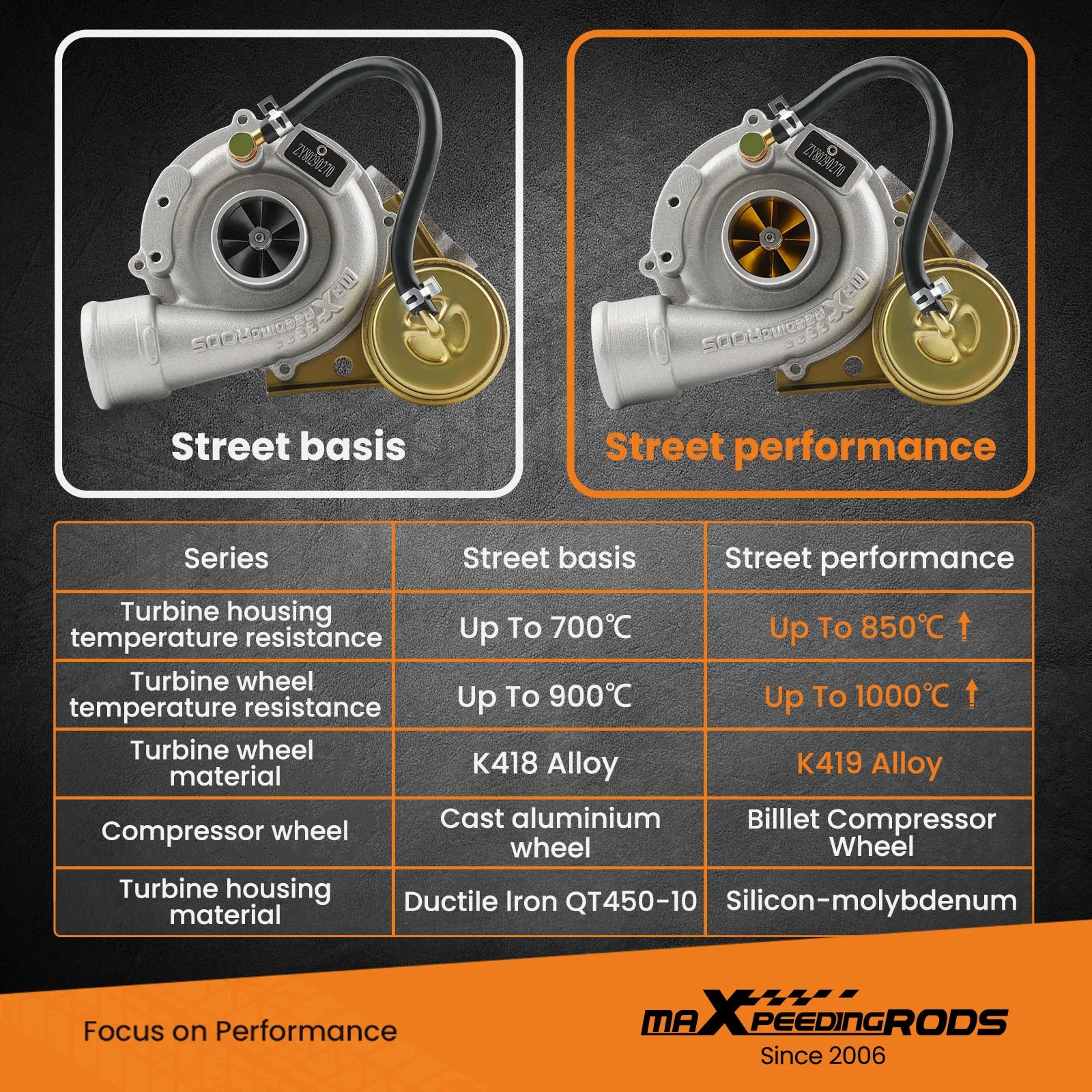

1. Turbine housing: Silicon-Molybdenum alloy steel - High temperature resistance, highly stable and ductile, corrosion and crack resistant, increases durability and reliability.
2. Turbine Wheel: K419 alloy - High temperature resistance, efficiently converts engine exhaust gasses into kinetic energy, resists thermal breakdown for smooth reliable operation.

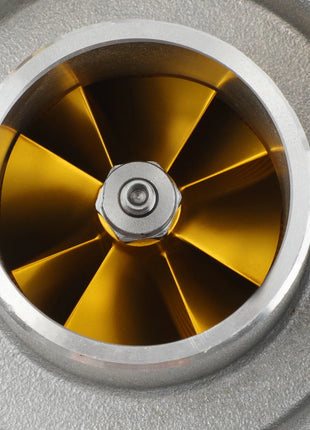

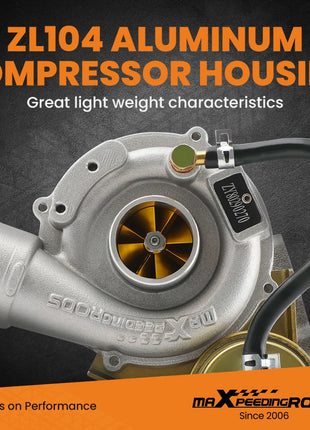

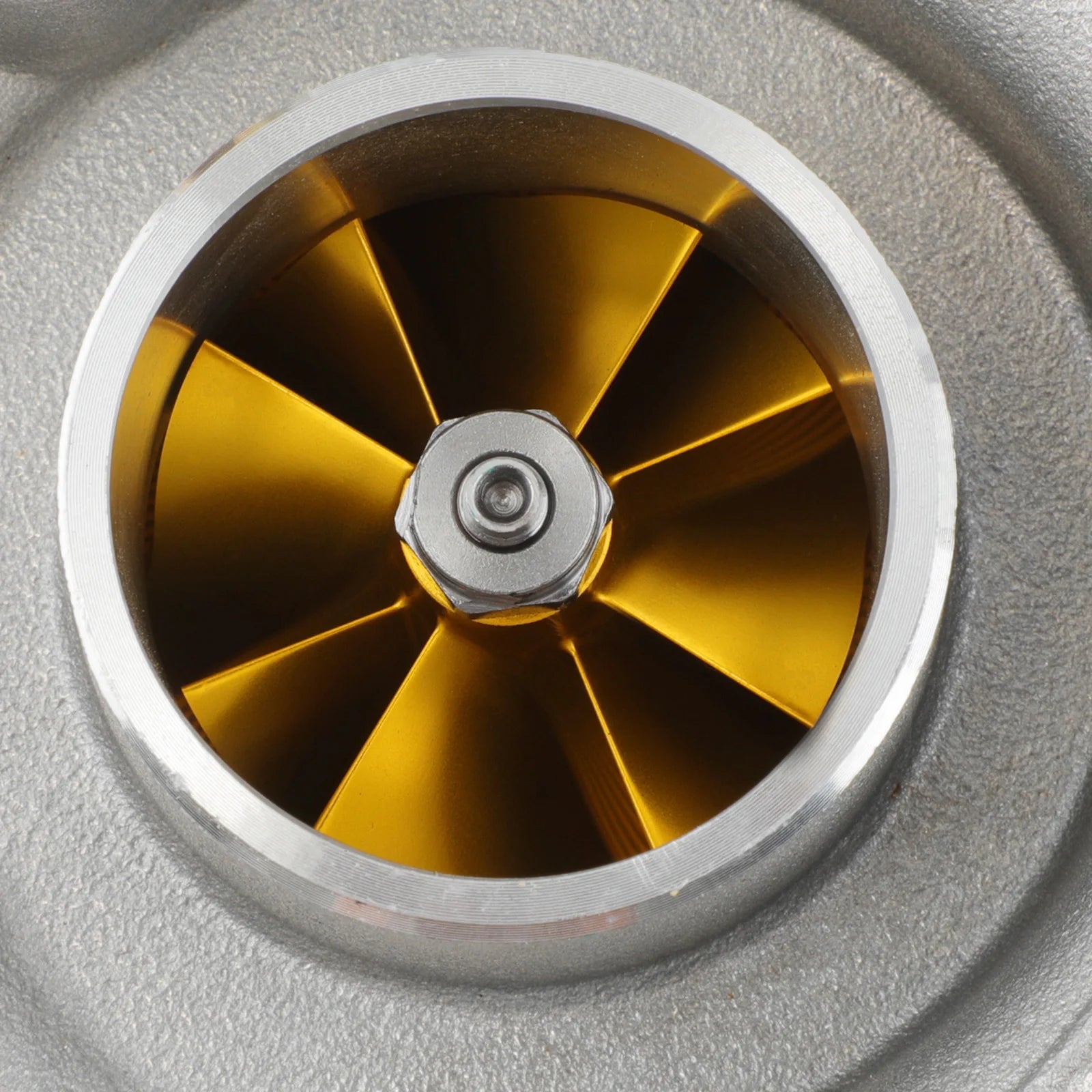

3. Billet Compressor Wheel: Forged billet aluminum CNC machined compressor wheel - High efficiency, fast response, lower fuel consumption, smooth operation.

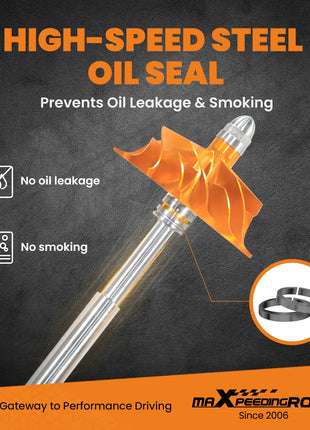

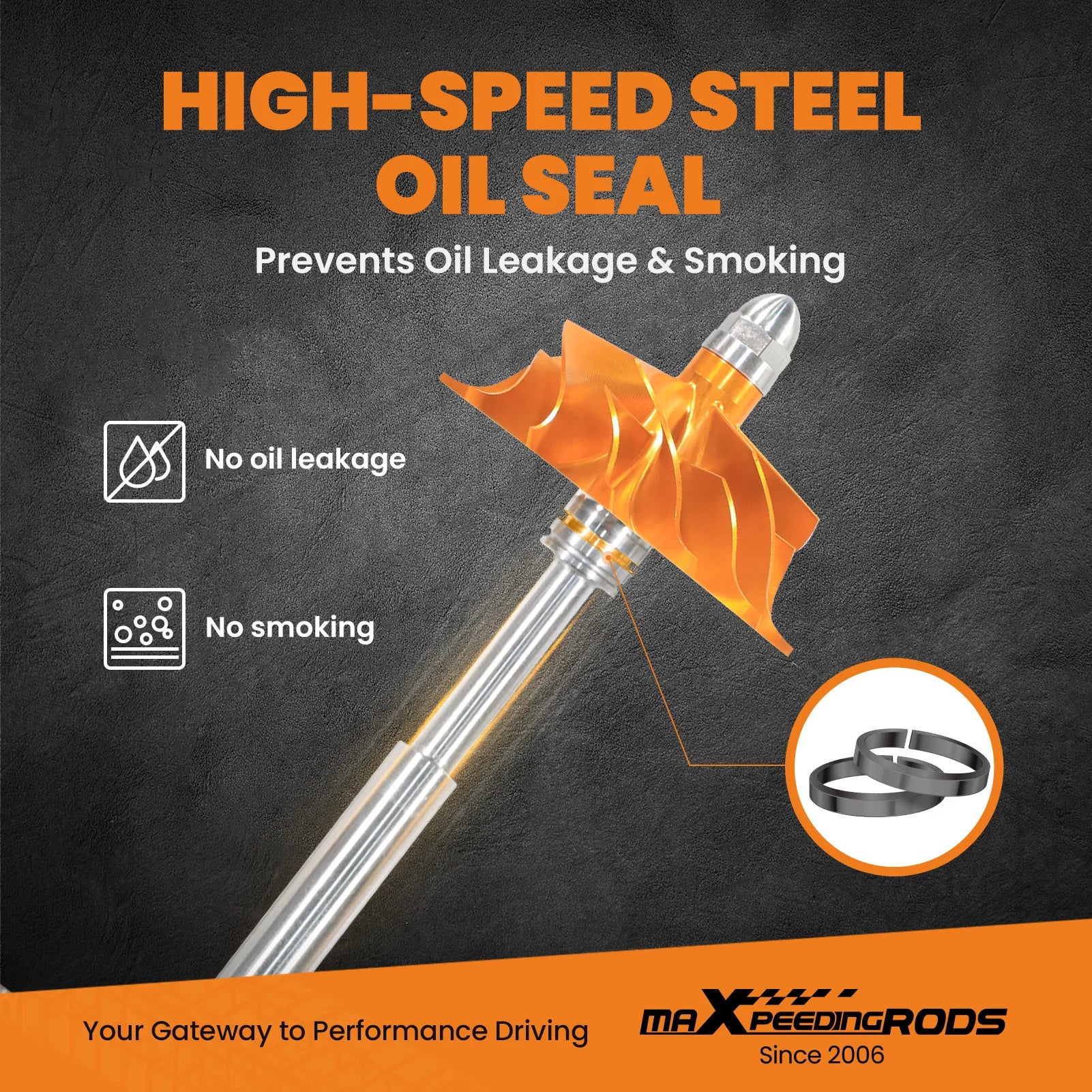

4. Oil Seal: High-speed steel oil seal ring - Abrasion and heat resistant, protects bearings, prevents oil leakage and smoking.
NOTE:
* Please confirm your original turbo PART NUMBER before Purchasing
* Professional installation is highly recommended
* Before installing the new turbocharger, the cause that led to the failure of the turbo must be analyzed and eliminated (e.g. insufficient oil supply, foreign bodies in the intake area, crankcase ventilation without function, etc.)!
