Descrizione
SPECIFICATIONS
4K-2160P Chipset: Novatek 96670 chipset
4K-2160P High Edition: Use Sony IMX335 Lens
4K-2160P Low Edition: Use GC4653(307A) Lens
APP Compatibility: Android&iOS
Accessory Type: ACC cable
Aperture: F1.6
Assembly Mode: Hidden Type
Audio Recorded: Yes
Auto camera: For Audi Q3 Q5 Q7
Battery: None
Battery Capacity(mAh): No Battry
Battery Life: Fuse box connection
Battery Type: No Battry
Brand Name: Kampacar
Built-in Screen: No
Cable Length: <=4.2m
Camera Resolution: 3840x2160
Car Camera: For Audi A3 8V A8
Car Dvr Camera: For Audi A5 A4 B8 B7
Car camera recorder: For Audi S3 S4 S5
Certification: CE,RoHS,weee
Chipset Manufacturer: NOVATEK
Color: Black

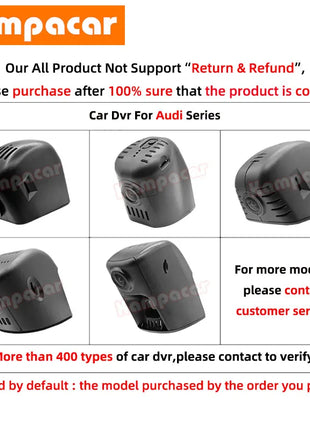

Dash Camera: For Audi
Data Storage Capacity: Max support 128G card
Dimensions (W x H x D): <= 41cm*28cm*13cm
Display Size: No Screen
Frames Per Second: 30
GPS logger: None
Hign-concerned Chemical: None
Imaging Sensor: GC2053
Interface: Wi-Fi,Micro SD/TF
Is Batteries Included: No
Item Type: Car DVR
Kampacar: AD07-4K Edition
Kampacar Model: AD07-4K Edition
Loop-Cycle Recording Feature: Yes
Max External Memory: 128G
Maximum Video Frame Rate: 30fps
Memory Card Required Reding Speed: Class 10
NightShot Function: No
Number Of Lenses: 2
OEM NO.: 10% For Audi 2015-2024 Years
OSD Language: Arabic,Spanish,Italian,Japanese,Chinese (Traditional),Chinese (Simplified),Korean,French,German,Russian,RUSSIA,English
Origin: Mainland China
Original Package: Yes
Pixels: 200Mega
Player Display Resolution-Front Lens: 2160*3840P
Player Display Resolution-Rear Lens: 1080*1920P
Power Source: Corded Electric
Real Resolution-Front Lens: 1080*1920P
Real Resolution-Rear Lens: 1080*1920P
Rear Camera: Yes
Screen Ratio: None
Special Features: G-Sensor,Digital zoom,sd/mmc card,With Rearview Mirror,Waterproof,Anti Fog,Anti Vibration,Real Time Surveillance,Automatic White Balance,Wide Dynamic Range,wifi function
Touch Screen: No
Video Code: H.264
Video Format: TS
Video registratori cars: For Audi A6 C7 C6 C5
Videoregistrator auto: For Audi A7 C8
View angle: 140°-150°
Warranty: 1 years
Weight: 0.45kg to 1.5kg
Wifi car dvr: For Audi TTS TT RS3 RS5
Working Temperature: -20°C - 85°C
Year: 2015-2024 (Just support 10% Car)

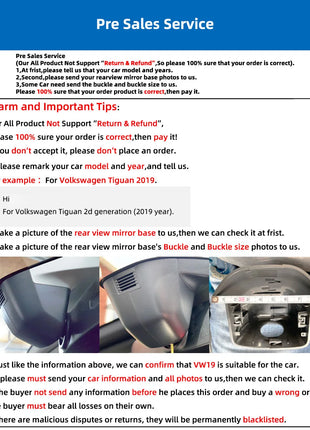

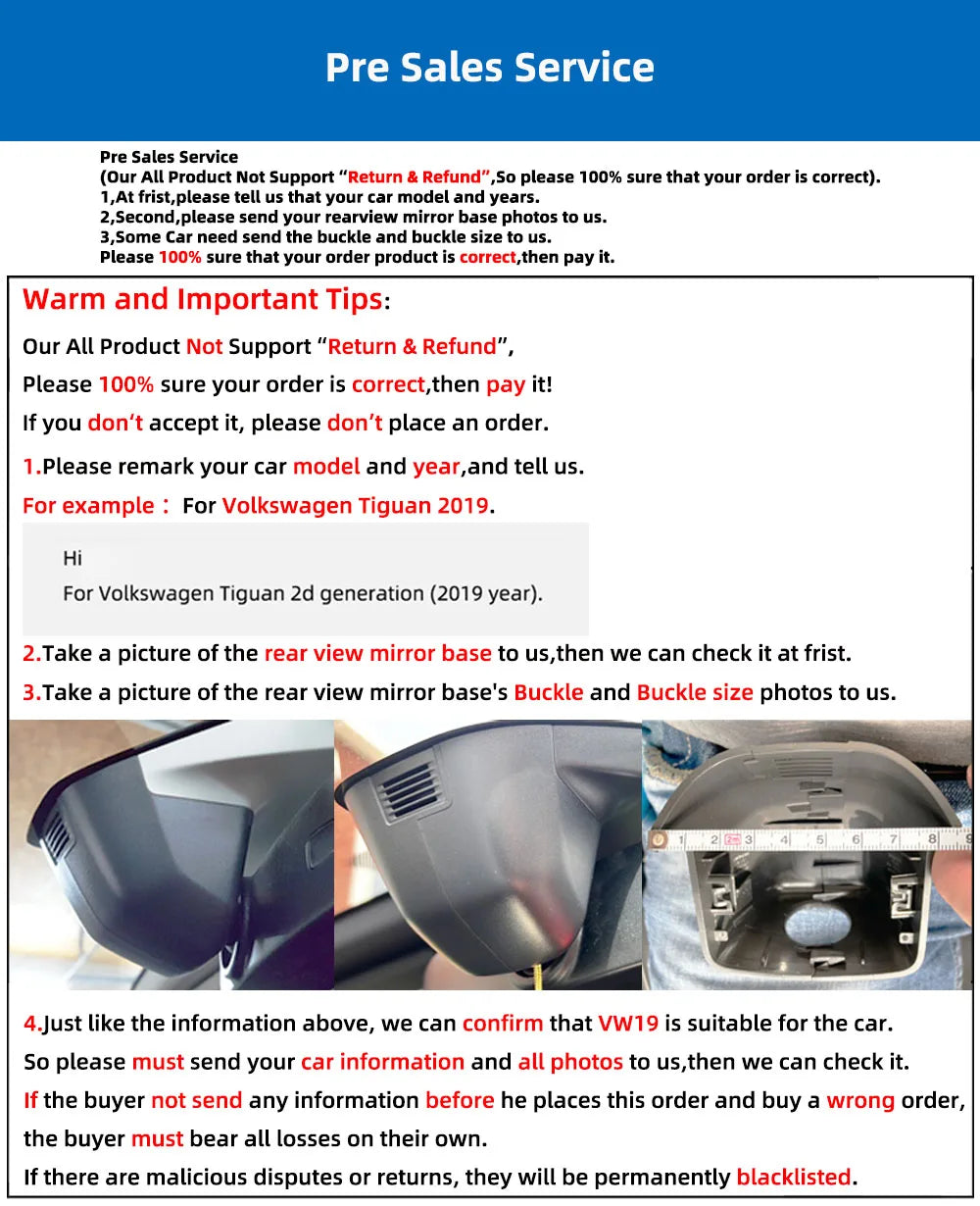

Pre Sales Service

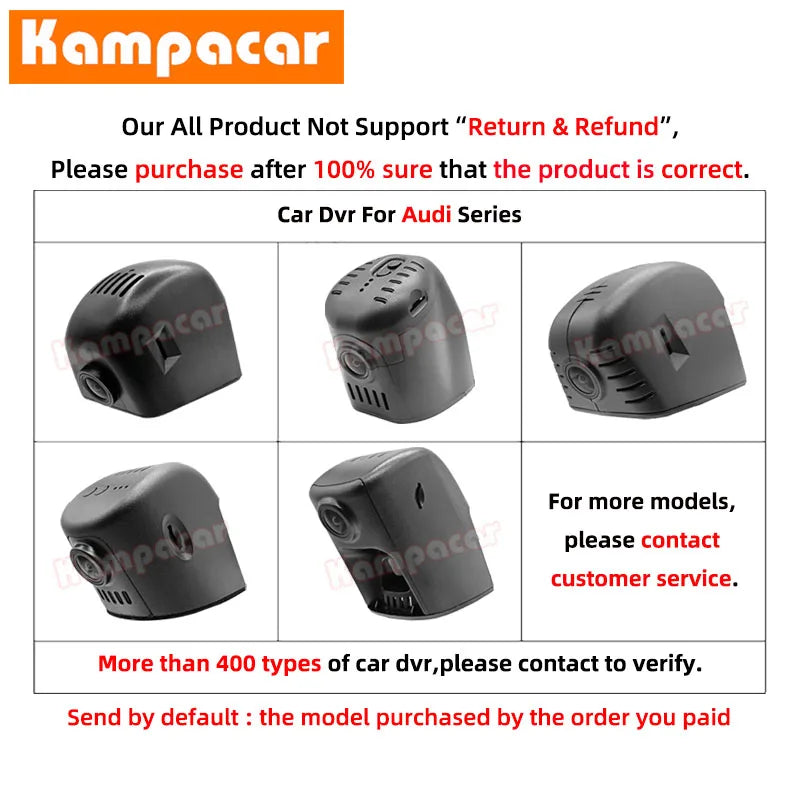

(Our All Product Not Support "Return & Refund",So please 100% sure that your order is correct).
1,At frist,please tell us that your car model and years. (For example :For Volkswagen Tiguan 2019.)
2,Second,please send your rearview mirror base photos to us.
3,Some Car need send the buckle and buckle size to us. (For example :VW19 only can fit 86mm buckle Volkswagen Tiguan rearview mirror base )
Please 100% sure that your order product is correct,then pay it. (If the customers not 100% sure your order product is correct before the customers places this order, the customers must bear all losses on their own. If there are malicious disputes or returns, they will be permanently blacklisted.)

Because this product is dedicated, so in order to avoid installation or other problems,
please be sure to tell me for your car which year and which model,
and please take a picture of the rearview mirror base and buckle (buckle size) send it to me.
If the buyer makes a purchase error due to their own reasons and does not support returns and refunds,
otherwise such unreasonable buyers will be permanently blacklisted.

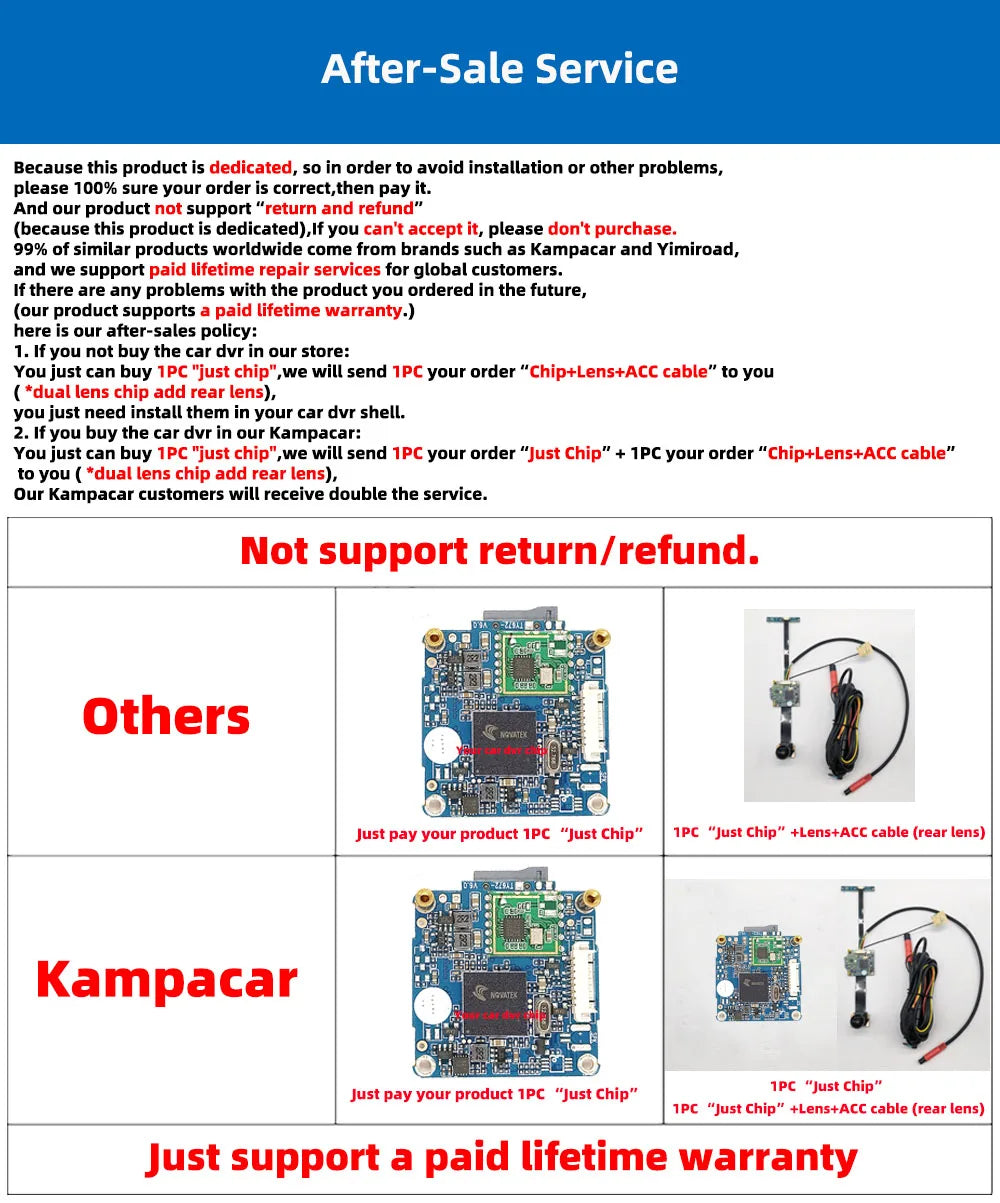

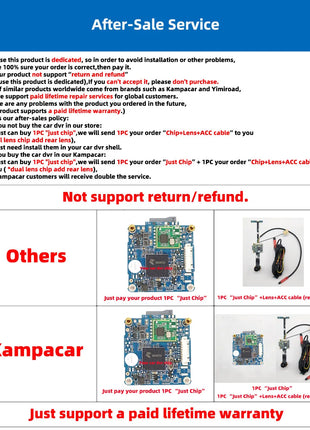

After-Sale Service
Because this product is dedicated, so in order to avoid installation or other problems,
please 100% sure your order is correct,then pay it.
And our product not support "return and refund".
(because this product is dedicated),If you can't accept it, please don't purchase.
99% of similar products worldwide come from brands such as Kampacar and Yimiroad,
and we support paid lifetime repair services for global customers.
If there are any problems with the product you ordered in the future,
(our product supports a paid lifetime warranty.)
here is our after-sales policy:
1. If you not buy the car dvr in our store:
You just can buy 1PC "just chip",we will send 1PC your order "Chip+Lens+ACC cable" to you ( *dual lens chip add rear lens),
you just need install them in your car dvr shell.
2. If you buy the car dvr in our Kampacar:
You just can buy 1PC "just chip",we will send 1PC your order "just chip"+ 1PC your order "Chip+Lens+ACC cable" to you ( *dual lens chip add rear lens),
Our Kampacar customers will receive double the service.

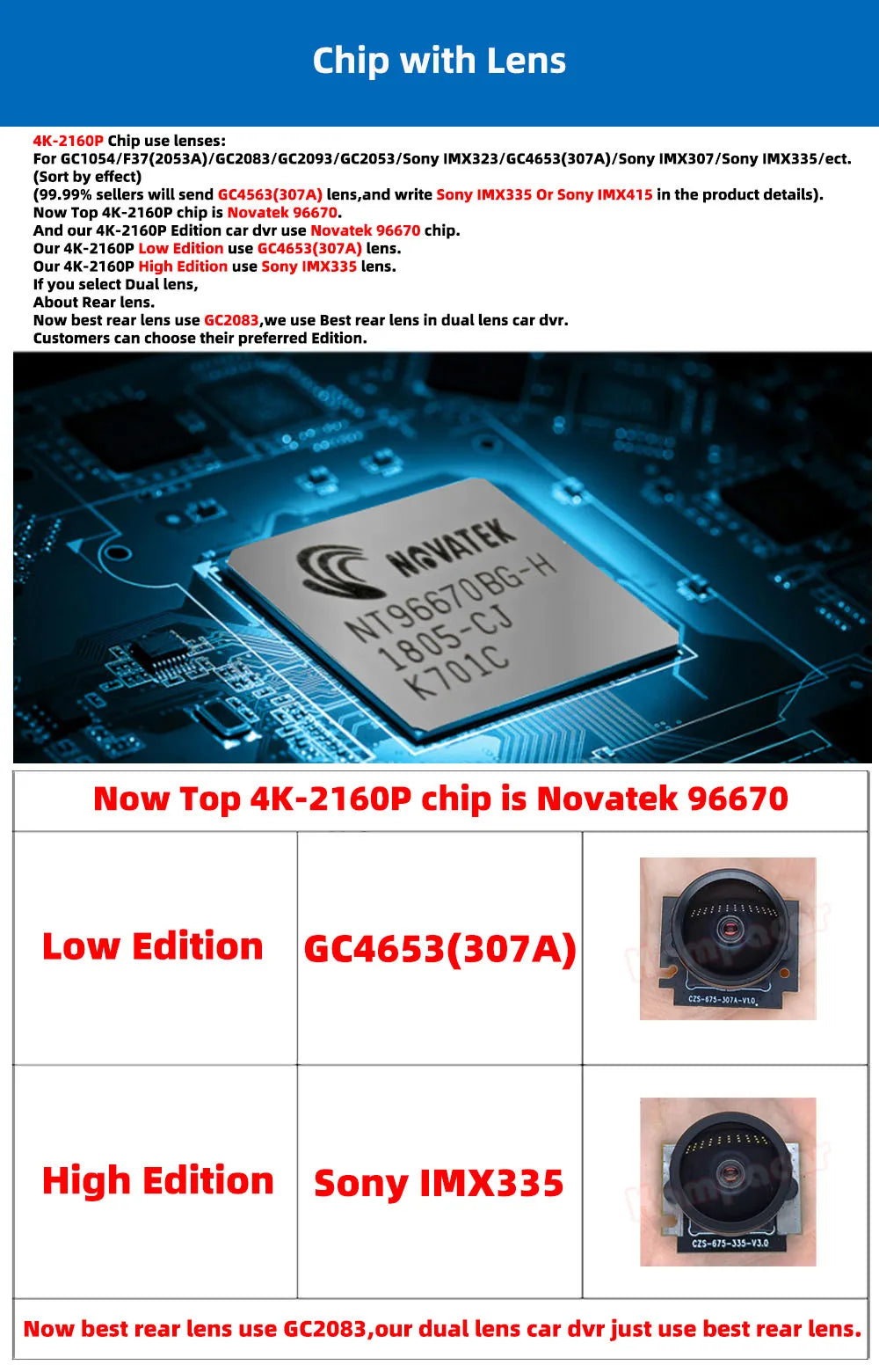

Chip with Lens

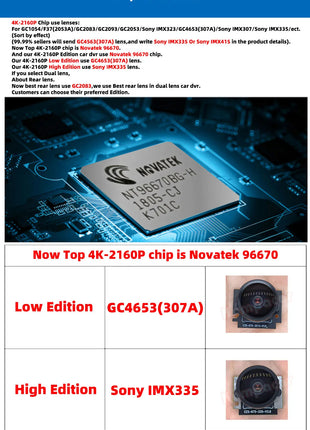

4K-2160P Chip use lenses:
For GC1054/F37(2053A)/GC2083/GC2093/GC2053/Sony IMX323/GC4653(307A)/Sony IMX307/Sony IMX335/ect.(Sort by effect)
(99.99% sellers will send GC4563(307A) lens,and write Sony IMX335 Or Sony IMX415 in the product details).
Now Top 4K-2160P chip is Novatek 96670.
And our 4K-2160P Edition car dvr use Novatek 96670 chip.

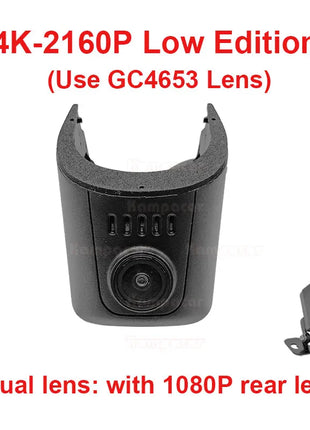

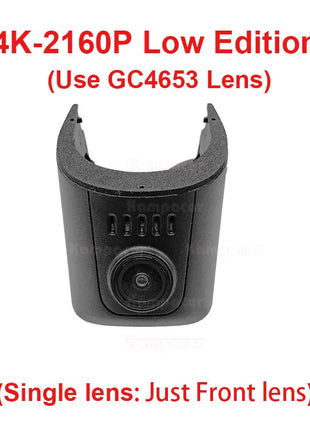

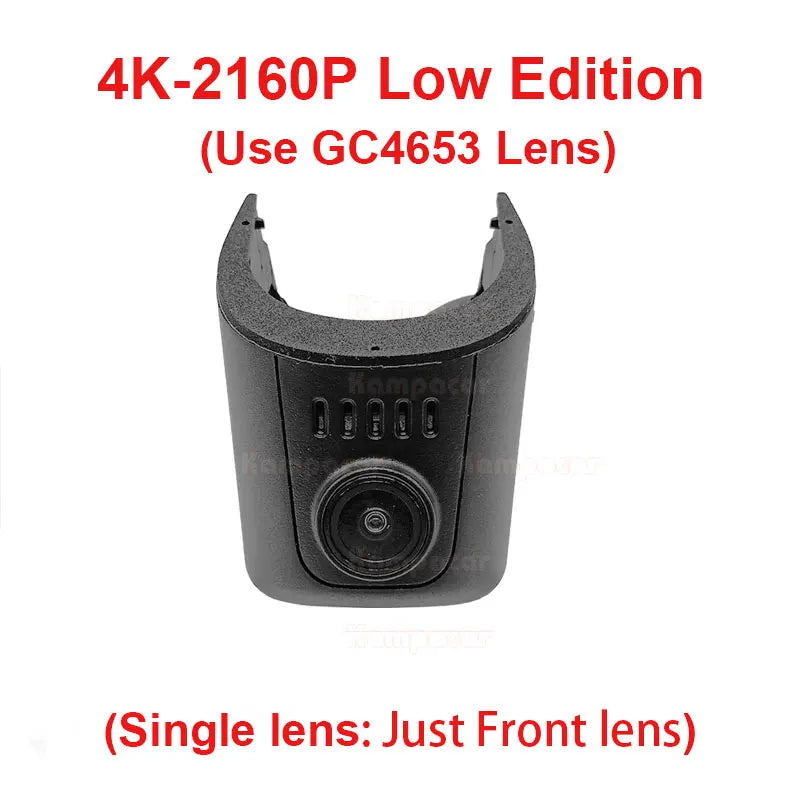

Our 4K-2160P Low Edition use GC4653(307A) lens.

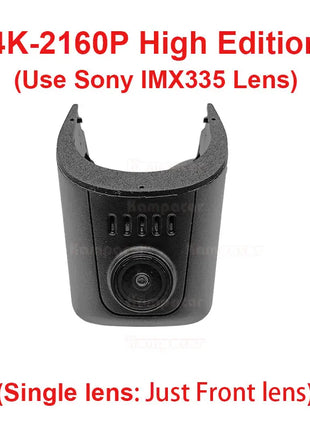

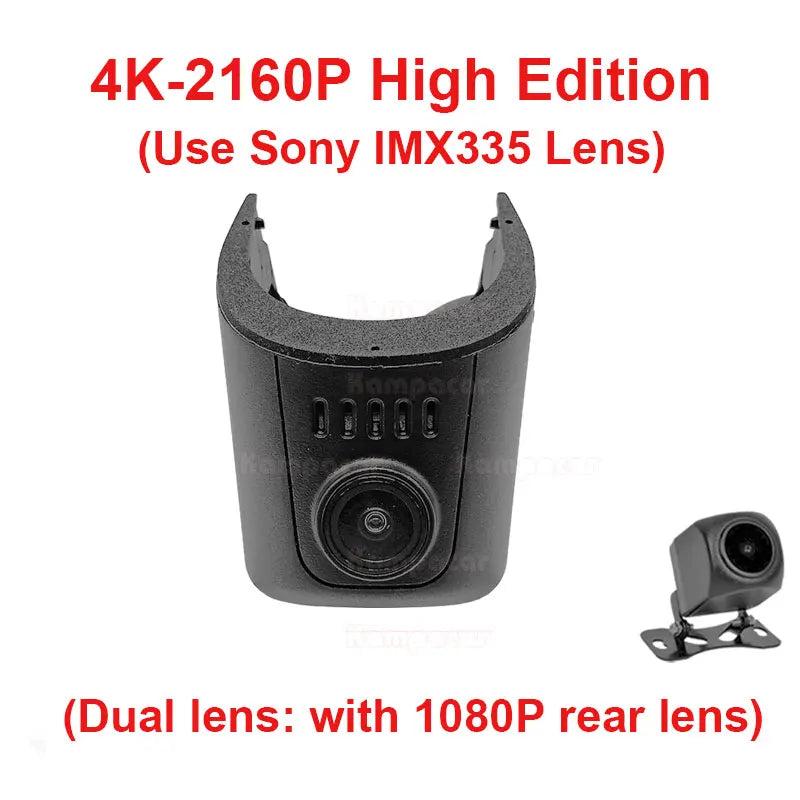

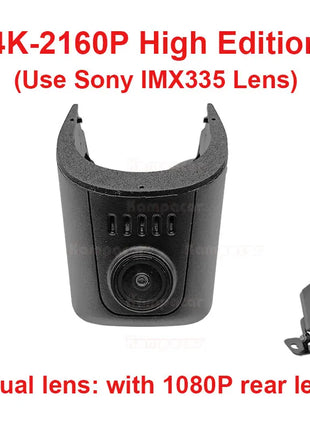

Our 4K-2160P High Edition use Sony IMX335 lens.
If you select Dual lens,
About Rear lens.
Now best rear lens use GC2083,we use Best rear lens in dual lens car dvr.
Customers can choose their preferred Edition.

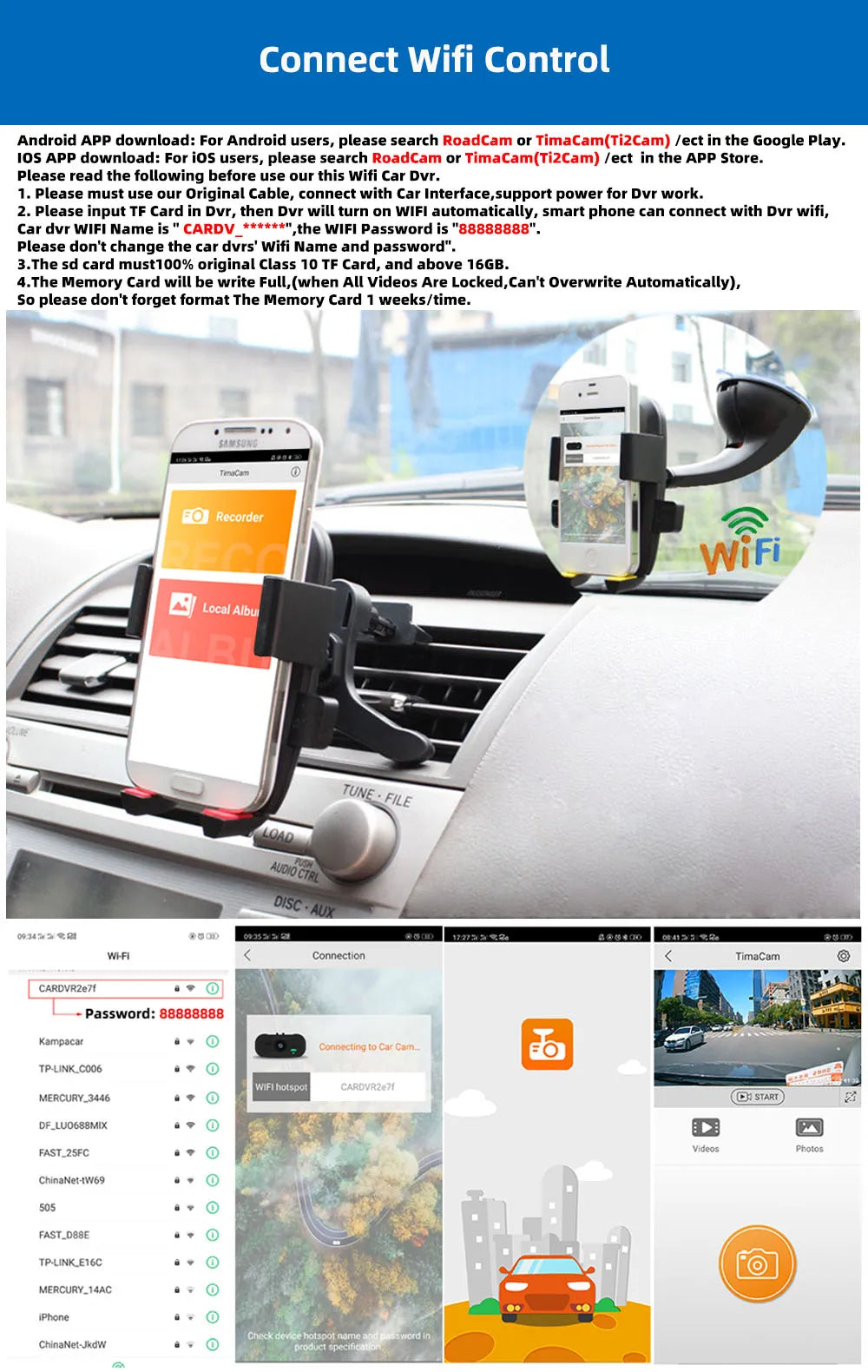

APP&Wi-Fi
Android APP download: For Android users, please search RoadCam or TimaCam(Ti2Cam) /ect in the Google Play.
IOS APP download: For iOS users, please search RoadCam or TimaCam(Ti2Cam) /ect in the APP Store.
Please read the following before use our this Wifi Car Dvr.
1. Please must use our Original Cable, connect with Car Interface,support power for Dvr work.
2. Please input TF Card in Dvr, then Dvr will turn on WIFI automatically, smart phone can connect with Dvr wifi,
Car dvr WIFI Name is " CARDV_******",the WIFI Password is "88888888".
Please don't change the car dvrs' Wifi Name and password".
3.The sd card must100% original Class 10 TF Card, and above 16GB.
4.The Memory Card will be write Full,(when All Videos Are Locked,Can't Overwrite Automatically),
So please don't forget format The Memory Card 1 weeks/time.

Parking Monitoring
If you need parking monitoring,please select the car dvr with park mode.Then you can open the parking setting in APP.
Regarding the car dvr cable, as of 2020, we have made four kinds of car dvr cable: ACC cable,OBD cable,
USB cable(just use in 5V chip),Easy cable (just fit 10% Car .)
ACC cable connect to the car fuse box.
OBD cable connect to the car OBD2 interface.
USB cable connect to the car roof REC USB interface.
Easy cable connect to the car rain sensor/Reading Light/Anti-glare/Sunroof interface.
If these cable are plugged into the interface not have the "constant electricity",it can't remember the date and time.
And it can't support park mode.
If these cable are plugged into the interface all "constant electricity",the park mode can't closed.
If the voltage is lower than 11.6V-11.8V for a long time.To protect car batteries.Otherwise,
the car dvr will automatically shut down in parking mode.

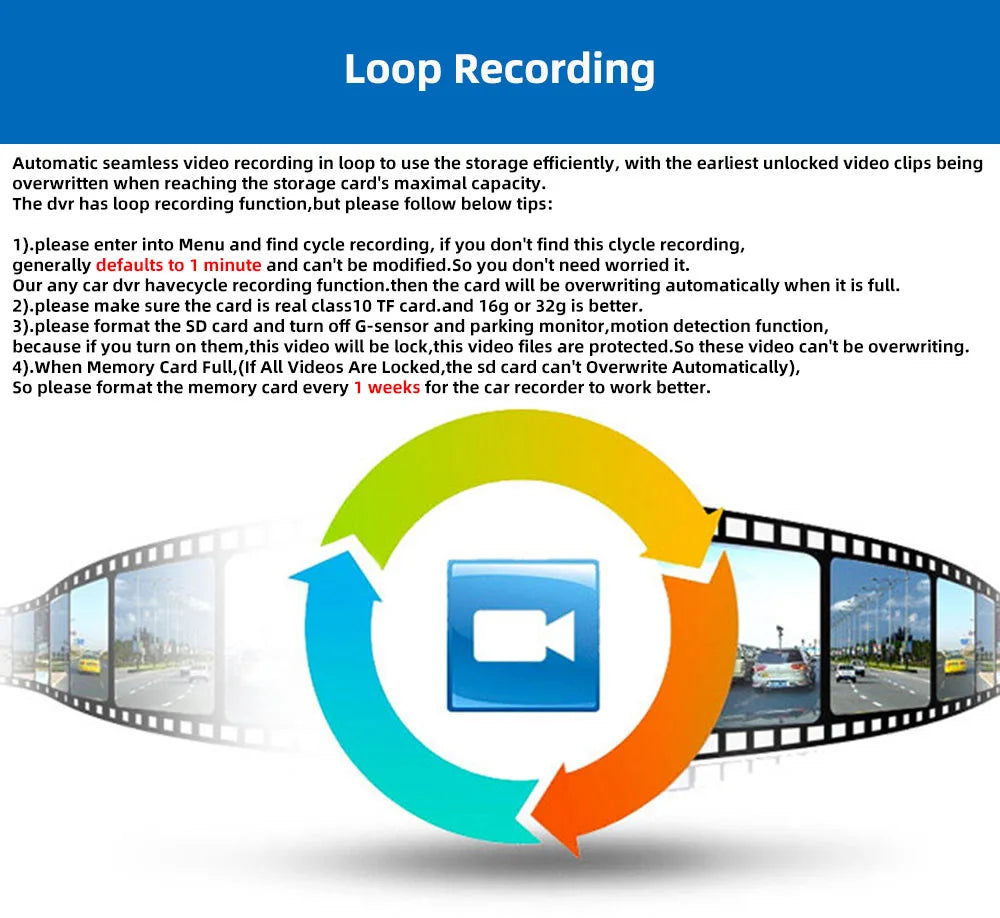

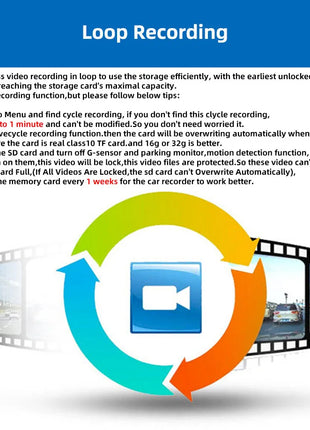

Loop Recording
Automatic seamless video recording in loop to use the storage efficiently, with the earliest unlocked video clips being overwritten
when reaching the storage card's maximal capacity. The dvr has loop recording function,but please follow below tips:
1).please enter into Menu and find cycle recording, if you don't find this clycle recording,generally defaults to 1 minute and can't be modified.So you don't need worried it.
Our any car dvr havecycle recording function.then the card will be overwriting automatically when it is full.
2).please make sure the card is real class10 TF card.and 16g or 32g is better.
3).please format the SD card and turn off G-sensor and parking monitor,motion detection function,
because if you turn on them,this video will be lock,this video files are protected.So these video can't be overwriting.
4).When Memory Card Full,(If All Videos Are Locked,the sd card can't Overwrite Automatically),
So please format the memory card every 1 weeks for the car recorder to work better.

Gravity Sensor
When a car experiences a severe collision and the car recorder is recording, it will quickly auto locks the event videos.
Lock the important video ,avoid to overwrite.

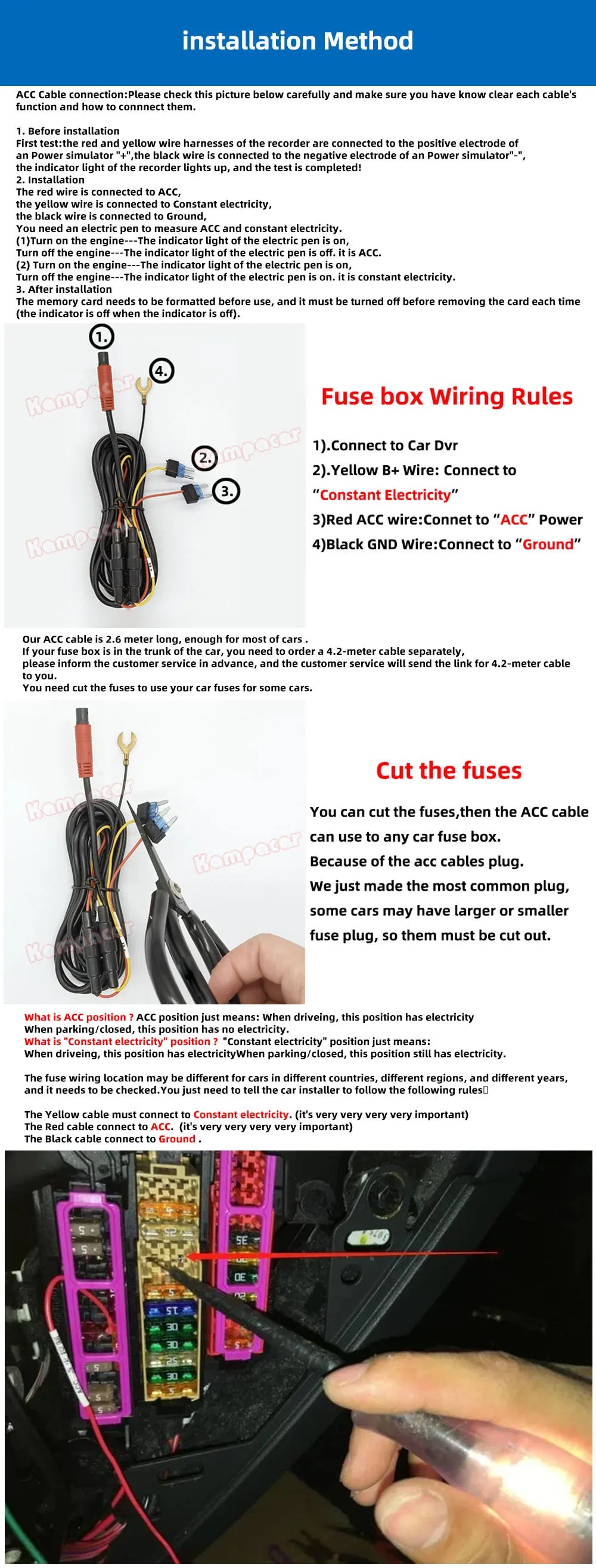

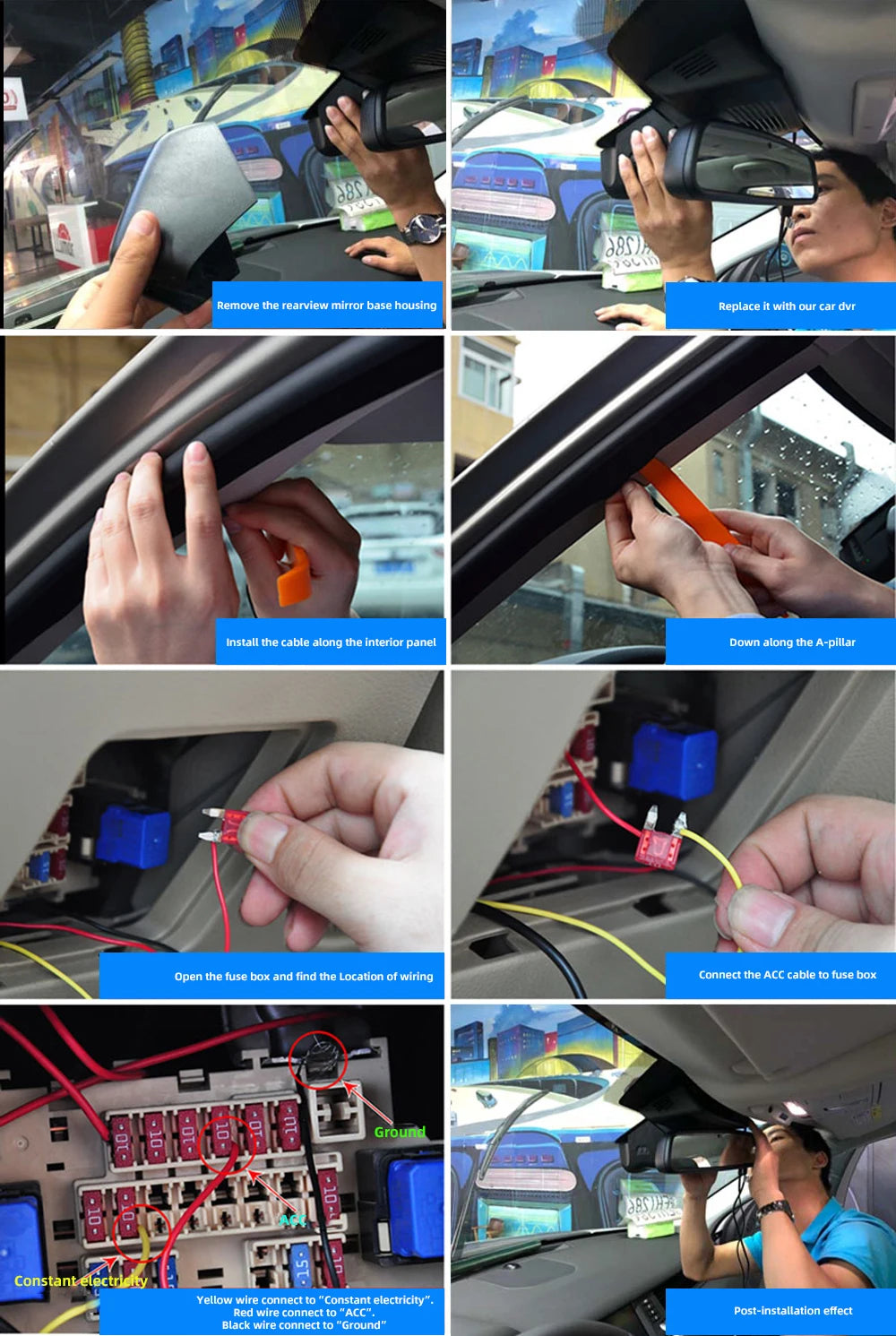

Installation Method

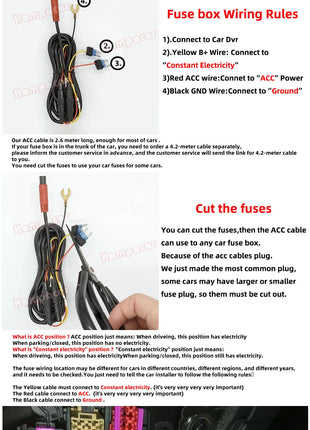

ACC Cable connection:Please check this picture below carefully and make sure you have know clear each cable's function
and how to connnect them.
1. Before installation
First test:the red and yellow wire harnesses of the recorder are connected to the positive electrode of an Power simulator "+",
the black wire is connected to the negative electrode of an Power simulator"-",
the indicator light of the recorder lights up, and the test is completed!
2. Installation
The red wire is connected to ACC, the yellow wire is connected to Constant electricity, the black wire is connected to Ground,
You need an electric pen to measure ACC and constant electricity.
(1)Turn on the engine---The indicator light of the electric pen is on,
Turn off the engine---The indicator light of the electric pen is off. it is ACC.
(2) Turn on the engine---The indicator light of the electric pen is on,
Turn off the engine---The indicator light of the electric pen is on. it is constant electricity.
3. After installation
The memory card needs to be formatted before use, and it must be turned off before removing the card each time
(the indicator is off when the indicator is off).
Our ACC cable is 2.6 meter long, enough for most of cars .
If your fuse box is in the trunk of the car, you need to order a 4.2-meter cable separately,
please inform the customer service in advance, and the customer service will send the link for 4.2-meter cable to you.
You need cut the fuses to use your car fuses for some cars.
What is ACC position ?
ACC position just means: When driveing, this position has electricity
When parking/closed, this position has no electricity.
What is "Constant electricity" position ?
"Constant electricity" position just means:
When driveing, this position has electricityWhen parking/closed, this position still has electricity.
The fuse wiring location may be different for cars in different countries, different regions, and different years,
and it needs to be checked.You just need to tell the car installer to follow the following rules:
The Yellow cable must connect to Constant electricity. (it's very very very very important)
The Red cable connect to ACC. (it's very very very very important)
The Black cable connect to Ground .

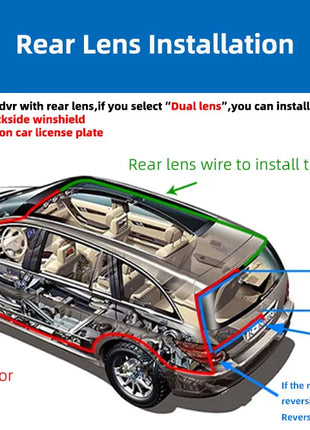

Rear Lens Installation
Dual lens car dvr with rear lens,if you select “Dual lens”,you can install it in your car.
1.Fix it on backside winshield
2.Or,install it on car license plate
Problem 1:
Apple iphone connection failed
Solution:
1.First, turn off the Cellular Data of the phone settings, and then connect to WiFi.
2. If the phone is connected to the car's CarPlay, you need to turn off the Bluetooth, and then connect the camera WiFi.
3. Check whether the album and network permissions of the App have been opened. (*Album permission is only used to save videos and pictures recorded by the camera into the phone album).
Problem 2:
Android phone connection failure
Solution:
1.After connecting to the camera WiFi, your phone may prompt that you can't access the Internet, please click "Keep Wlan Connection".
2.Close Mobile Data first and then connect to WiFi.
Problem 3:
App cannot save settings (default settings are restored after reboot)
Solution:
After setting the App, please press and hold the power button of the camera to turn off the camera, then press the power button briefly to turn on the camera.
Problem 4:
APP video file is empty, no video is loaded.
Solution:
1.Please open the App settings to format the memory card and then record the video.
2.If the App album still has no video, please insert the memory card into a computer, check whether the memory card is damaged, or not compatible with the camera, if so you need to replace the memory card.
3.It is recommended to use Class10 specification Kingston/SanDisk/Samsung memory cards of 32GB or 64GB capacity. (Maximum size supported is 128GB).
Problem 5:
Why doesn't my computer play the videos? Or why is the playback video not smooth?
Solution:
1.We recommend the use of PotPlayer and KMplayer players.
2.If the computer configuration is too low, it may cause the playback to not be smooth, especially for 4K resolution videos.
Problem 6:
Why can't you connect 2 phones at the same time?
Solution:
WiFi only supports connecting one phone at the same time; if another phone needs to be connected, you must first disconnect the WiFi of the first phone.
Problem 7:
Why is the timestamp of the video wrong, or there is no recorded video during some time periods, or there is video when the phone is connected, but no video when the phone is not connected?
Solution:
Please check if the timestamp error is caused by a complete power failure of the camera. After car repair, maintenance or battery replacement, you need to reconnect the camera's WiFi with your phone to synchronize the camera's time with your phone's time. Please regularly check that the camera is working properly.
Problem 8:
What should I do if I forget the WiFi name or password?
Solution:
Press and hold the camera key for 20 seconds, or use a paperclip to press the reset button.
You also can contact with our contact customer service,let them send your chip and lens software to you.
Problem 9:
Do I need to connect the camera WiFi and open the App every time I drive?
Solution:
No need, the camera is automatically turned on and off. The camera will automatically turn on when the car is on and turn off when the car is off.
Problem 10:
What should I do if I can't find the WiFi?
Solution:
1.First, remove the memory card and then search for WiFi, because memory card failure will cause the camera to have no WiFi.
2.Press and hold the camera button for 20 seconds, or use a paper clip to press the reset button. Restore factory settings.
3. Check whether the camera's light is always on. If there is no light, it means there is no power supply, then there will be no WiFi.
4.In parking mode,the WiFi can't be find.
Warm and Important Tips
About Products:
Please must tell us the model and year, and send your rearview mirrir base and buckle photo,and let we can see the front and side of the rear view mirror cover.
If the order is incorrect because the buyer did not send any rearview mirror base and buckle pictures and tell us the cars' model and years, the buyer is responsible for the return shipping to our Chinese warehouse.
The single front camera version have 1K/2K/4K chip. The front and rear dual camera versions have 2K/4K chip with 1080P rear lens.All rear cameras in our store are 1080P resolution.
About the front camera lens : For GC1054/F37(2053A)/GC2083/GC2093/GC2053/Sony IMX323/GC4653(307A)/Sony IMX307/Sony IMX335/ect.(Sort by effect).
Send GC2053 by default.(99.99% seller will send this lenses,However, it is not recommended to use it yourself, it only can be sold as a gift ).
If you are using it yourself,and you want to buy your order car dvr chip top edition,you can contact our customer service and ask them to send a link to purchase the top of the line version.
All dash cameras can use up to 128GB memory card.
If you already have our single front camera version installed, you cannot add our rear camera. If you buy the front and rear dual camera version, you can install the front camera and not the rear camera.
Each dash camera is equipped with ACC cable to connect the front camera by default, because the ACC cable connect to fuse box,so it can use in any cars.
Because the easy cable just support 10% car,and more buyers want to try it,so we also will free add a easy cable in all buyers' package,if the easy cable can't fit,you just can use ACC cable.If you not want to try it,you can tell us,we will not add it in your package,just will send a ACC cable to you.
All pictures are for reference only, different batches with different details, please subject to real product.
About Taxes:
The item price is not including any taxes or charges locally, if the parcel get stuck at local customs, buyer need to contact the customs and do the customs clearance. We won't bear the customs taxes or any fees caused by custom or buyer reject package.
About After-sales:
1.Our store provides a one-year product warranty. If the product has quality problems within one year, we will provide you with free replacement parts. If it is confirmed that it cannot be repaired, we can replace you with a new product for free.
2.For damage caused by accident, misuse or modification, if replacement parts are required, the buyer is responsible for part cost and shipping.
3.For non-quality returns, if you prefer to get a full refund, you can apply for a return within 15 days of receiving the goods, and the buyer is responsible for the return shipping to our Chinese warehouse.
About Delivery:
We will send the items within 5 working days after getting your payment. We do not support modifying the receipt information after payment, please check the receipt information before paying.
About Feedback:
Five-Star feedback is our expectation. We hope that you can contact us before you leave a neutral or negative feedback, so that we can help you solve the problem.
