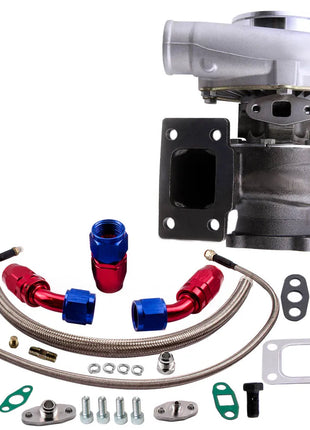

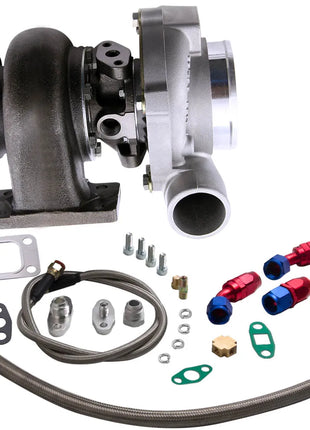

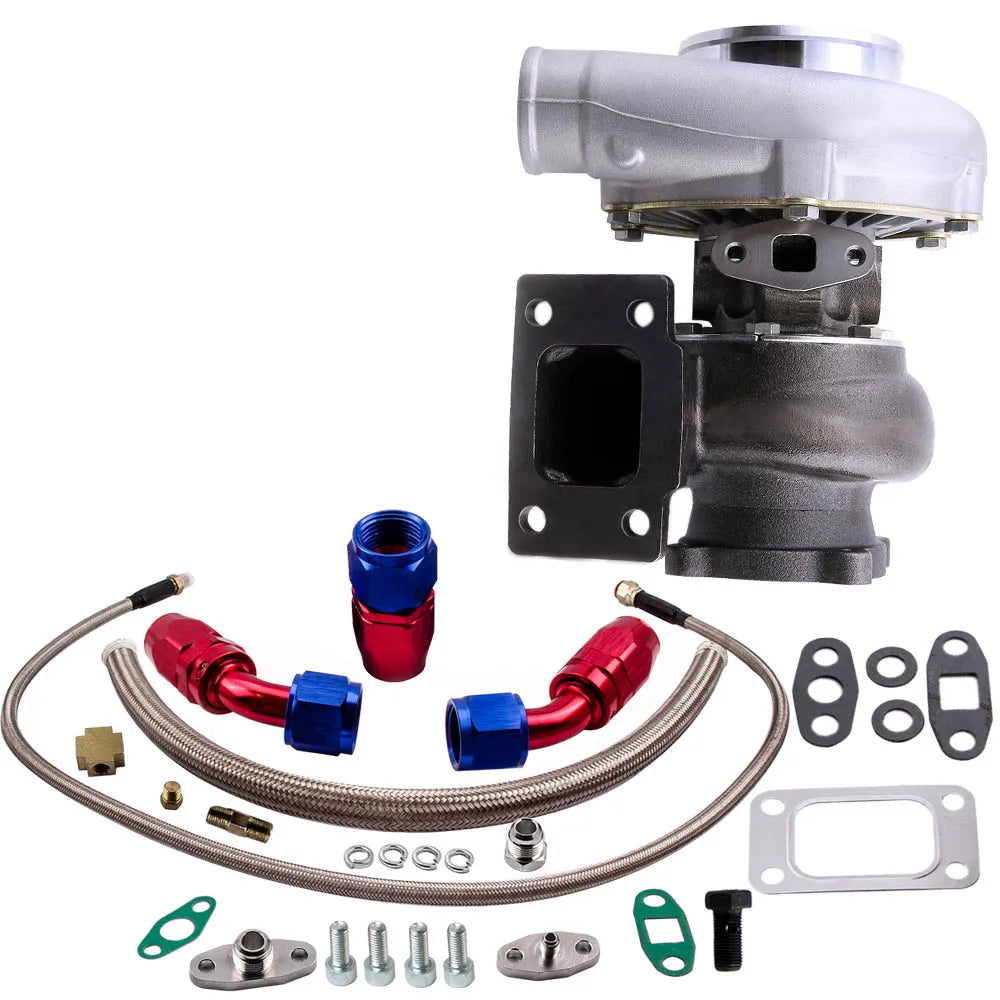

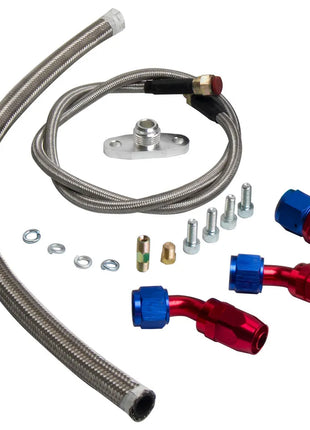

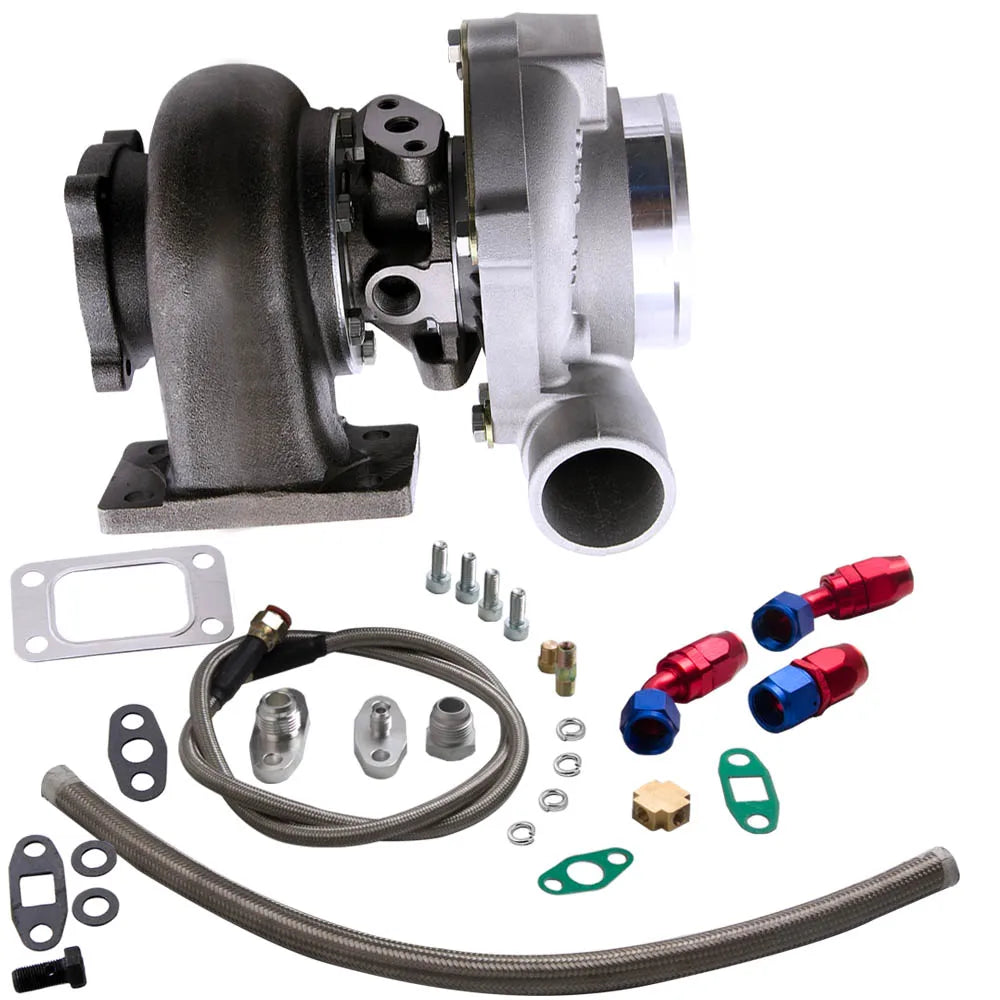

The GT3076R GT3037 GT30 4-BOLT Flange Turbo Charger delivers up to 500HP, making it ideal for high-performance applications. Designed with a robust 4-bolt flange, it ensures secure mounting and optimal boost efficiency. Included oil inlet and return line kit simplifies installation and guarantees reliable lubrication, enhancing durability and performance. This turbocharger is engineered for enthusiasts seeking precise power gains and dependable operation under demanding conditions.
SPECIFICATIONS
Bearing Type: Journal bearing turbo
Brand Name: MXR
Claims: No any proprietary rights,affiliate and sponsorship with the third party marks.
Compressor: Trim 56 Inducer Diameter 57 mm
Condition: Brand New
Cooling Type: Water and Oil Cooling
Country/Region of Manufacture: china
Exhaust (Turbo Manifold) Flange: Standard T3 Flange
Fit For: Perfect for all 4 / 6 cyl 2.5L-3.0L engines
Hign-concerned Chemical: None
Horse Power: Boost Horse Power up to 500+BHP
Interchange Part Number: Perfect for all 4 / 6 cyl 2.5L-3.0L engines
Item Height: 28cm
Item Length: 26cm
Item Weight: 10kg
Item Width: 27cm
Manufacturer Part Number: R8U1HX
Model Number: GT3076 GT3037
Origin: Mainland China
Other Part Number: Perfect for all 6 , 8 cyl 3.0L-5.0L engines
Placement on Vehicle: place on vehicle
Product Note: Due to the light and different screen display,the picture and product maybe slightly different
Product Type: This is aftermarket replcement part.
Special Features: Balanced by Schenker

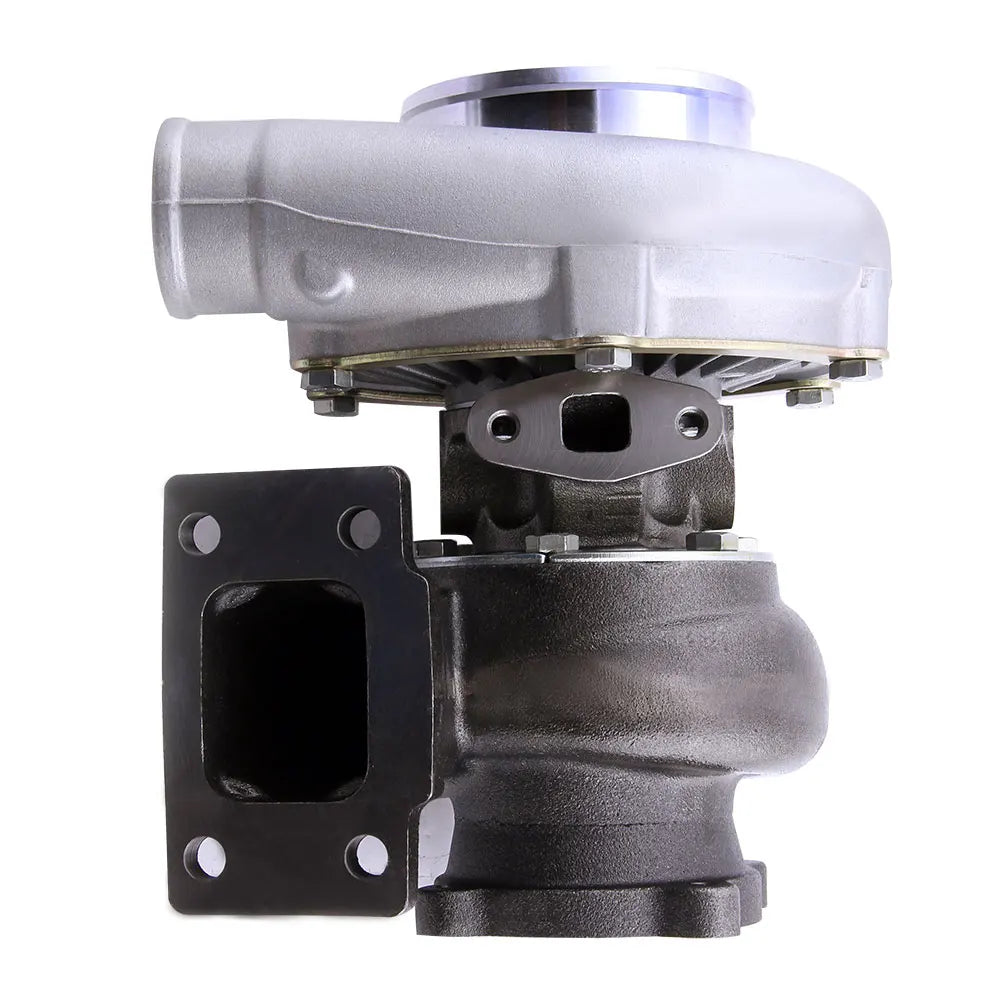

GT3037 Turbo for all 6/8 cyl 3.0L-5.0L Engine T3 Flange Water + Oil Cooled Universal 4 Bolts 500BHP Turbo Charger
Turbo Introduction:
The GT3037 Turbocharger is a large turbo capable of generating 500 HP, depending on application and with the correct tuning. The GT3037 is generally used for larger displacement engines of 3.0L and up, since these types of engines can produce enough exhaust volume to push the GT3037
Application:
Perfect for all 4 / 6 cyl 2.5L-3.0L engine
Horse Power: Boost Horse Power up to 500BHP
Specification:
Exhaust Inlet (Turbo Manifold) Flange: Standard T3 Flange
Exhaust Outlet Flange: 4-Bolt Flange
Turbine Trim: 74.2
Turbine Inducer Diameter: 64.8mm
Turbine Exducer Diameter: 55.8mm
Turbine A/R: 0.82
Compressor Trim: 48.1
Compressor Inducer Diameter: 52.7mm
Compressor Exducer Diameter: 76mm
Compressor A/R: 0.6
Bearing: Journal Bearing
Cooling Type: Water + Oil
Warranty: 2 Years for any manufacture defects

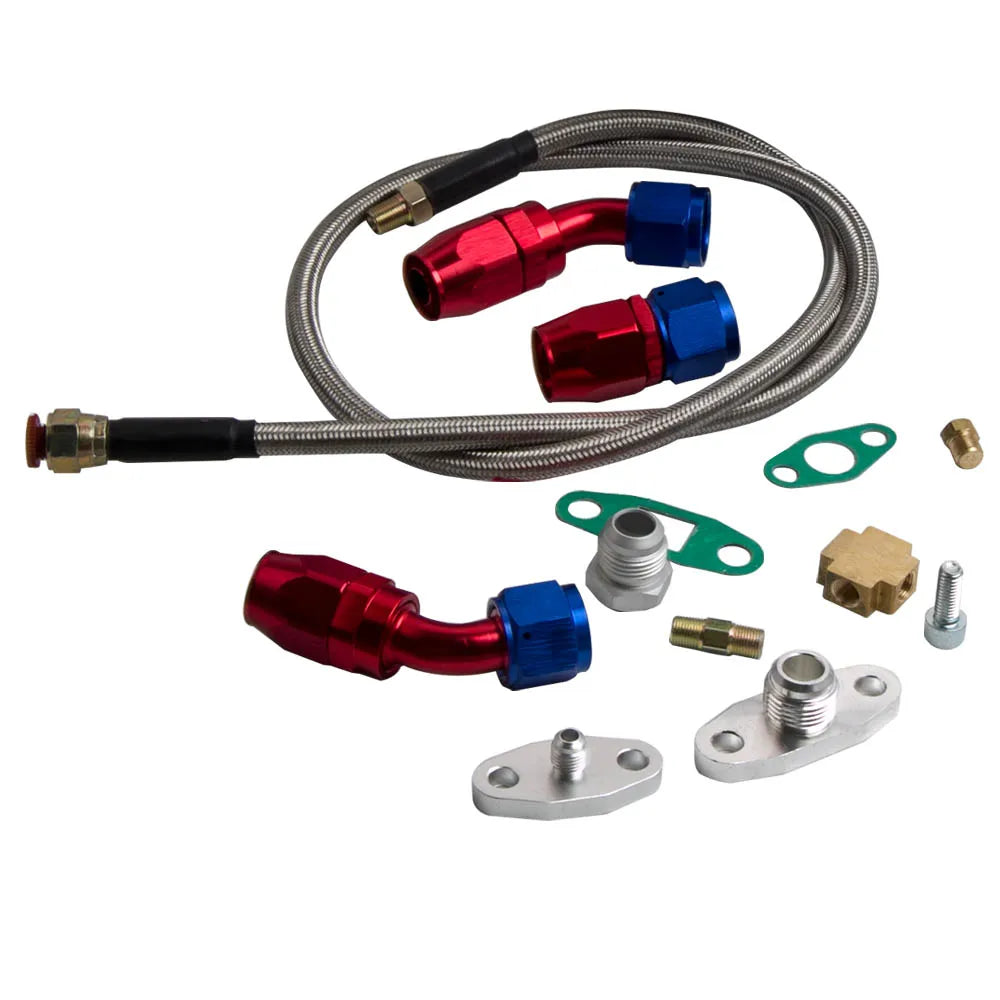

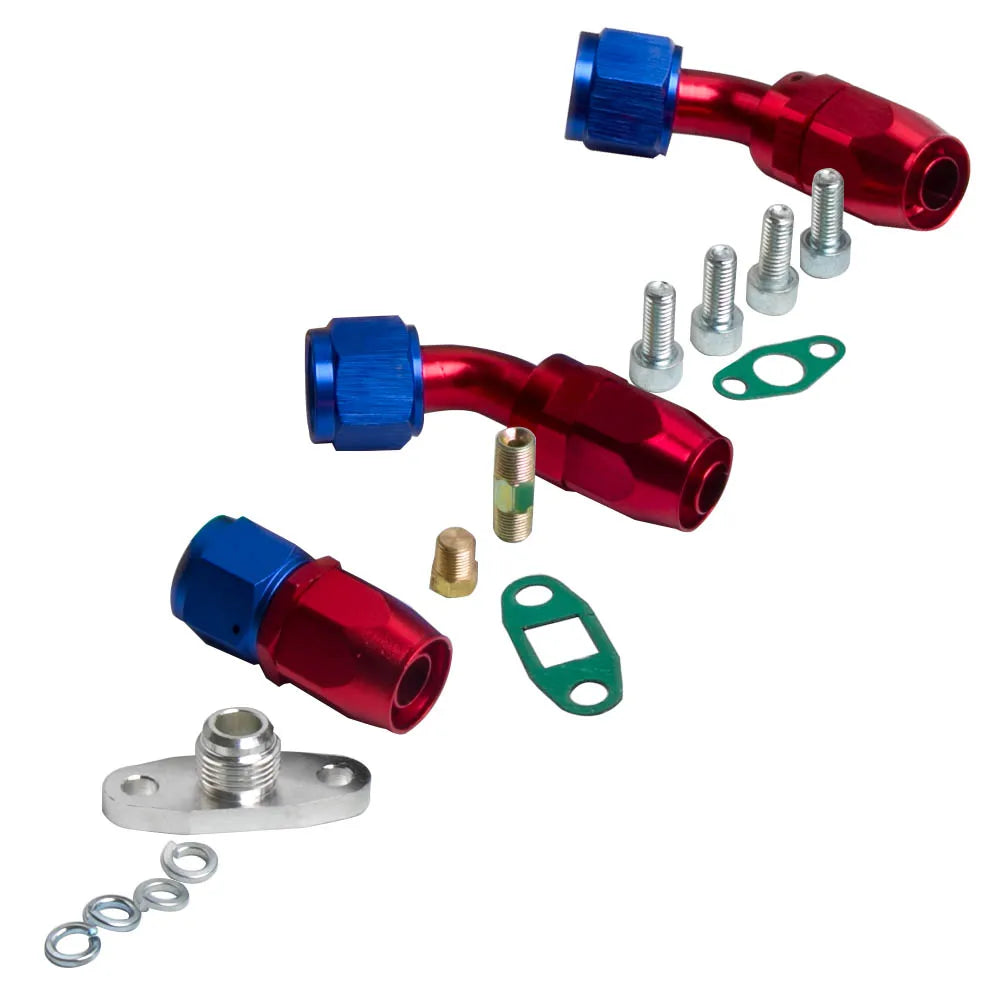

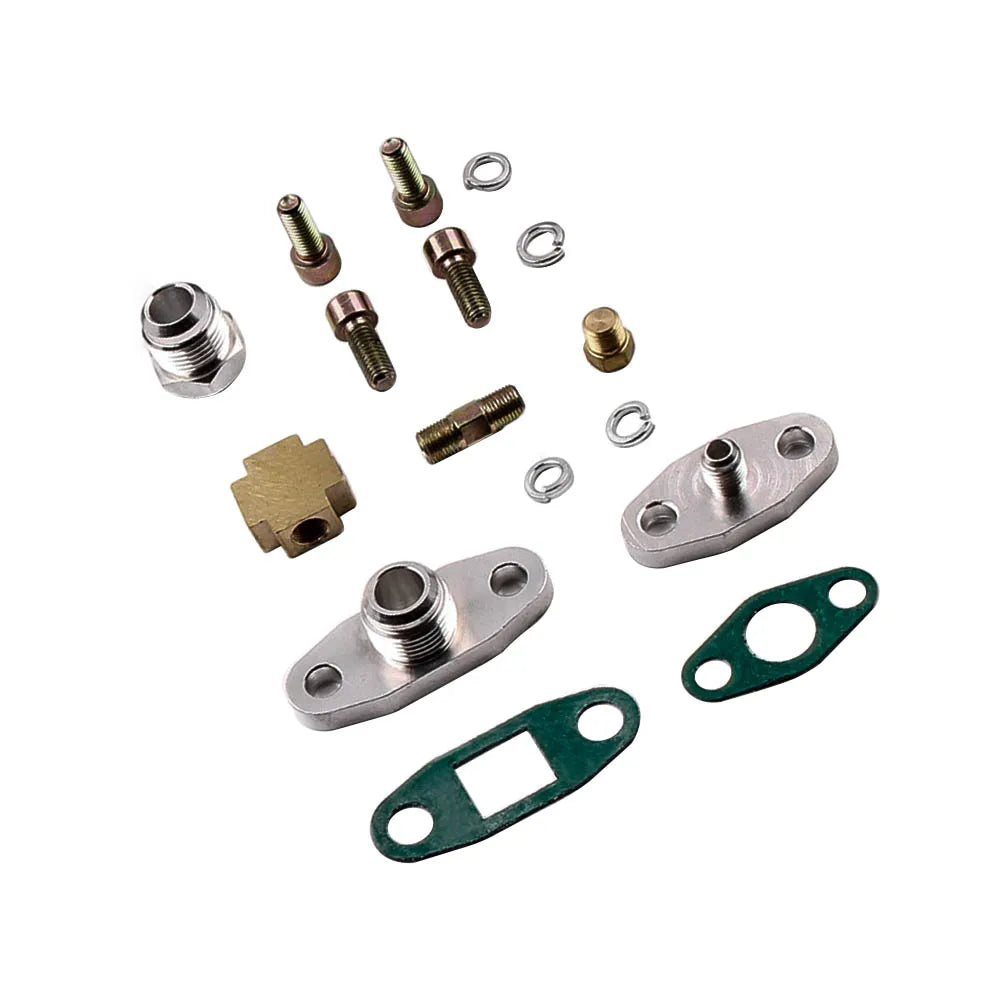

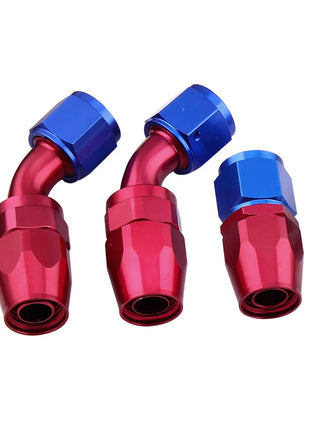

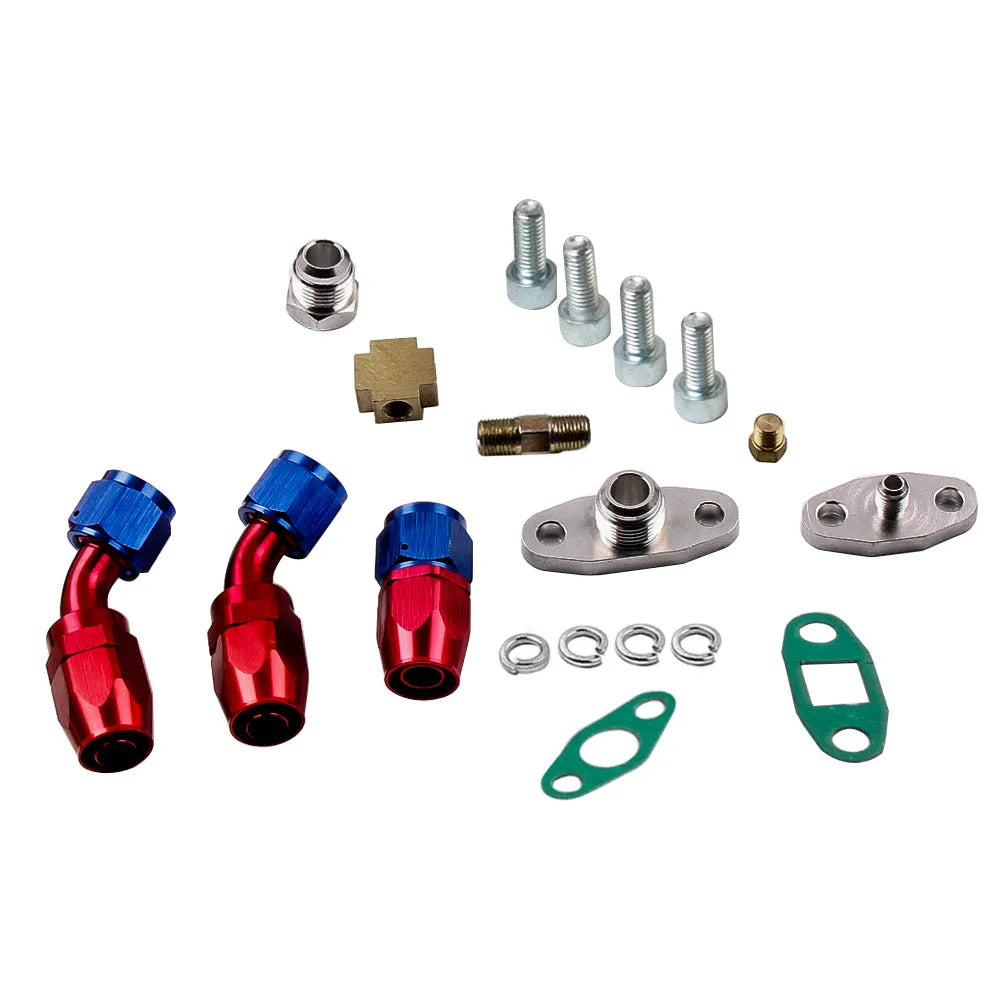

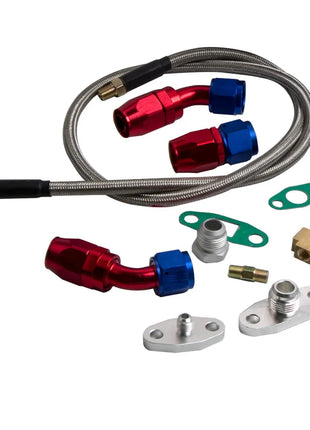

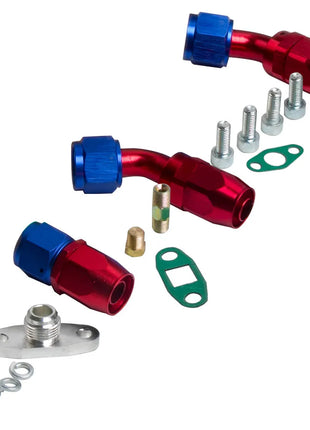

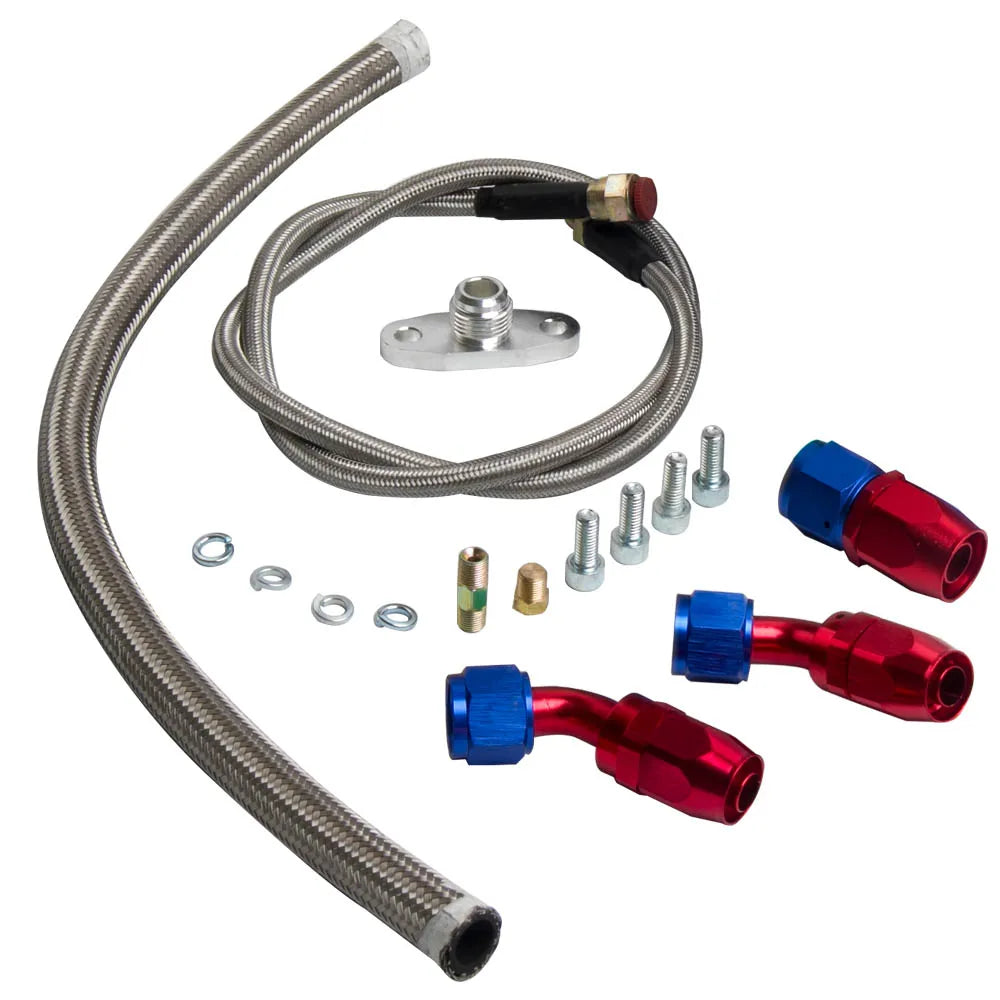

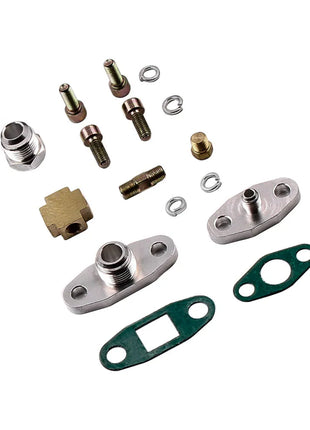

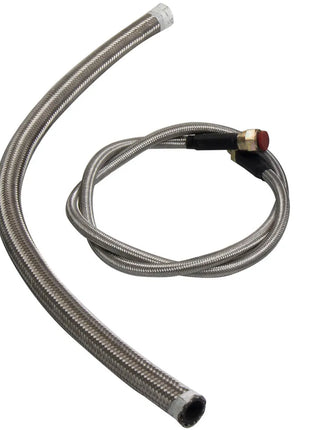

Oil lines:

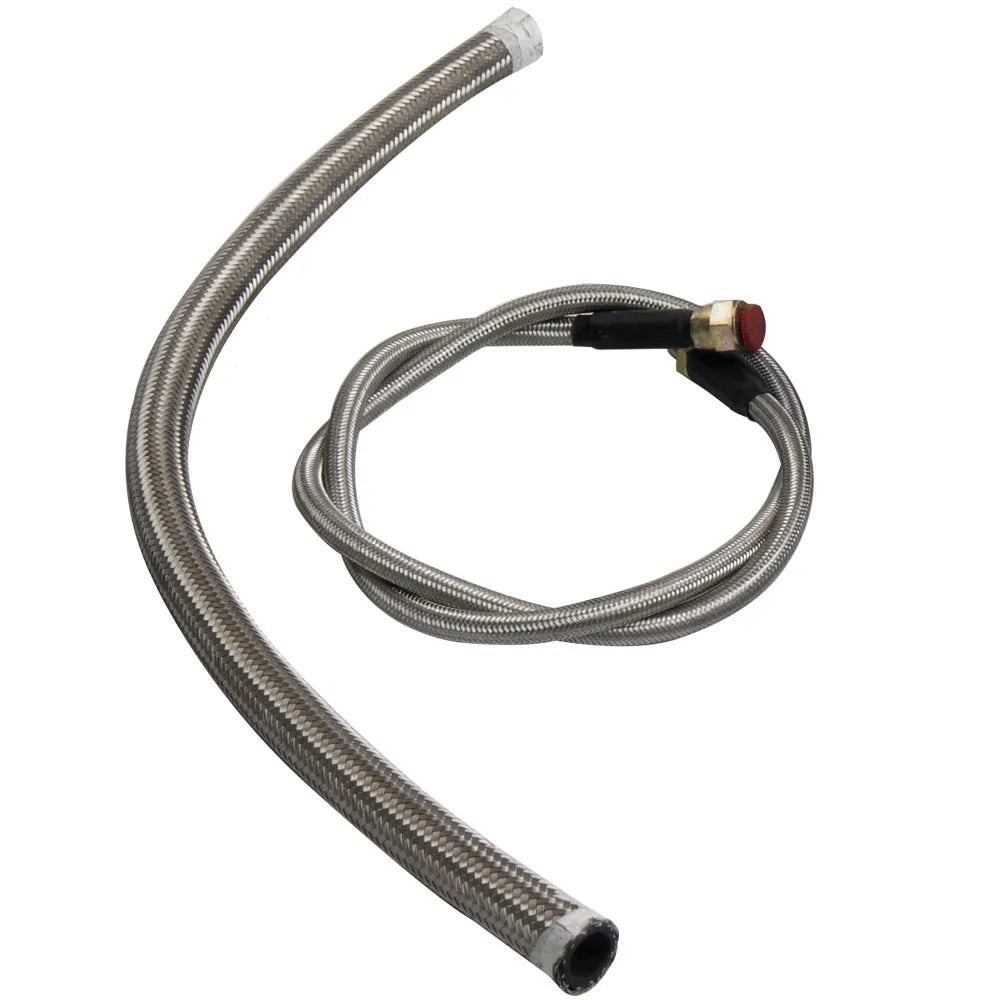

* OIL RETURN LINE: Length: 550mm || Inner Diameter: 21mm
* OIL FEED LINE: Length: 1000mm || Inner Diameter: 14mm
Features:
1. GT3037 GT3076 500 +HPS Universal 0.82 A/R. Very Good response turbo for 6 Cyl applications. This turbo has a flow capacity of about over 500HP.
2. (1)cost effective turbocharger give your car 20-25% more total power

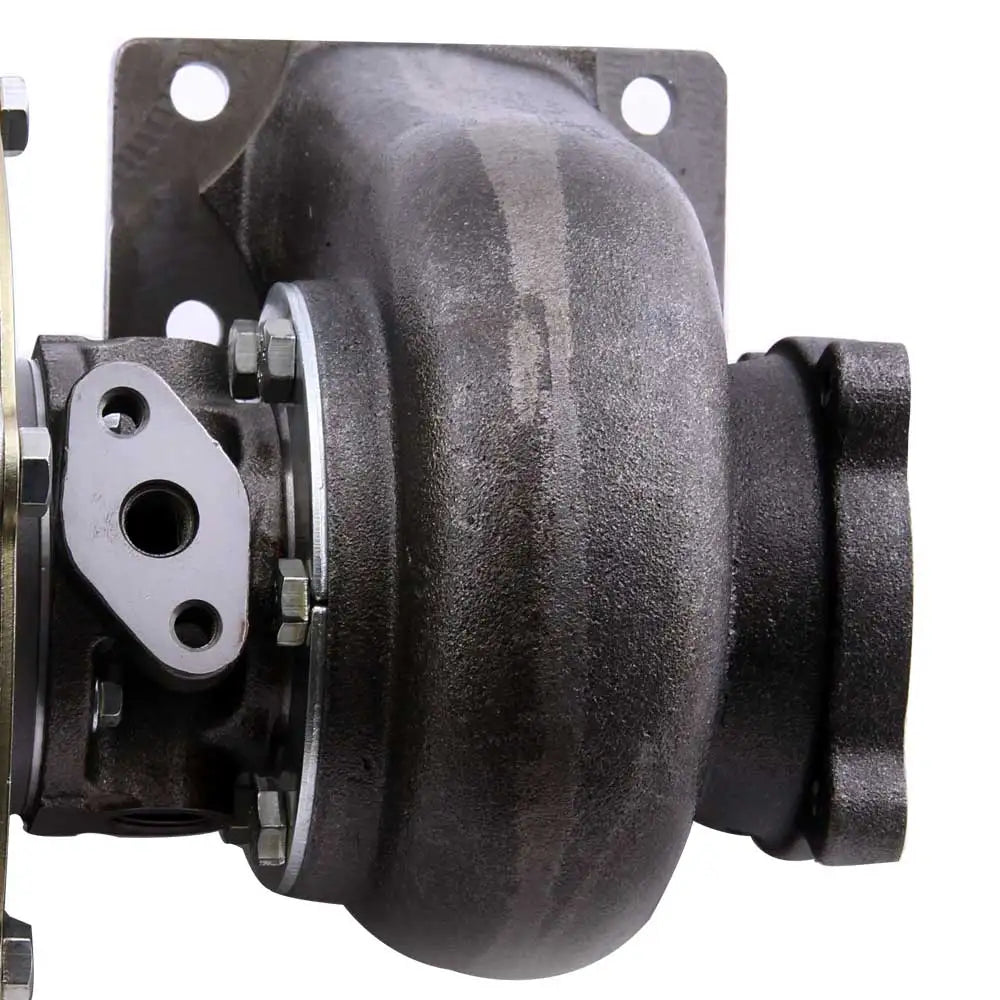

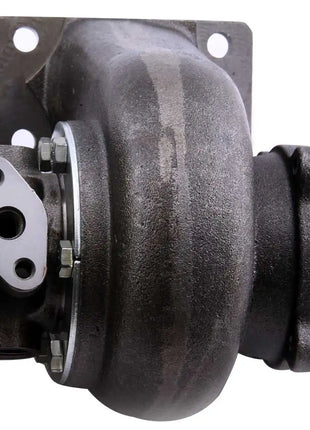

(2) Turbine housing uses ductile iron QT450-10 Can withstand temperatures up to 700 degrees Celsius
(3) Steel Turbine Wheel made from the special K418 alloy to achieve high oxidation resistance and stability under high temperatures up to 900 degrees Celsius
(4) Cast aluminium blades with good gas tightness and corrosion resistance
3. This Turbocharger you will receive has been balanced using the VSR machine technology.
Only the VSR machine measures imbalance to the speeds necessary to be an effective test, If this balancing process is not carried out, the result can be a turbo which will be noisy in operation and is very likely to suffer failure prematurely
Installation Notice:
We highly recommend you make sure the points below before installing:
1.Replace the air filter: if the if the air filter is not replaced may cause the compressor wheel damage.
2.Replace the engine oil: Because floating bearing and turbocharger will be damaged by impurities in the old oil.
3.After large overhaul, the engine cannot be replaced with a new turbocharger because there are too much impurities in oil after overhauling which will damage the replacement turbocharger immediately.
Please run the old turbocharger for 7-10 days and then replace to new turbocharger and new engine oil.
Notice
* Please check the specifications carefully before bidding. If you are not sure about these information, please feel free to contact us.
* This is universal application turbo, so modification might be required for some vehicles
* Professional installation is highly recommended (Instruction Included. (If not, we could offer you the E-book version. ))
* For any other question, please feel free to contact us by message :
Key Features
- OEM specs coincidence to ensure the perfect fitment to the related parts
- Material qualification for durable and reliable use
- Multi-Discipline tests, like balance, housing durability, wheel load limits, sealing, etc. are carried to enhance the quality of every unit
- Accuracy producing on all procedures to reduce possible metallic contacts under different condition
- Large range of turbochargers for easily locate the turbo with the target horse power and size you need from us
- Quality fully guaranteed and professional installation highly recommended
