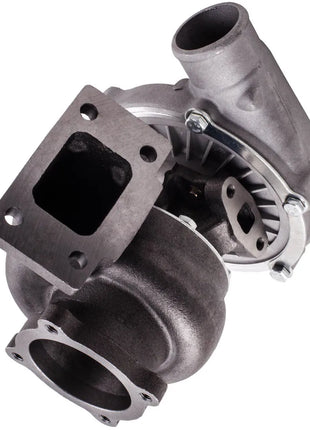

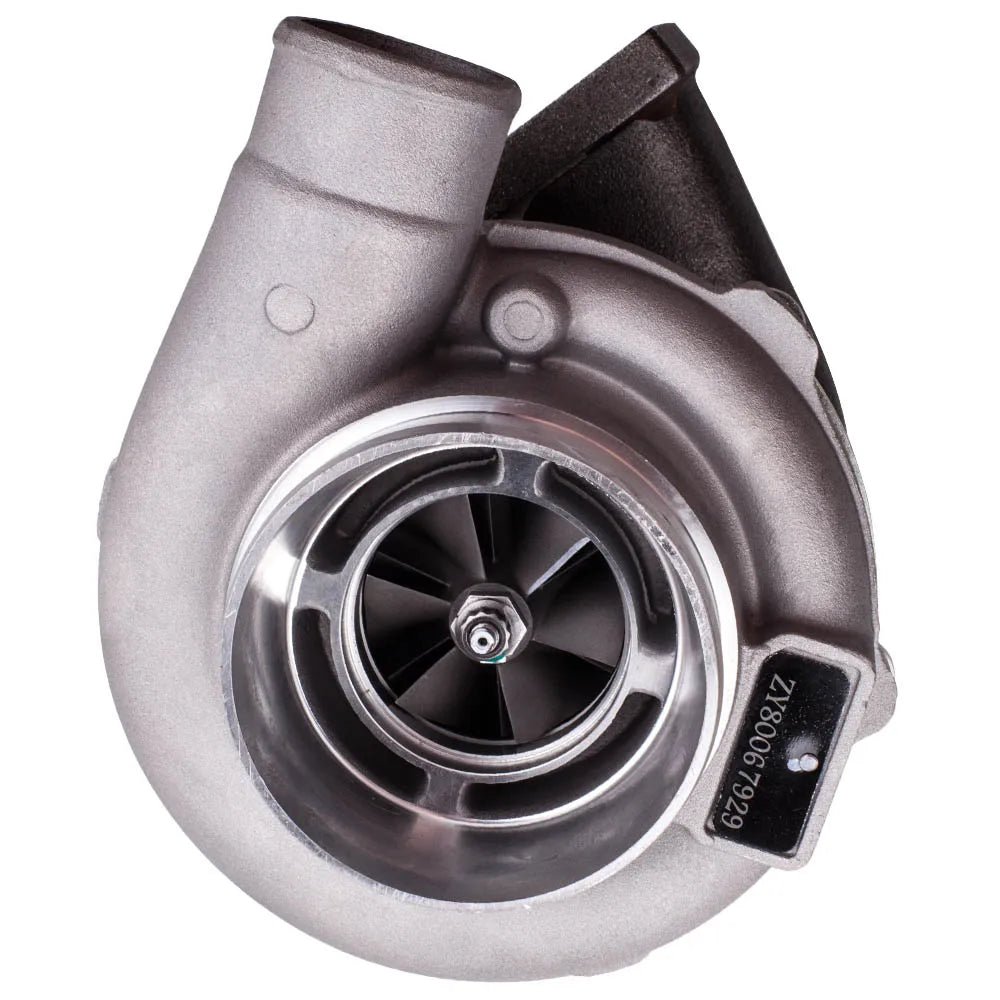

The GT30 GT3076 and GT3076R universal turbocharger is engineered for 6- and 8-cylinder engines ranging from 3.0L to 5.0L. Delivering up to 500HP, this turbocharger enhances engine performance by improving airflow and boosting power output. Its versatile design fits a wide range of applications, making it an ideal upgrade for enthusiasts seeking reliable and efficient forced induction.
SPECIFICATIONS
Brand Name: MXR
Claims: No any proprietary rights,affiliate and sponsorship with the third party marks.
Compressor A/R: 0.6
Displacement: T3 flange turbo
External Testing Certification: CCC
Hign-concerned Chemical: None
Horse Power: Boosting Horse Power up to 500BHP
Interchange Part Number: Water + Oil
Item Diameter: 28
Item Height: 20
Item Length: 35
Item Type: Turbo
Item Weight: 9k
Item Width: 28
Manufacturer Part Number: GT3037 GT3076 GT30 T3 Universal Turbo
Model Name: Universal turbo gt3037
NOTE: This is universal application turbo
No. of Cylinders: 3 Cylinder
Origin: Mainland China

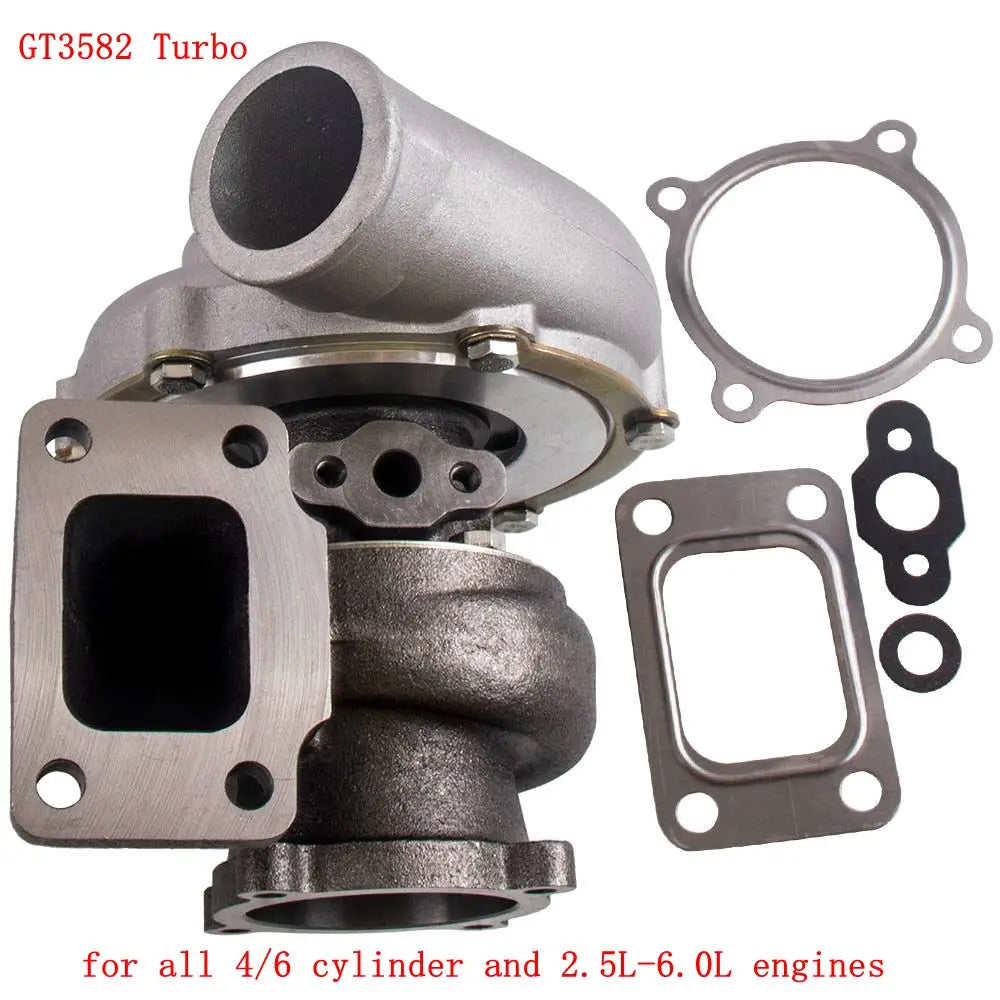

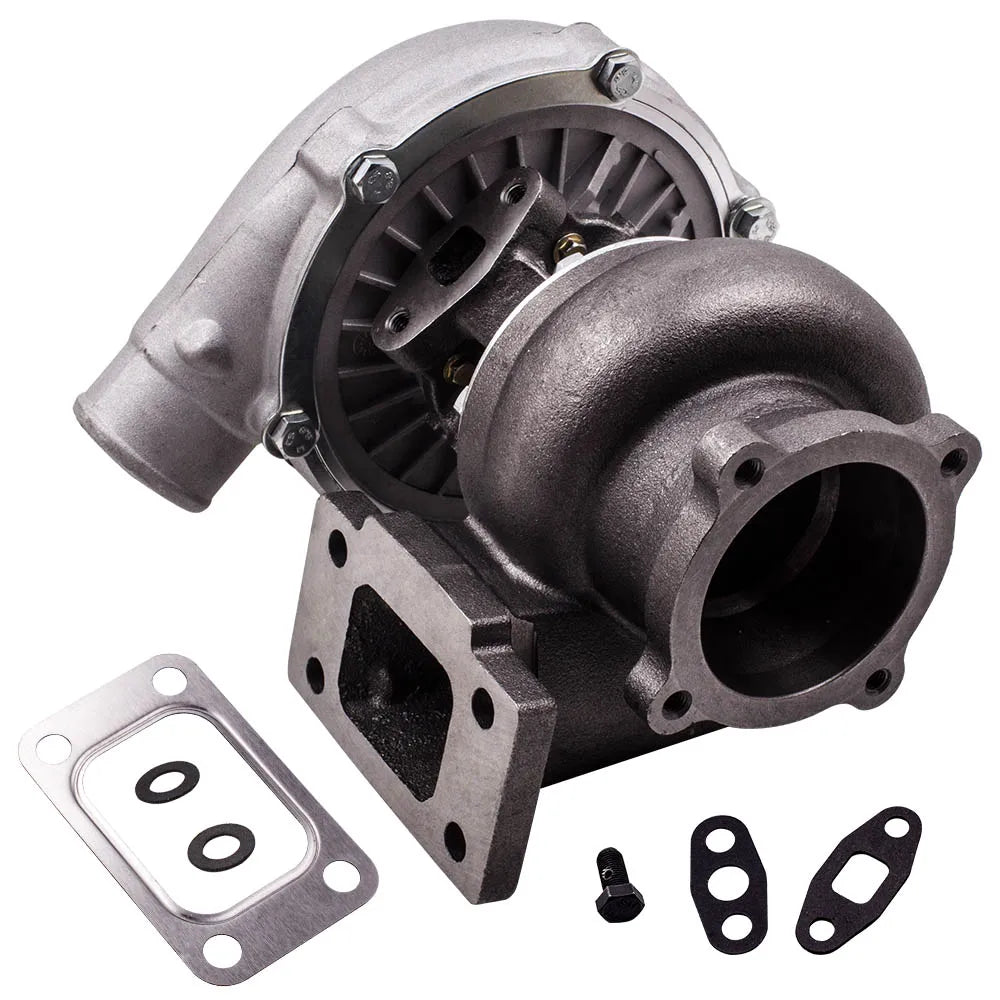

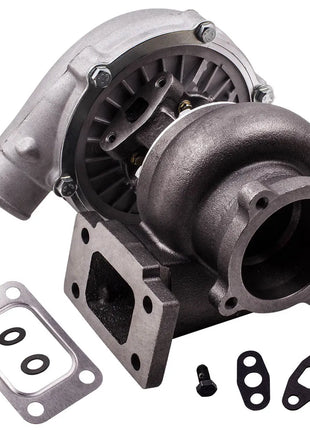

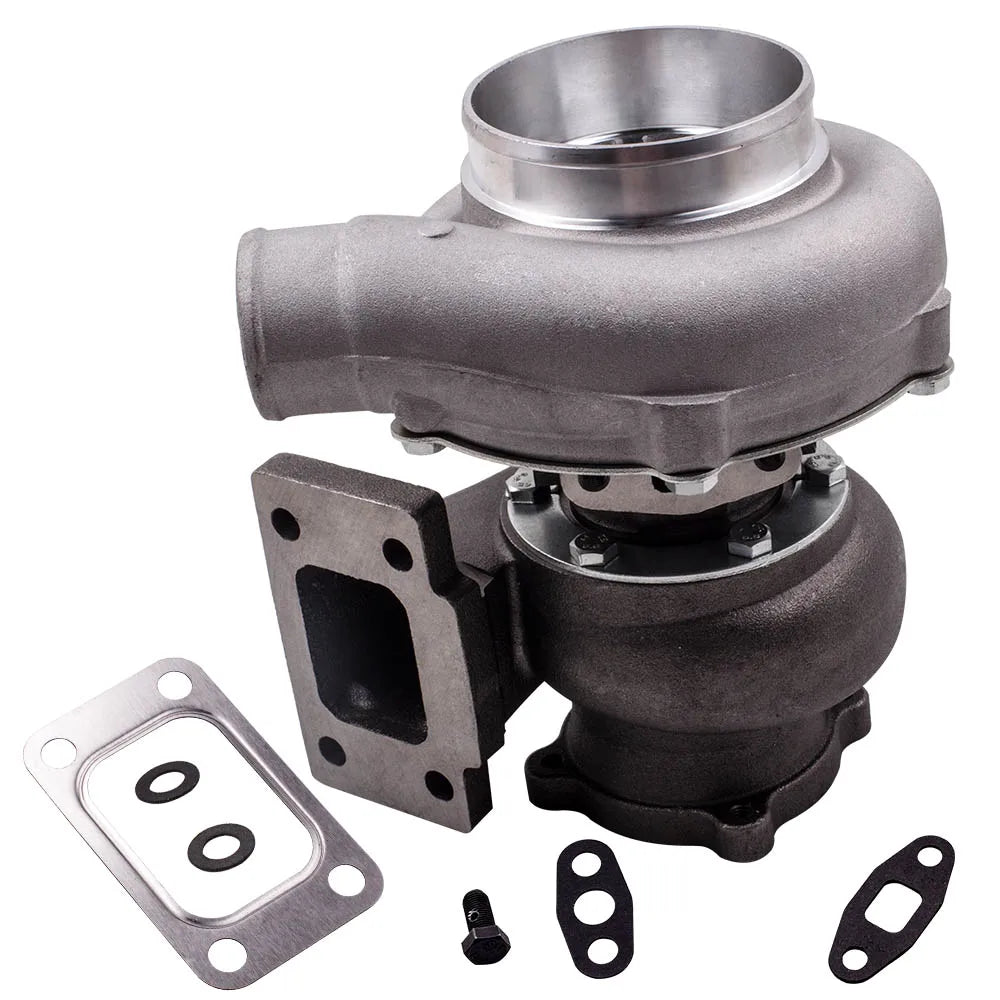

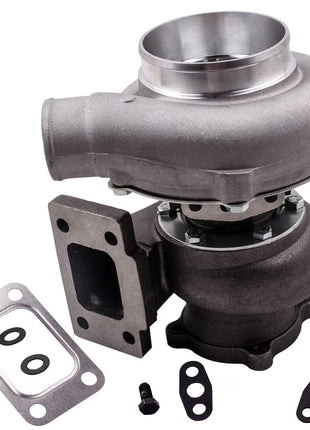

Package including: turbo with gakset as picture shown
Part Number: High Performance Aftermarket Parts
Product Note: Due to the light and different screen display,the picture and product maybe slightly different.
Product Type: This is aftermarket replacement part
Special Features: Turbo Turbocharger Turbolader
Surface Finish: Brand New
Turbine A/R: 0.82
Warranty: Yes

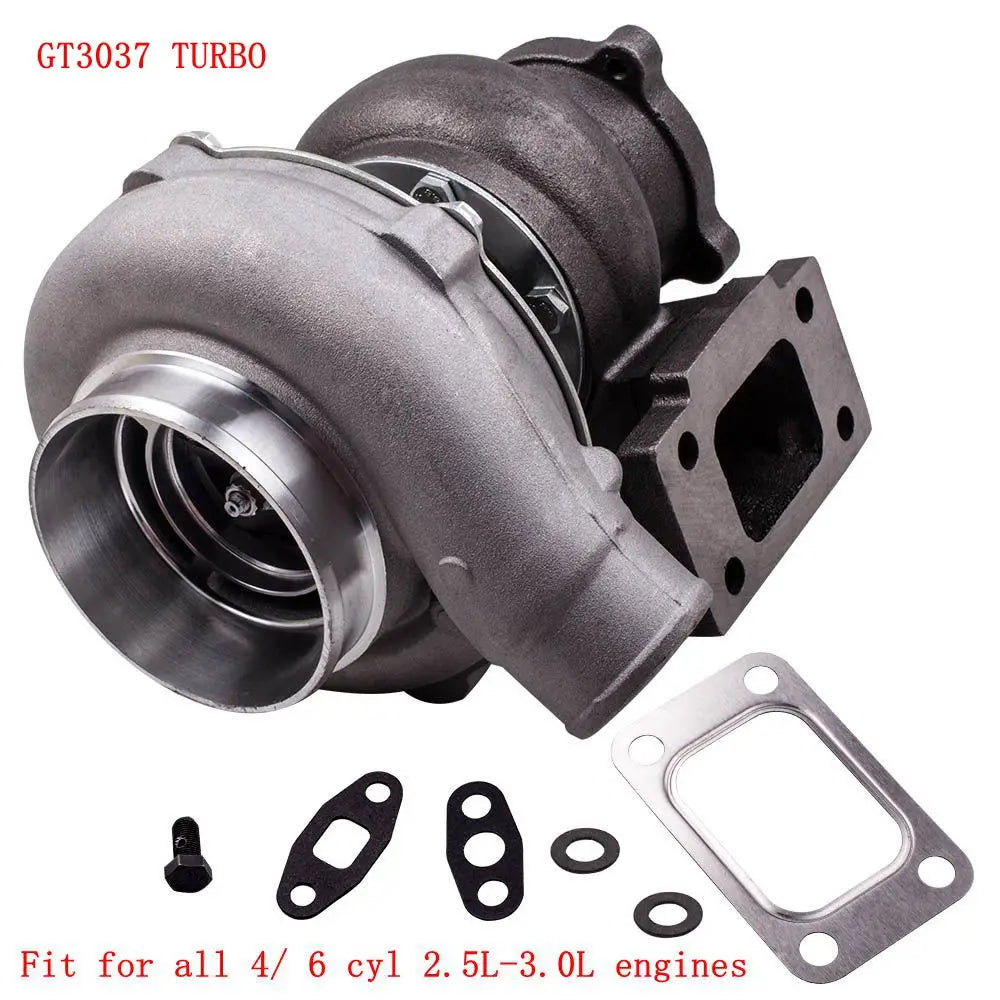

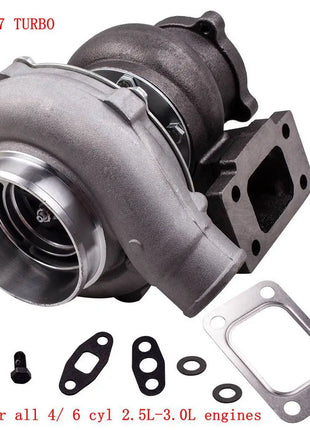

The GT3037 Turbocharger is a large turbo capable of generating 500 HP, depending on application and with the correct tuning. The GT3037 is generally used for larger displacement engines of 3.0L and up, since these types of engines can produce enough exhaust volume to push the GT3037.
Application
Perfect for all 6 / 8 cyl 3.0L-5.0L engine
Horse Power: Capable of Boosting Horse Power up to 500HP

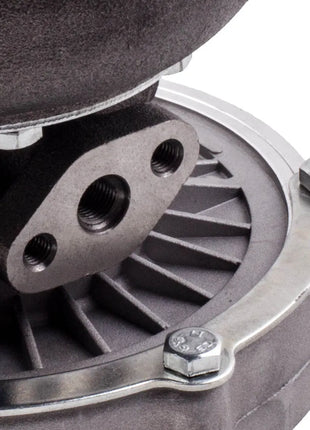

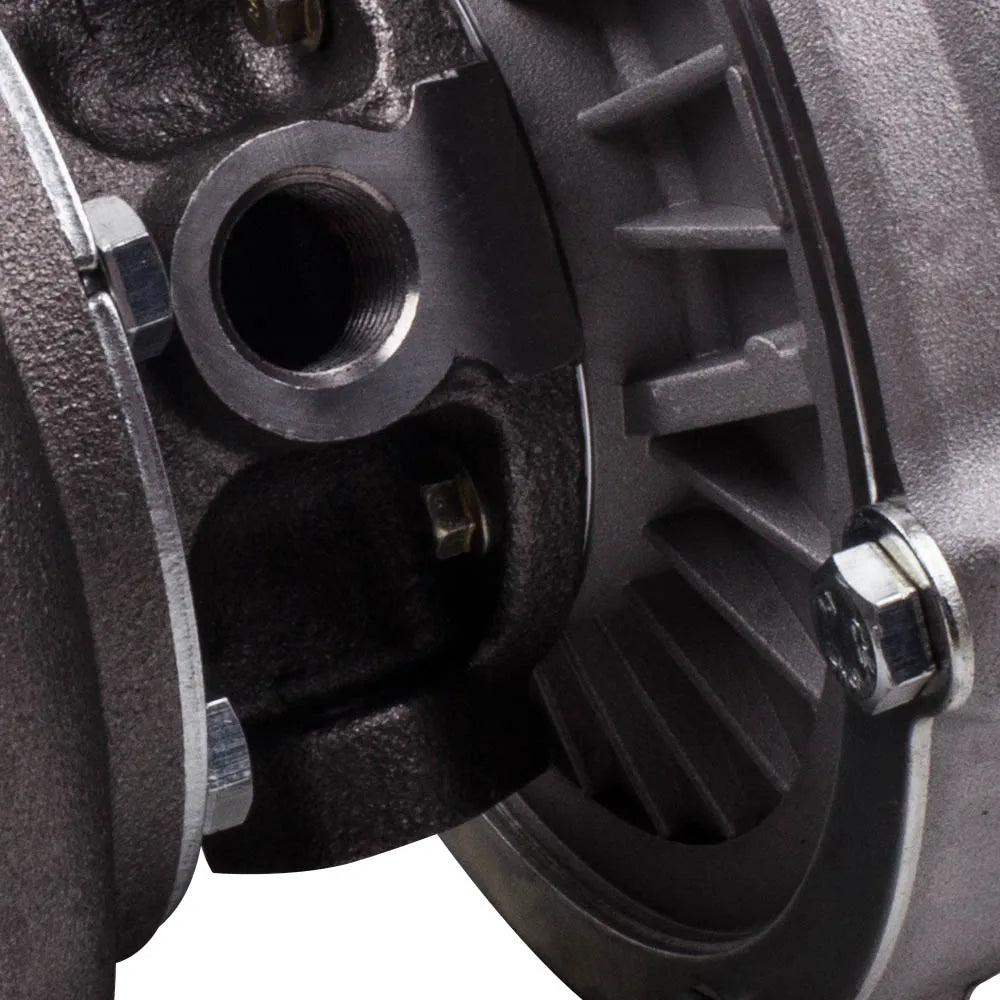

Cooling Type: Water + Oil Cooled
Specification
Horse Power: Capable of Boosting Horse Power up to 500BHP
Cooling Type: Water + Oil

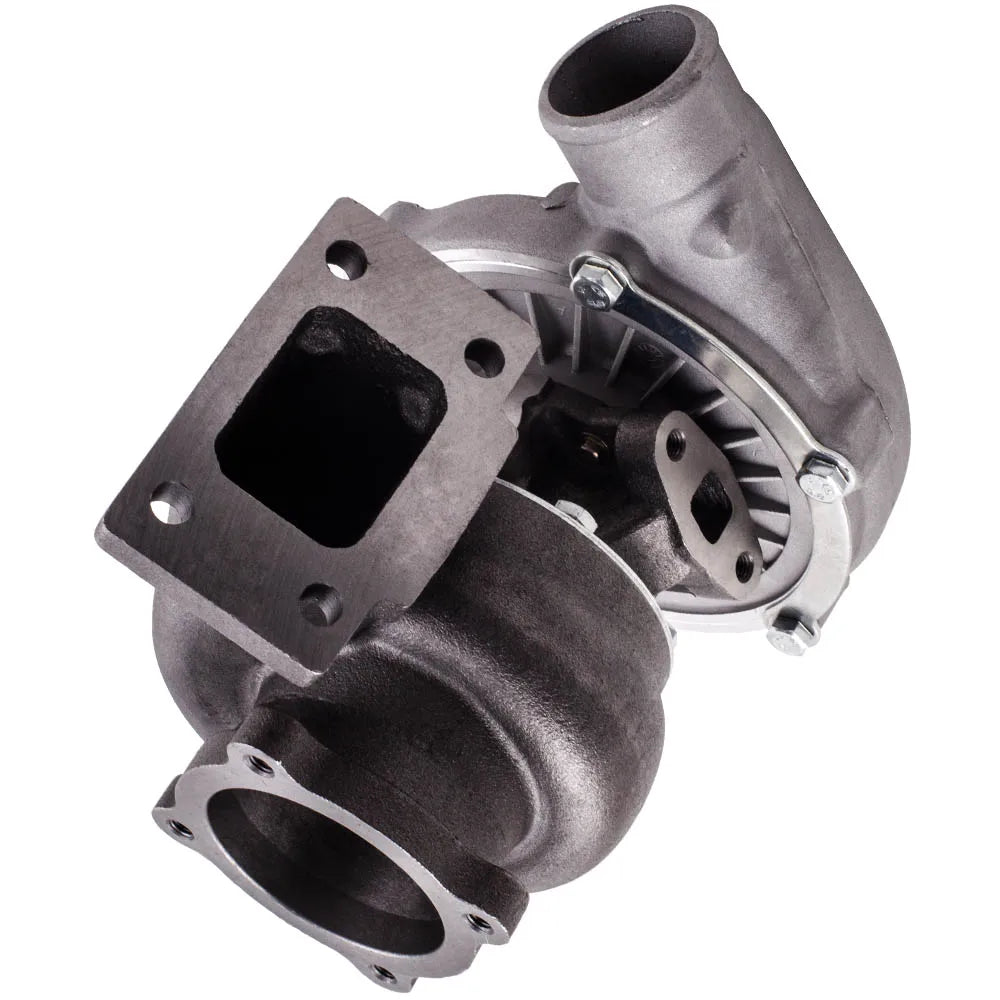

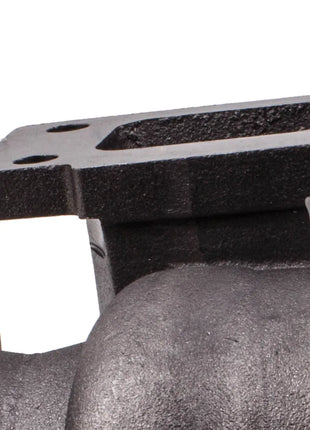

Exhaust Inlet (Turbo Manifold) Flange: Standard T3 Flange

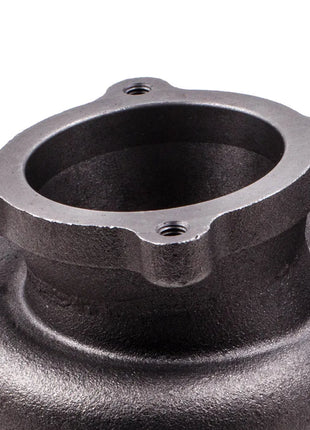

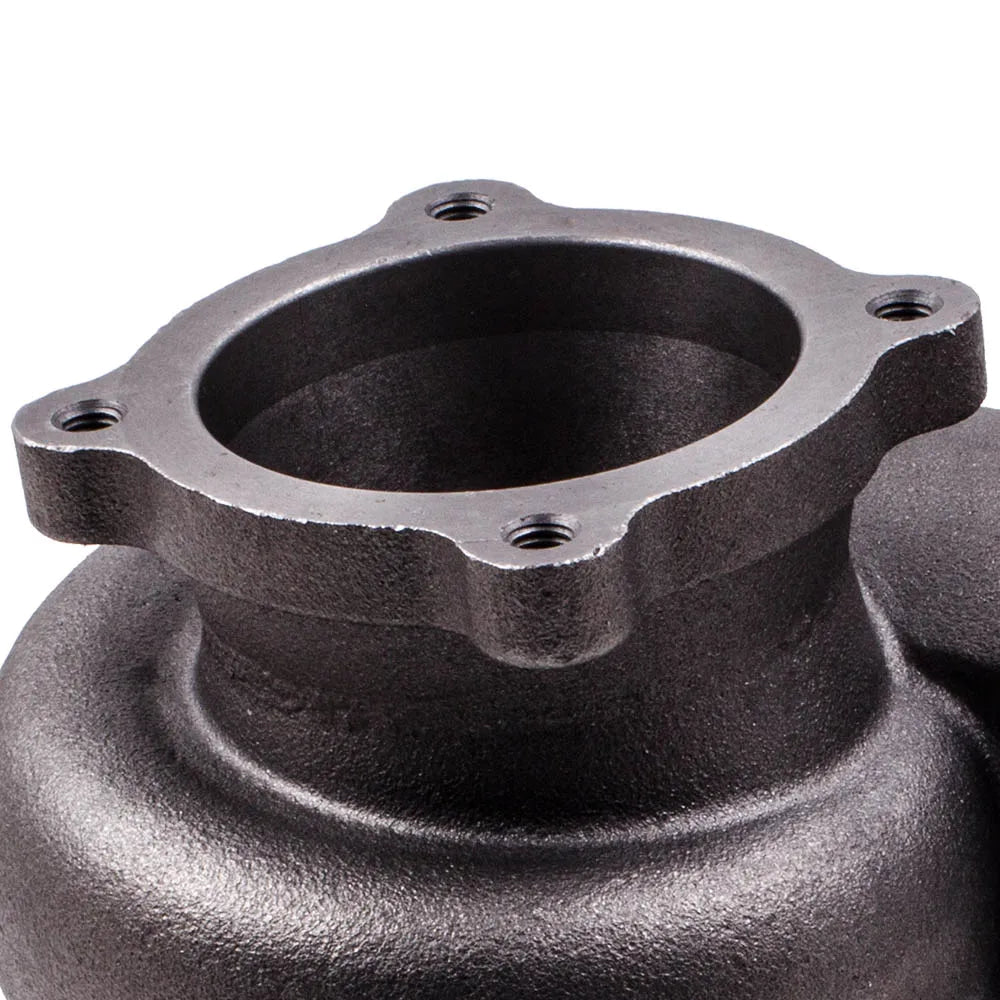

Exhaust Outlet (Downpipe) Flange: Standard 4-Bolt
Turbine Trim: 74.2
Turbine Inducer Diameter:64.8
Turbine Exducer Diameter: 55.8
Turbine A/R: 0.82
Compressor Trim: 48.1

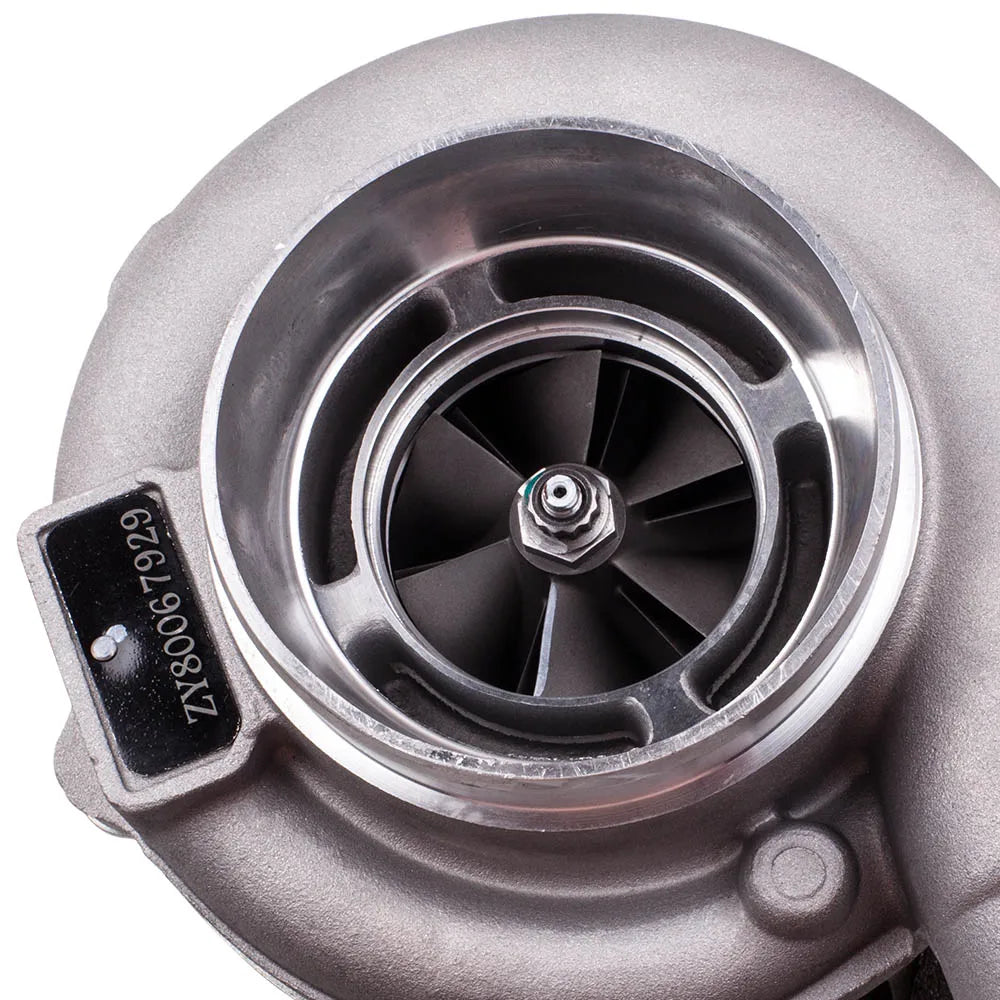

Compressor Inducer Diameter: 52.7
Compressor Exducer Diameter: 76
Compressor A/R:0.6
Bearing: Journal Bearing
Warranty: 2 Year
Internal Wastegate: No
Notice
* Please check the specifications carefully before buying. If you are not sure about these information, please feel free to contact us.
* This is universal application turbo, so modification might be required for some vehicles.
* Professional installation is highly recommended(No Instruction Included)
1. Due to the light and screen difference, the item's color may be slightly different from the pictures.
2. Please allow 0.5-2 cm differences due to manual measurement.
We highly recommend you make sure the points below before installing:
1.Replace the air filter: if the if the air filter is not replaced may cause the compressor wheel damage.
2.Replace the engine oil: Because floating bearing and turbocharger will be damaged by impurities in the old oil.
3.After large overhaul, the engine cannot be replaced with a new turbocharger because there are too much impurities in oil after overhauling which will damage the replacement turbocharger immediately.
Please run the old turbocharger for 7-10 days and then replace to new turbocharger and new engine oil.
