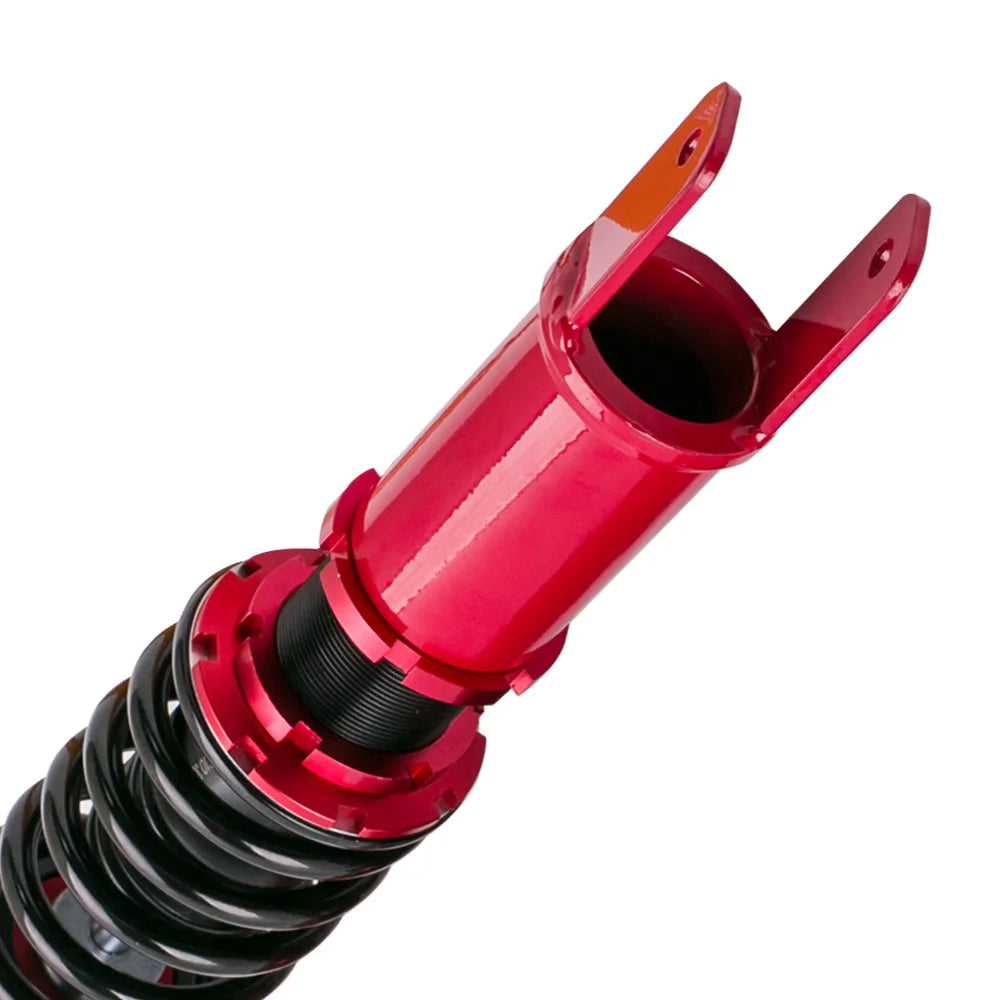

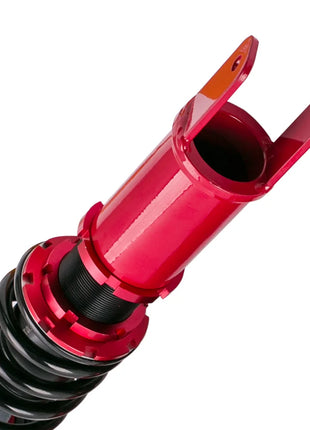

Application: Rear fork type bracket model only
For Honda Civic 1988-1991 EC ED EE EF Rear fork type bracket model only EC8\EC9\ED2\ED3\ED4\ED5\ED6\ED7\EE1\EE2\EE3\EE4\EE5\EE9\EF1\EF2\EF3\EF4\EF5\EF9
For Honda CR-X 1988-1991 ED EE EF Rear fork type bracket model only ED8\ED9\EE6\EE8\EF6\EF7\EF8
For Honda Civic 1992-1995 EG EH EJ Rear fork type bracket model only EG3\EG4\EG5\EG6\EG7\EG8\EG9\EH1\EH2\EH3\EH4\EH5\EH8\EH9\EJ1\EJ2\EJ3
For Honda CR-X del Sol 1992-1995 EG EG1 Rear fork type bracket model only
For Honda Civic 1996-2000 EJ EK EM Rear fork type bracket model only EJ5\EJ6\EJ7\EJ8\EJ9\EK1\EK2\EK3\EK4\EK5\EK8\EK9\EM1
For Acura Integra 1994-2001 DC2 DC4 Rear fork type bracket model only
For Acura Integra 1990 -1993 DA DB Rear fork type bracket model only
For some vehicles, you will need sleeves and washers that already included in our package.
Notice: The coilovers kit will "Lower your car" and does not keep to the original ride height.
Speicification:
Adjustable height: lowering 1-3inch
Damping: not adjustable
Front and Rear top mount: rubber
Spring rate Front: 8 kg/mm (448 lbs/in)
Spring rate Rear: 5 kg/mm (280 lbs/in)
Spring length Front: 180mm
Spring length Rear: 180mm
Coilover overall length Front: 365mm-410mm
Coilover overall length Rear: 435mm-480mm
Shock type: Twin tube
Spring Preload: 7-10 mm
Feature:
1. Lowered height adjustment from 1" - 3" which allow lower center of gravity and also add a more aggressive stance
2. Rubber top mounts help to deliver a smooth and forgiving ride for city use at any speed and rubber joints assist in absorbing hard impacts.
3. Twin-Tube structure allows sufficient stroke within the shock absorber.

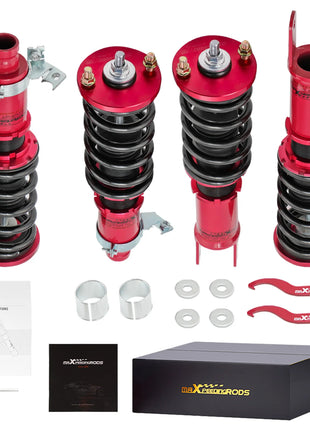

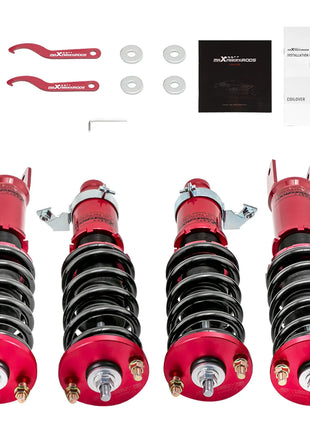

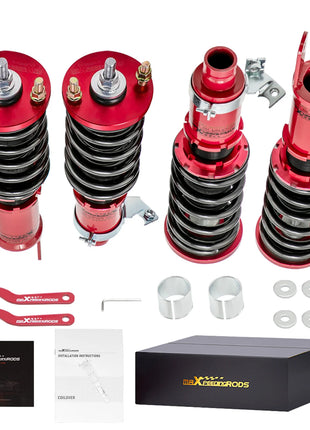

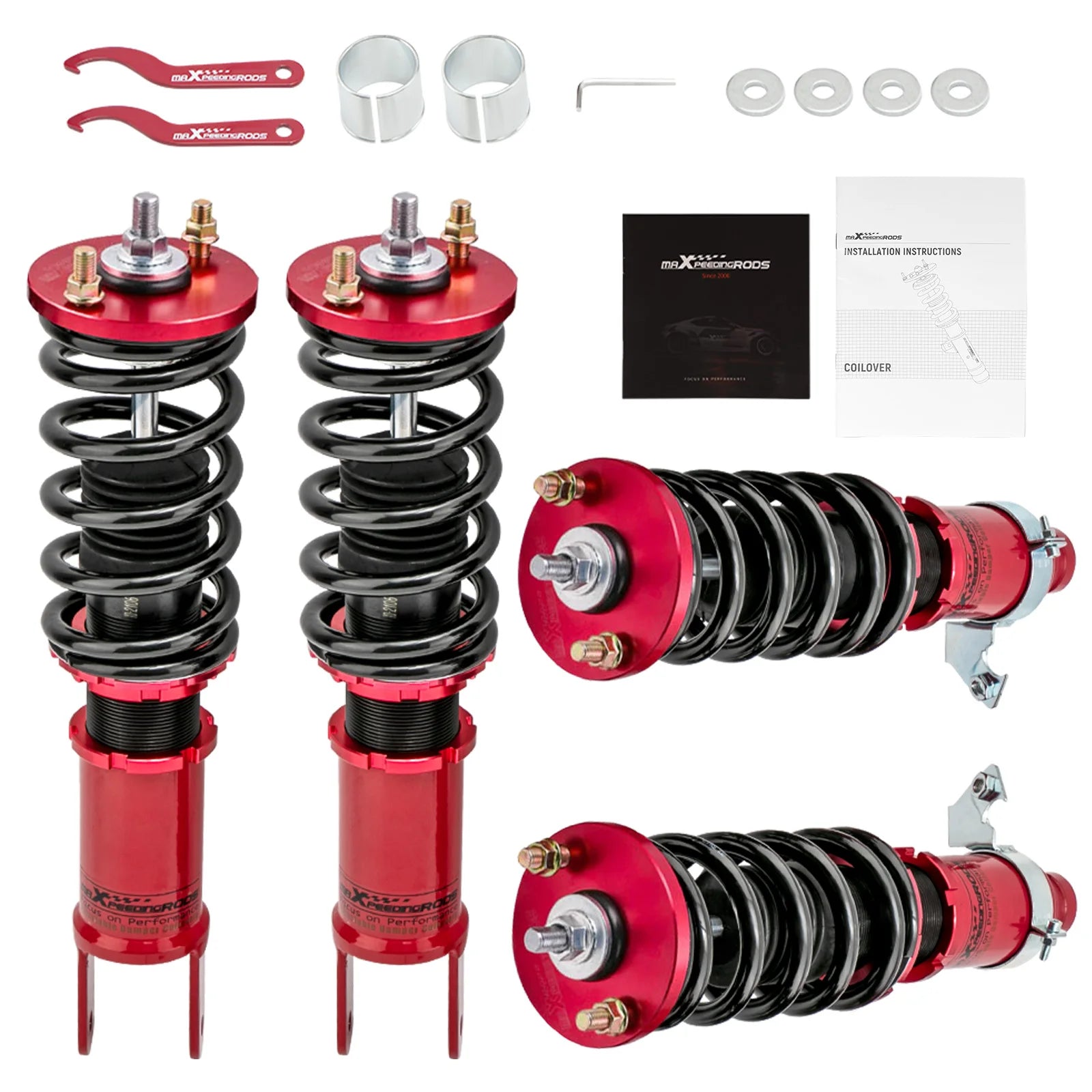

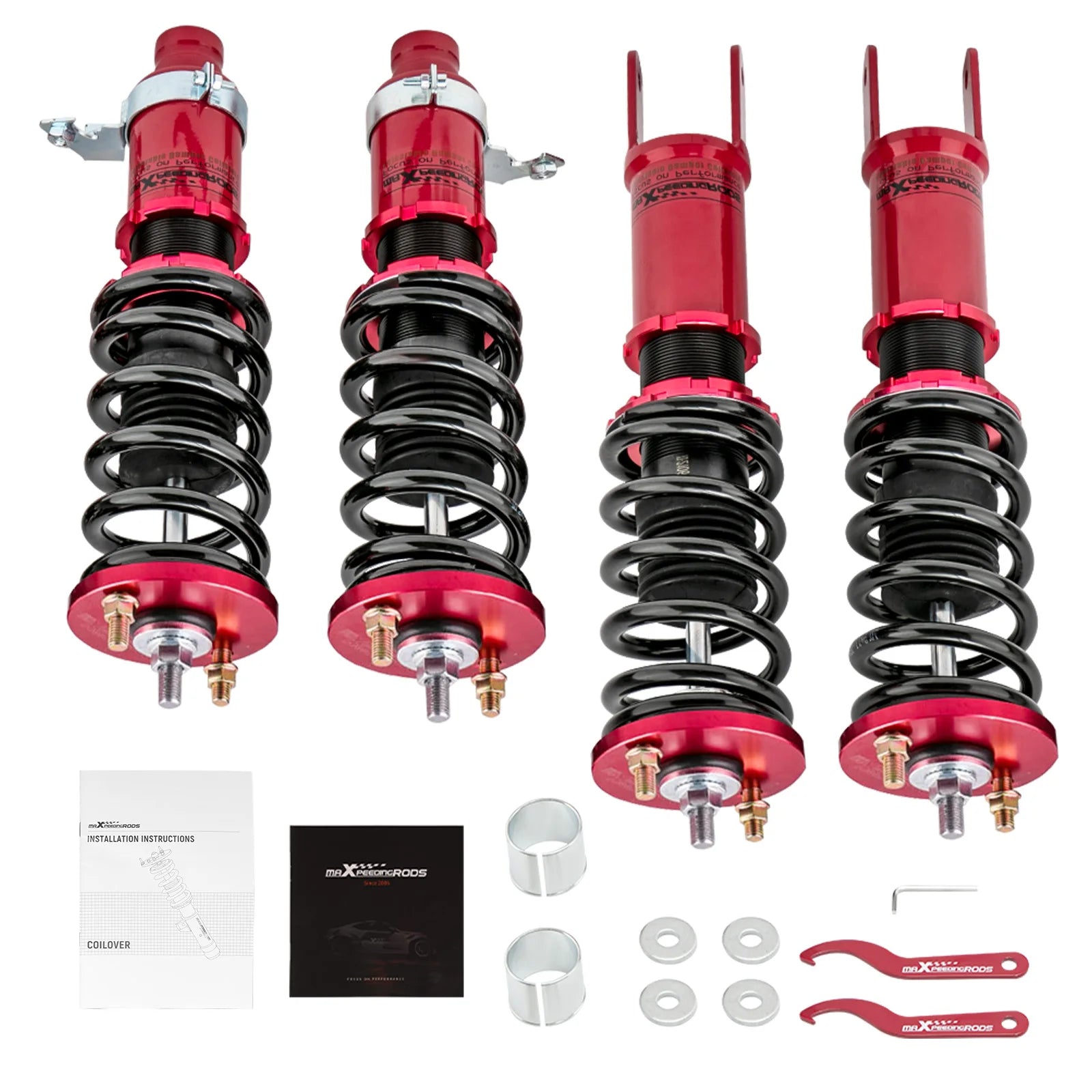

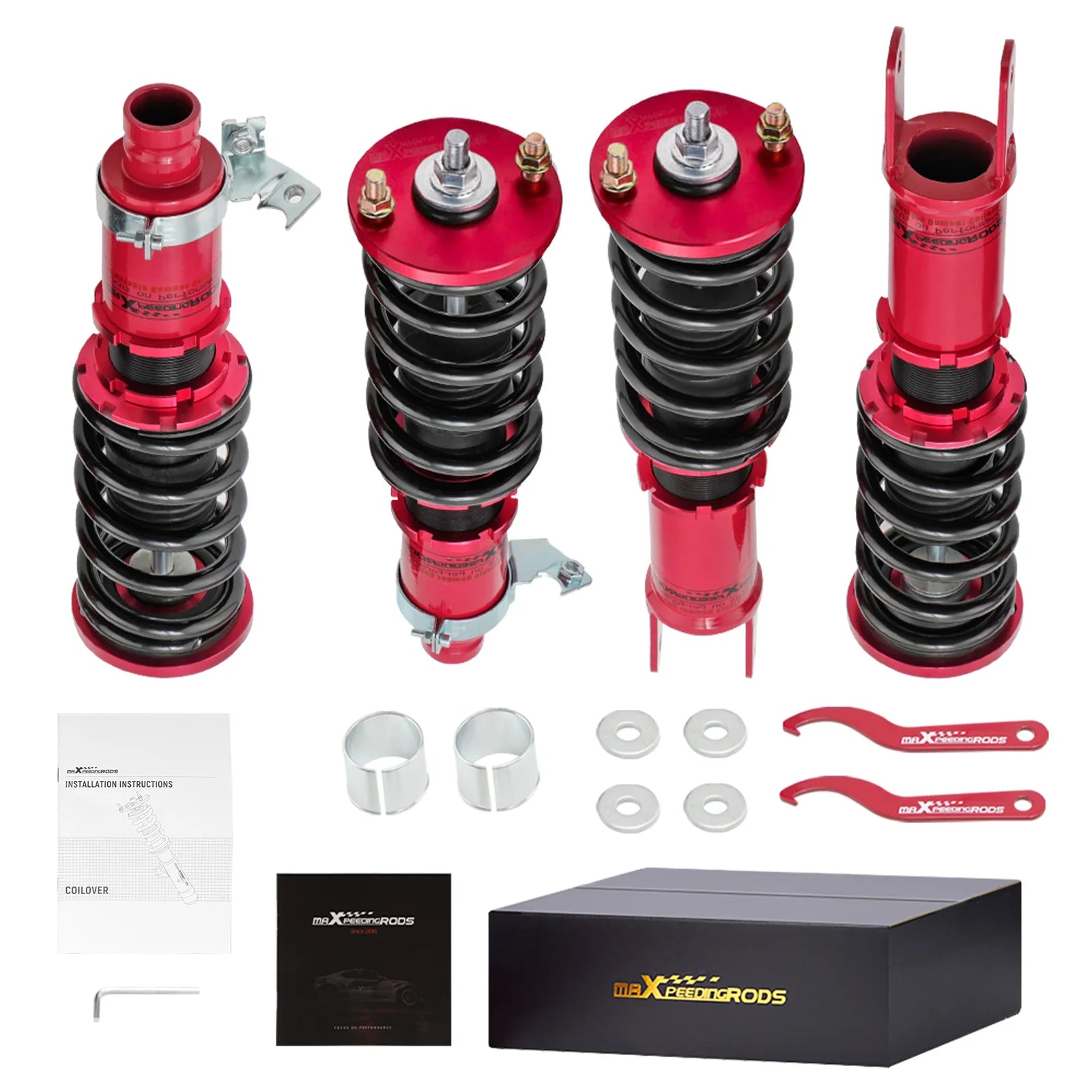

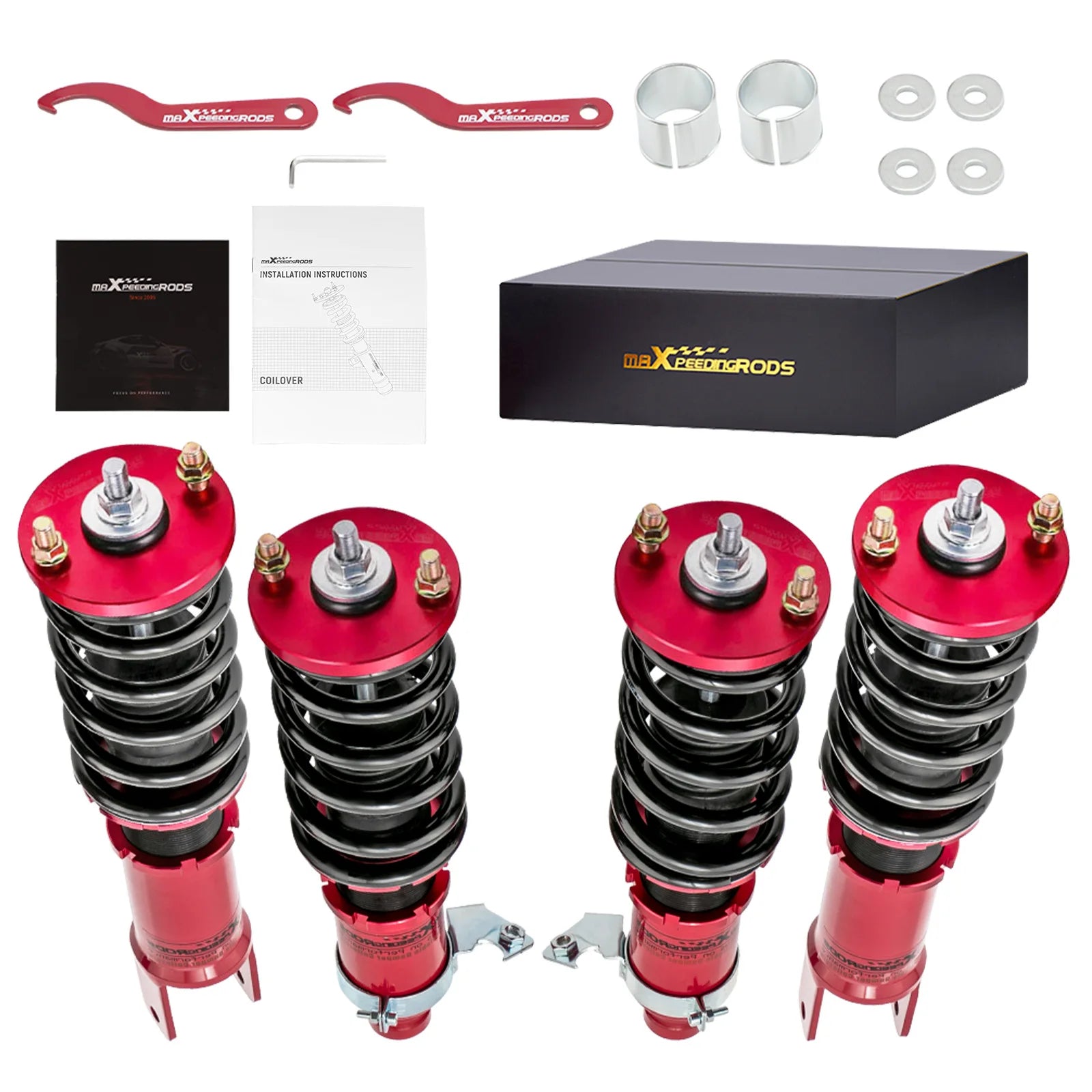

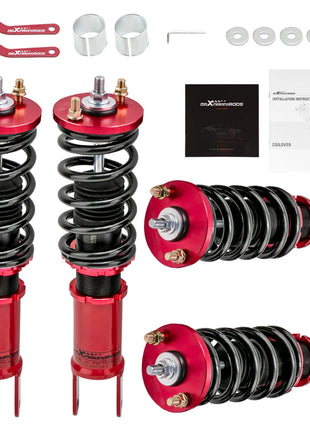

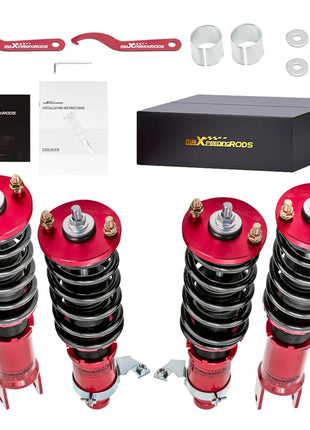

4. Complete Suspension Kit of 4 Shock Absorbers & 4 Springs for an easy installation.
5. Separate height adjustment does not affect damper stroke.
6. Height can be adjusted with coilovers installed on the vehicle.
7. High Tensile performance spring - STRESS TESTED OVER 600,000 times while the spring distortion is less than 0.04%. Plus the special surface treatment improves the durability and performance.
8. Height Adjustment tools included.
9. Most pieces in our coilover systems, including mounts, collars and spring perches, are designed from 6061-T6 Billet Aluminum resulting in lightweight, durable and rust resistant components.
10. Steel shock bodies with special surface treatment to improve the durability.
11. Full rebuildable.
Note:
* Professional installation and alignment suggested.
